Tele remote control
Содержание
- 1. Tele remote control
- 2. Connection and drilling with Tele RemoteDrilling from the control roomAccess Point
- 3. Connection and drilling with Tele RemoteThe Control
- 4. Connection and drilling with Tele RemotePoint the
- 5. Connection and drilling with Tele RemoteMake sure
- 6. Connection and drilling with Tele RemoteTele Remote
- 7. Connection and drilling with Tele RemoteRequirements for
- 8. Connection and drilling with Tele RemoteLocal modeThe
- 9. Connection and drilling with Tele RemoteSelect the
- 10. Connection and drilling with Tele RemoteAllocate drill rig to remote operator panelCamera button
- 11. Connection and drilling with Tele RemoteConditions for
- 12. Слайд 12
- 13. Слайд 13
- 14. Скачать презентанцию

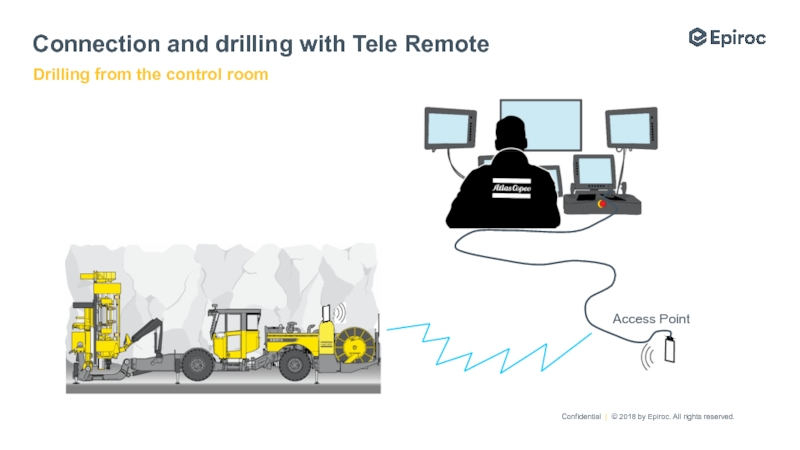

Connection and drilling with Tele RemoteDrilling from the control roomAccess Point
Слайды и текст этой презентации
Слайд 3Connection and drilling with Tele Remote
The Control Room's safety system
circuit must be initialized.
S1 lights off means that the Control
Room machine stop has been initialized.Initialize the Control Room's machine stop by pressing button S1.
Drilling from the Control Room
Слайд 4Connection and drilling with Tele Remote

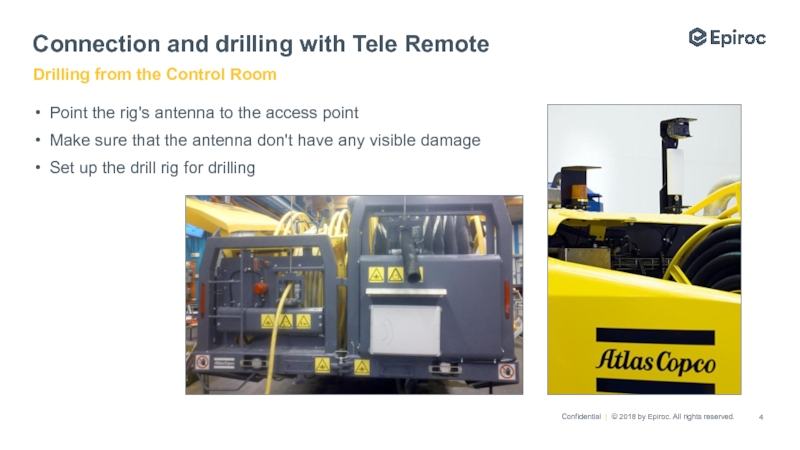

Point the rig's antenna to
the access point
Make sure that the antenna don't have any
visible damageSet up the drill rig for drilling
Drilling from the Control Room

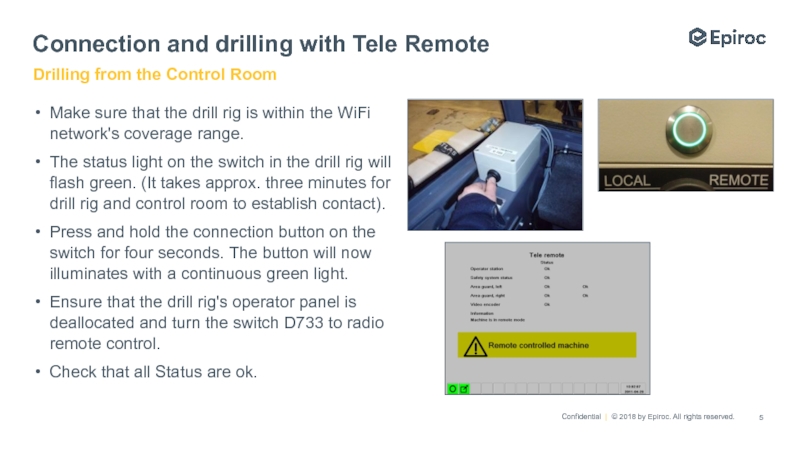

Слайд 5Connection and drilling with Tele Remote
Make sure that the drill
rig is within the WiFi
network's coverage range.
The status
light on the switch in the drill rig will
flash green. (It takes approx. three minutes for
drill rig and control room to establish contact).Press and hold the connection button on the switch for four seconds. The button will now illuminates with a continuous green light.
Ensure that the drill rig's operator panel is deallocated and turn the switch D733 to radio remote control.
Check that all Status are ok.
Drilling from the Control Room
Слайд 6Connection and drilling with Tele Remote

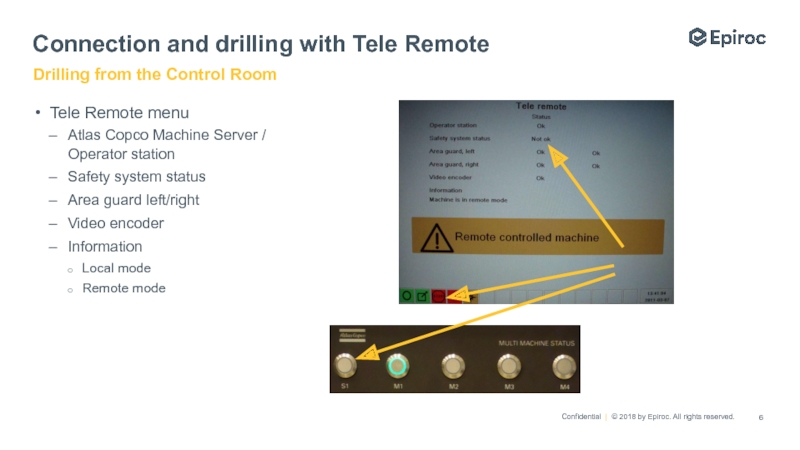

Tele Remote menu
Atlas Copco Machine
Server /
Operator station
Safety system status
Area guard left/right
Video encoder
Information
Local mode
Remote
modeDrilling from the Control Room
Слайд 7Connection and drilling with Tele Remote
Requirements for tele-remote operation
All equipment
in the control room must be started up and communication
between drill rig and control room must be operative.The control room's machine stop circuit must be initiated
Emergency stop on the drill rig must not be activated.
The drill rig's area guard must not be triggered.
The drill rig's operator panel must be deallocated.
Drilling from the Control Room
Слайд 8Connection and drilling with Tele Remote

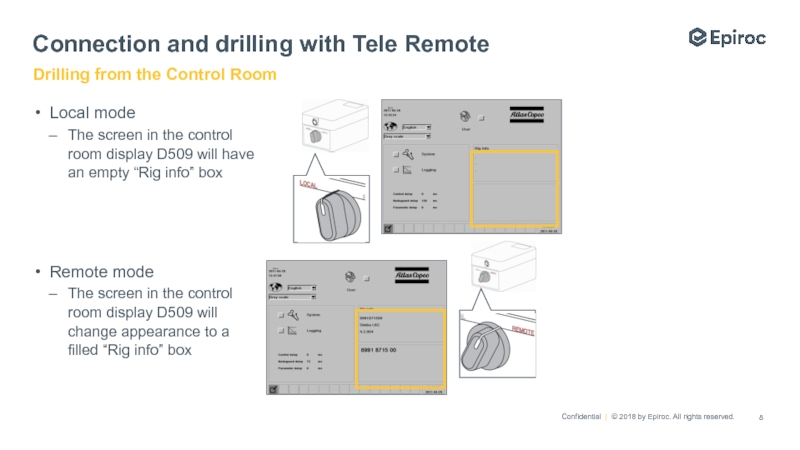

Local mode
The screen in the
control room display D509 will have an empty “Rig info”
boxRemote mode
The screen in the control room display D509 will change appearance to a filled “Rig info” box
Drilling from the Control Room

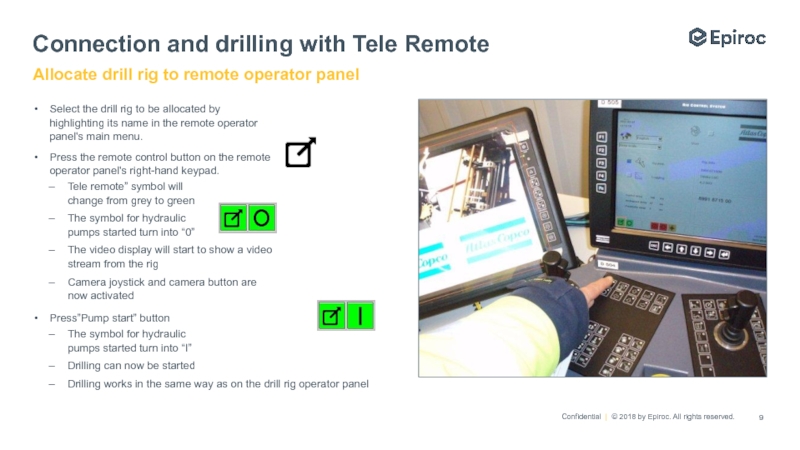

Слайд 9Connection and drilling with Tele Remote
Select the drill rig to
be allocated by highlighting its name in the remote operator
panel's main menu.Press the remote control button on the remote operator panel's right-hand keypad.
Tele remote” symbol will change from grey to green
The symbol for hydraulic pumps started turn into “0”
The video display will start to show a video stream from the rig
Camera joystick and camera button are now activated
Press”Pump start” button
The symbol for hydraulic pumps started turn into “I”
Drilling can now be started
Drilling works in the same way as on the drill rig operator panel

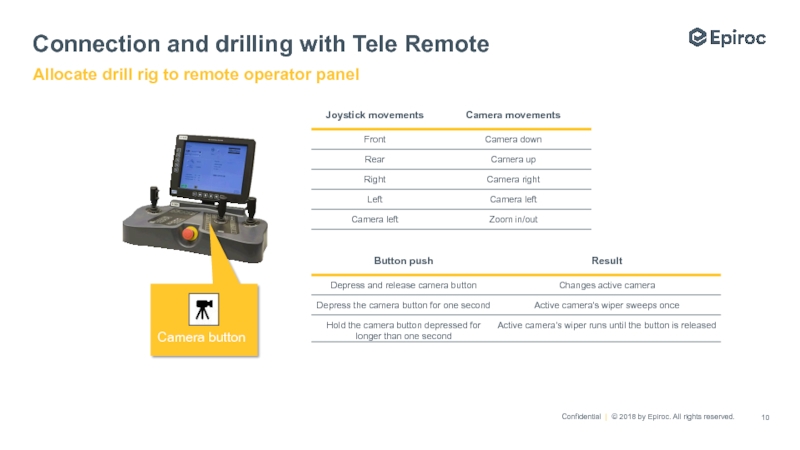

Allocate drill rig to remote operator panel
Слайд 10Connection and drilling with Tele Remote
Allocate drill rig to remote
operator panel
Camera button
Слайд 11Connection and drilling with Tele Remote

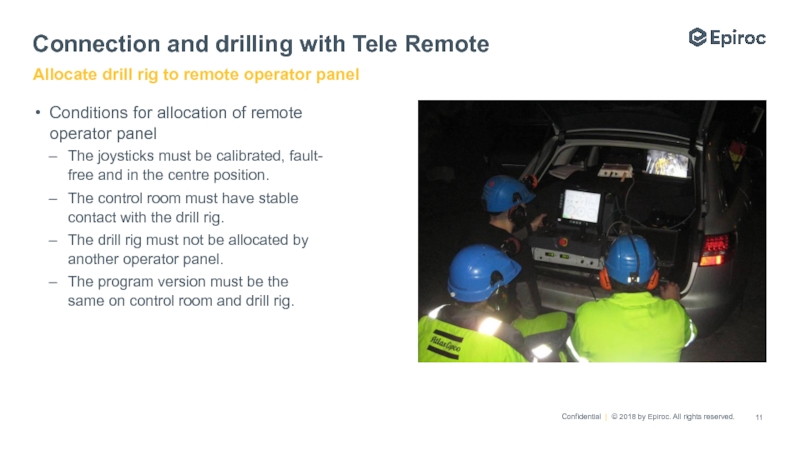

Conditions for allocation of remote
operator panel
The joysticks must be calibrated, fault-
free and in the
centre position.The control room must have stable contact with the drill rig.
The drill rig must not be allocated by another operator panel.
The program version must be the same on control room and drill rig.
Allocate drill rig to remote operator panel
