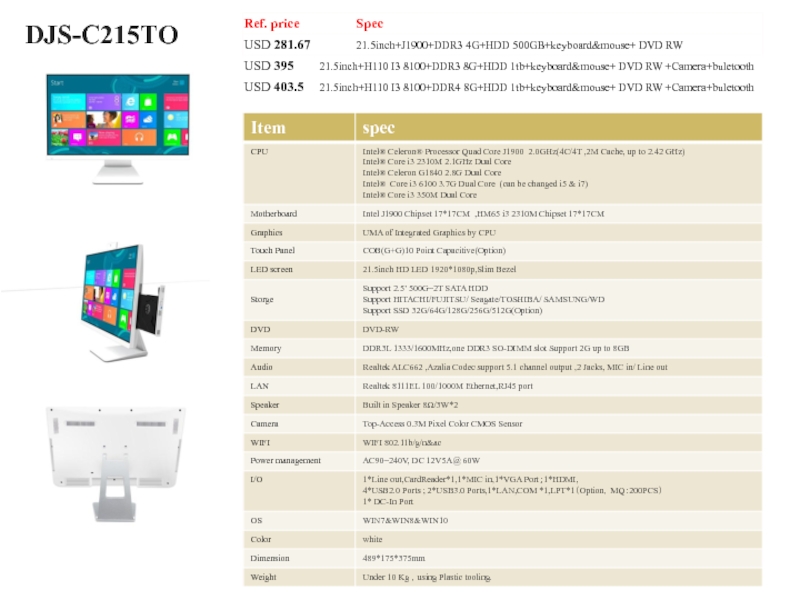

5. DJS-C215TO
6. DJS-D238D

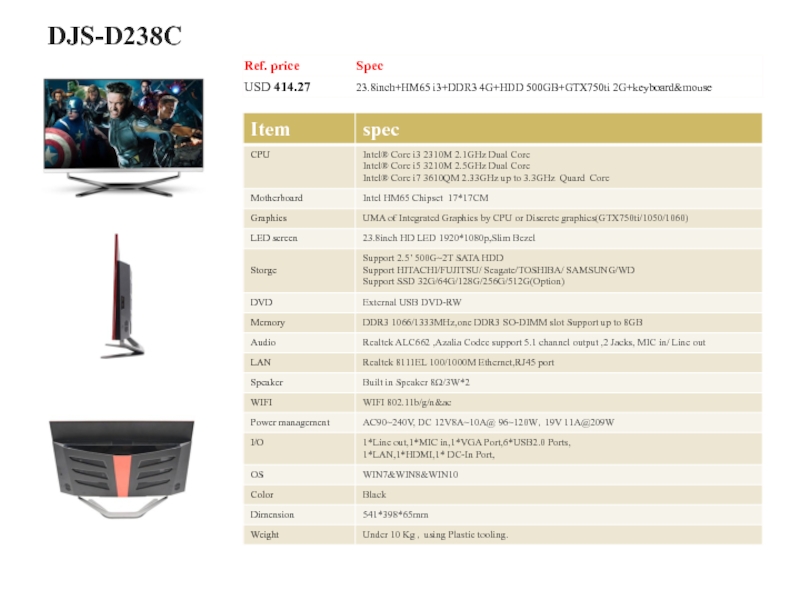

7. DJS-D238C

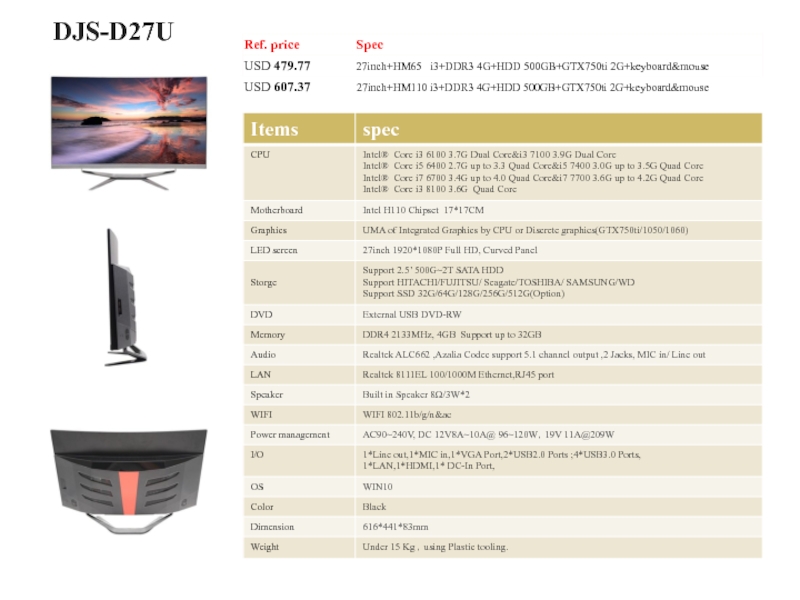

8. DJS-D27U
9. DJS-A Series
10. DJS-B Series
11. DJS-D156T
12. DJS-D195T
13. DJS-D32G
14. DJS-D238A
15. DJS-D238U

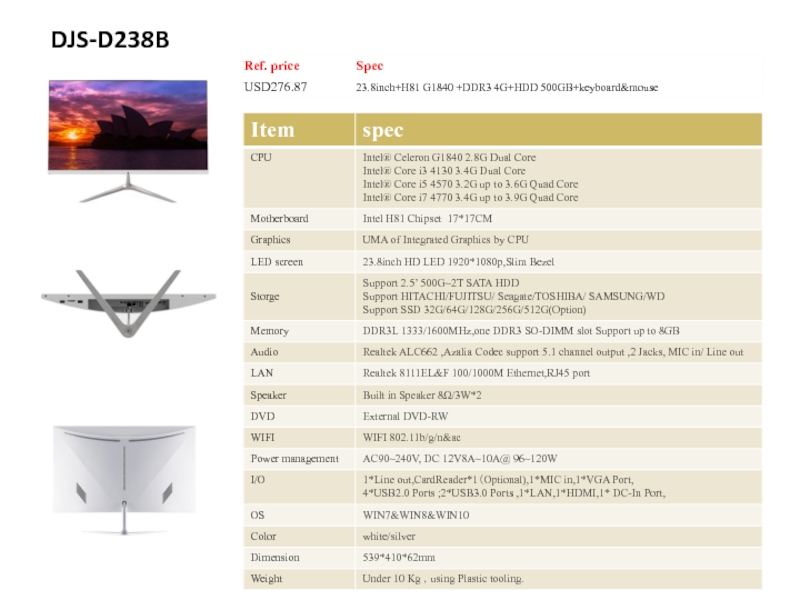

16. DJS-D238B
17. POS Machine PC

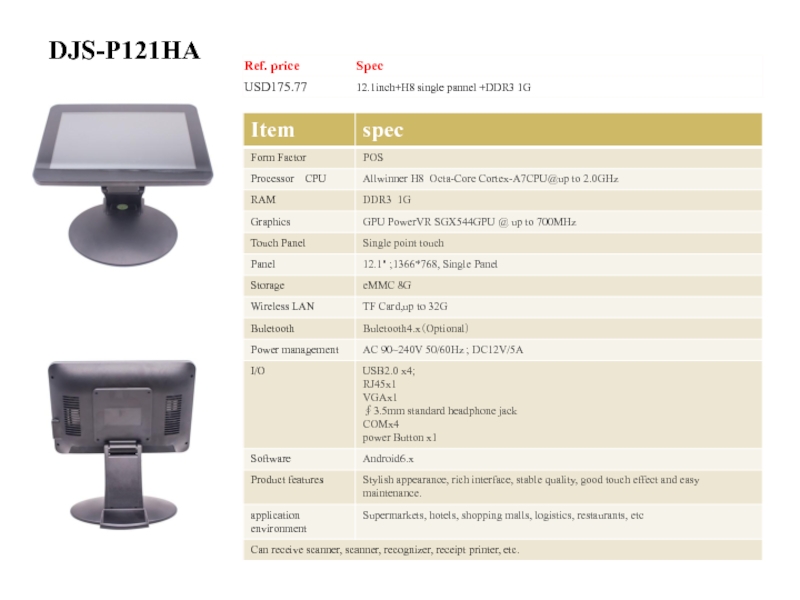

18. DJS-P121HA
19. DJS-P156DP
20. DJS-P156SP
21. DJS-P156H8D
22. DJS-P156S
23. DJS-S121S
24. DJS-S156B
25. DJS-S156P
26. Mini PC
27. DJS-IPC2C2L
28. DJS-IPC6COM
29. DJS-IPC2HDMI
30. MINIPC　F2
31. MINIPC　V
32. MINIPC　T

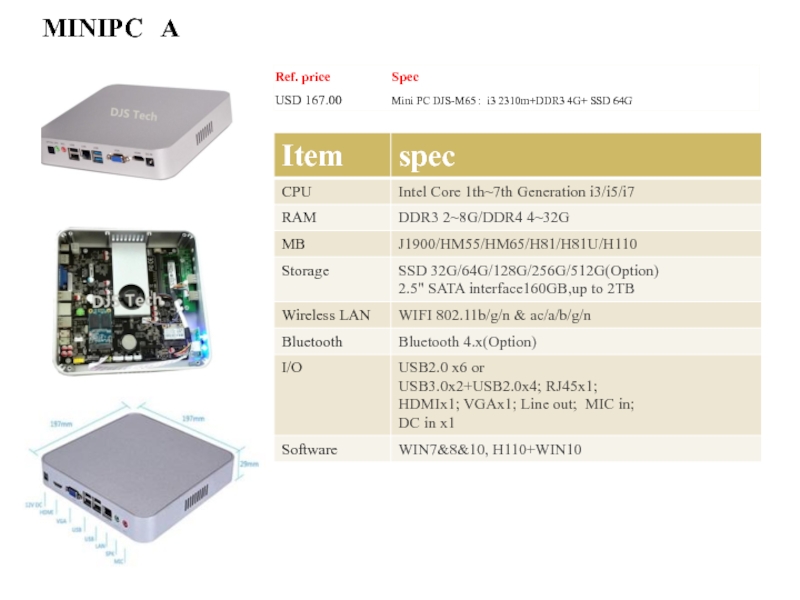

33. MINIPC　A
34. laptop pc
35. DJS-LC156iM
36. DJS-NA141 Series
37. DJS-NA156i
38. DJS- NM133i
39. DesktopMany spec. can be supported but not share in here
40. DJS- C016
41. DJS- C007

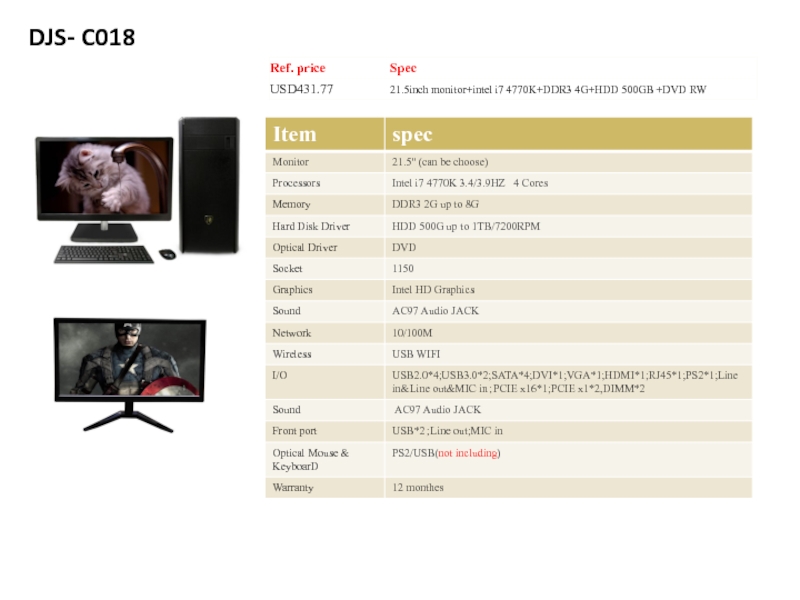

42. DJS- C018

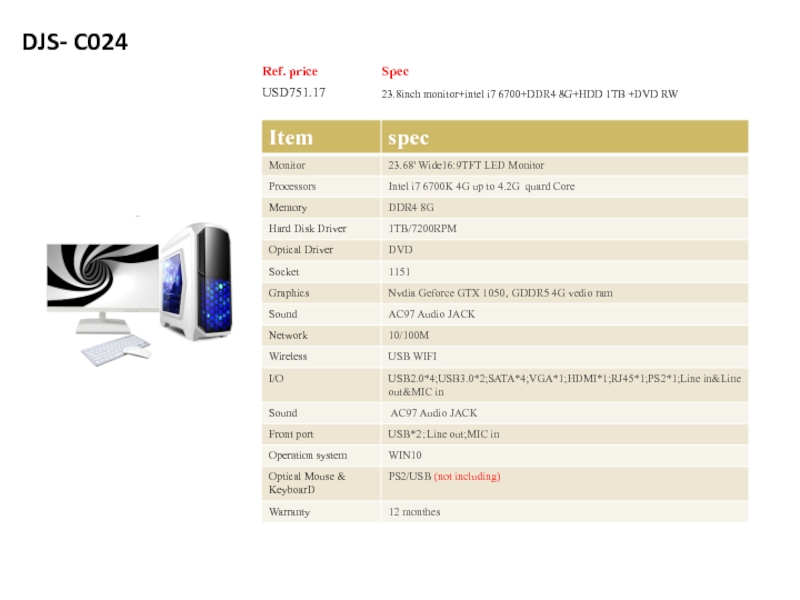

43. DJS- C024
44. Main board
45. DJS-G31-945
46. DJS-G41-775
47. DJS-H55M-1156
48. DJS-H61-1155(USB)
49. Intel H61 ChipsetBuilt-in Intel Graphics Media Accelerator
50. Слайд 50
51. Chipset: Intel H81
52. DJS-H61-1155(P/S2)
53. DJS Team will be in Malaysia from
54. DJS-H81-1150~using for desktop
55. DJS-H110-1151
56. DJS-HM65
57. DJS-H81 using for laptop
58. DJS-H110(all in one)
59. Model Name B75 Intel LGA 1155 motherboard
60. 大进生电子有限公司Da Jin sheng electronics co., ltdThank youAdd:No.1
61. Скачать презентанцию

All - in - one PC

Главная
Разное
CHINA BOX Доставка товаров из Китая 10-15 дней Специфика продукта Tel: +7

Слайды и текст этой презентации

Слайд 1CHINA BOX
Доставка товаров из Китая 10-15 дней
Специфика продукта
Tel: +79066630030

Михаил Давидович

Слайд 2All - in - one PC

Слайд 17POS Machine PC

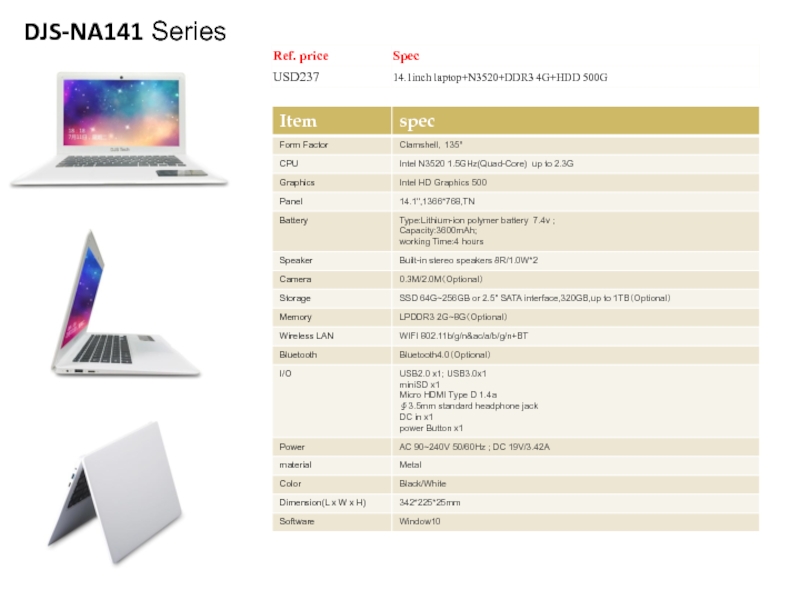

Слайд 36DJS-NA141 Series

Слайд 39Desktop
Many spec. can be supported but not share in here

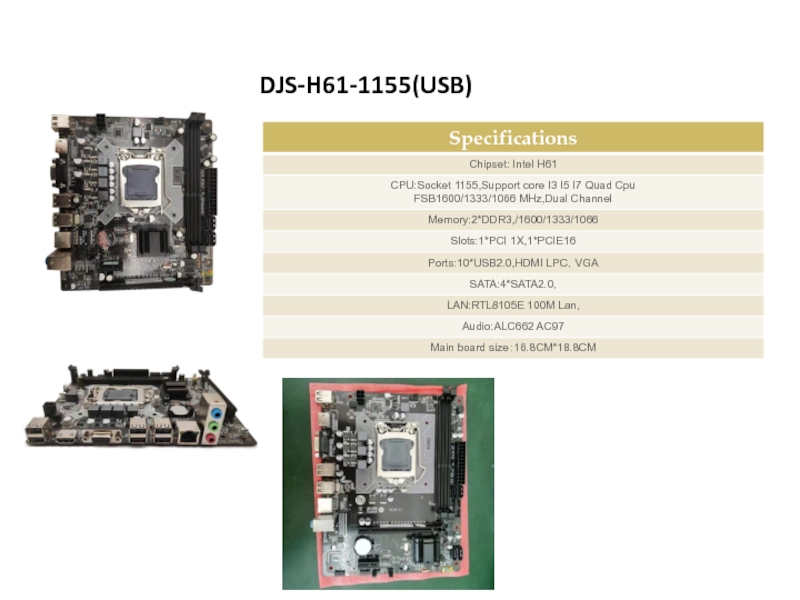

Слайд 48DJS-H61-1155(USB)

Слайд 49Intel H61 Chipset
Built-in Intel Graphics Media Accelerator Package.
CPU Intel Core

i3 / i5 / i7 / Celeron Dual-Core
/ Intel

Pentium Dual-Core Processors in LGA1155 package
Chipset Intel h61
Memory 2 x 240-Pin DDR3 DIMM 1333/1600 MHz slots
Max. Supports up to 16GB.
Graphic Intel Graphics Media Accelerator
Multi-GPU Support None
Expansion Slots 1 x PCI Express x1
1 x PCI Express x16
Storage 3 x SATA2 Connector (3Gb/s)
1 x SATA3 Connector (6Gb/s)
LAN Realtek 8105E/8111E 10/100/1000 LAN Controller
Audio 1 x 5.1 Channel Audio Jack
AC'97 2.3 Specification Compliant
Onboard Line-in Jack, Microphone Jack, Line-out Jack.
USB Ports 4 x USB 2.0 (2 at Back, 2 at mid-board USB Header)
3 x USB 3.0 (2 at Back, 1 at mid-board USB Header)
Supports Hot-Pluging, Wake-Up from S1 and S3 mode
Rear I/O Ports 2 x PS2 Keyboard/Mouse
1 x HDMI 1 x VGA port
2 x USB 2.0 1 x RJ45 2 x USB 3.0
1 x 5.1 Channel Audio Jacks
Internal I/O Ports 2 x USB 2.0 Header (each header support 2 USB Ports)
1 x USB 3.0 Header 1 x Front Audio Header
1 x Front Panel Header 1 x CPU Fan Header
1 x Internal Speaker Header 1 x System Fan Header
3 x SATA2 3Gb/s Connectors
1 x SATA3 6Gb/s Connector 1 x COM Header
1 x CLR_CMOS Jumper
1 x 24-Pin ATX Main Power Supply Header
1 x 4-Pin ATX 12V Power Supply Header
Accessories 1 x I/O Shield 1 x SATA cable
Operating System Supports Windows 7/10
Size: 17 x 17 cm

Intel H61 ChipsetBuilt-in Intel Graphics Media Accelerator Package.CPU Intel Core i3 / i5 / i7 / Celeron

Слайд 50

Слайд 51Chipset: Intel H81

CPU:Socket 1150,Support core I3 I5 I7 Quad Cpu FSB:1600/1333/1066 MHz,Dual Channel Memory:2*DDR3,1600/1333/1066 SATA:2× SATA 6Gb/s connector and 2×SATA 3Gb/s connector Slots:1*PCI1X,1*PCIE16X Ports: 2× USB 3.0，6×USB 2,P/S2,VGA,HDMI LAN:RTL8105E 100M Lan, Audio:ALC662 AC97 Main board size：16.8CM*21CM

Слайд 52DJS-H61-1155(P/S2)

Слайд 53DJS Team will be in Malaysia from 1~10th August ,

welcome to get meeting there. If you have opinion about

personal computer/all in one PC/mini PC/POS machine/motherboard.

深圳大进生电子有限公司

DJS Team will be in Malaysia from 1~10th August , welcome to get meeting there. If you

Слайд 54DJS-H81-1150~using for desktop

Слайд 55DJS-H110-1151

Слайд 56DJS-HM65

Слайд 57DJS-H81 using for laptop

Слайд 58DJS-H110(all in one)

Слайд 59Model Name B75 Intel LGA 1155 motherboard with Dual channels

DDR3 SATA3 integrated intel graphic accelerator
Highlight intel H61chipset motherboard LGA

1155 cpu motherboard ddr3 mother board sata3 system board base board mainboard pc main board
desktop computer motherboard pc gaming motherboard high performance motherboard with HDMI VGA intel graphic accelerator
M ATX i3 i5 i7 xeon CPU motherboard with high dual channel SATA3 ddr3 PCIE 2.0 16x USB 2.0 bios
Features Support Intel Core i3/i5/i7/Celeron Dual-Core/Pentium Dual-Core processors in LGA1155 Package.
Operating System Supports Windows 7/10
Size 17 x 17 cm
