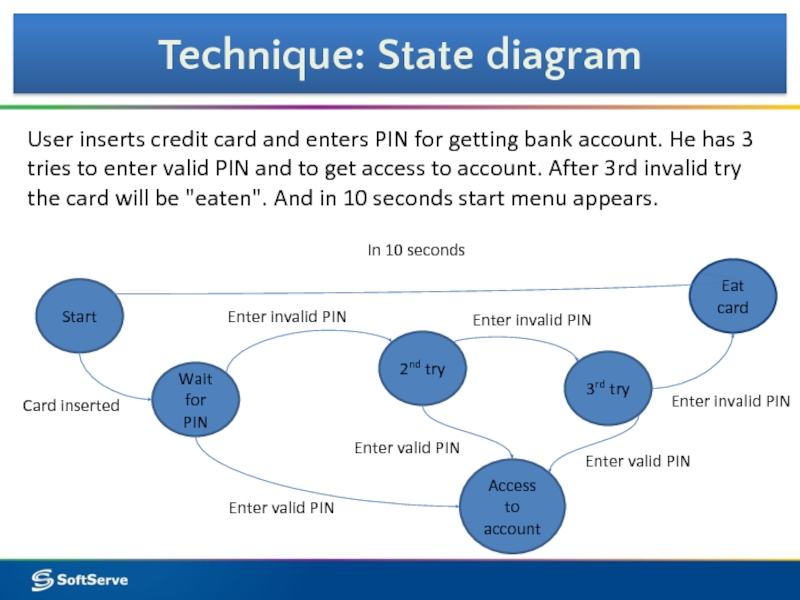

9. User inserts credit card and enters PIN

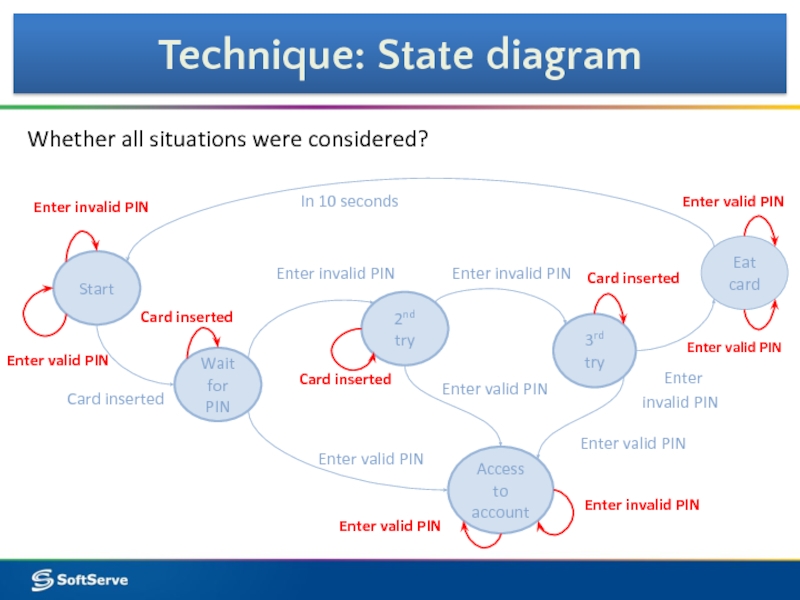

10. Whether all situations were considered? Wait for

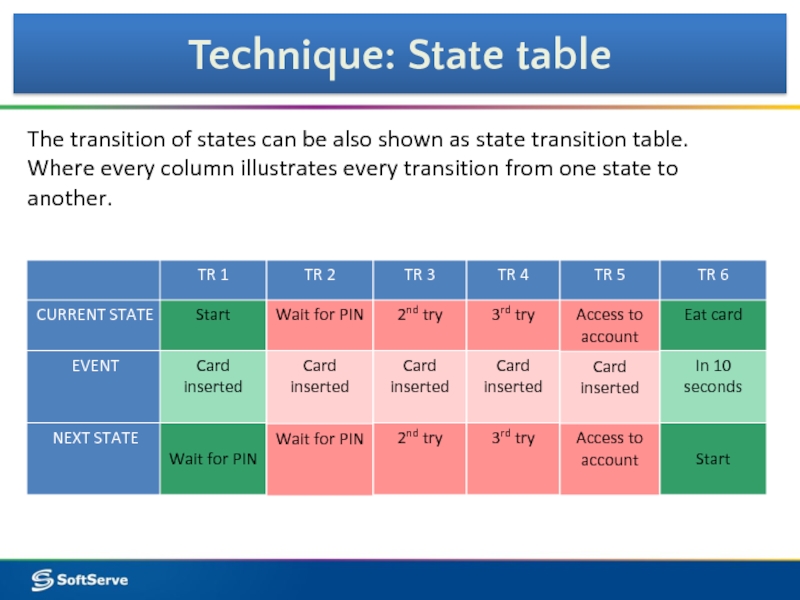

11. The transition of states can be also

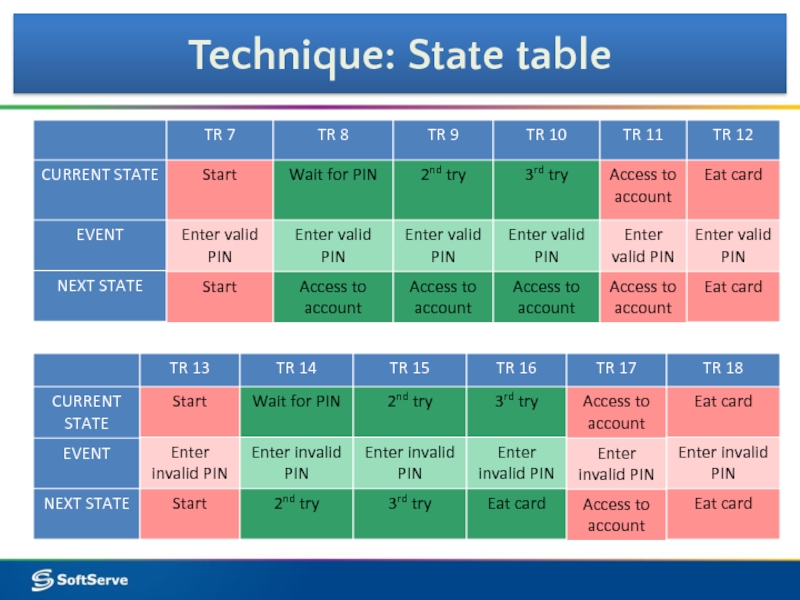

12. Technique: State table
13. The end The end of the first lesson.
14. Скачать презентанцию

Practice2Practice6Practice1CourseLesson2Lesson3Lesson1Course

Главная
Разное
State Transition Testing Technique Training

Слайды и текст этой презентации

Слайд 1State Transition Testing Technique Training
Kateryna Dribas

Слайд 2Practice2
Practice6
Practice1
Course
Lesson2
Lesson3
Lesson1
Course

Слайд 3Agenda
1. Introduction.

First lesson:
3. The end.
2. Technique:

2.1. Designations;
2.2. State

diagram;

2.3. State table;

Agenda1. Introduction. First lesson:3. The end.2. Technique: 2.1. Designations;

Слайд 4Introduction
Let’s remember…

Testing that involves the execution of the software of

a component or system.

What is dynamic testing?

What is black box

testing?

Method of testing that examines the functionality of an application without peering into its internal logical structure.

Input

Output

Black box

IntroductionLet’s remember…Testing that involves the execution of the software of a component or system.What is dynamic testing?What

Слайд 5Introduction
What is finite state system?

Finite state system is any

system where user gets a different output for the same

input, depending on what has happened before.

What is state transition testing?

State transition technique is a dynamic black-box testing technique, which is used when the system is defined in terms of states and the transitions between the states is governed by the rules of the system.

IntroductionWhat is finite state system? Finite state system is any system where user gets a different output

Слайд 6Introduction
What is it used for?
- gives us the opportunity

to visualize all of the states in which the system

(application) can exist;

- to capture certain kinds of system requirements and to document internal system design;

- can serve as a guide to creating test cases;

- is used in cases when system’s reaction depends on its state.

IntroductionWhat is it used for? - gives us the opportunity to visualize all of the states in

Слайд 7Technique

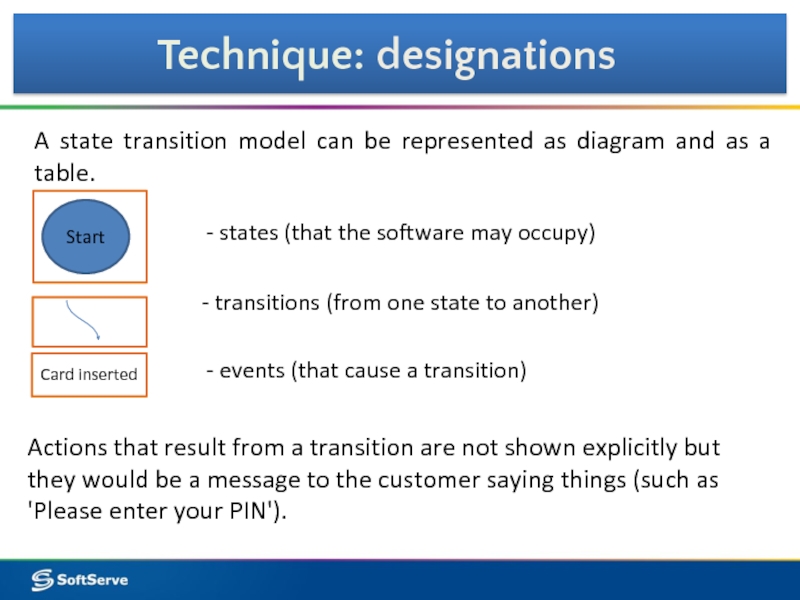

Слайд 8Start
Card inserted
- states (that the software may occupy)
-

transitions (from one state to another)
- events (that cause

a transition)

Actions that result from a transition are not shown explicitly but they would be a message to the customer saying things (such as 'Please enter your PIN').

Technique: designations

A state transition model can be represented as diagram and as a table.
