Measure blood pressure in pulmonary artery by Echocardiography Made by Abhishek

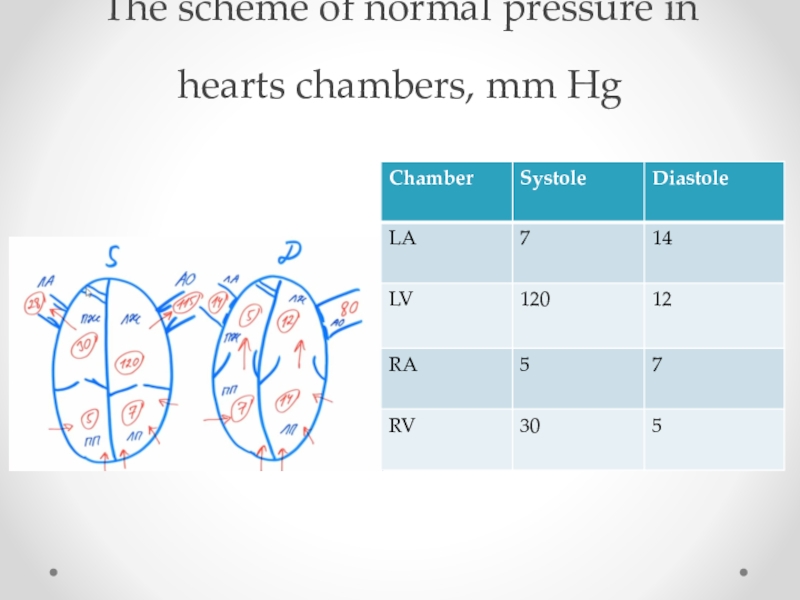

The scheme of normal pressure in hearts chambers, mm Hg

Слайды и текст этой презентации

Слайд 1



Measure blood pressure in pulmonary artery by
Echocardiography

Made by Abhishek Raj
2nd year (PSMU)
Group # 37

Teacher – Doctor Olga Goryacheva


Слайд 3The scheme of normal pressure in hearts chambers, mm Hg

The scheme of normal pressure in hearts chambers, mm Hg

Слайд 4c
Transthoracic visualization
of pulmonary artery is very pure

cTransthoracic visualization of pulmonary artery is very pure

Слайд 5RA and RV enlargement
Sign of Pulmonary Hypertension #1

RA and RV enlargementSign of Pulmonary Hypertension #1

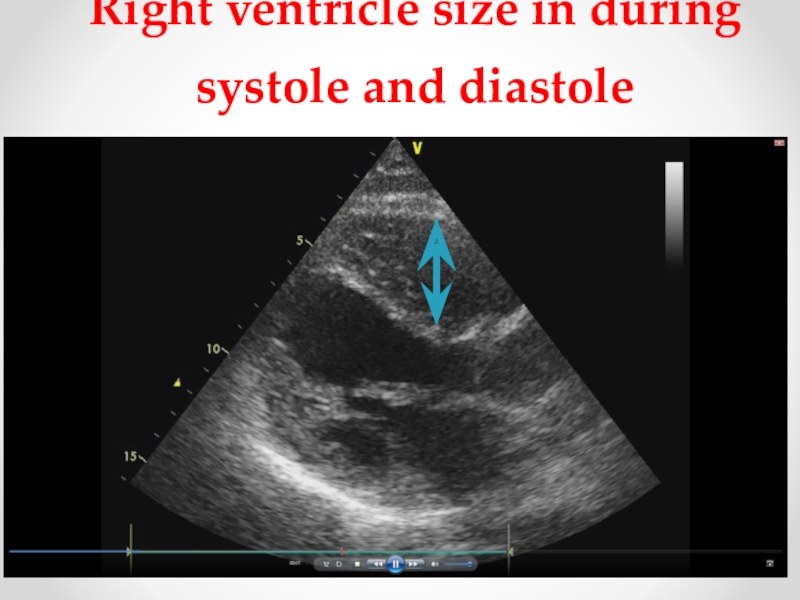

Слайд 6Right ventricle size in during systole and diastole

Right ventricle size in during systole and diastole

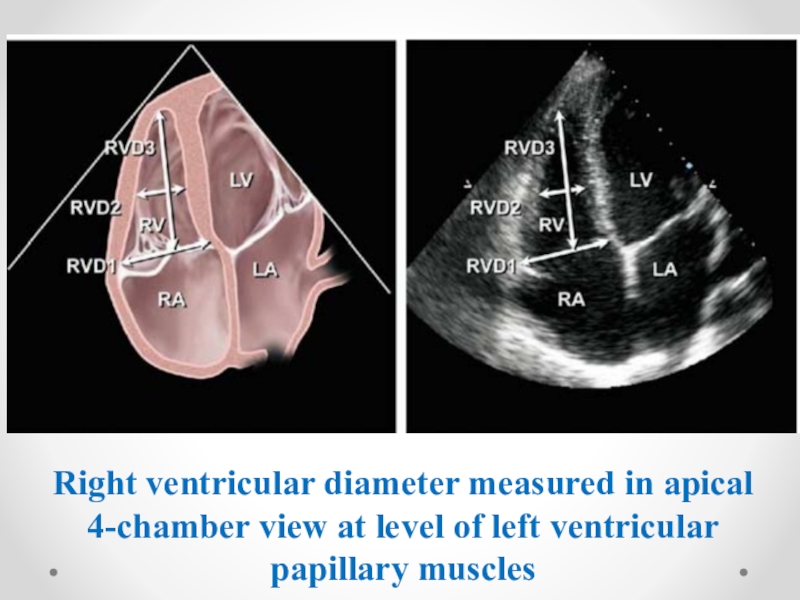

Слайд 7Right ventricular diameter measured in apical 4-chamber view at level

of left ventricular papillary muscles

Right ventricular diameter measured in apical 4-chamber view at level of left ventricular papillary muscles

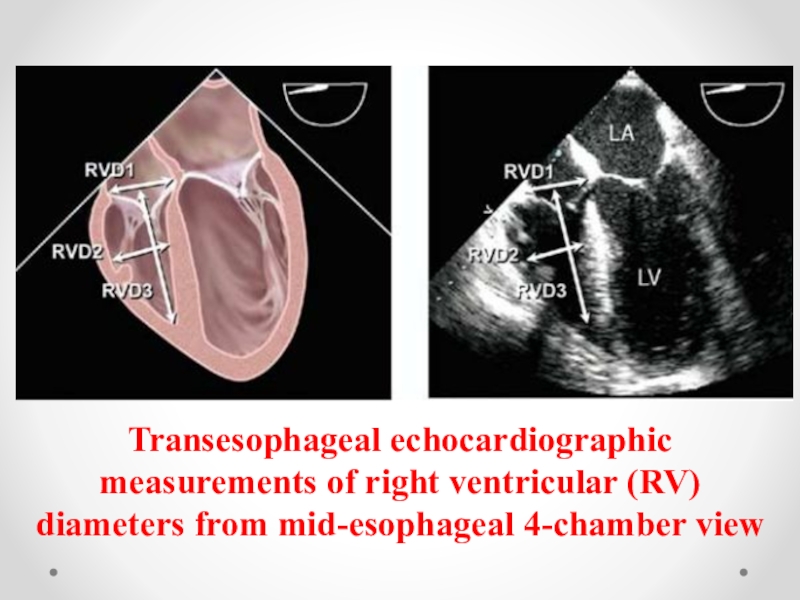

Слайд 8Transesophageal echocardiographic measurements of right ventricular (RV) diameters from mid-esophageal

4-chamber view

Transesophageal echocardiographic measurements of right ventricular (RV) diameters from mid-esophageal 4-chamber view

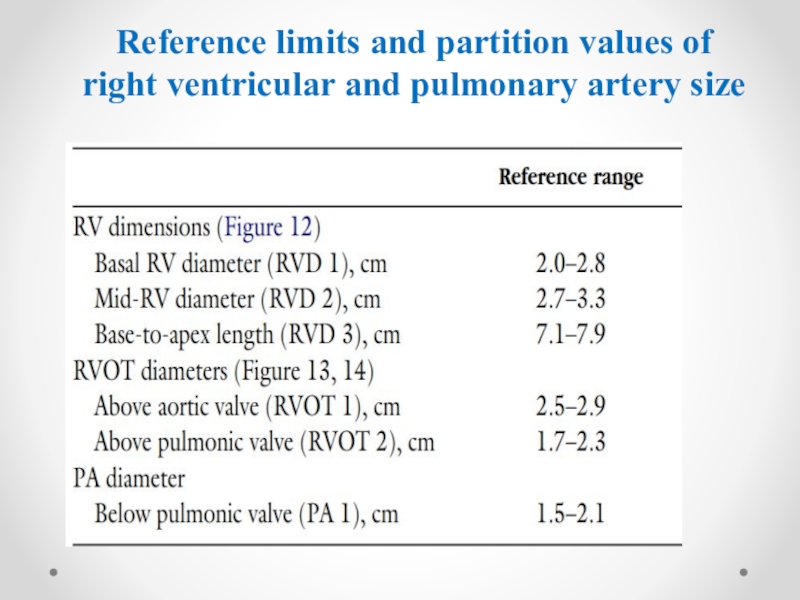

Слайд 9Reference limits and partition values of right ventricular and pulmonary

artery size

Reference limits and partition values of right ventricular and pulmonary artery size

Слайд 10Reference limits and partition values of right ventricular size and

function as measured in the apical 4-chamber view

Reference limits and partition values of right ventricular size and function as measured in the apical 4-chamber

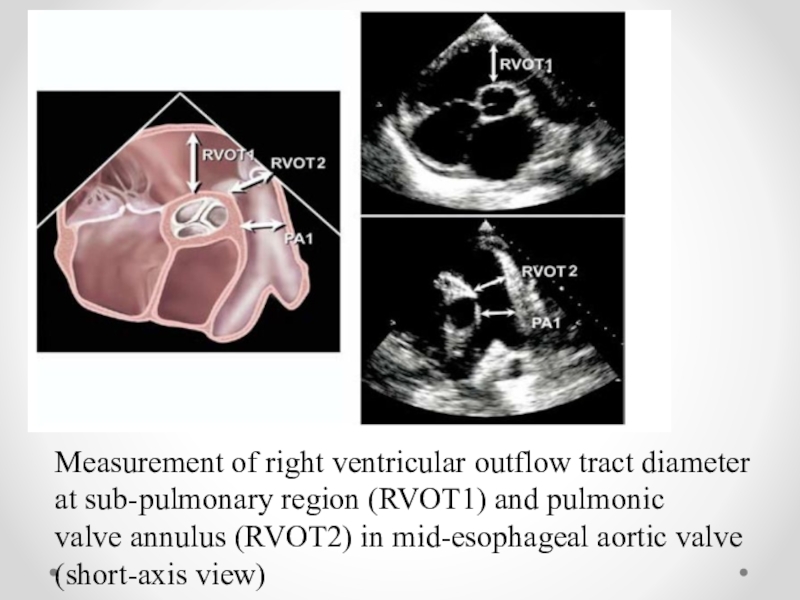

Слайд 11Measurement of right ventricular outflow tract diameter at sub-pulmonary region

(RVOT1) and pulmonic
valve annulus (RVOT2) in mid-esophageal aortic valve
(short-axis view)






Measurement of right ventricular outflow tract diameter at sub-pulmonary region (RVOT1) and pulmonicvalve annulus (RVOT2) in mid-esophageal

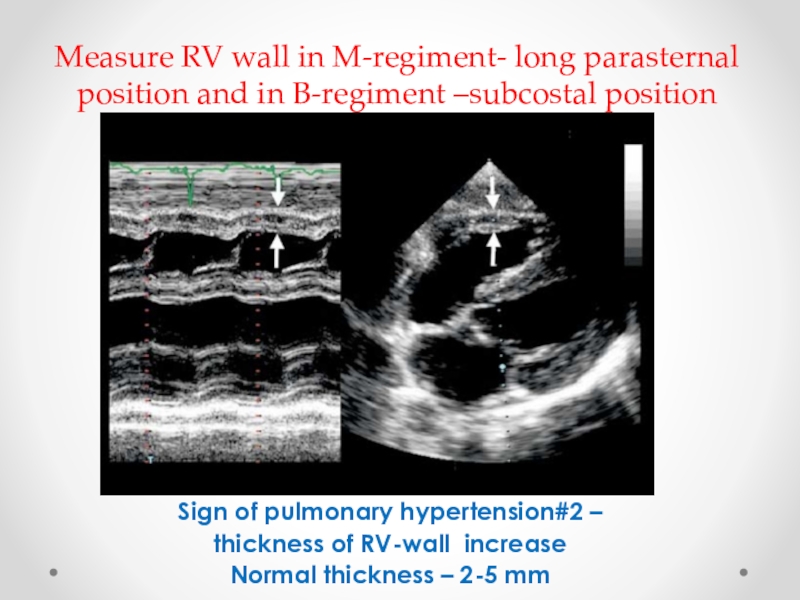

Слайд 12Measure RV wall in M-regiment- long parasternal position and in

B-regiment –subcostal position
Sign of pulmonary hypertension#2 –
thickness of RV-wall increase
Normal

thickness – 2-5 mm

Measure RV wall in M-regiment- long parasternal position and in B-regiment –subcostal positionSign of pulmonary hypertension#2 –thickness

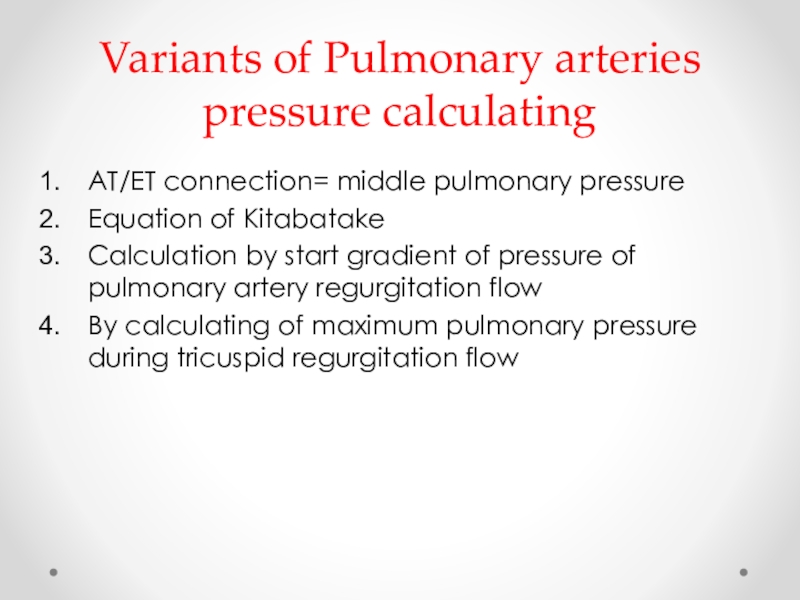

Слайд 13Variants of Pulmonary arteries pressure calculating
AT/ET connection= middle pulmonary

pressure
Equation of Kitabatake
Calculation by start gradient of pressure of pulmonary

artery regurgitation flow
By calculating of maximum pulmonary pressure during tricuspid regurgitation flow







Variants of Pulmonary arteries pressure calculating AT/ET connection= middle pulmonary pressureEquation of KitabatakeCalculation by start gradient of

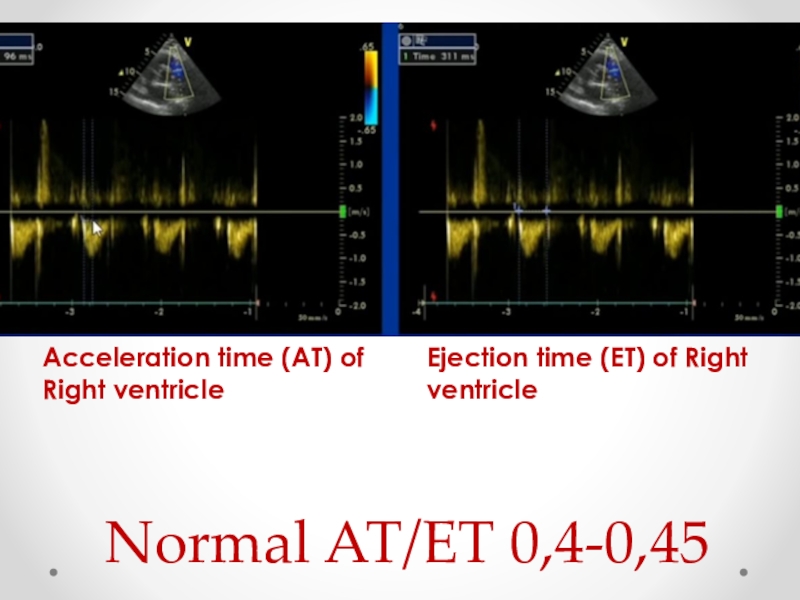

Слайд 14Acceleration time (AT) of Right ventricle
Ejection time (ET) of Right

ventricle
Normal AT/ET 0,4-0,45

Acceleration time (AT) of Right ventricleEjection time (ET) of Right ventricleNormal AT/ET 0,4-0,45

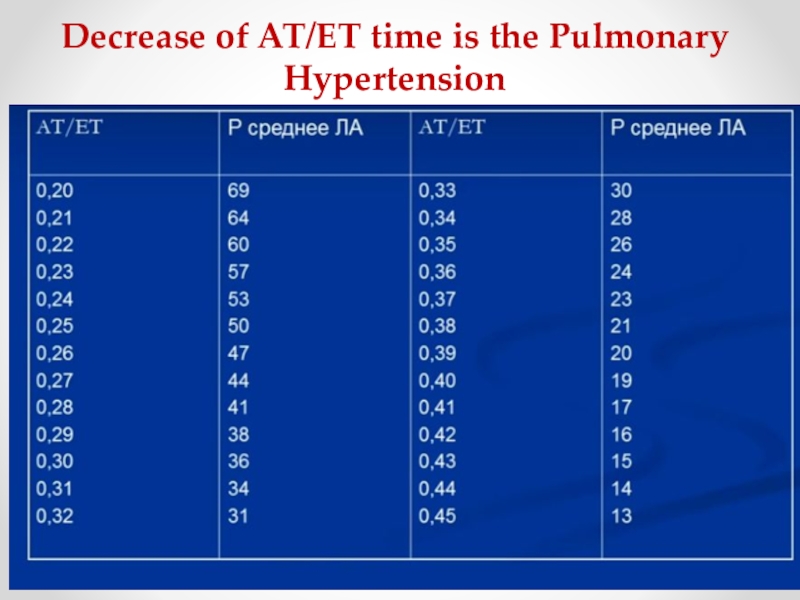

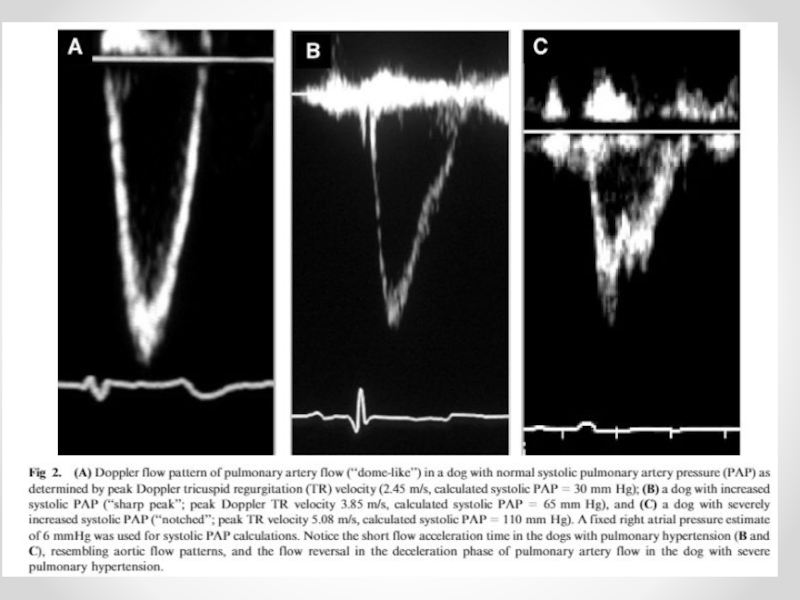

Слайд 15Decrease of AT/ET time is the Pulmonary Hypertension

Decrease of AT/ET time is the Pulmonary Hypertension

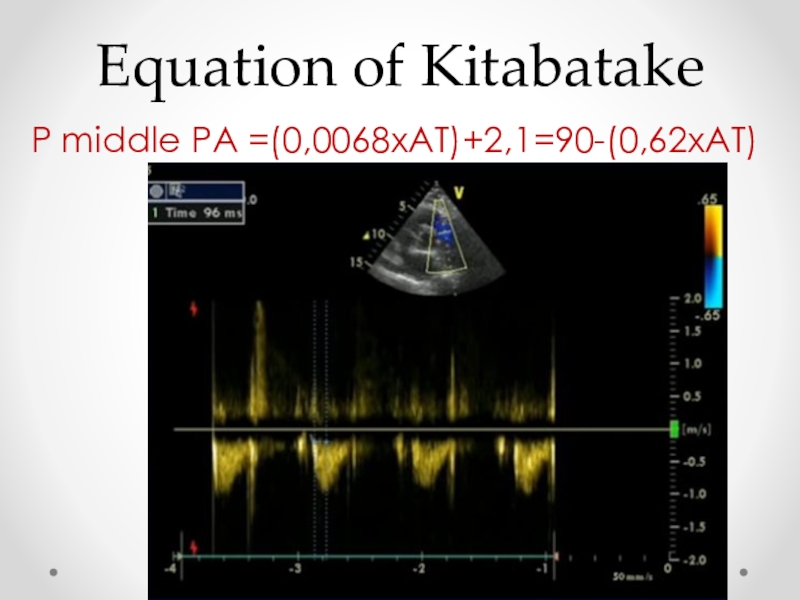

Слайд 17Equation of Kitabatake
P middle PA =(0,0068хАТ)+2,1=90-(0,62хАТ)

Equation of KitabatakeP middle PA =(0,0068хАТ)+2,1=90-(0,62хАТ)

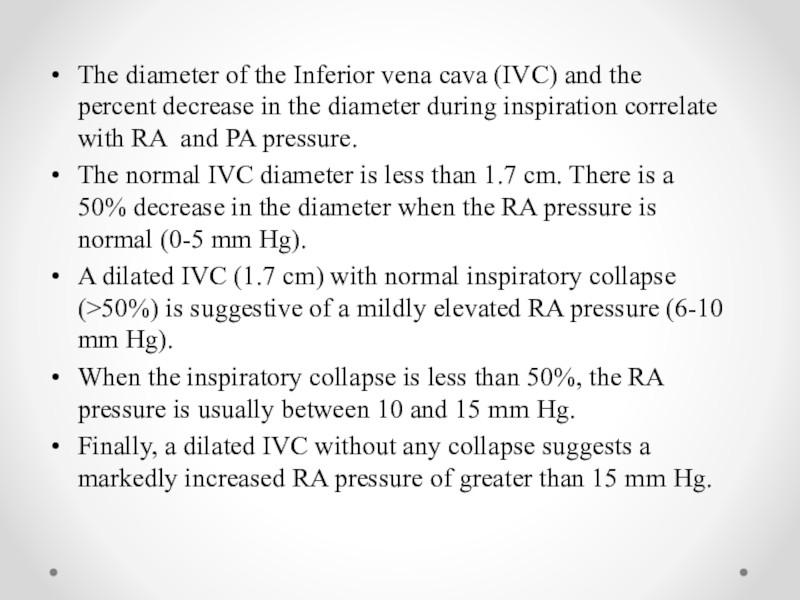

Слайд 18The diameter of the Inferior vena cava (IVC) and the

percent decrease in the diameter during inspiration correlate with RA

and PA pressure.
The normal IVC diameter is less than 1.7 cm. There is a 50% decrease in the diameter when the RA pressure is normal (0-5 mm Hg).
A dilated IVC (1.7 cm) with normal inspiratory collapse (>50%) is suggestive of a mildly elevated RA pressure (6-10 mm Hg).
When the inspiratory collapse is less than 50%, the RA pressure is usually between 10 and 15 mm Hg.
Finally, a dilated IVC without any collapse suggests a markedly increased RA pressure of greater than 15 mm Hg.
The diameter of the Inferior vena cava (IVC) and the percent decrease in the diameter during inspiration

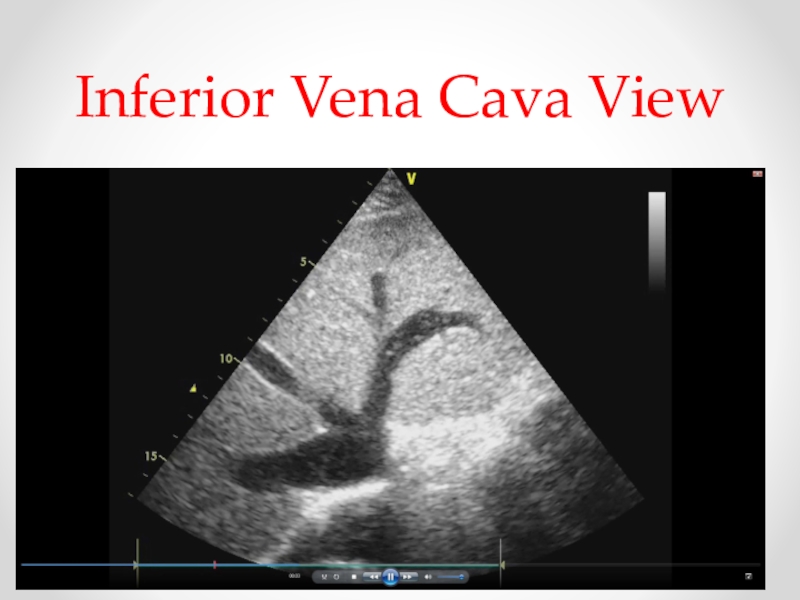

Слайд 19Inferior Vena Cava View

Inferior Vena Cava View

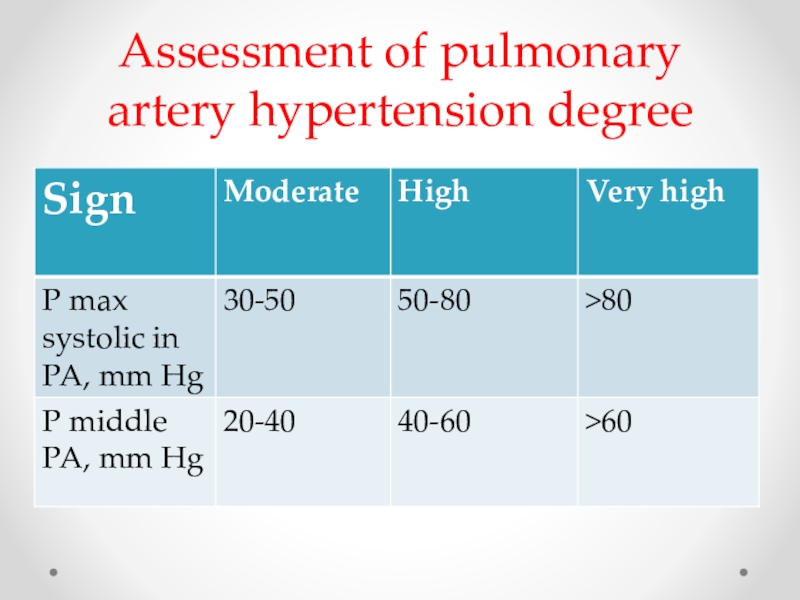

Слайд 20Assessment of pulmonary artery hypertension degree

Assessment of pulmonary artery hypertension degree

Слайд 21Thank you for your attention!

Thank you for your attention!
