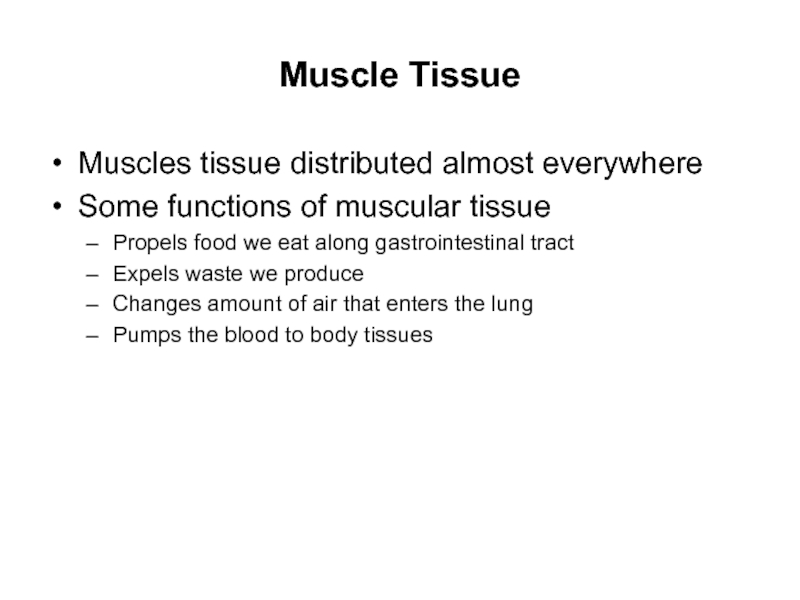

Слайд 2Muscle Tissue
Muscles tissue distributed almost everywhere
Some functions of muscular tissue
Propels
food we eat along gastrointestinal tract
Expels waste we produce
Changes amount
of air that enters the lung
Pumps the blood to body tissues

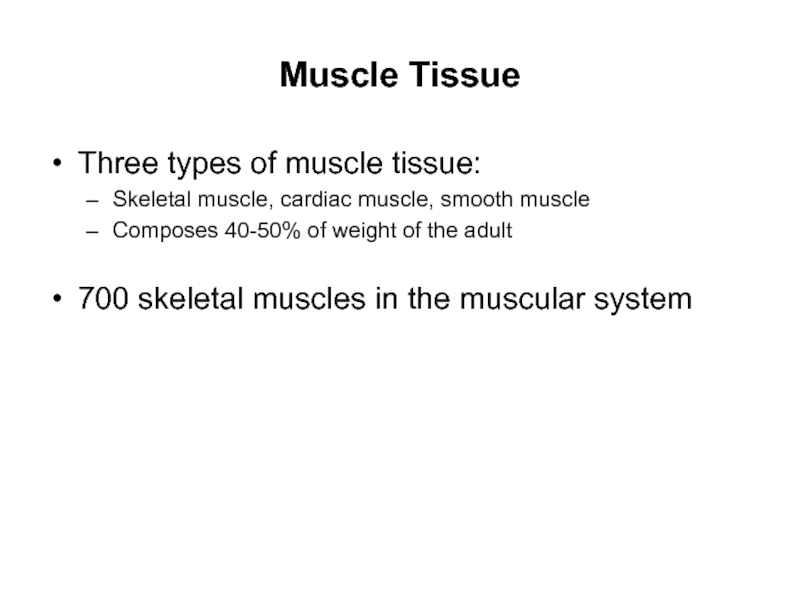

Слайд 3Muscle Tissue
Three types of muscle tissue:
Skeletal muscle, cardiac muscle, smooth
muscle
Composes 40-50% of weight of the adult
700 skeletal muscles in
the muscular system

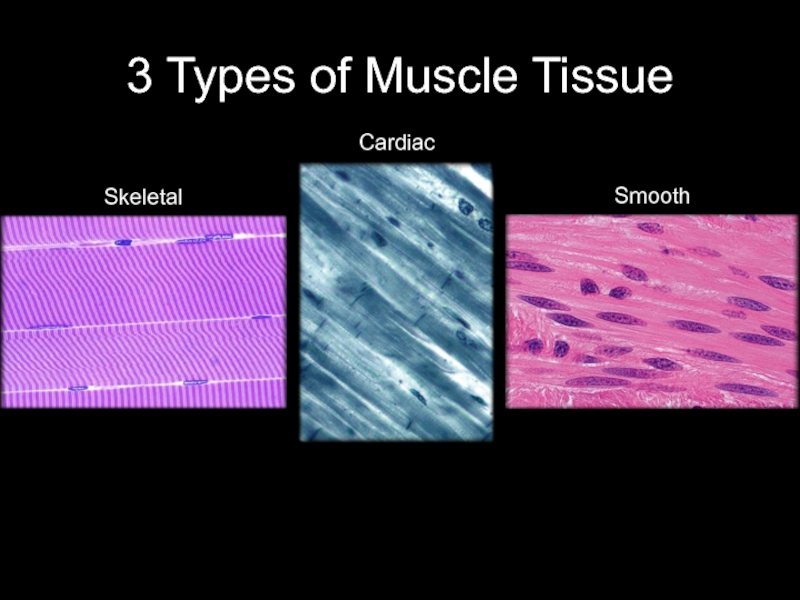

Слайд 43 Types of Muscle Tissue
Skeletal
Smooth
Cardiac
Слайд 5Introduction to Skeletal Muscle:
Functions of Skeletal Muscle
Functions of Skeletal
Muscle
Body movement
Maintenance of posture
Protection and support
Storage and movement of
materials
sphincters,
Heat production
shiver when cold to generate heat

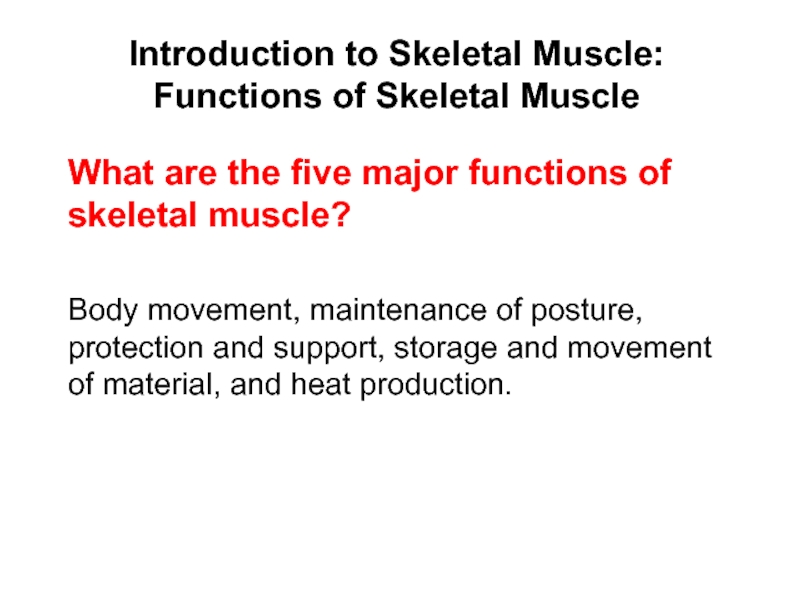

Слайд 6Introduction to Skeletal Muscle:
Functions of Skeletal Muscle
Body movement, maintenance
of posture, protection and support, storage and movement of material,
and heat production.
What are the five major functions of skeletal muscle?
Слайд 7Introduction to Skeletal Muscle:
Characteristics Skeletal Muscle Tissue
Characteristics
Excitability
responsive to nervous
system stimulation
neurons secreting neurotransmitters that bind to muscle cells
Conductivity
electrical change
traveling along plasma membrane
initiated in response to neurotransmitter binding
Contractility
contractile proteins within muscle cells
slide past each other
tension used to pull on bones of skeleton
Слайд 8Introduction to Skeletal Muscle:
Characteristics Skeletal Muscle Tissue
Characteristics (continued)
Elasticity
due to
protein fibers acting like compressed coils
when contraction ended, tension in
proteins released
muscle returns to original length
Extensibility
lengthening of a muscle cell
e.g., extension of the triceps brachii when flex elbow joint
Слайд 9Anatomy of Skeletal Muscle: Gross Anatomy
Skeletal muscle
Composed of thousands of
muscle cells
Typically as long as the entire muscle
Often referred to
as muscle fibers
Organized into bundles, termed fascicles
Muscle composed of fibers, connective tissue, blood vessels, nerves
Слайд 10Skeletal Muscle
High Magnification
Nuclei
A band
I band

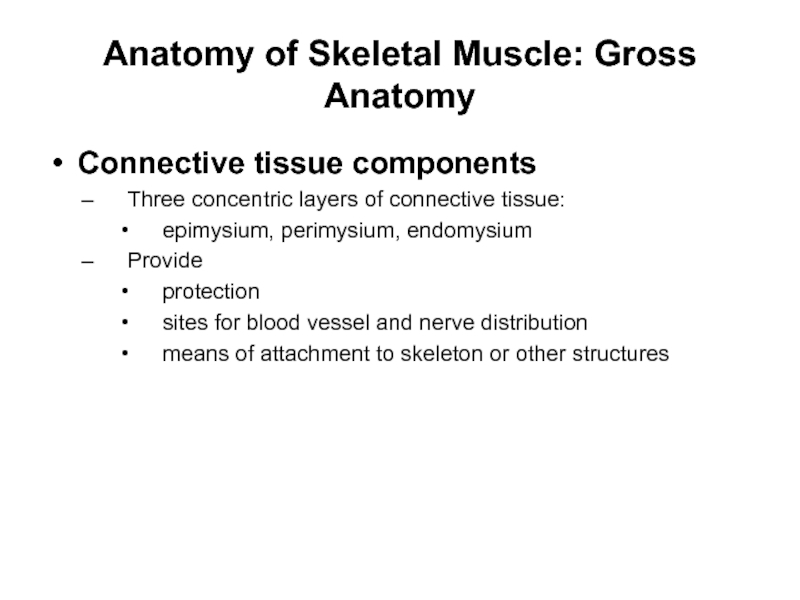

Слайд 11Anatomy of Skeletal Muscle: Gross Anatomy
Connective tissue components
Three concentric layers
of connective tissue:
epimysium, perimysium, endomysium
Provide
protection
sites for blood vessel and
nerve distribution
means of attachment to skeleton or other structures
Слайд 12Anatomy of Skeletal Muscle: Gross Anatomy
Connective tissue components (continued)
Epimysium
layer of
dense irregular connective tissue
surrounds whole skeletal muscle
Perimysium
dense irregular tissue surrounding
the fascicles
contains extensive blood vessels and nerves supplying fibers
Endomysium
innermost connective tissue layer
delicate areolar connective tissue
surrounds and electrically insulates each muscle fiber
contains reticular protein fibers
help bind together neighboring muscle fibers

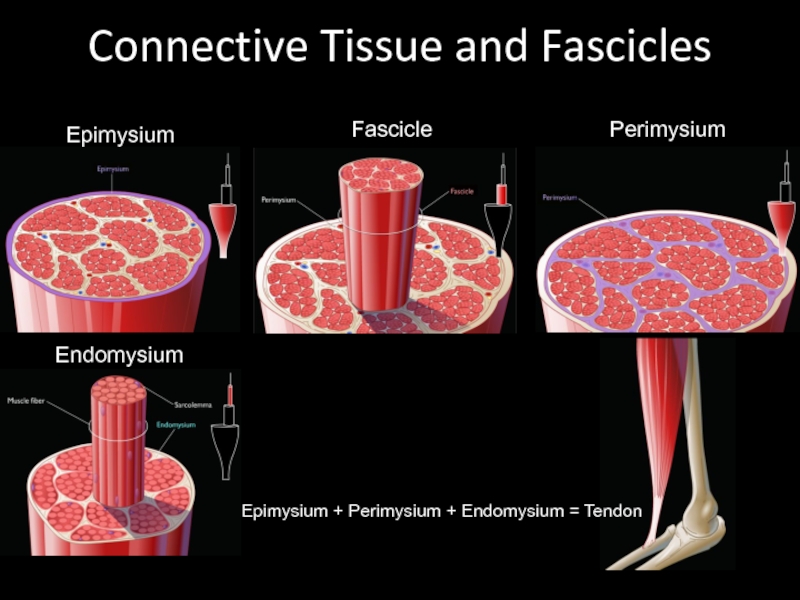

Слайд 13Connective Tissue and Fascicles
Epimysium
Perimysium
Fascicle
Endomysium
Epimysium + Perimysium + Endomysium = Tendon

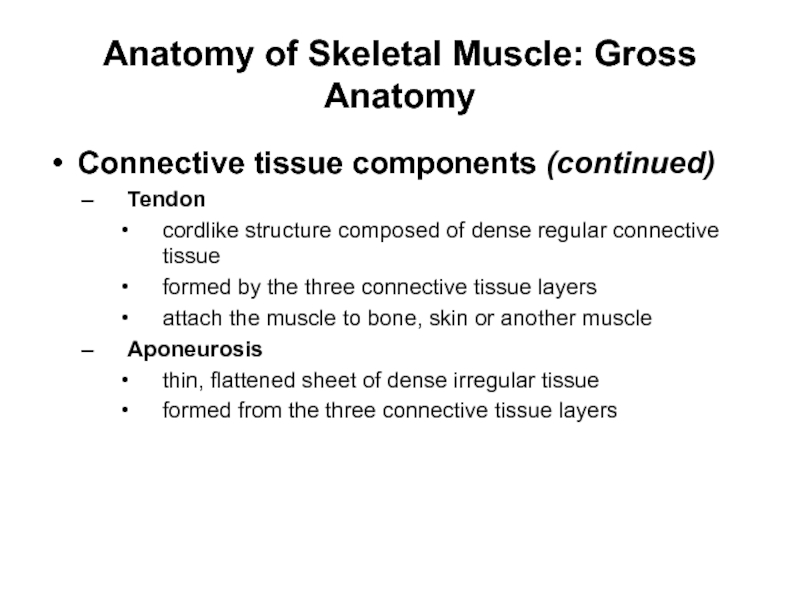

Слайд 14Anatomy of Skeletal Muscle: Gross Anatomy
Connective tissue components (continued)
Tendon
cordlike structure
composed of dense regular connective tissue
formed by the three connective
tissue layers
attach the muscle to bone, skin or another muscle
Aponeurosis
thin, flattened sheet of dense irregular tissue
formed from the three connective tissue layers
Слайд 15Tendon and Aponeurosis of Palmaris Longus muscle
Слайд 16Anatomy of Skeletal Muscle: Gross Anatomy
Connective tissue components (continued)
Deep fascia
additional
sheet of dense irregular connective tissue
external to the epimysium
separates individual
muscles
binds together muscles with similar functions
contains nerves, blood vessels, and lymph vessels
fills spaces between muscles
Слайд 17Superficial and Deep Fasciae
10-
Superficial
Deep

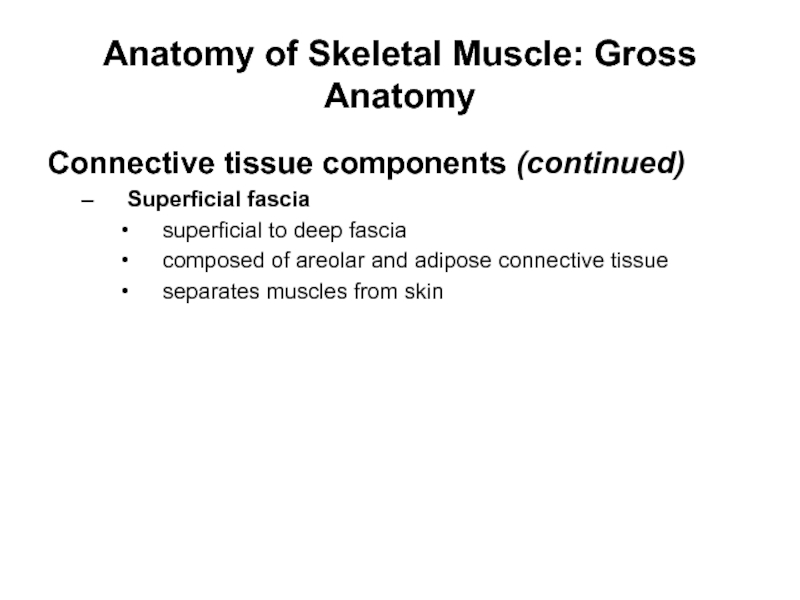

Слайд 18Anatomy of Skeletal Muscle: Gross Anatomy
Connective tissue components (continued)
Superficial fascia
superficial
to deep fascia
composed of areolar and adipose connective tissue
separates muscles
from skin

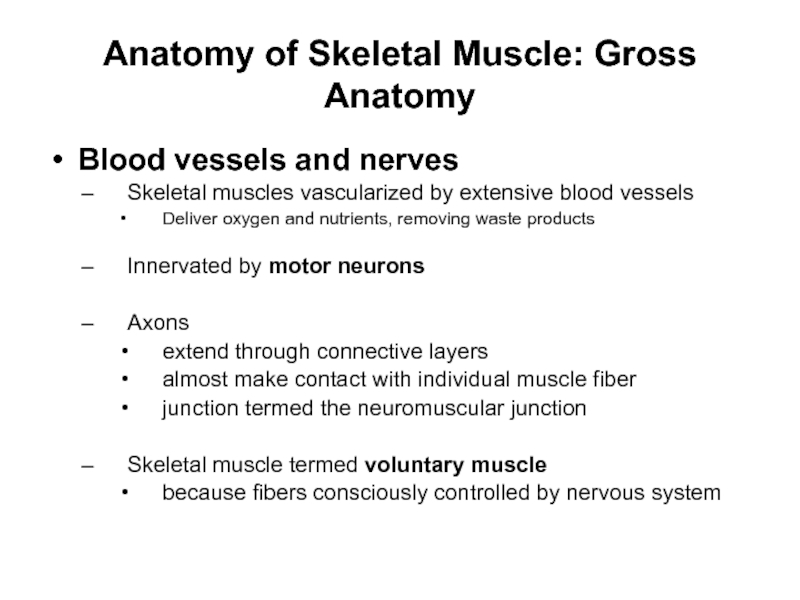

Слайд 28Anatomy of Skeletal Muscle: Gross Anatomy
Blood vessels and nerves
Skeletal muscles
vascularized by extensive blood vessels
Deliver oxygen and nutrients, removing waste
products

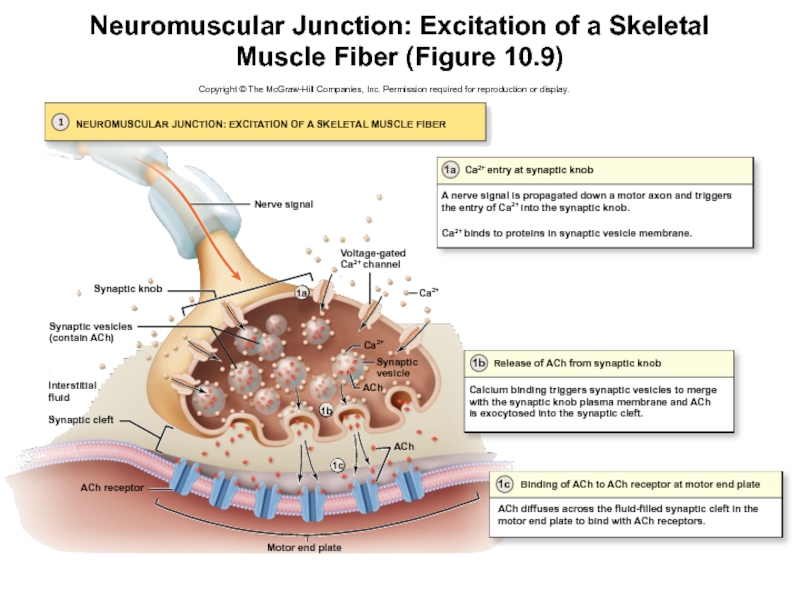

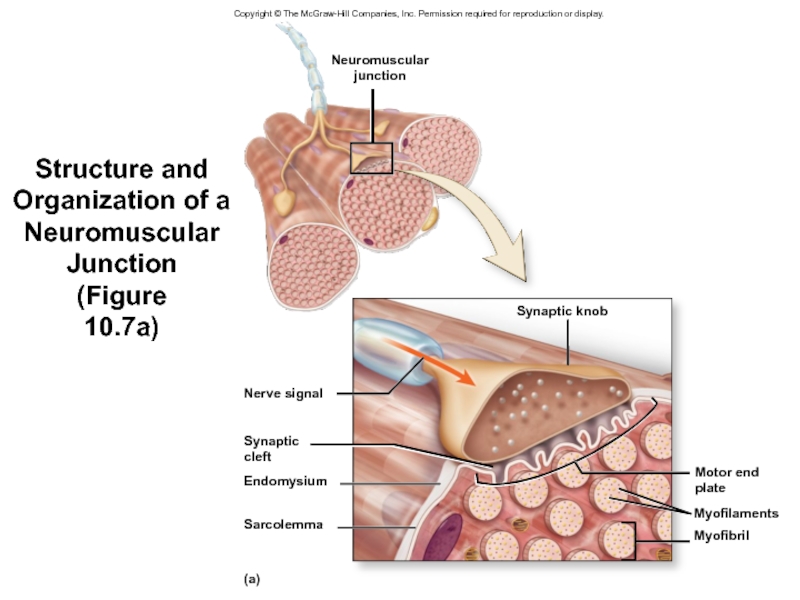

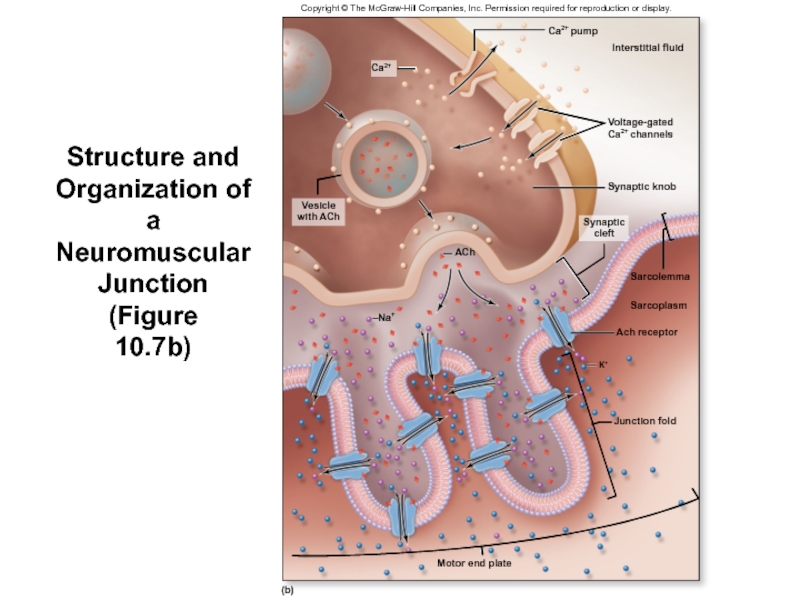

Innervated by motor neurons
Axons
extend through connective layers
almost make contact with individual muscle fiber
junction termed the neuromuscular junction
Skeletal muscle termed voluntary muscle
because fibers consciously controlled by nervous system
Слайд 29Structural Organization of Skeletal Muscle
(Figure
10.1)
Copyright © The McGraw-Hill Companies,
Inc. Permission required for reproduction or display.
Epimysium
Tendon
Deep fascia
Skeletal muscle
Artery
Vein
Nerve
Perimysium
Fascicle
Endomysium
Muscle fiber
Слайд 30Anatomy of Skeletal Muscle: Gross Anatomy

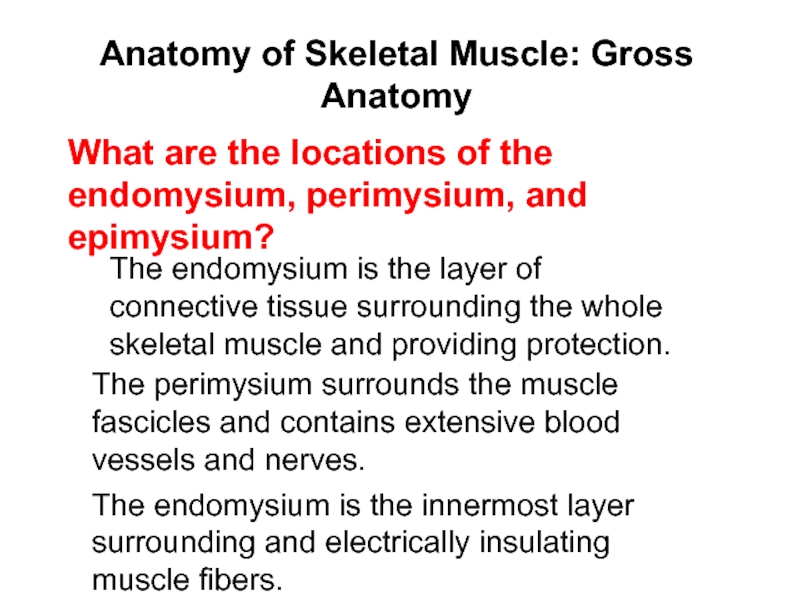

The endomysium is the layer
of connective tissue surrounding the whole skeletal muscle and providing
protection.
What are the locations of the endomysium, perimysium, and epimysium?
The perimysium surrounds the muscle fascicles and contains extensive blood vessels and nerves.
The endomysium is the innermost layer surrounding and electrically insulating muscle fibers.

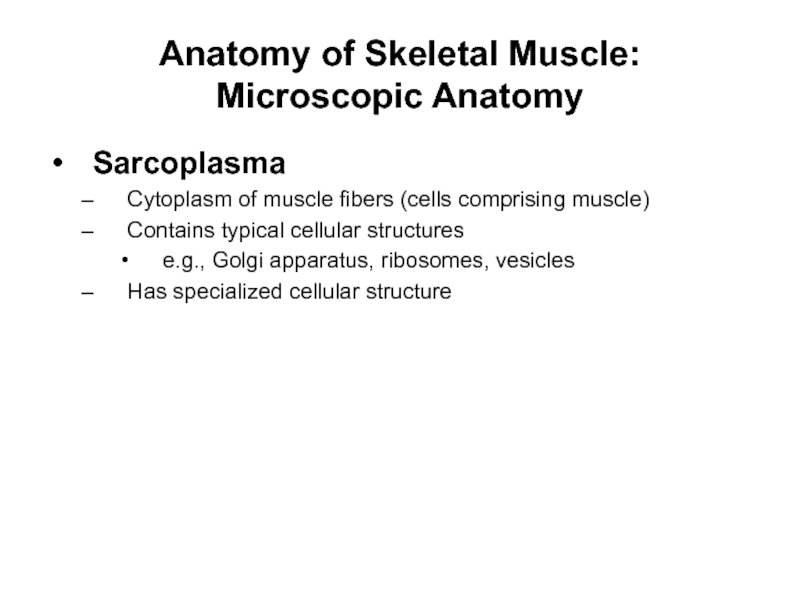

Слайд 31Anatomy of Skeletal Muscle:
Microscopic Anatomy
Sarcoplasma
Cytoplasm of muscle fibers (cells
comprising muscle)
Contains typical cellular structures
e.g., Golgi apparatus, ribosomes, vesicles
Has specialized
cellular structure
Слайд 32Anatomy of Skeletal Muscle:
Microscopic Anatomy
Multinucleated cell
Elongated cells extending length
of muscle
Myoblasts
embryonic cells which fuse
form single skeletal muscle fibers during
development
each contributing a nucleus to total nuclei
Thus fibers multinucleated cells
Слайд 33Anatomy of Skeletal Muscle:
Microscopic Anatomy
Multinucleated
cell (continued)
Satellite cells
myoblasts remaining, unfused,
in adult skeletal tissue
may be stimulated to differentiate if tissue
injured
(Figure 10.2)
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Muscle fiber
Myoblasts
Satellite cell
Satellite cell
Nuclei
Muscle fiber
Myoblasts fuse
to form a skeletal
muscle fiber.
Слайд 34Anatomy of Skeletal Muscle:
Microscopic Anatomy
Sarcolemma and T-tubules
Plasma membrane of
a skeletal muscle fiber
sarcolemma
Invaginations of the sarcolemma
T-tubules, or transverse tubules
Слайд 35Anatomy of Skeletal Muscle:
Microscopic Anatomy
Sarcolemma and T-tubules (continued)
Na+/ K+
pumps along sarcolemma and T-tubules
create concentration gradients for Na+ and
K+
three Na+ pumped out while two K+ pumped in
resting membrane potential maintained by pumps
inside of cell relatively negative in comparison to outside
responsible for excitability of skeletal muscle fibers

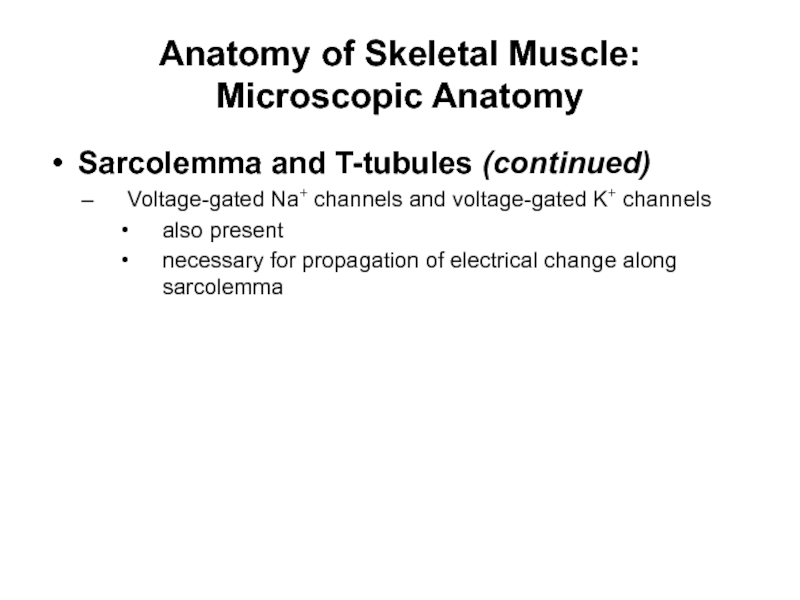

Слайд 36Anatomy of Skeletal Muscle:
Microscopic Anatomy
Sarcolemma and T-tubules (continued)
Voltage-gated Na+
channels and voltage-gated K+ channels
also present
necessary for propagation of electrical
change along sarcolemma
Слайд 37Anatomy of Skeletal Muscle:
Microscopic Anatomy
Sarcoplasmic reticulum
Internal membrane complex
Similar
to smooth endoplasmic reticulum
Surround bundles of contractile proteins
Terminal cisternae
blind sacs
of sarcoplasmic reticulum
serve as reservoirs for calcium ions
combine in twos with central T-tubule to form triads

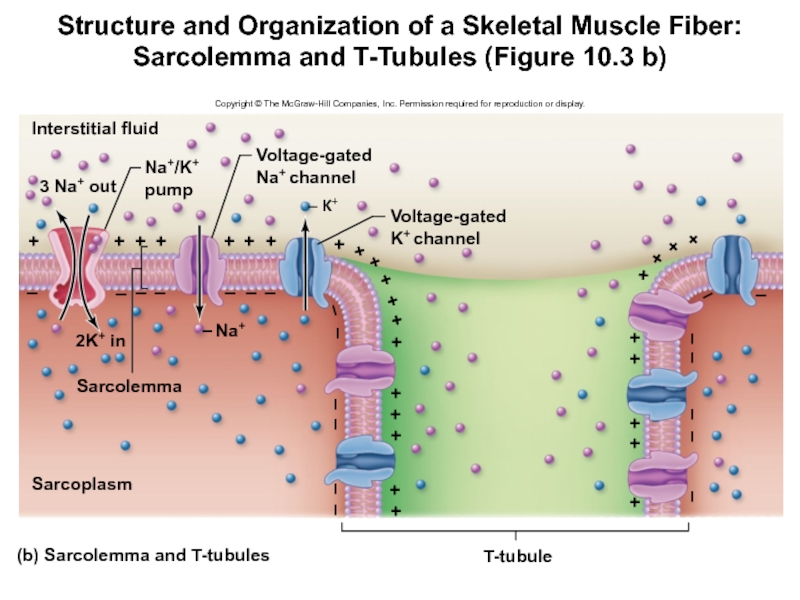

Слайд 38Structure and Organization of a Skeletal Muscle Fiber: Sarcolemma and
T-Tubules (Figure 10.3 b)
Copyright © The McGraw-Hill Companies, Inc. Permission
required for reproduction or display.
–
Interstitial fluid
Sarcoplasm
Sarcolemma
(b) Sarcolemma and T-tubules
T-tubule
3 Na+ out
Na+/K+
pump
Voltage-gated
Na+ channel
–
2K+ in
Voltage-gated
K+ channel
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Na+
K+
–

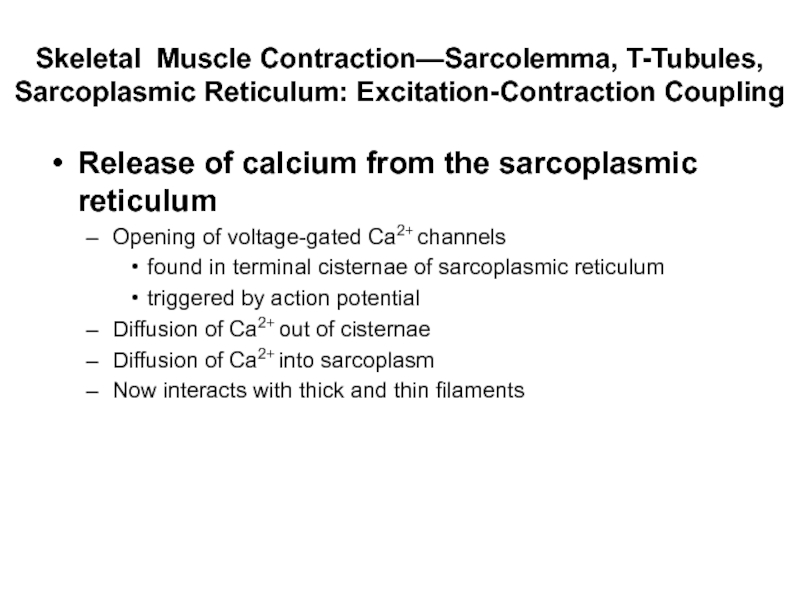

Слайд 39Sarcoplasmic reticulum (continued)
Ca2+ pumps embedded in sarcoplasmic reticulum
move Ca2+ into
sarcoplasmic reticulum
stored bound to specialized proteins, calmodulin and calsequestrin
Voltage-gated Ca2+
channels
open to release Ca2+ from sarcoplasmic reticulum into sarcoplasm
causes muscle contraction
(Figure 10.3c)
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Ca2+ pump
Calsequestrin
Calmodulin
(c) Sarcoplasmic reticulum
Terminal cisterna
Sarcoplasm
SR membrane
Ca2+
Voltage-gated
Ca2+ channel
Слайд 40Anatomy of Skeletal Muscle:
Microscopic Anatomy
Muscle fibers and myofibrils
Myofibrils
long cylindrical
structures
extend length of muscle fiber
compose 80% of volume of
muscle fiber
each fiber with hundreds to thousands
Myofilaments
bundles of protein filaments
takes many to extend length of myofibril
two types: thick and thin

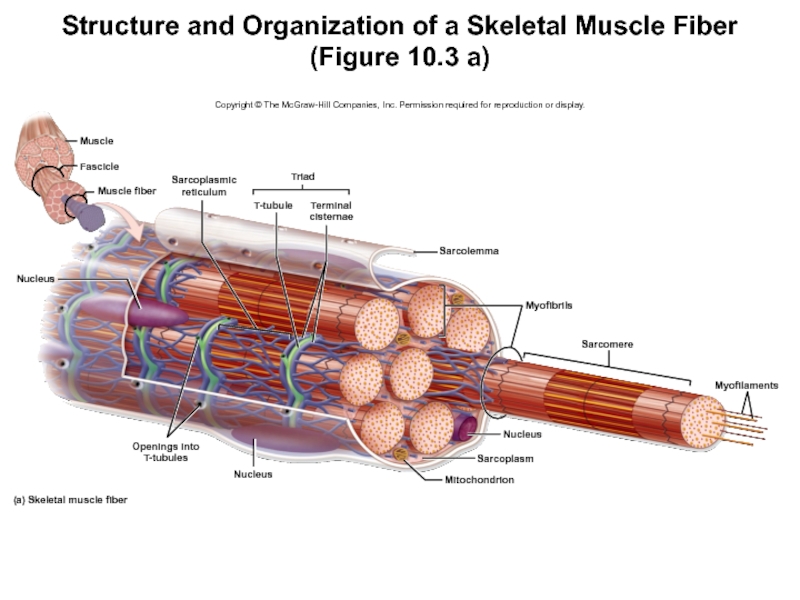

Слайд 41Structure and Organization of a Skeletal Muscle Fiber
(Figure 10.3
a)
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction
or display.
Muscle
Fascicle
Muscle fiber
Sarcoplasmic
reticulum
Triad
Terminal
cisternae
T-tubule
Sarcolemma
Myofibrils
Sarcomere
Myofilaments
Nucleus
Openings into
T-tubules
(a) Skeletal muscle fiber
Nucleus
Sarcoplasm
Mitochondrion
Nucleus
Слайд 42Anatomy of Skeletal Muscle:
Microscopic Anatomy
Muscle fibers and myofibrils (continued)
Thick
filaments
Assembled from bundles of protein molecules, myosin
each myosin protein
with two intertwined strands
each strand with a globular head and elongated tail
tails pointing toward center of thick filaments
heads pointing toward edges of thick filaments
head with a binding site for actin (thin filaments)
head with site where ATP attaches and is split
Слайд 43Anatomy of Skeletal Muscle:
Microscopic Anatomy
Muscle fibers and myofibrils (continued)

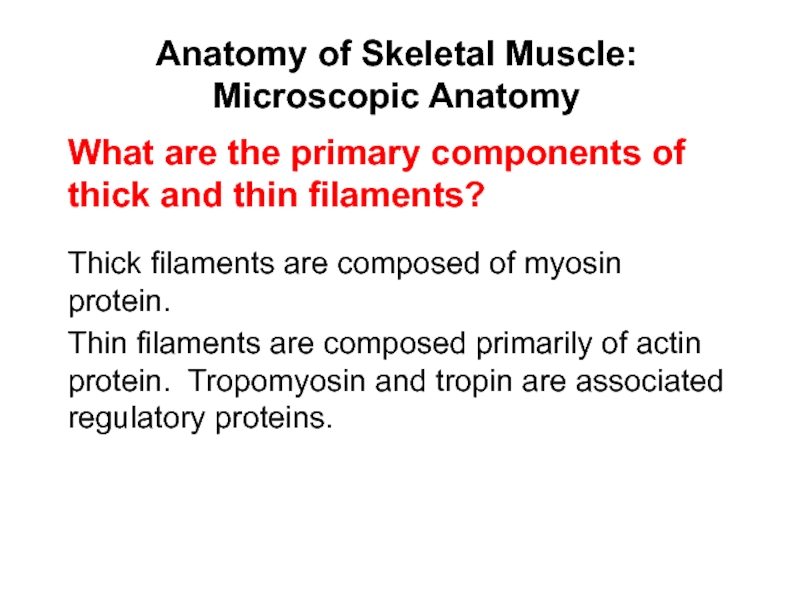

Thin
filaments
Primarily composed of two strands of protein, actin
Two strands twisted
around each other
Many small spherical molecules, globular actin
Connected to form a fibrous strand, filamentous actin
Globular actin with myosin binding site
where myosin head attaches during contraction

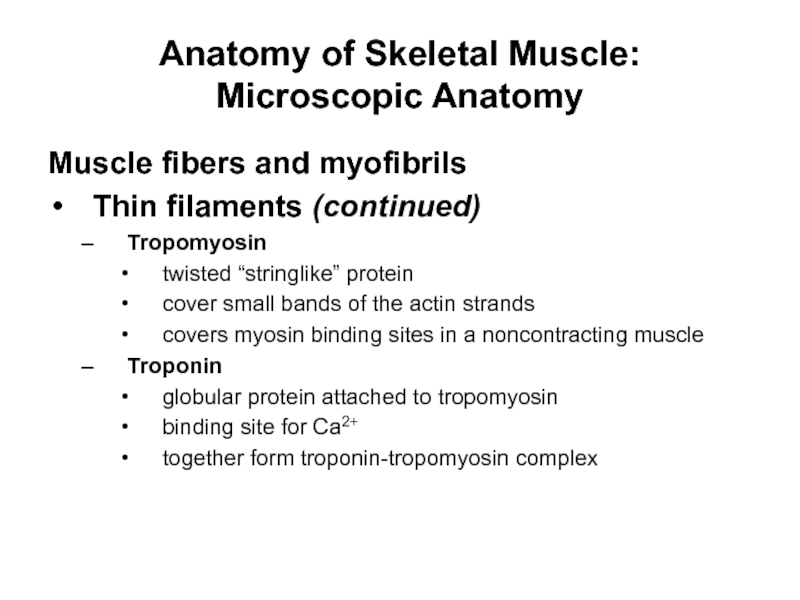

Слайд 44Anatomy of Skeletal Muscle:
Microscopic Anatomy
Muscle fibers and myofibrils
Thin
filaments (continued)
Tropomyosin
twisted “stringlike” protein
cover small bands of the actin strands
covers
myosin binding sites in a noncontracting muscle
Troponin
globular protein attached to tropomyosin
binding site for Ca2+
together form troponin-tropomyosin complex
Слайд 45Molecular Structure of Thick and Thin Filaments
(Figure 10.4)
Copyright © The
McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Myosin molecule
G-actin
Muscle
fiber
Myofibril
Myofilaments
Heads
Actin binding site
ATP and ATPase binding site
Myosin heads
(a) Thick filament
(b) Thin filament
Tropomyosin
F-actin
Myosin binding site
Troponin
Ca2+ binding site
Tail
Слайд 46Anatomy of Skeletal Muscle:

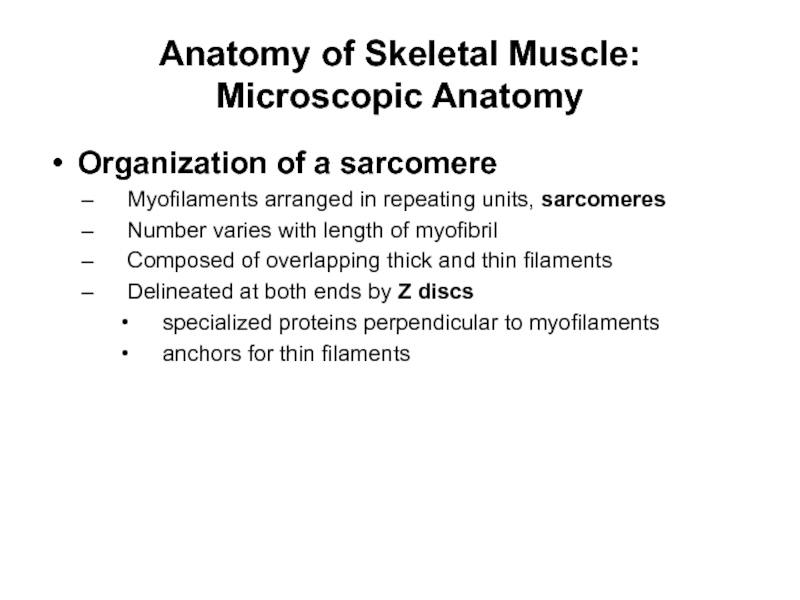

Microscopic Anatomy
Organization of a sarcomere
Myofilaments arranged
in repeating units, sarcomeres
Number varies with length of myofibril
Composed of
overlapping thick and thin filaments
Delineated at both ends by Z discs
specialized proteins perpendicular to myofilaments
anchors for thin filaments
Слайд 47Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere
Overlapping filaments
(continued)
Form alternating patterns of light and dark regions
Appears striated under
a microscope
due to size and density differences between thick and thin filaments
Each thin filament with three thick filaments
form triangle at its periphery
Слайд 48Skeletal Muscle (striations)
Skeletal muscle fiber
A band
I band
Nuclei
Слайд 49Sarcomere
A band
H band
I band
M line
Myofibril
Sarcomere
Z disc

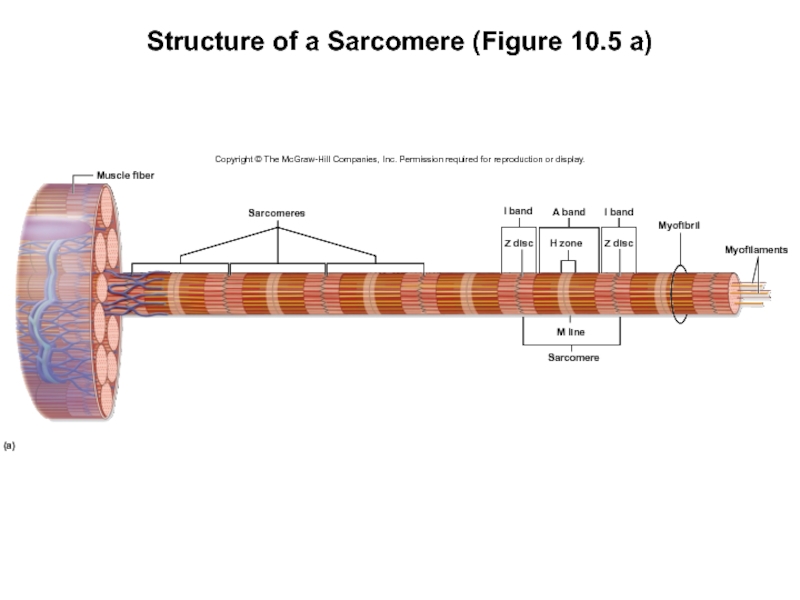

Слайд 50Structure of a Sarcomere (Figure 10.5 a)
Copyright © The McGraw-Hill
Companies, Inc. Permission required for reproduction or display.
Muscle fiber
(a)
Sarcomeres
Myofilaments
Myofibril
I band
A
band
I band
Z disc
H zone
Z disc
M line
Sarcomere
Слайд 51Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere (continued)
Overlapping
filaments
I bands
region containing only thin filaments
extend from both directions of
Z disc
bisected by Z disc
appear light under a microscope
disappear at maximal muscle contraction

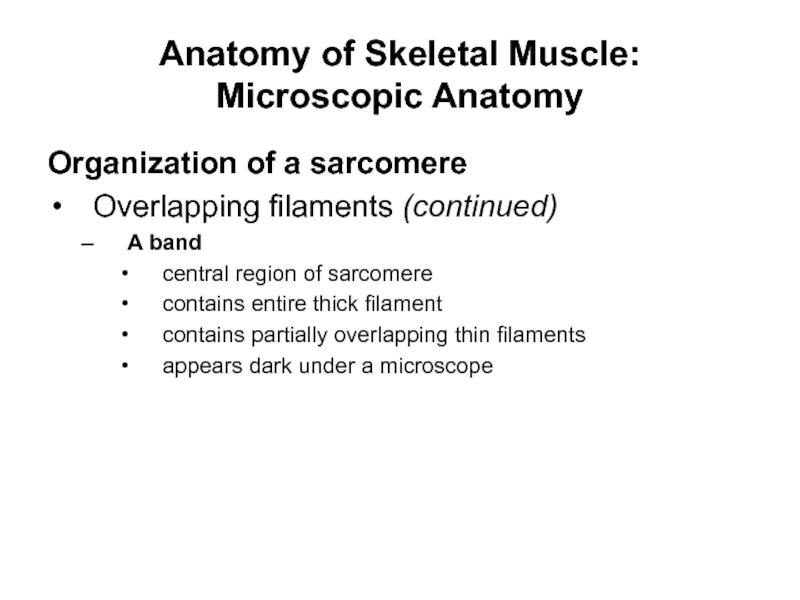

Слайд 52Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere
Overlapping filaments
(continued)
A band
central region of sarcomere
contains entire thick filament
contains partially overlapping
thin filaments
appears dark under a microscope
Слайд 53Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere
Overlapping filaments
(continued)
H zone
central portion of A band
thick filaments only present; no
thin filament overlap
disappears during maximal muscle contraction
M line
protein meshwork structure at center of H zone
attachment site for thick filaments
Слайд 54Structure of a Sarcomere (Figure 10.5 b)
Copyright © The McGraw-Hill
Companies, Inc. Permission required for reproduction or display.
Connectin
Z disc
Thin filament
Thick
filament
Sarcomere
Z disc
Thin filament
(b)
I band
A band
H zone
I band
M line

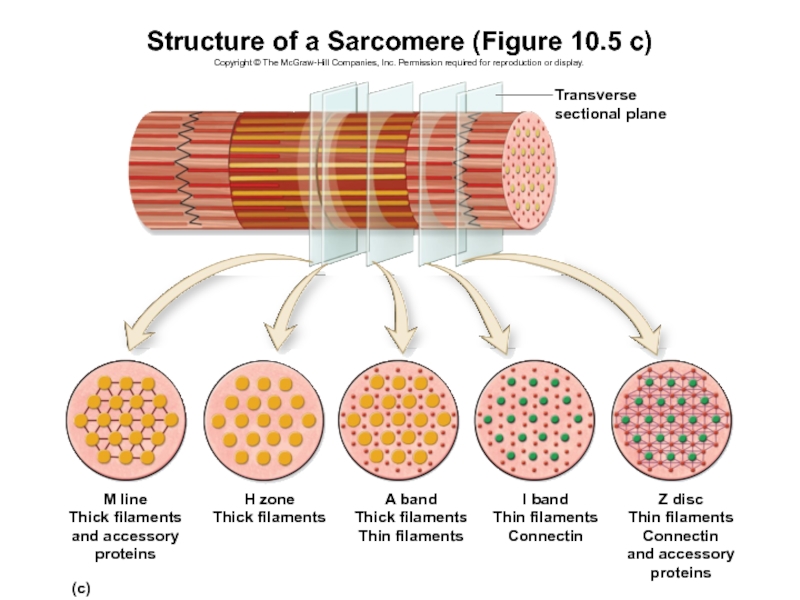

Слайд 55Structure of a Sarcomere (Figure 10.5 c)
Copyright © The McGraw-Hill
Companies, Inc. Permission required for reproduction or display.
(c)
Z disc
Thin filaments
Connectin
and
accessory
proteins
I band
Thin filaments
Connectin
A band
Thick filaments
Thin filaments
H zone
Thick filaments
M line
Thick filaments
and accessory
proteins
Transverse
sectional plane

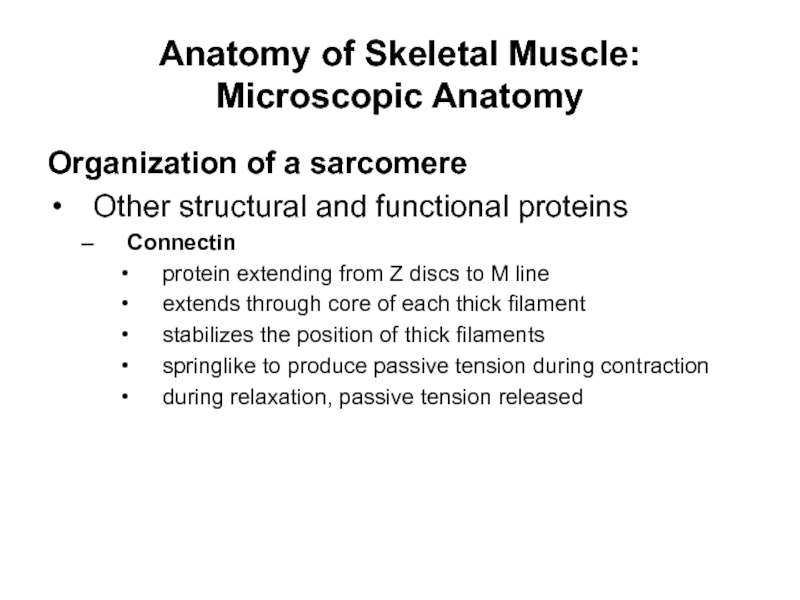

Слайд 56Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere
Other structural
and functional proteins
Connectin
protein extending from Z discs to M line
extends
through core of each thick filament
stabilizes the position of thick filaments
springlike to produce passive tension during contraction
during relaxation, passive tension released
Слайд 57Anatomy of Skeletal Muscle:
Microscopic Anatomy
Organization of a sarcomere
Other structural
and functional proteins (continued)
Nebulin
actin-binding protein
part of I band of the
sarcomere
plays possible role in creating orderly structure of sarcomere
Dystrophin
anchors myofibrils adjacent to sarcolemma to sarcolemma proteins
links internal myofilament proteins to external proteins
abnormal structure or amounts of proteins in muscular dystrophy
Слайд 58Anatomy of Skeletal Muscle:
Microscopic Anatomy
Mitochondria and other structures associated
with energy production
Muscle with high ATP requirement
Abundant mitochondria for aerobic
cellular respiration
Glycogen stores for immediate fuel molecule
Creatinine phosphate
molecule unique to muscle tissue
provides fibers means of supplying ATP anaerobically

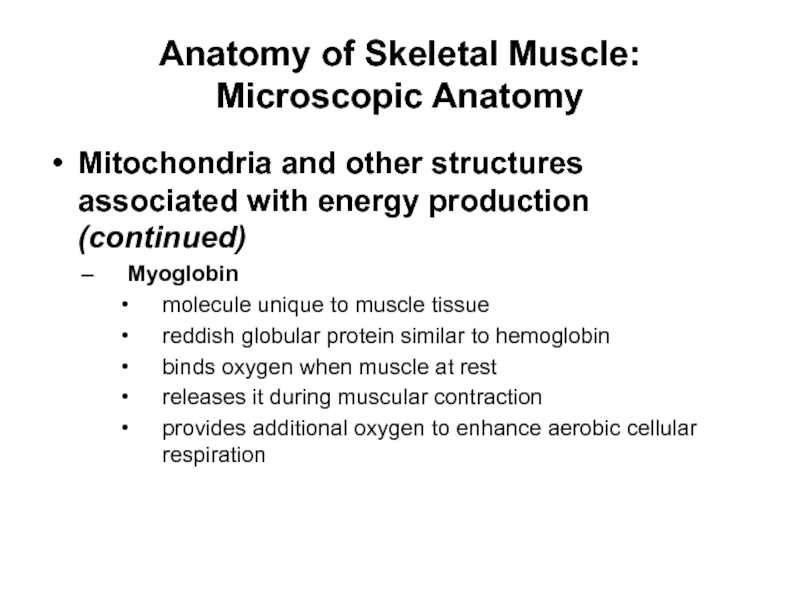

Слайд 59Anatomy of Skeletal Muscle:
Microscopic Anatomy
Mitochondria and other structures associated
with energy production (continued)
Myoglobin
molecule unique to muscle tissue
reddish globular protein
similar to hemoglobin
binds oxygen when muscle at rest
releases it during muscular contraction
provides additional oxygen to enhance aerobic cellular respiration
Слайд 60Anatomy of Skeletal Muscle:
Microscopic Anatomy
Thick filaments are composed of
myosin protein.
What are the primary components of thick and thin
filaments?
Thin filaments are composed primarily of actin protein. Tropomyosin and tropin are associated regulatory proteins.
Слайд 61Anatomy of Skeletal Muscle:

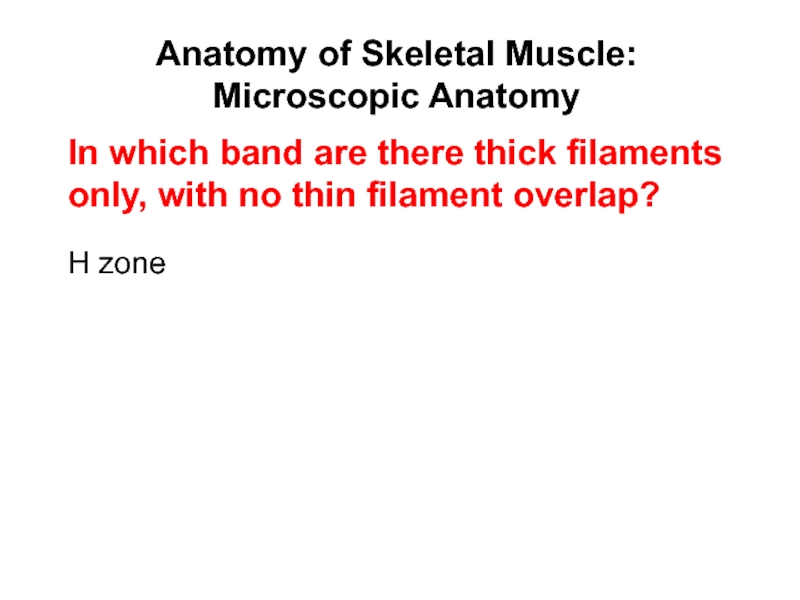

Microscopic Anatomy
H zone
In which band are
there thick filaments only, with no thin filament overlap?

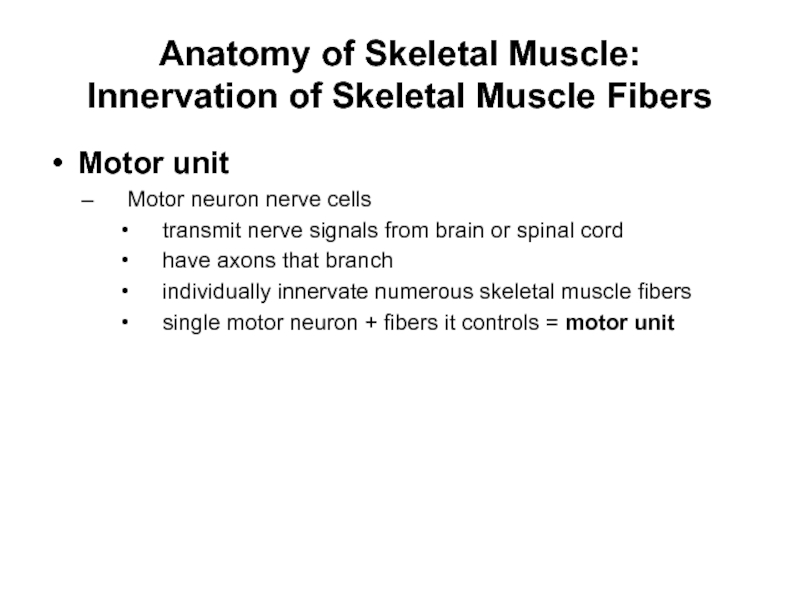

Слайд 62Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Motor unit
Motor
neuron nerve cells
transmit nerve signals from brain or spinal
cord
have axons that branch
individually innervate numerous skeletal muscle fibers
single motor neuron + fibers it controls = motor unit
Слайд 63Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Motor unit
(continued)
Varied number of fibers a neuron innervates
small motor units less
than five muscle fibers
large motor units with several thousand
inverse relationship between size of motor unit and degree of control
e.g., small motor units innervating eye
need greater control
e.g., large motor units innervating lower limbs
need less precise control

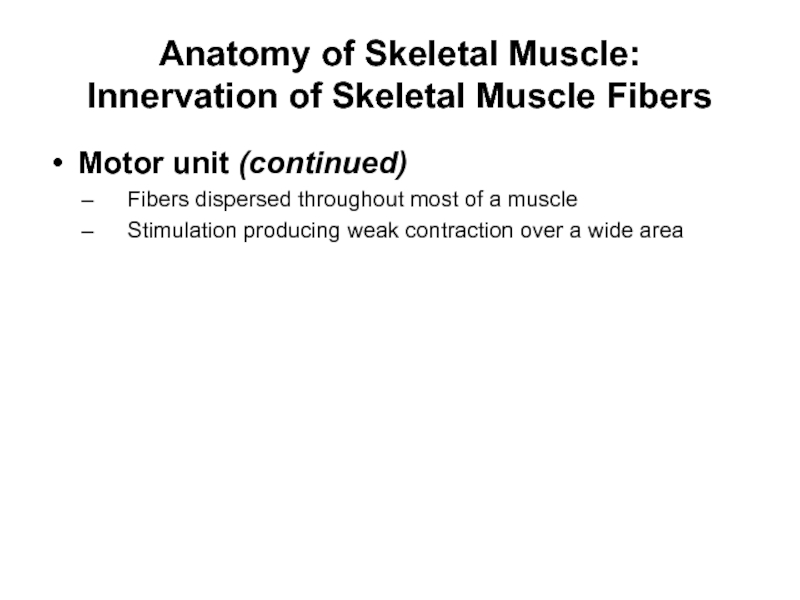

Слайд 64Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Motor unit
(continued)
Fibers dispersed throughout most of a muscle
Stimulation producing weak contraction
over a wide area
Слайд 65Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Neuromuscular junctions
Location
where motor neuron innervates muscle
Usually mid-region of muscle fiber
Has synaptic
knob, motor end plate, synaptic cleft
Слайд 66Neuromuscular Junction
High Magnification
Skeletal muscle fiber
Axon of motor nerve
Motor end plate

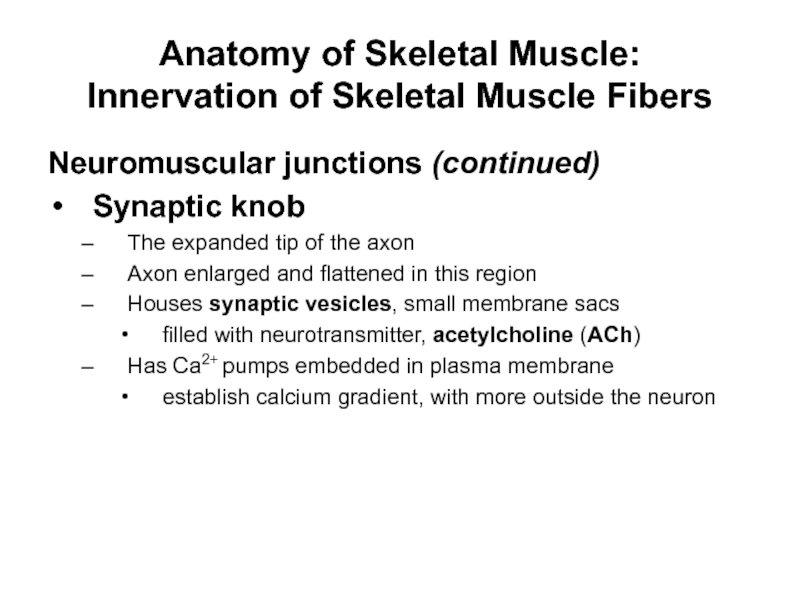

Слайд 67Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Neuromuscular junctions
(continued)
Synaptic knob
The expanded tip of the axon
Axon enlarged and flattened
in this region
Houses synaptic vesicles, small membrane sacs
filled with neurotransmitter, acetylcholine (ACh)
Has Ca2+ pumps embedded in plasma membrane
establish calcium gradient, with more outside the neuron
Слайд 68Neuromuscular Junction
TEM: High Magnification
Primary synaptic cleft
Synaptic vesicles of synaptic
terminal
Secondary synaptic cleft (junctional folds)
Mitochondria of synaptic terminal
Слайд 69Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Neuromuscular junctions
Synaptic
knob (continued)
Has voltage-gated Ca2+ channels in membrane
Ca2+ flowing down concentration
gradient if opened
Vesicles normally repelled from membrane of synaptic knob
because both normally negatively charged
Слайд 70Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Neuromuscular junctions
Motor
end plate
Specialized region of sarcolemma
Has numerous folds
increase surface area
covered by knob
Has vast numbers of ACh receptors
plasma membrane protein channels
opened by binding of ACh
allow Na+ entry and K+ exit
Слайд 71Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
Neuromuscular junctions
(continued)
Synaptic cleft
Narrow fluid-filled space
Separates synaptic knob and motor end
plate
Acetylcholinesterase residing here
enzyme that breaks down ACh molecules
after their release into synaptic cleft
Слайд 72Structure and Organization of a Neuromuscular Junction
(Figure
10.7a)
Neuromuscular
junction
Nerve signal
Synaptic
cleft
Endomysium
Sarcolemma
(a)
Synaptic knob
Myofibril
Myofilaments
Motor
end
plate
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction
or display.
Слайд 73Structure and Organization of a Neuromuscular Junction
(Figure
10.7b)
K+
(b)
Interstitial fluid
Ca2+ pump
Voltage-gated
Ca2+
channels
Sarcolemma
Synaptic knob
Sarcoplasm
Ach receptor
Junction fold
Motor end plate
–Na+
ACh
Vesicle
with ACh
Ca2+
Synaptic
cleft
Copyright © The McGraw-Hill
Companies, Inc. Permission required for reproduction or display.

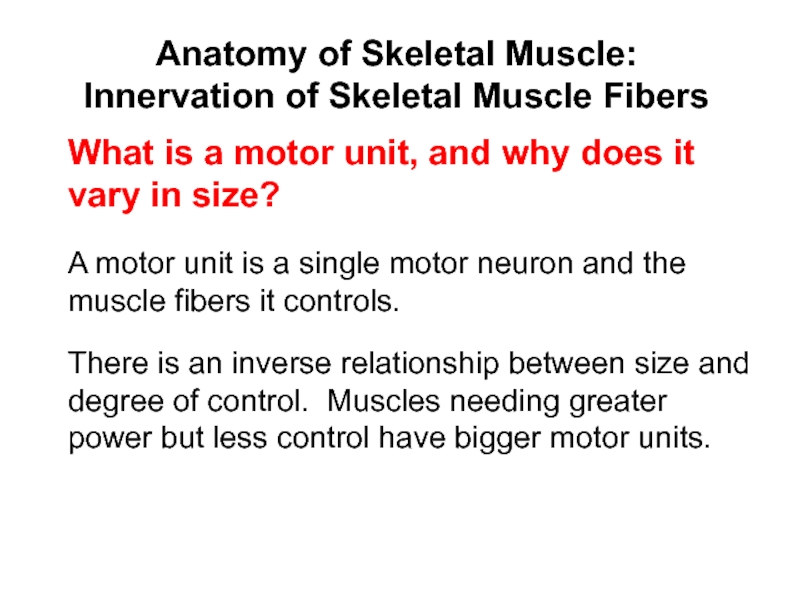

Слайд 74Anatomy of Skeletal Muscle:
Innervation of Skeletal Muscle Fibers
A motor
unit is a single motor neuron and the muscle fibers
it controls.
What is a motor unit, and why does it vary in size?
There is an inverse relationship between size and degree of control. Muscles needing greater power but less control have bigger motor units.
Слайд 75Physiology of Skeletal Muscle Contraction
During muscle contraction
Protein filaments within sarcomeres
interact
Sarcomeres shorten
Tension is exerted on portion of skeleton where muscle
attached
Contracting fiber decreases in length
Movement occurs

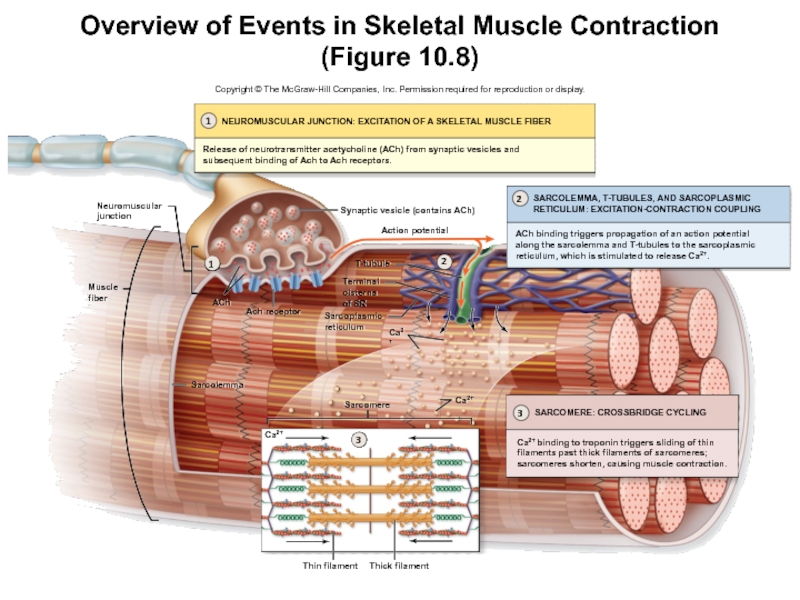

Слайд 76Overview of Events in Skeletal Muscle Contraction
(Figure 10.8)
1
2
3
NEUROMUSCULAR JUNCTION:
EXCITATION OF A SKELETAL MUSCLE FIBER
Release of neurotransmitter acetycholine (ACh)
from synaptic vesicles and
subsequent binding of Ach to Ach receptors.
SARCOLEMMA, T-TUBULES, AND SARCOPLASMIC
RETICULUM: EXCITATION-CONTRACTION COUPLING
ACh binding triggers propagation of an action potential
along the sarcolemma and T-tubules to the sarcoplasmic
reticulum, which is stimulated to release Ca2+.
SARCOMERE: CROSSBRIDGE CYCLING
Ca2+ binding to troponin triggers sliding of thin
filaments past thick filaments of sarcomeres;
sarcomeres shorten, causing muscle contraction.
Ca2+
Sarcomere
Sarcolemma
Muscle
fiber
Neuromuscular
junction
Synaptic vesicle (contains ACh)
Action potential
T-tubule
ACh
Ach receptor
Sarcoplasmic
reticulum
Terminal
cisterna
of SR
Thick filament
Thin filament
Ca2+
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
1
2
3
Ca2+
Слайд 77Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
First physiological event
Muscular fiber excitation by motor neuron
Occurs at neuromuscular
junction
Results in release of ACh and subsequent binding of ACh receptors
Слайд 78Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
Calcium entry at synaptic knob
Nerve signal propagated down motor axon
Triggers
opening of voltage-gated Ca2+ channels
Movement of calcium down concentration gradient
from interstitial fluid into synaptic knob
Binding of calcium with proteins on synaptic vesicles
Слайд 79Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
Release of ACh from synaptic knob
Merging of synaptic vesicles with
synaptic knob membrane
triggered by binding of Ca2+
Exocytosis of ACh into synaptic cleft
About 300 vesicles per nerve signal
Слайд 80Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
Binding of ACh at motor end plate
Diffusion of ACh across
synaptic cleft
Binds with ACh receptors within motor end plate
Causes excitation of muscle fiber
Слайд 81Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber (Figure 10.9)
Motor
end plate
1
NEUROMUSCULAR JUNCTION: EXCITATION OF A SKELETAL MUSCLE FIBER
Ca2+ entry
at synaptic knob
Nerve signal
1a
1a
ACh receptor
Synaptic cleft
Interstitial
fluid
Synaptic vesicles
(contain ACh)
A nerve signal is propagated down a motor axon and triggers
the entry of Ca2+ into the synaptic knob.
Ca2+ binds to proteins in synaptic vesicle membrane.
Release of ACh from synaptic knob
Binding of ACh to ACh receptor at motor end plate
ACh diffuses across the fluid-filled synaptic cleft in the
motor end plate to bind with ACh receptors.
Ca2+
Ca2+
1b
ACh
1c
1b
Synaptic
vesicle
ACh
1c
Voltage-gated
Ca2+ channel
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Synaptic knob
Calcium binding triggers synaptic vesicles to merge
with the synaptic knob plasma membrane and ACh
is exocytosed into the synaptic cleft.
Слайд 82Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
Nerve signal triggers the entry of calcium into the synaptic
knob. Calcium binding to synaptic vesicles triggers the exocytosis of ACh.
What triggers the binding of synaptic vesicles to the synaptic knob membrane to cause exocytosis of ACh?
Слайд 83Skeletal Muscle Contraction—Neuromuscular Junction: Excitation of a Skeletal Muscle Fiber
Clinical View: Myasthenia Gravis
Autoimmune disease, primarily in women
Antibodies binding
ACh receptors in neuromuscular junctions
Receptors removed from muscle fiber by endocytosis
Results in decreased muscle stimulation
Rapid fatigue and muscle weakness
Eye and facial muscles often involved first
May be followed by swallowing problems, limb weakness

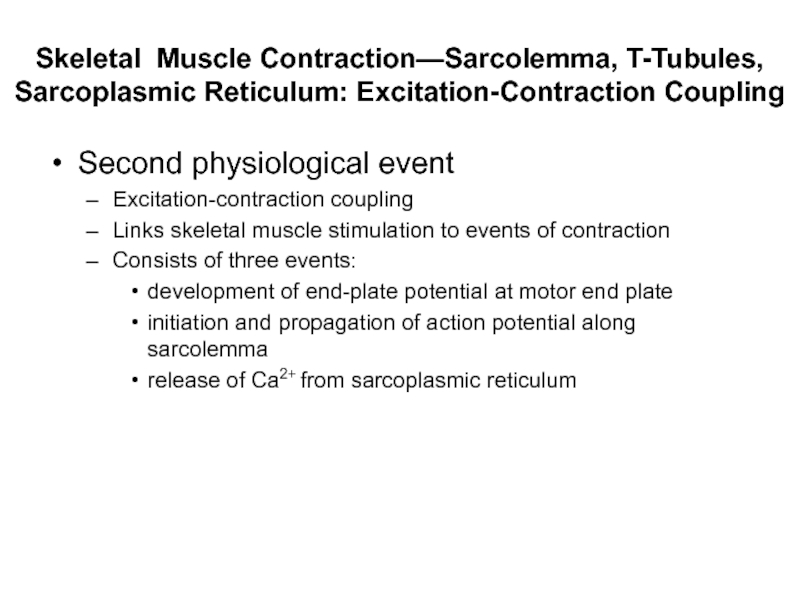

Слайд 84Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Second physiological event
Excitation-contraction
coupling
Links skeletal muscle stimulation to events of contraction
Consists of three
events:
development of end-plate potential at motor end plate
initiation and propagation of action potential along sarcolemma
release of Ca2+ from sarcoplasmic reticulum

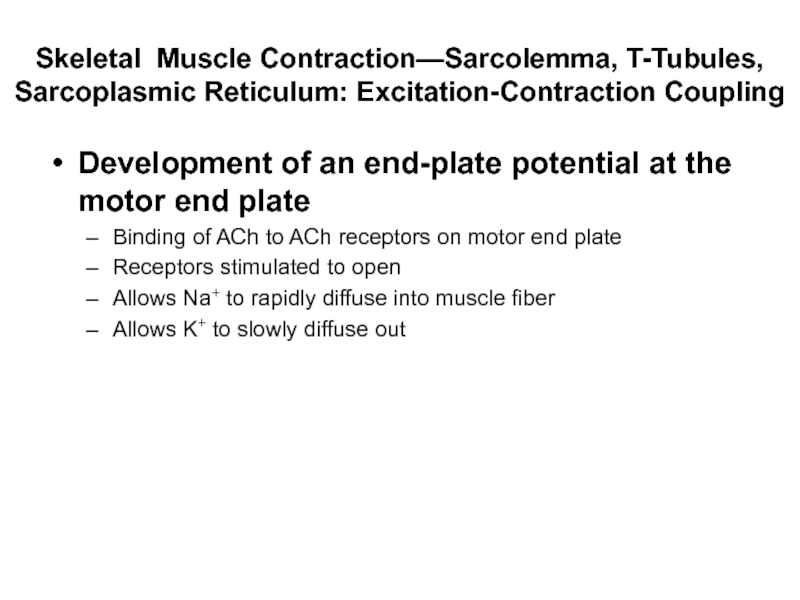

Слайд 85Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Development of an
end-plate potential at the motor end plate
Binding of ACh to
ACh receptors on motor end plate
Receptors stimulated to open
Allows Na+ to rapidly diffuse into muscle fiber
Allows K+ to slowly diffuse out
Слайд 86Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Development of an
end-plate potential at the motor end plate (continued)
Net gain of
positive charge inside fiber
Reverses electrical charge difference at motor end plate
reverse termed an end plate potential (EPP)
transient, localized at motor end plate
Can be stimulated again almost immediately

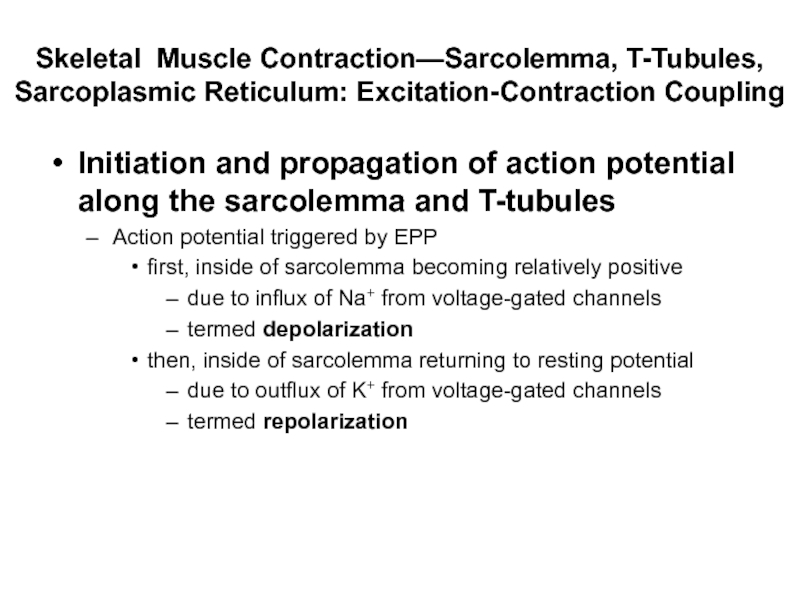

Слайд 87Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Initiation and propagation
of action potential along the sarcolemma and T-tubules
Action potential triggered
by EPP
first, inside of sarcolemma becoming relatively positive
due to influx of Na+ from voltage-gated channels
termed depolarization
then, inside of sarcolemma returning to resting potential
due to outflux of K+ from voltage-gated channels
termed repolarization
Слайд 88Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Initiation and propagation
of action potential along the sarcolemma and T-tubules (continued)
Action potential
propagated along sarcolemma and T-tubules
inflow of Na+ at initial portion of sarcolemma
causes adjacent regions to experience electrical changes
initiate voltage-gated Na+ channels in this region to open
action potential propagated down the sarcolemma and t-tubules
Refractory period
time between depolarization and repolarization
muscle unable to be restimulated
Слайд 89Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
Release of calcium
from the sarcoplasmic reticulum
Opening of voltage-gated Ca2+ channels
found in terminal
cisternae of sarcoplasmic reticulum
triggered by action potential
Diffusion of Ca2+ out of cisternae
Diffusion of Ca2+ into sarcoplasm
Now interacts with thick and thin filaments
Слайд 90Skeletal Muscle Fiber: Excitation-Contraction Coupling (Figure 10.10)
Copyright © The McGraw-Hill
Companies, Inc. Permission required for reproduction or display.
2
b
2
Synaptic
cleft
Voltage-gated
Na+ channel
2a
Voltage-gated
K+ channel
Interstitial
fluid
Sarcolemma
Voltage-gated
Na+ channel
Voltage-gated
K+ channel
2b
EPP
2a
2c
2c
Sarcolemma
Terminal cisterna
of sarcoplasmic
reticulum
T-tubule
SARCOLEMMA, T-TUBULES, AND SARCOPLASMIC RETICULUM:
EXCITATION-CONTRACTION COUPLING
Development of an end-plate potential (EPP) at the motor end plate
Binding of ACh to ACh receptors in the motor end plate triggers the opening
of these chemically gated ion channels. Na+ rapidly diffuses into and K+
slowly diffuses out of the muscle fiber.
The result is a reversal in the electrical charge difference across the
membrane of a muscle fiber at the motor end plate, which is called
an end-plate potential (EPP). (The inside which was negative is now
positive.)
Initiation and propagation of an action potential
along sarcolemma and T-tubules
An action potential is propagated along the sarcolemma
and T-tubules.
First, voltage-gated Na+ channels open, and Na+ moves
in to cause depolarization.
Second, voltage-gated K+ channels open, and K+ moves
out to cause repolarization.
Release of Ca2+ from the
sarcoplasmic reticulum
When the action potential reaches
the sarcoplasmic reticulum, it
triggers the opening of
voltage-gated Ca2+ channels
located in the terminal cisternae
of the sarcoplasmic reticulum
Ca2+ diffuses out of the cisternae
sarcoplasmic reticulum into the
sarcoplasm.
Ca2+
Ca2+
Ca2+
Ca2+
Terminal cisterna
Voltage-gated
Ca2+ channels
ACh
receptor
ACh
Na+
Na+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
K+
K+
Sarcoplasm
Motor end plate

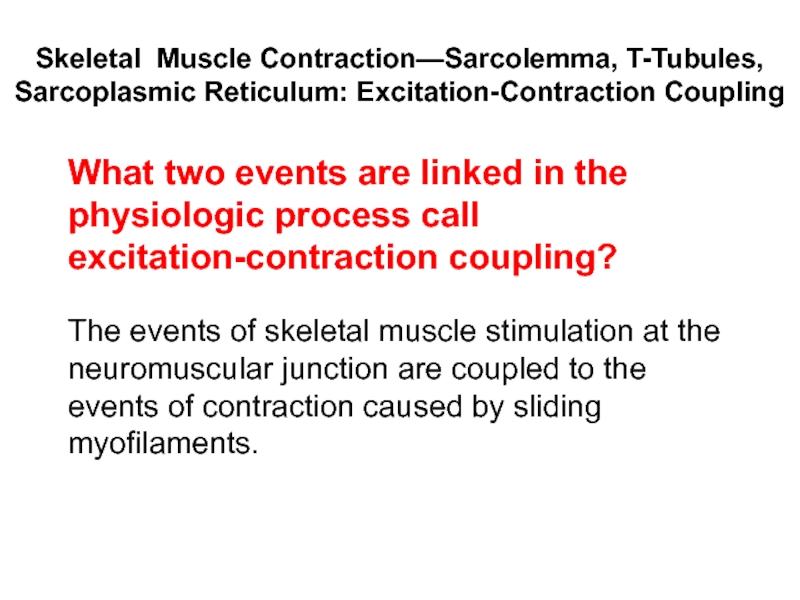

Слайд 91Skeletal Muscle Contraction—Sarcolemma, T-Tubules, Sarcoplasmic Reticulum: Excitation-Contraction Coupling
The events of
skeletal muscle stimulation at the neuromuscular junction are coupled to
the events of contraction caused by sliding myofilaments.
What two events are linked in the physiologic process call excitation-contraction coupling?
