Слайд 1Nitrogen (N) is an essential component of DNA, RNA, and

proteins, the building blocks of life.

All organisms require nitrogen

to live and grow.

The majority (78%) of the Earth’s atmosphere is N2.

Nitrogen

Nitrogen (N) is an essential component of DNA, RNA, and proteins, the building blocks of life. All

Слайд 2Nitrogen’s triple bond
Although the majority of the air we breathe

is N2, most of the nitrogen in the atmosphere is

unavailable for use by organisms.
This is because the strong triple bond between the N atoms in N2 molecules makes it relatively inert (like a noble gas).
Nitrogen’s triple bondAlthough the majority of the air we breathe is N2, most of the nitrogen in

Слайд 5Forms of Nitrogen
Urea  CO(NH2)2
Ammonia  NH3 (gaseous)
Ammonium  NH4
Nitrate

 NO3
Nitrite  NO2
Atmospheric Dinitrogen N2
Organic N

Forms of NitrogenUrea  CO(NH2)2Ammonia  NH3 (gaseous)Ammonium  NH4Nitrate  NO3Nitrite  NO2Atmospheric Dinitrogen N2Organic N

Слайд 6How can we use N2?
In order for plants and animals

to be able to use nitrogen, N2 gas must first

be converted to more a chemically available form such as ammonium (NH4+) or nitrate (NO3-).

WE CAN’T!

But BACTERIA & … can…

How can we use N2?In order for plants and animals to be able to use nitrogen, N2

Слайд 7Nitrogen Fixation (N2 --> NH3 or NH4+)

ENVIRONMENTAL
High-energy natural events

which break the bond N2
Examples: lightning forest fires hot lava flows

Nitrogen Fixation (N2 --> NH3 or NH4+)ENVIRONMENTAL  High-energy natural events which break the bond N2

Слайд 8Nitrogen Fixation
R-NH2
NH4
NO2
NO3
NO2
NO
N2O
N2

Nitrogen FixationR-NH2NH4NO2NO3NO2NON2ON2

Слайд 9Nitrogen Fixation N2 --> NH3 or NH4+
How?
HUMAN IMPACT
Burning fossil

fuels,
using synthetic nitrogen fertilizers,
and cultivation of legumes
all

fix nitrogen.
Nitrogen Fixation N2 --> NH3 or NH4+How? HUMAN IMPACT Burning fossil fuels, using synthetic nitrogen fertilizers, and

Слайд 10Ammonification or Mineralization
R-NH2
NH4
NO2
NO3
NO2
NO
N2O
N2

Ammonification or MineralizationR-NH2NH4NO2NO3NO2NON2ON2

Слайд 11Nitrogen Mineralization also called Ammonification Organic N --> NH4+

Decay of dead things,

manure, etc.
Done by decomposers (bacteria, fungi, etc.)
During this

process, a significant amount of the nitrogen contained within the dead organism is converted to ammonium (NH4+).
Nitrogen Mineralization also called Ammonification Organic N --> NH4+Decay of dead things, manure, etc.  Done by

Слайд 12Nitrification
R-NH2
NH4
NO2
NO3
NO2
NO
N2O
N2

NitrificationR-NH2NH4NO2NO3NO2NON2ON2

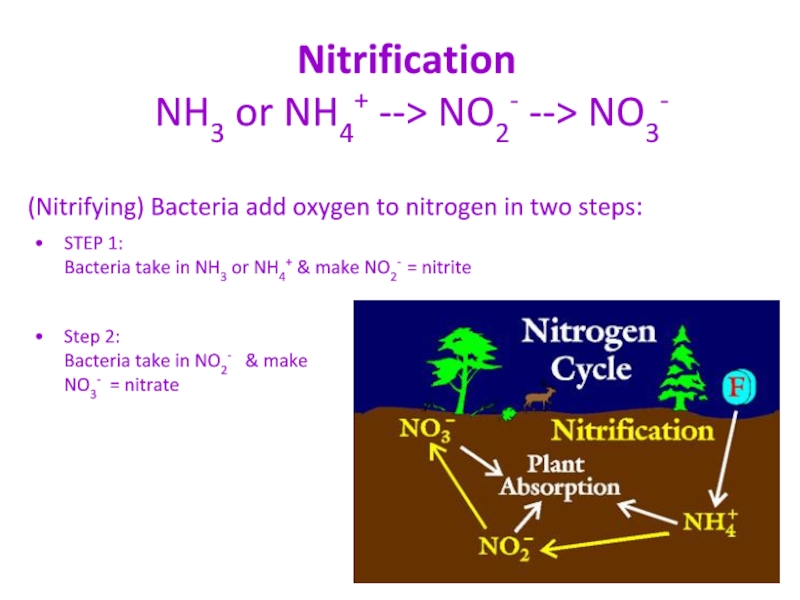

Слайд 13Nitrification NH3 or NH4+ --> NO2- --> NO3-
(Nitrifying) Bacteria

add oxygen to nitrogen in two steps:
STEP 1: Bacteria take

in NH3 or NH4+ & make NO2- = nitrite

Step 2: Bacteria take in NO2- & make NO3- = nitrate

Nitrification  NH3 or NH4+ --> NO2- --> NO3- (Nitrifying) Bacteria add oxygen to nitrogen in two

Слайд 14Denitrification
R-NH2
NH4
NO2
NO3
NO2
NO
N2O
N2

DenitrificationR-NH2NH4NO2NO3NO2NON2ON2

Слайд 15Denitrification NO3- --> N2
(Denitrifying) Bacteria do it.
Denitrification removes nitrogen from ecosystems,

and converts it back to atmospheric N2.

Denitrification NO3- --> N2(Denitrifying) Bacteria do it.Denitrification removes nitrogen from ecosystems, and converts it back to atmospheric

Слайд 16Denitrification
Removes a limiting nutrient from the environment
4NO3- + C6H12O6 2N2

+ 6 H20
Inhibited by O2
Not inhibited by ammonia
Microbial reaction
Nitrate is

the terminal electron acceptor
DenitrificationRemoves a limiting nutrient from the environment4NO3- + C6H12O6 2N2 + 6 H20Inhibited by O2Not inhibited by

Слайд 18Nitrous oxide N2O
Nitrous oxide, commonly known as laughing gas, nitrous, nitro, or NOS is a chemical

compound with the formula N2O.
At room temperature, it is a colorless, odorless non-flammable gas,

with a slightly sweet taste.
It is used in surgeryand dentistry for its anaesthetic and analgesic effects.
It is known as "laughing gas" due to the euphoric effects of inhaling it, a property that has led to its recreational use as a dissociative anaesthetic.
It is also used as an oxidizer in rocket propellants, and in motor racing to increase the power output of engines.
At elevated temperatures, nitrous oxide is a powerful oxidizer similar to molecular oxygen.

Nitrous oxide gives rise to nitric oxide (NO) on reaction with oxygen atoms, and this NO in turn reacts with ozone.
As a result, it is the main naturally occurring regulator of stratospheric ozone.


Nitrous oxide N2ONitrous oxide, commonly known as laughing gas, nitrous, nitro, or NOS is a chemical compound with the formula N2O. At room temperature, it is

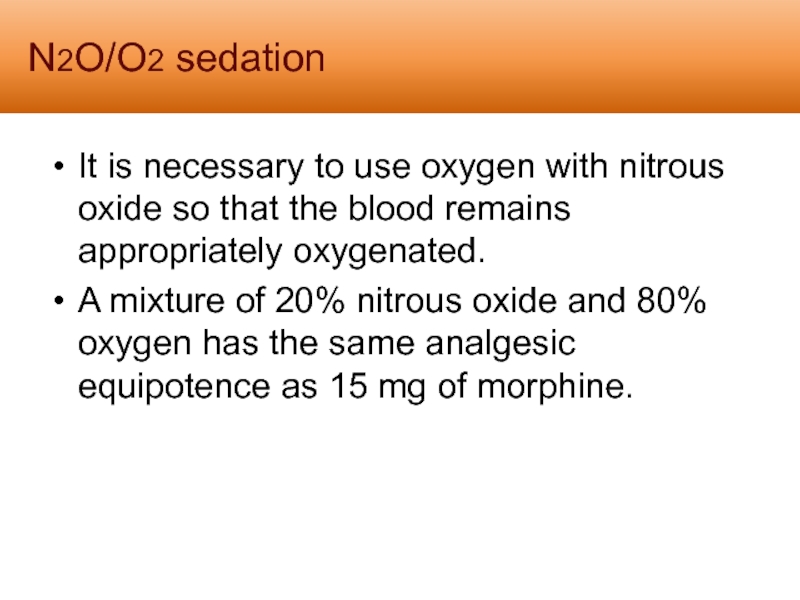

Слайд 19N2O/O2 sedation
It is necessary to use oxygen with nitrous oxide

so that the blood remains appropriately oxygenated.
A mixture of 20%

nitrous oxide and 80% oxygen has the same analgesic equipotence as 15 mg of morphine.
N2O/O2 sedationIt is necessary to use oxygen with nitrous oxide so that the blood remains appropriately oxygenated.A

Слайд 20Nitrous oxide can be used as an oxidizer in a rocket motor
In vehicle racing, nitrous

oxide (often referred to as just "nitrous") allows the engine

to burn more fuel by providing more oxygen than air alone, resulting in a more powerful combustion. The gas itself is not flammable at a low pressure/temperature, but it delivers more oxygen than atmospheric air by breaking down at elevated temperatures. Therefore, it is often mixed with another fuel that is easier to deflagrate.
Nitrous oxide can be used as an oxidizer in a rocket motorIn vehicle racing, nitrous oxide (often referred to as just

Слайд 21The gas is approved for use as a food additive (also known

as E942), specifically as an aerosol spray propellant. Its most common

uses in this context are in aerosol whipped cream canisters, cooking sprays, and as an inert gas used to displace oxygen, to inhibit bacterial growth, when filling packages of potato chips and other similar snack foods.
The gas is approved for use as a food additive (also known as E942), specifically as an aerosol spray propellant.

Слайд 22Of the entire anthropogenic N2O emission (5.7 teragrams N2O-N per year),
agricultural soils provide

3.5 teragrams N2O–N per year.
 Nitrous oxide is produced naturally in the

soil during the microbial processes of nitrification, denitrification, nitrifier denitrification and others.

The production of adipic acid is the largest source to nitrous oxide. It specifically arises from the degradation of the nitrolic acid intermediate derived from nitration of cyclohexanone.

Of the entire anthropogenic N2O emission (5.7 teragrams N2O-N per year), agricultural soils provide 3.5 teragrams N2O–N per year. Nitrous oxide is produced

Слайд 23Cumulative effect
Recent experiments show that interaction between water vapor, N2O

and cosmic radiation increases cloud production.

Cumulative effectRecent experiments show that interaction between water vapor, N2O and cosmic radiation increases cloud production.

Слайд 24 - Other Effects on Climate
Tropospheric Ozone
Anthropogenic emissions have lead

to increase
Increases are heterogeneous, plus hard to determine pre-industrial concentrations
Stratospheric

Ozone
Loss in Stratosphere leads to cooling (more loss of energy out to space)
However, loss of stratospheric ozone also leads to greater UV absorption (and heating) in troposphere
As ozone loss is reversed, some heating may occur


- Other Effects on ClimateTropospheric OzoneAnthropogenic emissions have lead to increaseIncreases are heterogeneous, plus hard to

Слайд 25Climate Change - Other Effects on Climate
Aerosols
Light Scattering Aerosol
Light Absorbing

Aerosol



Indirect Effects of Aerosol

Climate Change  - Other Effects on ClimateAerosolsLight Scattering AerosolLight Absorbing AerosolIndirect Effects of Aerosol

Слайд 26 - Other Effects on Climate
Aerosol Effects – Light Scattering

Aerosol
Aerosol particles of diameter 0.2 to 1 mm is very

efficient in scattering light
A significant fraction is scattered in the backwards direction, so this effectively increases planetary albedo
Increase in albedo leads to cooling

Notice how smoke from Star fire is whiter vs. forest background

- Other Effects on ClimateAerosol Effects – Light Scattering AerosolAerosol particles of diameter 0.2 to 1

Слайд 27 - Other Effects on Climate
Aerosol Effects – Light Absorption
Most

aerosol constituents do not absorb significantly in the visible region

(where light is most prevalent)
A big exception is soot (elemental carbon emitted in inefficient combustion)
Soot clouds lead to atmospheric warming (even if cooling the surface over short-term)

Notice how smoke from Kuwait oil fires is black vs. desert background

http://www.lpi.usra.edu/publications/slidesets/humanimprints/slide_16.html

- Other Effects on ClimateAerosol Effects – Light AbsorptionMost aerosol constituents do not absorb significantly in

Слайд 28 - Other Effects on Climate
Indirect Effect of Aerosols
One type

is through modification of cloud reflectivity
Clean Case:
fewer but larger droplets
Polluted

Case:
more but smaller droplets
- Other Effects on ClimateIndirect Effect of AerosolsOne type is through modification of cloud reflectivityClean Case:fewer

Слайд 29Climate Change - Other Effects on Climate
Indirect Effect of Aerosols
Larger

droplets reflect light more poorly per g of cloud water
Polluted

clouds look whiter from space

Source: http//www-das.uwyo.edu/~geerts/cwx/notes/chap08/contrail.html

Ship tracks are indicative of localized pollution

Most apparent where: clouds are normally clean and with thin clouds (thick clouds have high albedos regardless)

Climate Change  - Other Effects on ClimateIndirect Effect of AerosolsLarger droplets reflect light more poorly per

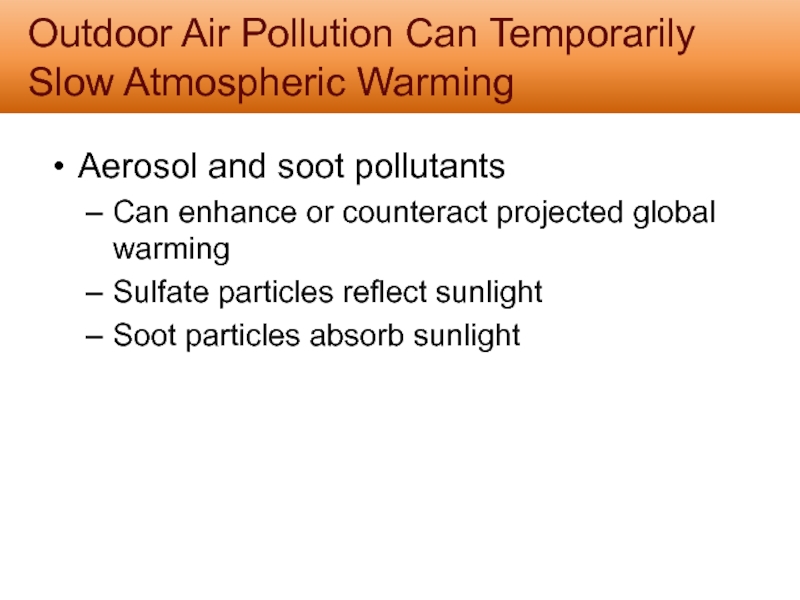

Слайд 30Aerosol and soot pollutants
Can enhance or counteract projected global warming
Sulfate

particles reflect sunlight
Soot particles absorb sunlight


Outdoor Air Pollution Can Temporarily

Slow Atmospheric Warming
Aerosol and soot pollutantsCan enhance or counteract projected global warmingSulfate particles reflect sunlightSoot particles absorb sunlightOutdoor Air

Слайд 31Feedback Effect
The climate system is very complicated. A change in

one component of the system may cause changes in other

components. Sometimes the changes in other components enhance the initial change, then we say that these changes have positive feedback to the system. If the changes result in the reduction of the original change, then they have negative feedback.

Both positive and negative feedback processes may exist in the climate system. In studying the global climatic change, we cannot make conclusions based on intuition, but have to take all such possible complicated effects into account. A good climate model would have treated all of them realistically.
Feedback EffectThe climate system is very complicated. A change in one component of the system may cause

Слайд 32An example of positive feedback
When the climate becomes warmer (either

due to the increase of CO2 in the atmosphere or

other unknown mechanisms), the ocean may also become warmer. A warmer ocean has lower solubility of CO2 and hence will release more CO2 into the atmosphere. This may cause the climate to become even warmer than before. Thus the dependence of solubility of CO2 on temperature has a positive feedback on the climate system.
An example of positive feedbackWhen the climate becomes warmer (either due to the increase of CO2 in

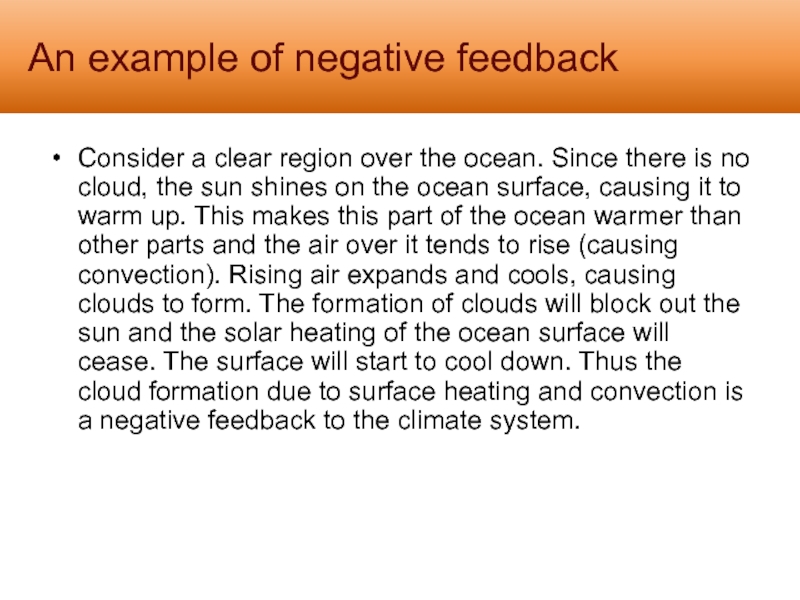

Слайд 33An example of negative feedback
Consider a clear region over the

ocean. Since there is no cloud, the sun shines on

the ocean surface, causing it to warm up. This makes this part of the ocean warmer than other parts and the air over it tends to rise (causing convection). Rising air expands and cools, causing clouds to form. The formation of clouds will block out the sun and the solar heating of the ocean surface will cease. The surface will start to cool down. Thus the cloud formation due to surface heating and convection is a negative feedback to the climate system.
An example of negative feedbackConsider a clear region over the ocean. Since there is no cloud, the
