Слайд 1 The tail unit
The tail unit is the main

part of the aircraft.

The tail unitThe tail unit is the main part of the aircraft.

Слайд 2

Слайд 3

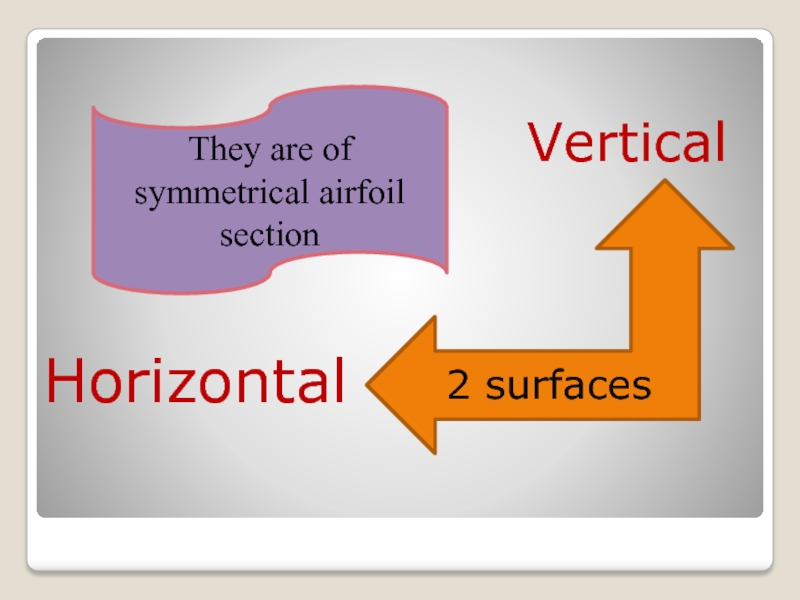

Vertical

Horizontal
2 surfaces
They

are of symmetrical airfoil section

VerticalHorizontal

Слайд 4Each is divided into two parts
The FRONT part is fixed.
The

REAR part is in the form of a flap which

is operation providing directional control.

Each is divided into two partsThe FRONT part is fixed.The REAR part is in the form of

Слайд 5

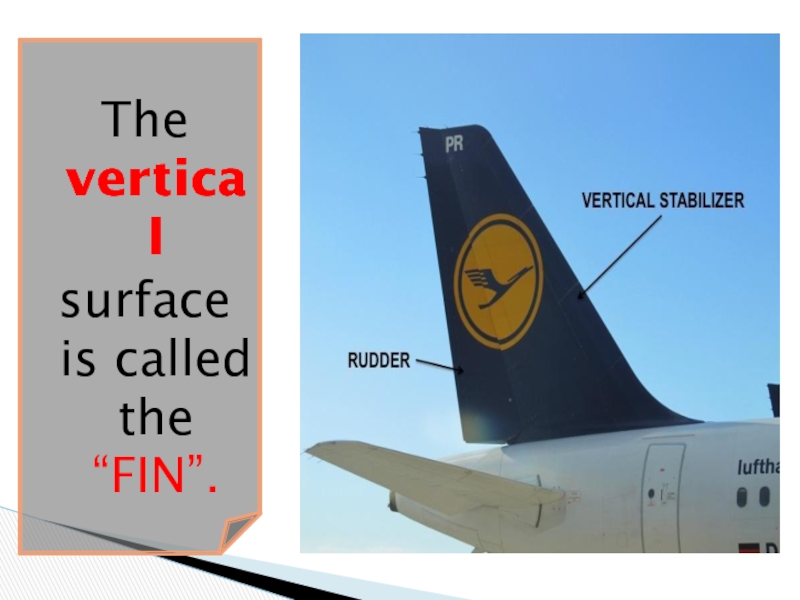

The vertical
surface is called the “FIN”.

The verticalsurface is called the “FIN”.

Слайд 6
The horizontal surface is known as the “STABILISER”.

The horizontal surface is known as the “STABILISER”.

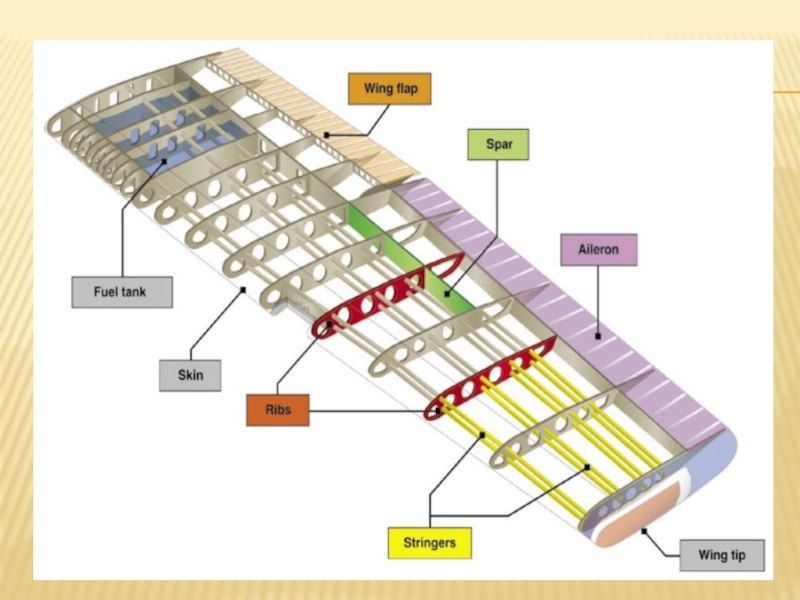

Слайд 7Both stabilisers are very similar to wing in construction.
They are

usually of all-metal construction of the cantilever type.
They have two

main members: spars and ribs to which metal skin is attached.

Both stabilisers are very similar to wing in construction.They are usually of all-metal construction of the cantilever

Слайд 8

Слайд 9The vertical stabiliser or fin provides directional stability of the

aeroplane in flight.
It also serves as the base to which

the rudder is attached.

The vertical stabiliser or fin provides directional stability of the aeroplane in flight.It also serves as the

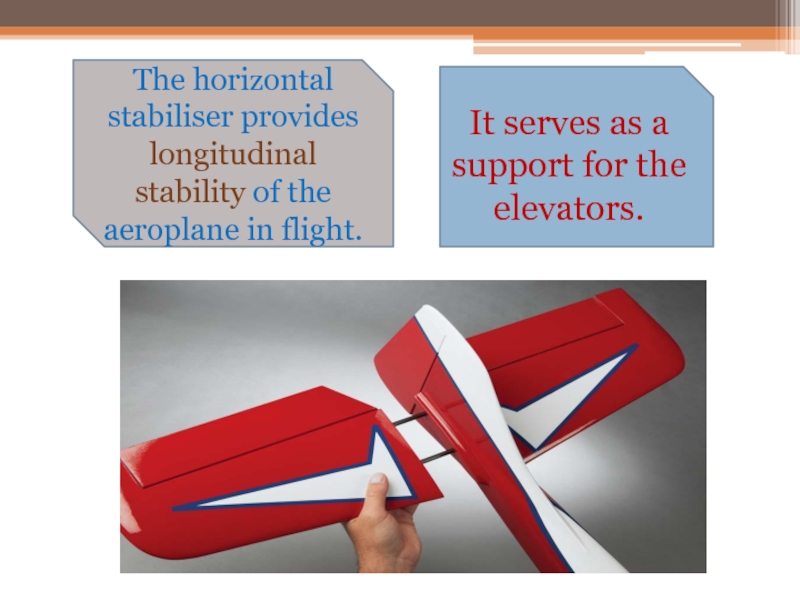

Слайд 10The horizontal stabiliser provides longitudinal stability of the aeroplane in

flight.
It serves as a support for the elevators.

The horizontal stabiliser provides longitudinal stability of the aeroplane in flight.It serves as a support for the
