Слайд 1Topic 13
«Networks and
telecommunications»
Слайд 215-
Networking
Computer network A collection of computing devices that are
connected in various ways in order to communicate and share
resources
Usually, the connections between computers in a network are made using physical wires or cables
However, some connections are wireless, using radio waves or infrared signals
Слайд 315-
Networking
The generic term node or host refers to any device
on a network
Data transfer rate The speed with which
data is moved from one place on a network to another
Data transfer rate is a key issue in computer networks
Слайд 415-
Networking
Computer networks have opened up an entire frontier in the
world of computing called the client/server model
Figure 15.1 Client/Server interaction
Слайд 515-
Networking
File server A computer that stores and manages files for
multiple users on a network
Web server A computer dedicated to
responding to requests (from the browser client) for web pages
Слайд 615-
Types of Networks
Local-area network (LAN) A network that connects
a relatively small number of machines in a relatively close
geographical area
Слайд 715-
Types of Networks
Various configurations, called topologies, have been used to
administer LANs
Ring topology A configuration that connects all nodes
in a closed loop on which messages travel in one direction
Star topology A configuration that centers around one node to which all others are connected and through which all messages are sent
Bus topology All nodes are connected to a single communication line that carries messages in both directions
Слайд 8Types of Networks
A bus technology called Ethernet has become the
industry standard for local-area networks
Figure 15.2 Various network topologies
15-10
Слайд 915-
Types of Networks
Wide-area network (WAN) A network that connects
two or more local-area networks over a potentially large geographic
distance
Often one particular node on a LAN is set up to serve as a gateway to handle all communication going between that LAN and other networks
Communication between networks is called internetworking
The Internet, as we know it today, is essentially the ultimate wide-area network, spanning the entire globe
Слайд 1015-
Types of Networks
Metropolitan-area network (MAN) The communication infrastructures that have
been developed in and around large cities
Слайд 1115-
So, who owns the Internet?
Well, nobody does. No single person
or company owns the Internet or even controls it entirely.
As a wide-area network, it is made up of many smaller networks. These smaller networks are often owned and managed by a person or organization. The Internet, then, is really defined by how connections can be made between these networks.
Слайд 1215-
Types of Networks
Figure 15.1 Local-area networks connected across a distance
to create a wide-area network
Слайд 1315-
Internet Connections
Internet backbone A set of high-speed networks that carry
Internet traffic
These networks are provided by companies such as AT&T,
GTE, and IBM
Internet service provider (ISP) A company that provides other companies or individuals with access to the Internet
Слайд 1415-
Internet Connections
There are various technologies available that you can use
to connect a home computer to the Internet
A phone modem
converts computer data into an analog audio signal for transfer over a telephone line, and then a modem at the destination converts it back again into data
A digital subscriber line (DSL) uses regular copper phone lines to transfer digital data to and from the phone company’s central office
A cable modem uses the same line that your cable TV signals come in on to transfer the data back and forth
Слайд 1515-
Internet Connections
Broadband A connection in which transfer speeds are faster
than 128 bits per second
DSL connections and cable modems are
broadband connections
The speed for downloads (getting data from the Internet to your home computer) may not be the same as uploads (sending data from your home computer to the Internet)
Слайд 16Packet Switching
To improve the efficiency of transferring information over a
shared communication line, messages are divided into fixed-sized, numbered packets
Network
devices called routers are used to direct packets between networks
Figure 15.4
Messages sent by packet switching
15-18
Слайд 1715-
Open Systems
Proprietary system A system that uses technologies kept private
by a particular commercial vendor
One system couldn’t communicate with another,
leading to the need for
Interoperability The ability of software and hardware on multiple machines and from multiple commercial vendors to communicate
Leading to
Open systems Systems based on a common model of network architecture and a suite of protocols used in its implementation
Слайд 1815-
Open Systems
The International Organization for Standardization (ISO) established the Open
Systems Interconnection (OSI) Reference Model
Each layer deals with a particular
aspect of network communication

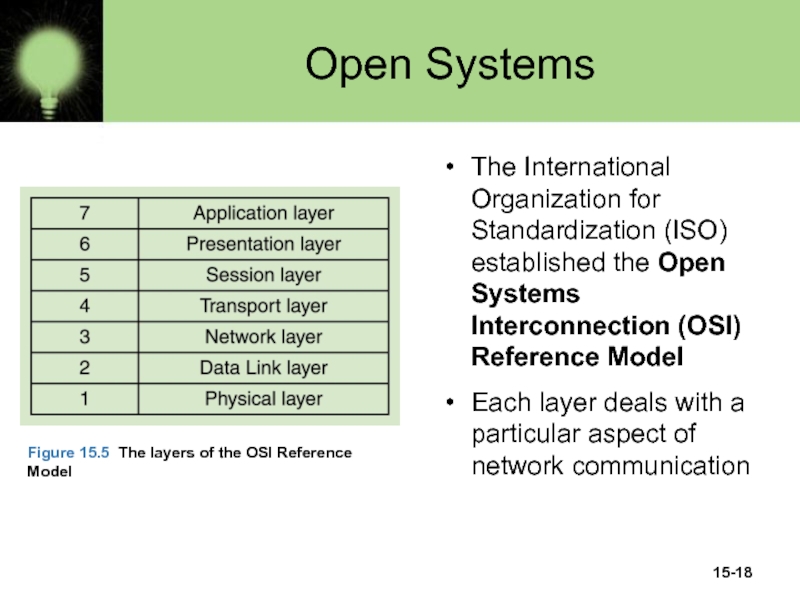

Figure 15.5 The layers of the OSI Reference Model
Слайд 1915-
Network Protocols
A protocol is a set of rules and formats
that govern the communication between communicating peers
set of valid messages
meaning
of each message
Network protocols are layered such that each one relies on the protocols that underlie it
Sometimes referred to as a protocol stack
Figure 15.6 Layering of key network protocols
Слайд 2015-
TCP/IP
TCP stands for Transmission Control Protocol
TCP software breaks messages into
packets, hands them off to the IP software for delivery,
and then orders and reassembles the packets at their destination
IP stands for Internet Protocol
IP software deals with the routing of packets through the maze of interconnected networks to their final destination
Слайд 2115-
TCP/IP (cont.)
UDP stands for User Datagram Protocol
It is an alternative
to TCP
The main difference is that TCP is highly reliable,
at the cost of decreased performance, while UDP is less reliable, but generally faster
Слайд 2215-
High-Level Protocols
Other protocols build on the foundation established by the
TCP/IP protocol suite
Simple Mail Transfer Protocol (SMTP)
File Transfer Protocol (FTP)
Telnet
Hyper
Text Transfer Protocol (http)
Слайд 2315-
MIME Types
Related to the idea of network protocols and standardization
is the concept of a file’s MIME type
MIME stands for
Multipurpose Internet Mail Extension
Based on a document’s MIME type, an application program can decide how to deal with the data it is given
Слайд 2415-
MIME Types
Figure 15.7
Some protocols and the ports they use
Слайд 2515-
Firewalls
Firewall A machine and its software that serve as a
special gateway to a network, protecting it from inappropriate access
Filters
the network traffic that comes in, checking the validity of the messages as much as possible and perhaps denying some messages altogether
Enforces an organization’s access control policy
Слайд 2615-
Firewalls
Figure 15.8 A firewall protecting a LAN
Слайд 2715-
Network Addresses
Hostname A unique identification that specifies a particular computer
on the Internet
For example
matisse.csc.villanova.edu
condor.develocorp.com
Слайд 2815-
Network Addresses
Network software translates a hostname into its corresponding IP
address
For example
205.39.145.18
Слайд 2915-
Network Addresses
An IP address can be split into
network address, which
specifies a specific network
host number, which specifies a particular machine
in that network
Figure 15.9
An IP address is stored in four bytes
Слайд 3015-
Domain Name System
A hostname consists of the computer name followed
by the domain name
csc.villanova.edu is the domain name
A domain name
is separated into two or more sections that specify the organization, and possibly a subset of an organization, of which the computer is a part
Two organizations can have a computer named the same thing because the domain name makes it clear which one is being referred to
Слайд 3115-
Domain Name System
The very last section of the domain is
called its top-level domain (TLD) name
Figure 15.10 Top-level domains, including
some relatively new ones
Слайд 3215-
Domain Name System
Organizations based in countries other than the United
States use a top-level domain that corresponds to their two-letter
country codes
Figure 15.11
Some of the top-level domain names based on country codes
Слайд 3315-
Domain Name System
The domain name system (DNS) is chiefly used
to translate hostnames into numeric IP addresses
DNS is an example
of a distributed database
If that server can resolve the hostname, it does so
If not, that server asks another domain name server
