Moscow Power Engineering Institute Simulation of the low-frequency

the compensating source
of the active vibration damping system
Vitaly Ryzhov,

Pavel Dergachev,
Ekaterina Kurbatova, Oleg Molokanov,
Sergey Osipkin, Pavel Kurbatov

Varna 2019

systems excited by the operation of machines and different mechanisms

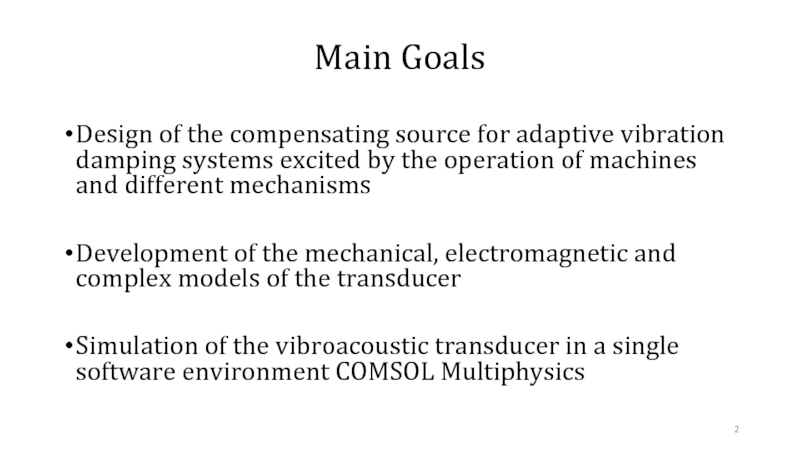

Development

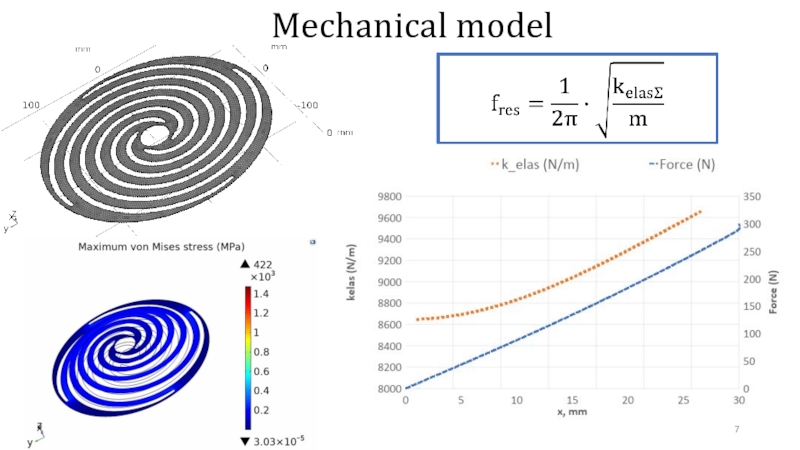

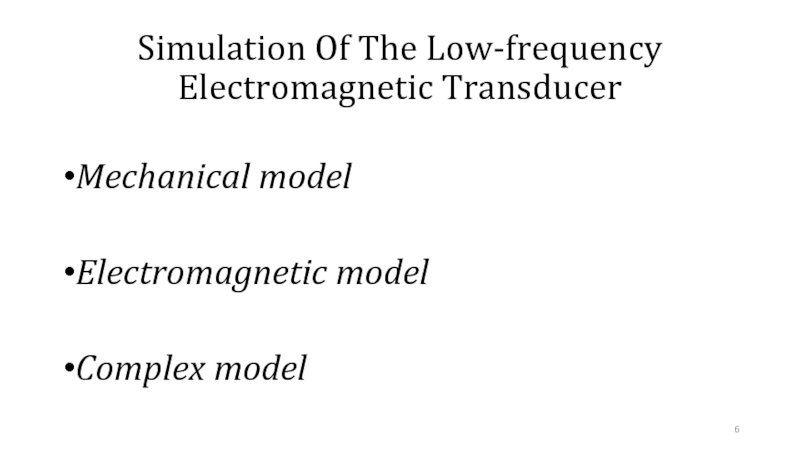

of the mechanical, electromagnetic and complex models of the transducer

Simulation of the vibroacoustic transducer in a single software environment COMSOL Multiphysics

is difficult to make a spring with a low coefficient

of elasticity, able to withstand considerable mass with large displacements

It is difficult to make a highly linear electromagnetic system

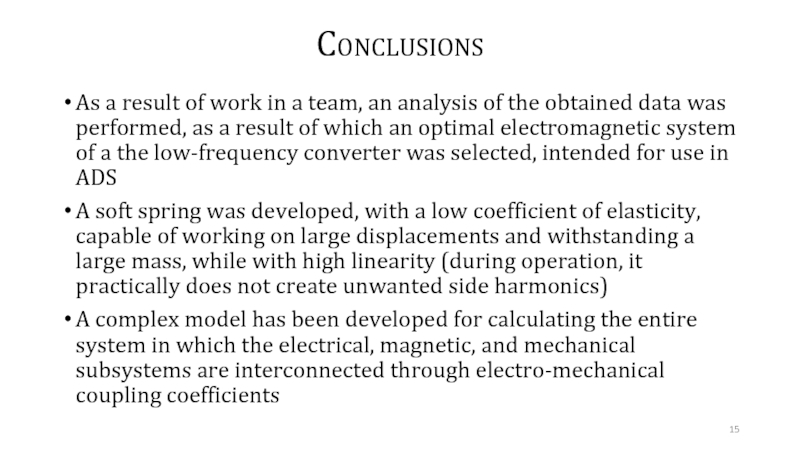

of the obtained data was performed, as a result of

which an optimal electromagnetic system of a the low-frequency converter was selected, intended for use in ADS

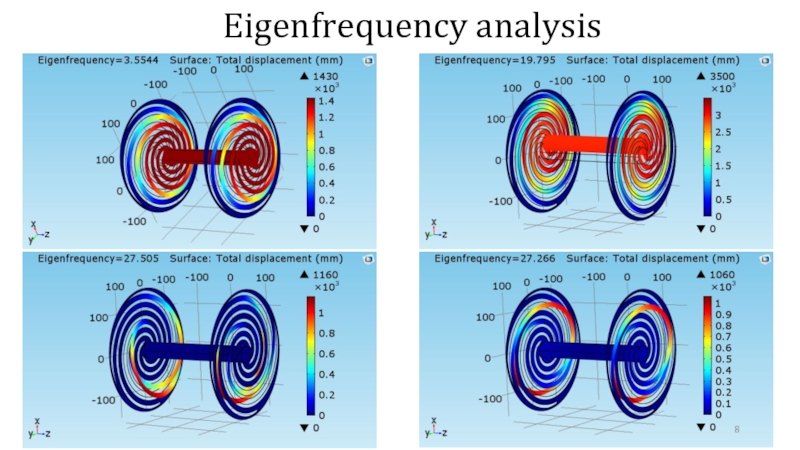

A soft spring was developed, with a low coefficient of elasticity, capable of working on large displacements and withstanding a large mass, while with high linearity (during operation, it practically does not create unwanted side harmonics)

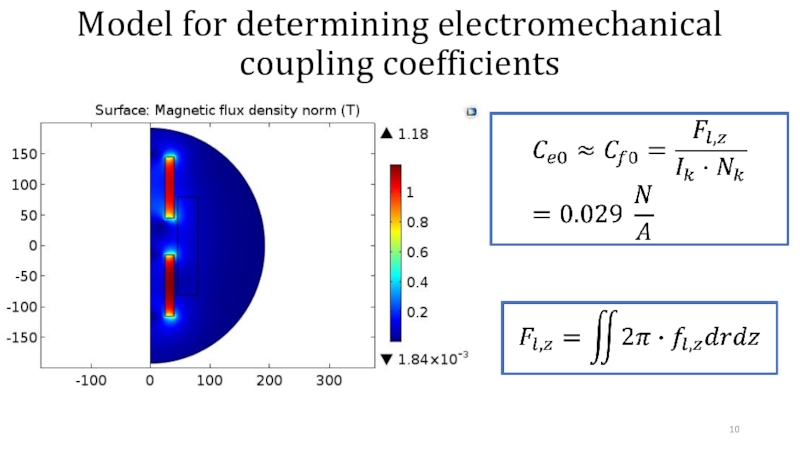

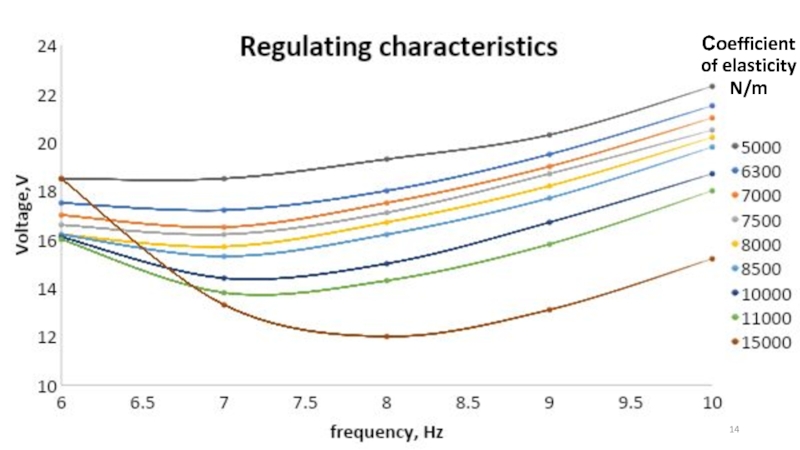

A complex model has been developed for calculating the entire system in which the electrical, magnetic, and mechanical subsystems are interconnected through electro-mechanical coupling coefficients
