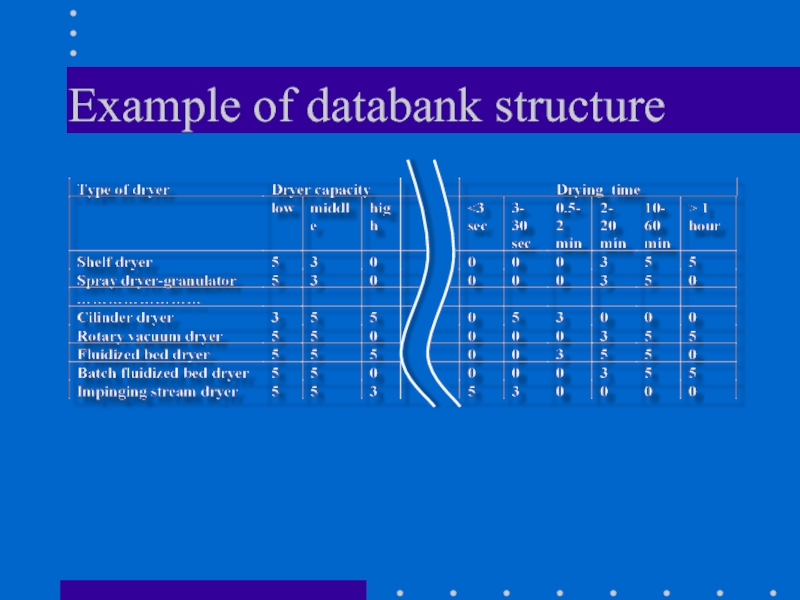

- 9. Example of databank structure
- 10. About “32 dryers” databank This databank is

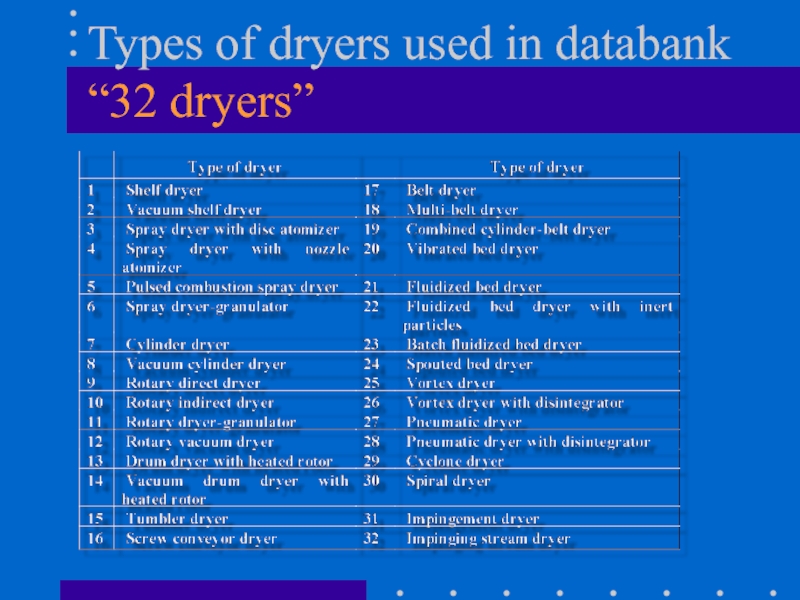

- 11. Types of dryers used in databank “32 dryers”
- 12. DIDEDIDE is DryInf data editor. DIDE allows
- 13. Have a look on this system...DryInf

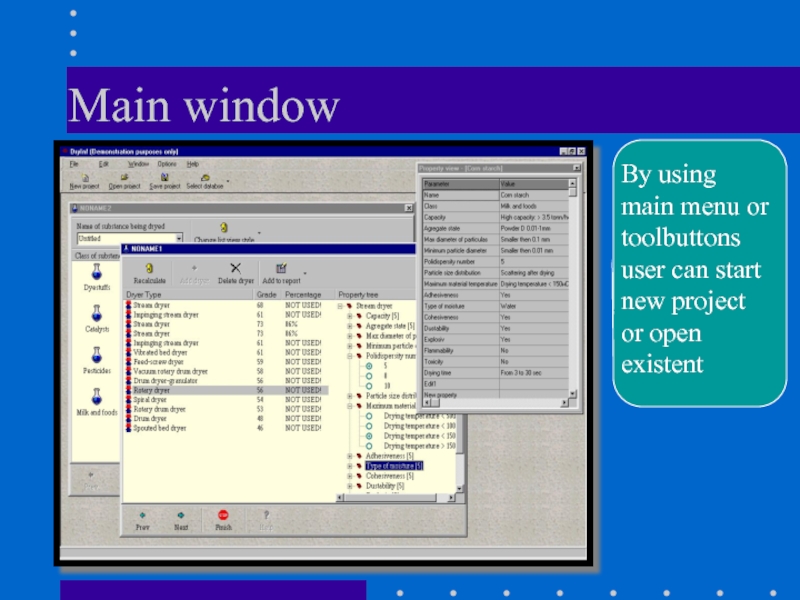

- 14. Main windowBy using main menu or toolbuttons user can start new project or open existent
- 15. Class and nameIn this first wizard window
- 16. Specify properties of substanceAt this window all substance properties must be specified.
- 17. See the resultHere the list of all
- 18. Full-sized dryer imageBy pressing “Show selected“ button user will see selected apparatus image detailed.
- 19. “Back step“ modeIn this window user can
- 20. Add new dryers or propertiesDryInf allows user

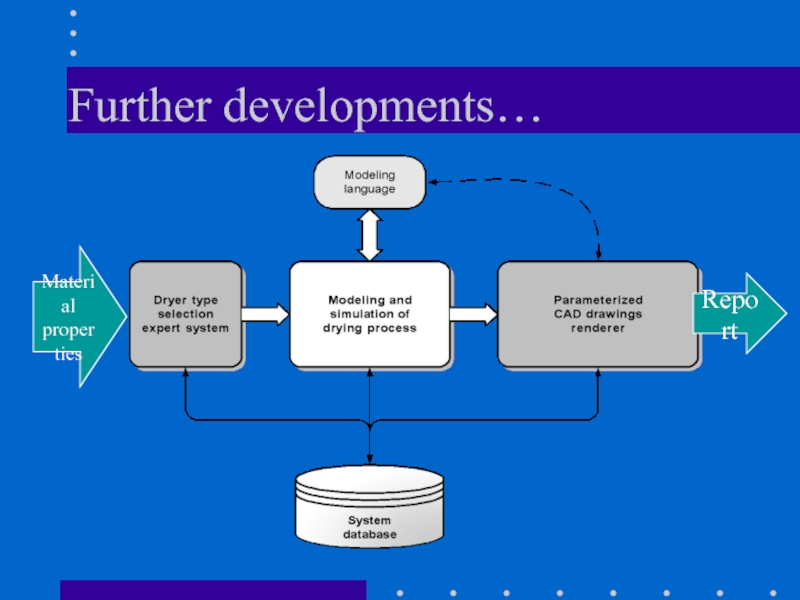

- 21. Further developments…Material propertiesReport
- 22. Modeling language
- 23. Conceptual system structure

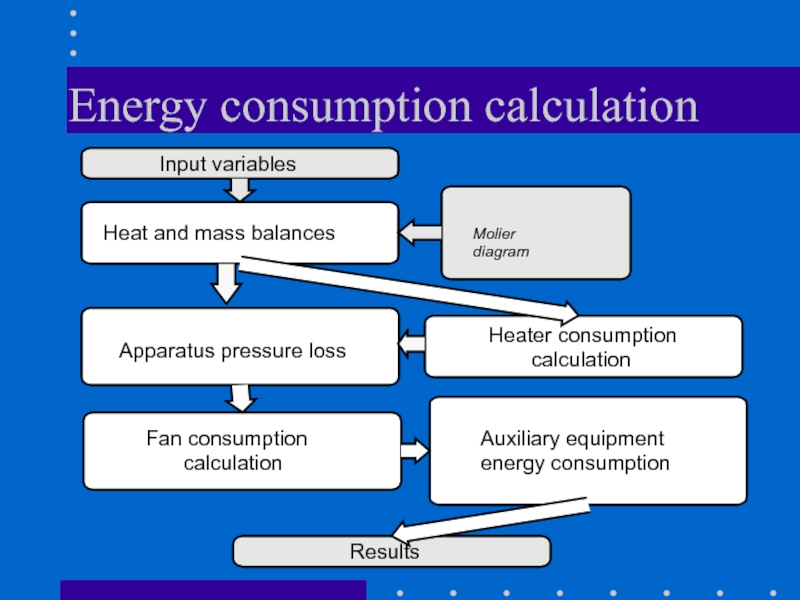

- 24. Energy consumption calculation

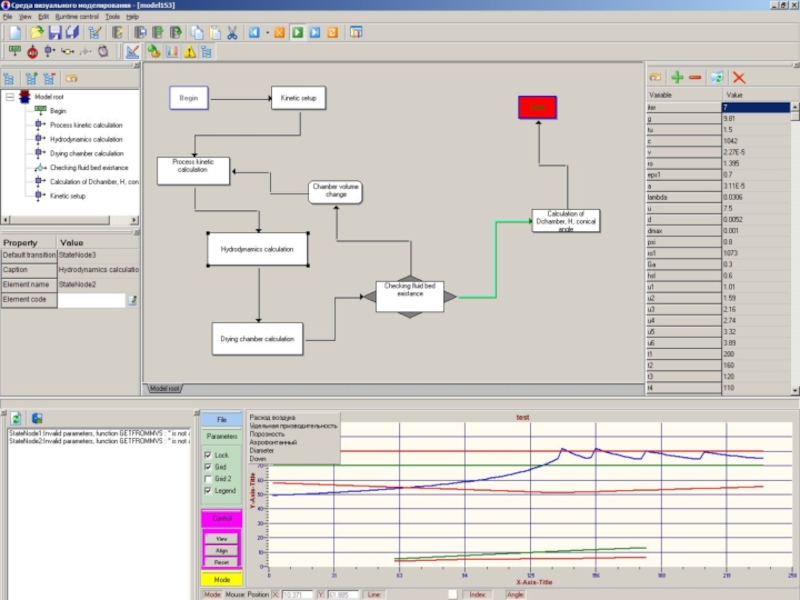

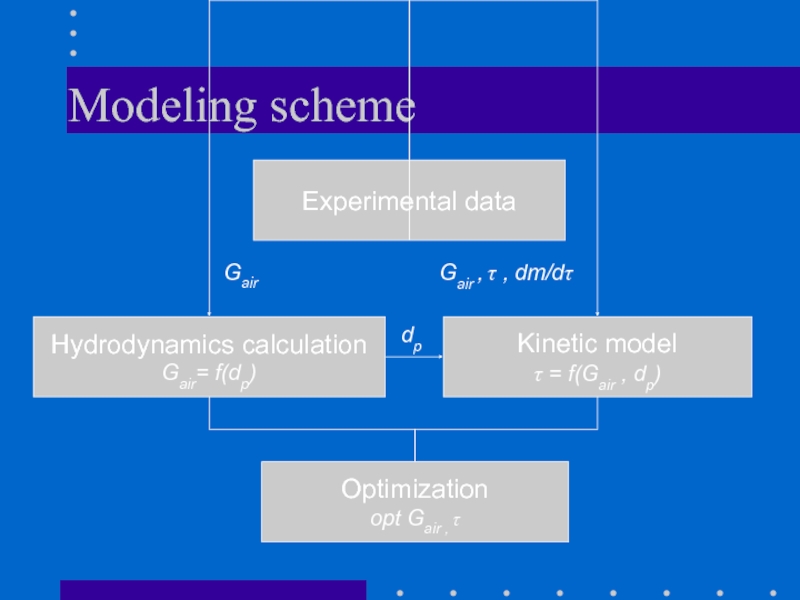

- 25. Modeling scheme

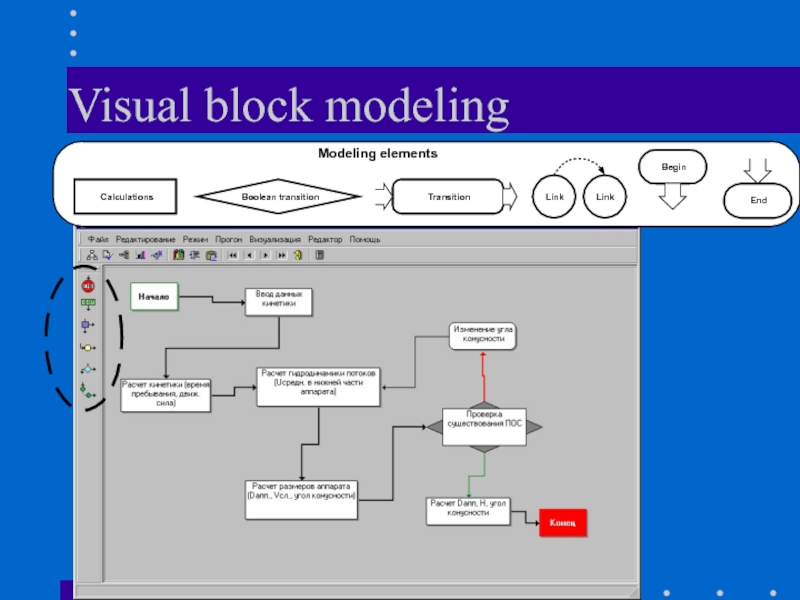

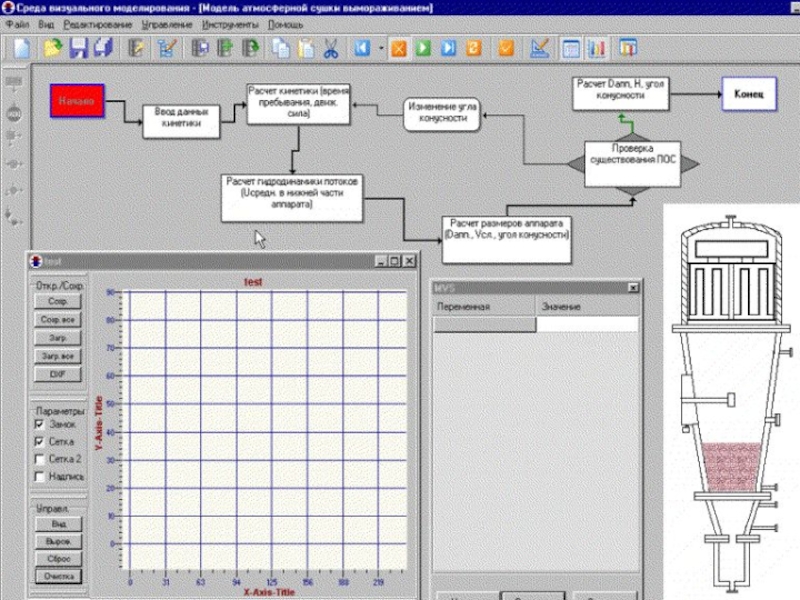

- 26. Visual block modeling
- 27. Слайд 27
- 28. Слайд 28

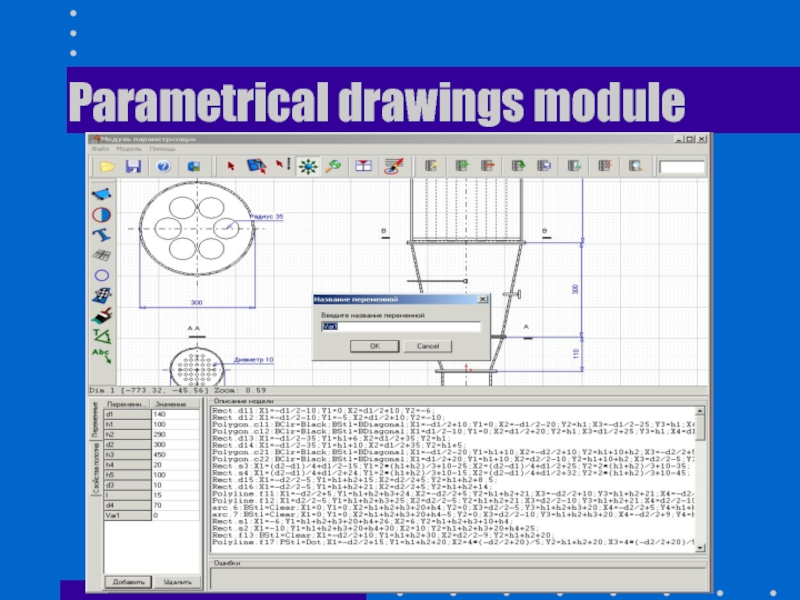

- 29. Parametrical drawings module

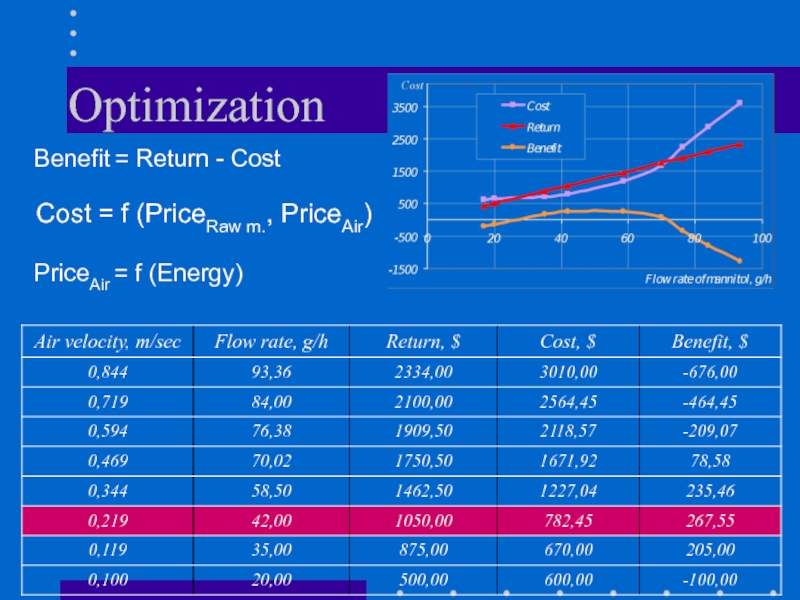

- 30. OptimizationBenefit = Return - Cost
- 31. Contact informationVisit Web-page at http://stop.at/dryinf/for more information and demo download.For getting this software, please mail to:chemcom@muctr.edu.ru
- 32. Скачать презентанцию
Aims... Summarize and accumulate human experience Intelligent aid while design Knowledge and experience sharing
Слайды и текст этой презентации
Слайд 1DryInf
Information system.
© 1996-2002 by MUCTR
Mendeleyev University of Chemical Technology of
Russia (MUCTR)
Слайд 2Aims...
Summarize and accumulate human experience
Intelligent
aid while design
Knowledge and experience sharing

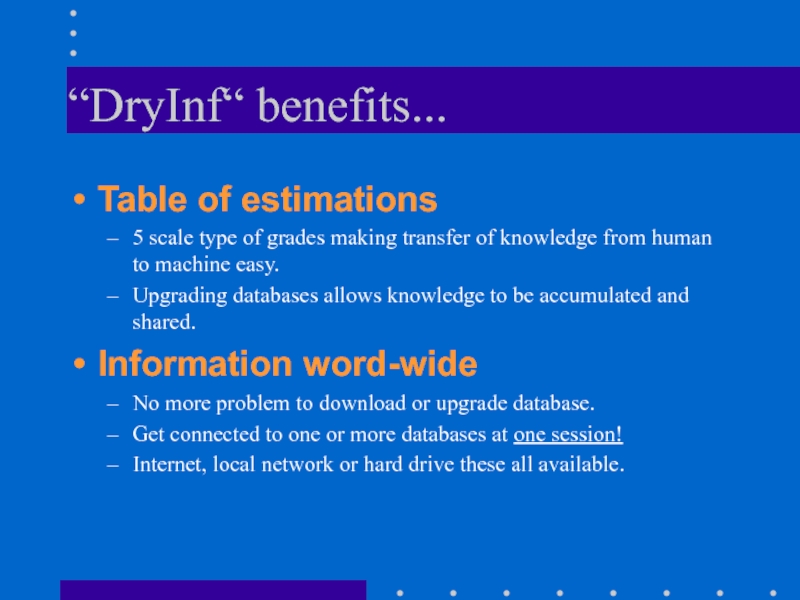

Слайд 3“DryInf“ benefits...
Table of estimations
5 scale type of grades making
transfer of knowledge from human to machine easy.
Upgrading databases
allows knowledge to be accumulated and shared.Information word-wide
No more problem to download or upgrade database.
Get connected to one or more databases at one session!
Internet, local network or hard drive these all available.

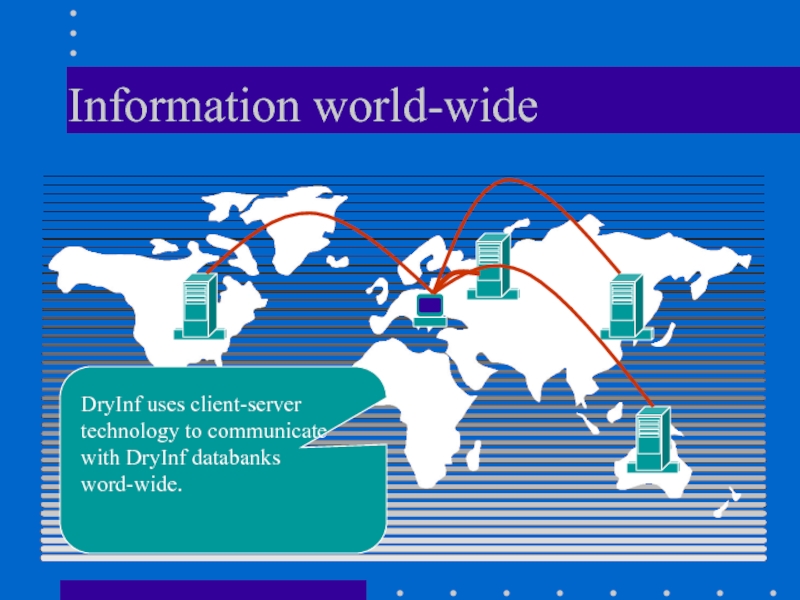

Слайд 4Information world-wide
DryInf uses client-server technology to communicate with DryInf databanks
word-wide.
Слайд 5“DryInf” benefits...
Modular technology
All functions of this system are “plug-in’s”,
all of them user can enable or disable.
Application Program Interface
(DryInf API) provides simple and fast mechanism to integrate other applications into DryInf.“Wizard“ style of user interface
User should not think likely “How to work with it?”, he just start to work immediately.
Highly understandable interface is very comfortable for beginners.

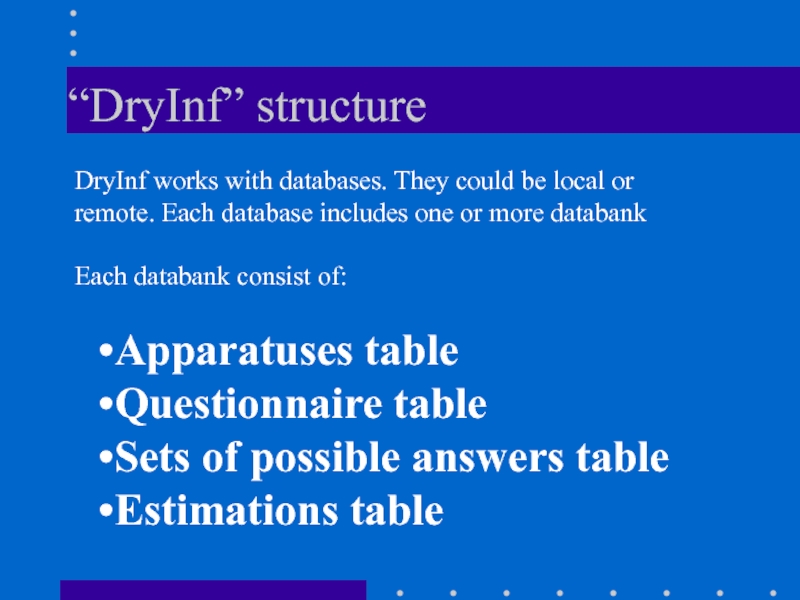

Слайд 6“DryInf” structure
DryInf works with databases. They could be local or
remote. Each database includes one or more databank
Each databank
consist of:Apparatuses table
Questionnaire table
Sets of possible answers table
Estimations table

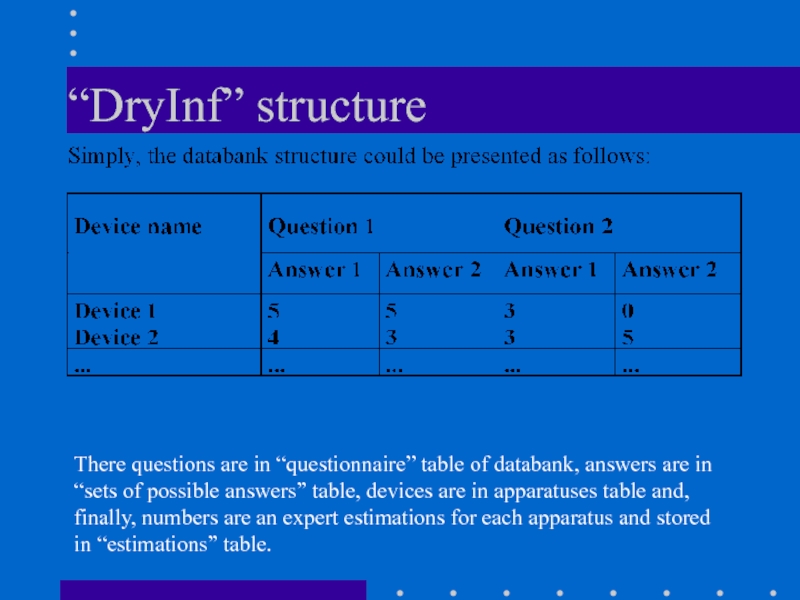

Слайд 7“DryInf” structure
There questions are in “questionnaire” table of databank, answers
are in “sets of possible answers” table, devices are in
apparatuses table and, finally, numbers are an expert estimations for each apparatus and stored in “estimations” table.

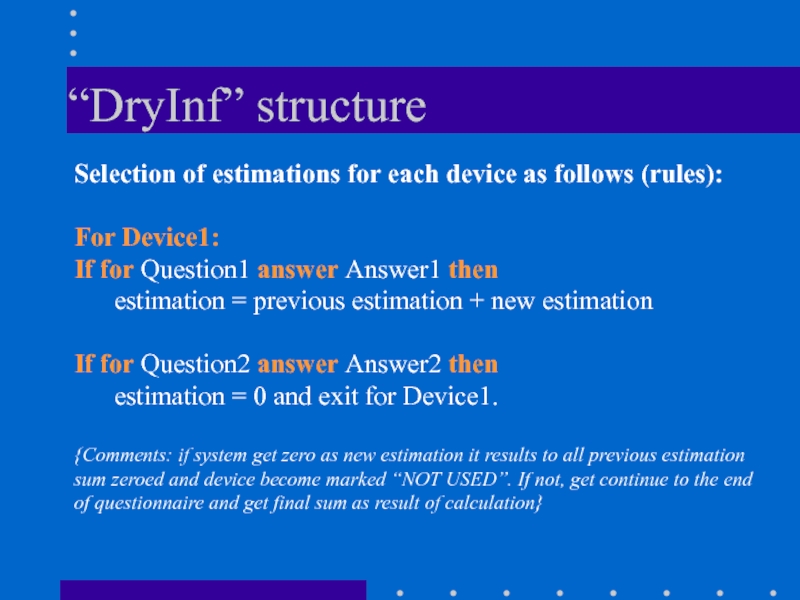

Слайд 8“DryInf” structure
Selection of estimations for each device as follows (rules):
For
Device1:
If for Question1 answer Answer1 then
estimation = previous estimation
+ new estimationIf for Question2 answer Answer2 then
estimation = 0 and exit for Device1.
{Comments: if system get zero as new estimation it results to all previous estimation sum zeroed and device become marked “NOT USED”. If not, get continue to the end of questionnaire and get final sum as result of calculation}
Слайд 10
About “32 dryers” databank
This databank is shipped with
DryInf as local database.
It was developed with the
aim to facilitate selection of the most appropriate dryer for a given material

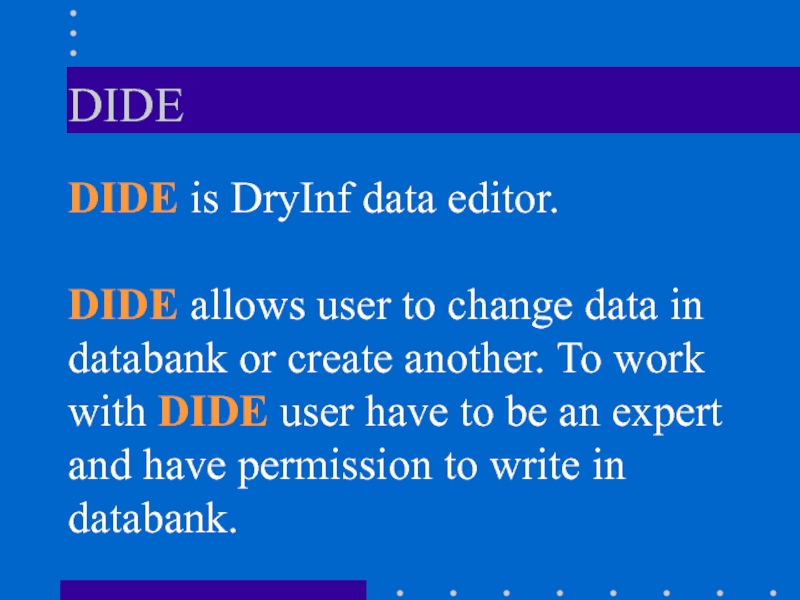

Слайд 12DIDE
DIDE is DryInf data editor.
DIDE allows user to change
data in databank or create another. To work with DIDE
user have to be an expert and have permission to write in databank.
Слайд 15Class and name
In this first wizard window user have to
select a class of substance being processed and enter name
or id of this one.At the right side of window all entered properties will be dynamically updated.

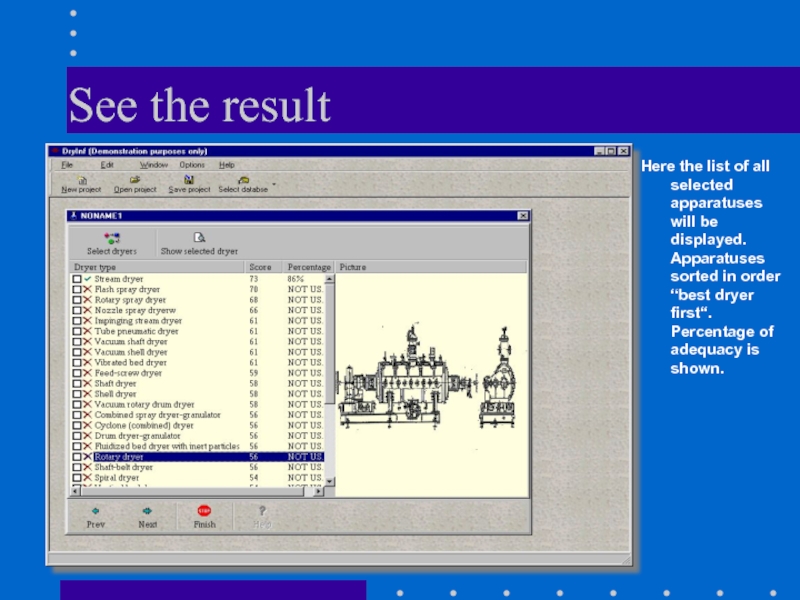

Слайд 17See the result
Here the list of all selected apparatuses will
be displayed. Apparatuses sorted in order “best dryer first“. Percentage
of adequacy is shown.

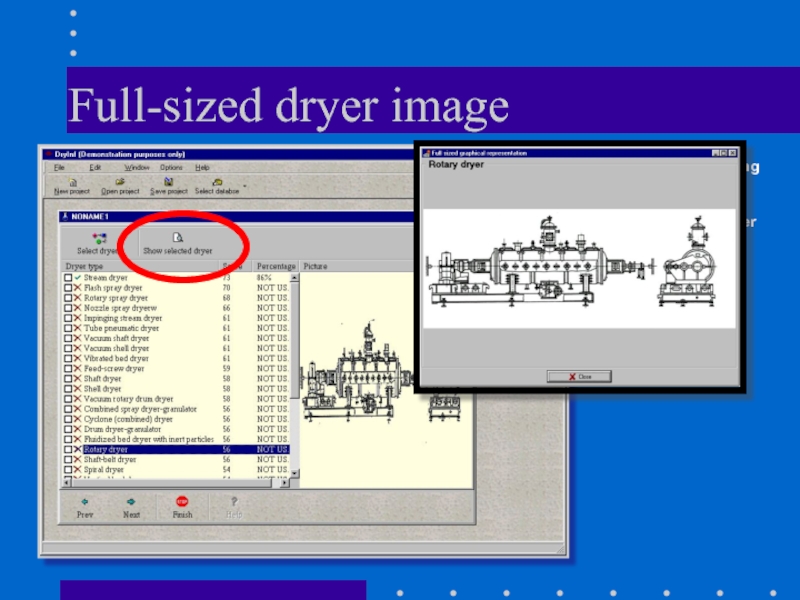

Слайд 18Full-sized dryer image
By pressing “Show selected“ button user will see
selected apparatus image detailed.

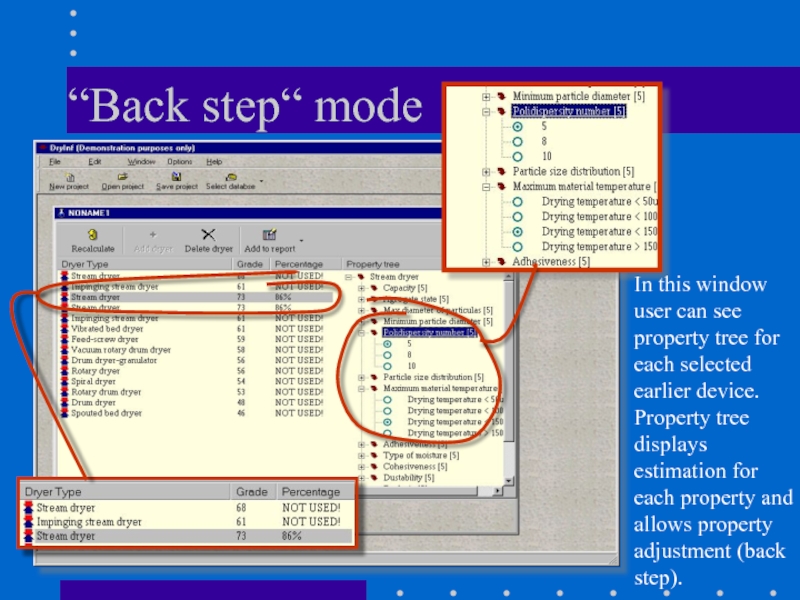

Слайд 19“Back step“ mode
In this window user can see property tree
for each selected earlier device.
Property tree displays estimation for
each property and allows property adjustment (back step).

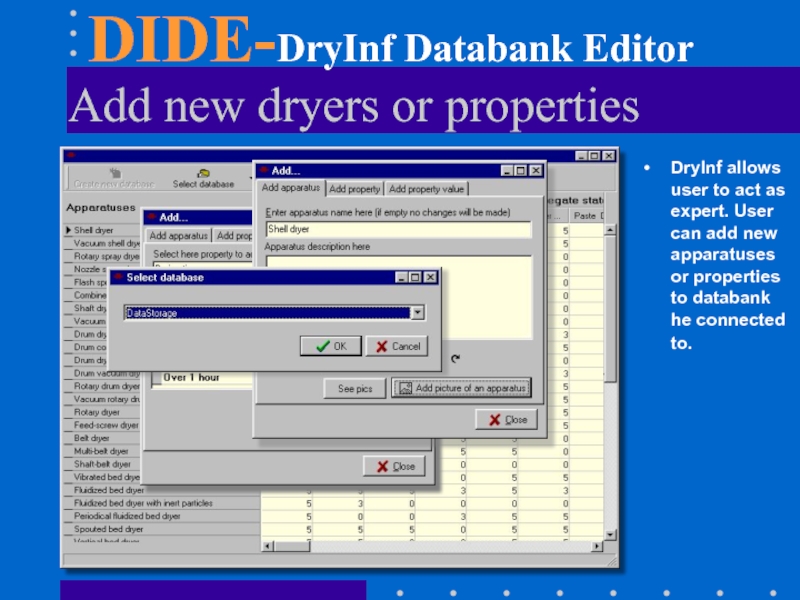

Слайд 20Add new dryers or properties
DryInf allows user to act as
expert. User can add new apparatuses or properties to databank
he connected to.DIDE-DryInf Databank Editor

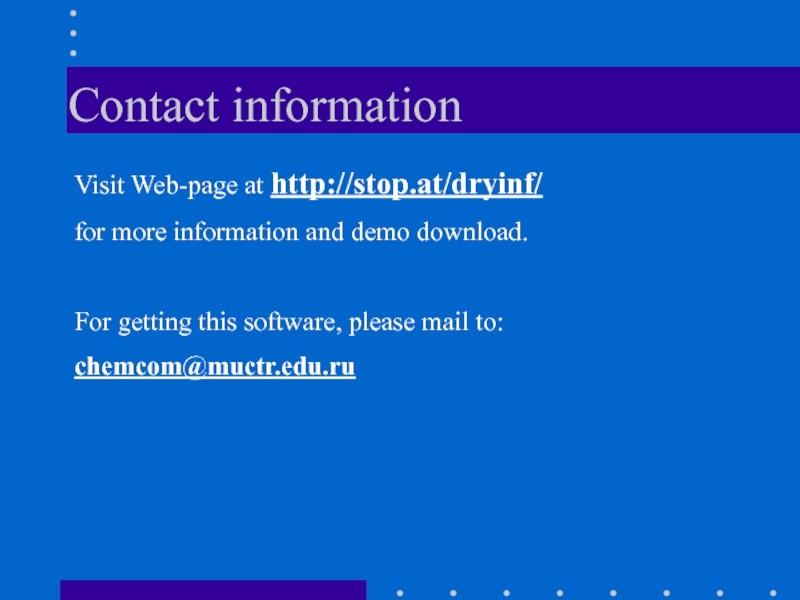

Слайд 31Contact information
Visit Web-page at http://stop.at/dryinf/
for more information and demo download.
For
getting this software, please mail to:
chemcom@muctr.edu.ru
