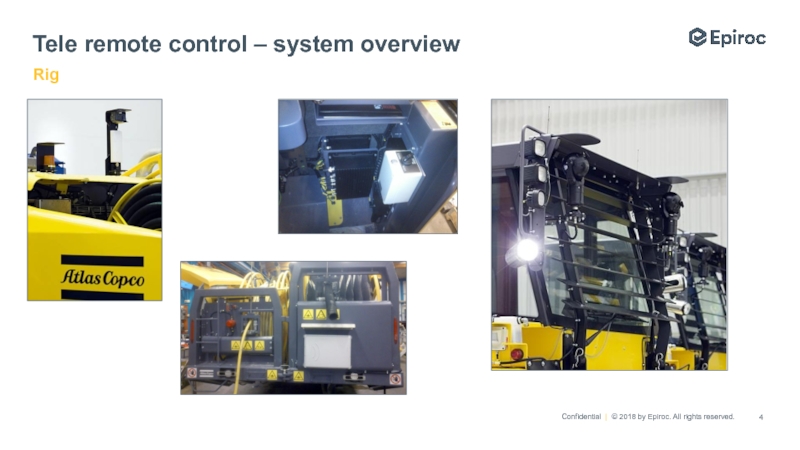

Tele remote control

Ventilation
Cold / Heat
Noise
Easy to Operate and startup
Possibility to operate the

rigs from surface or any other remote location
More efficient with one operator controlling several drill rigs

Benefits with Remote Control

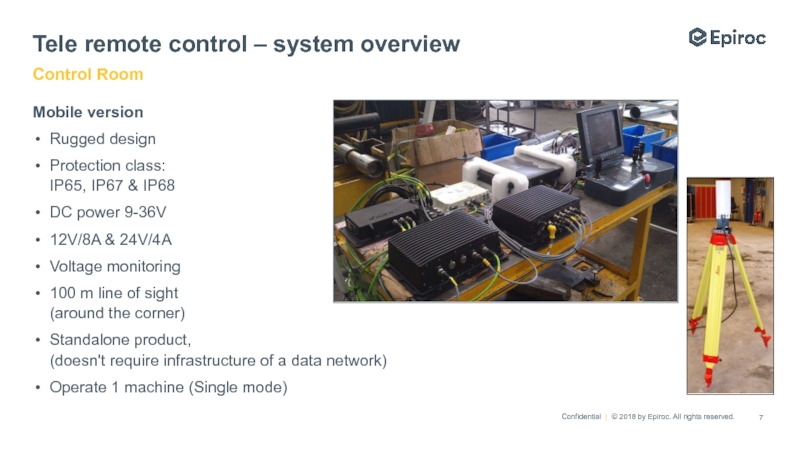

IP67 & IP68
DC power 9-36V
12V/8A & 24V/4A
Voltage monitoring
100 m

line of sight (around the corner)
Standalone product, (doesn't require infrastructure of a data network)
Operate 1 machine (Single mode)

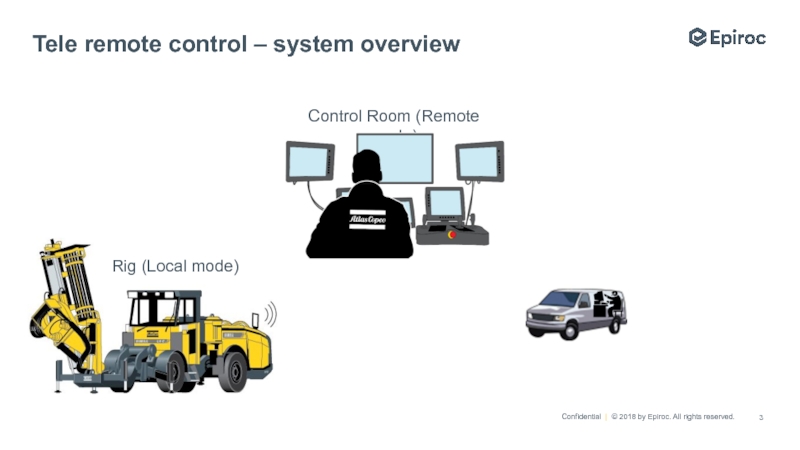

Control Room

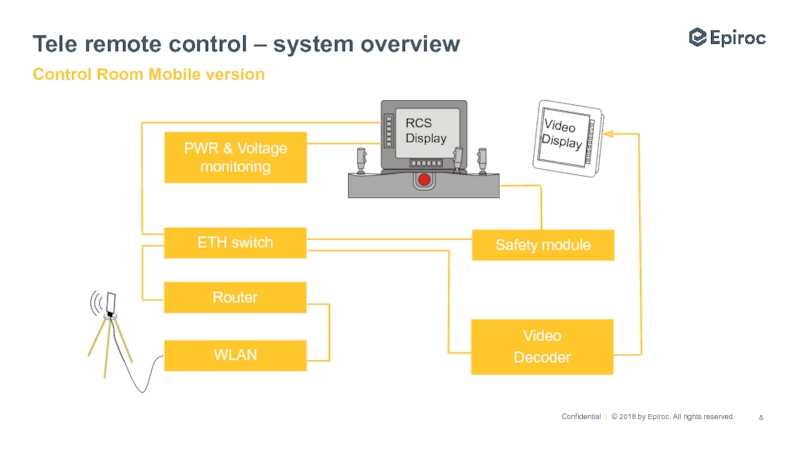

& Voltage monitoring
Safety module

and Multi mode
Operate 1 up to 6 machines
One operator can controlling

several drill rigs
Possibility to operate the rigs from surface or any other remote location

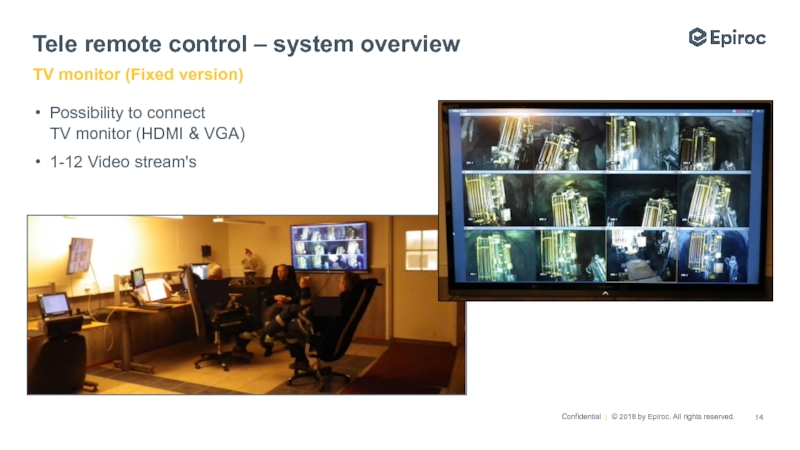

Possibility to connect TV monitor (HDMI & VGA)
Require network infrastructure

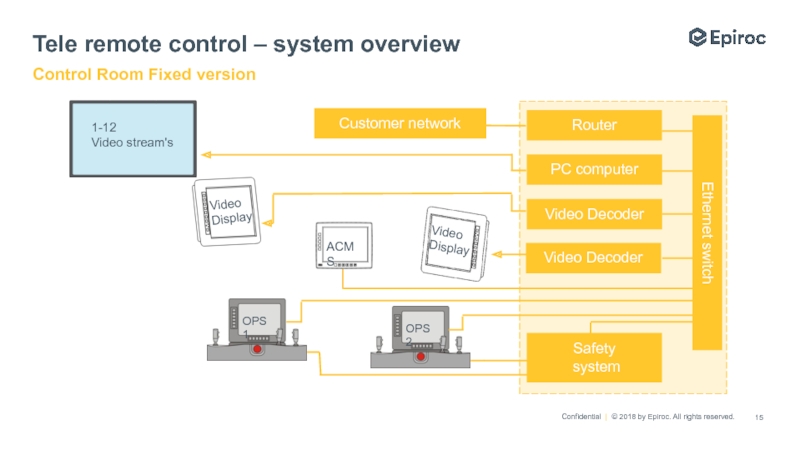

Control Room

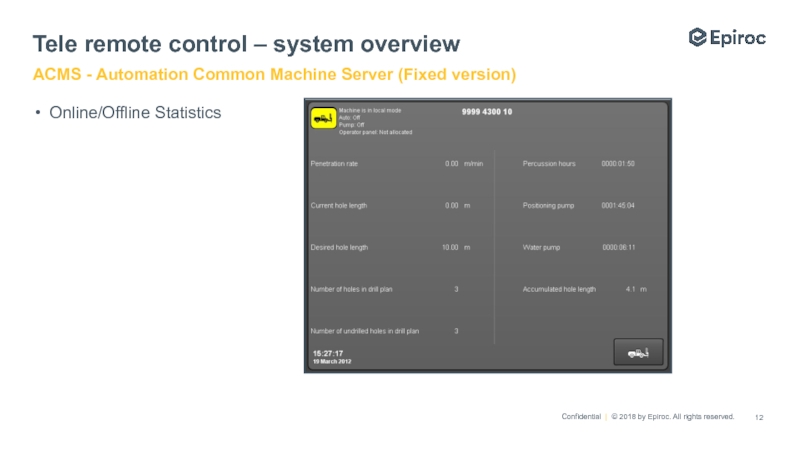

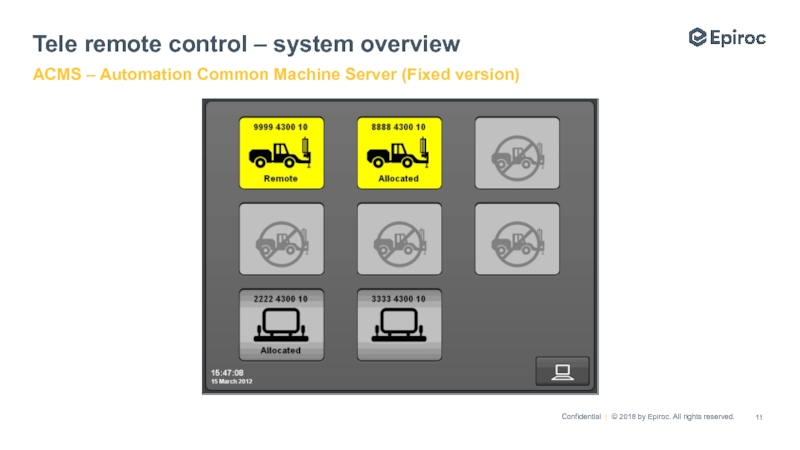

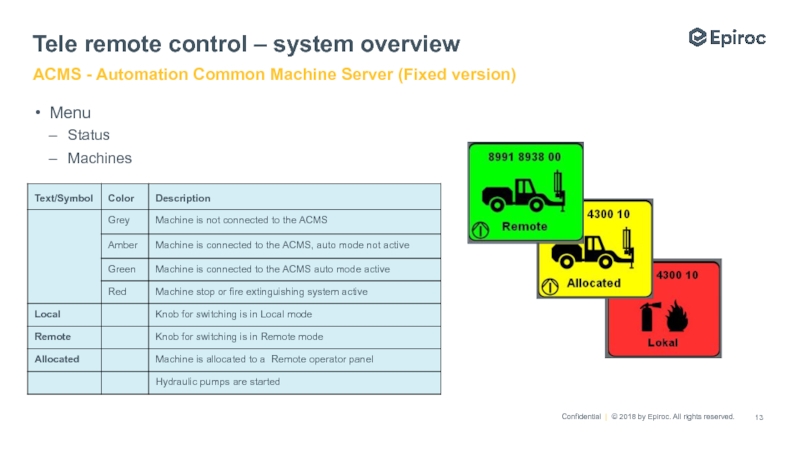

Server (Fixed version)

Machine Server (Fixed version)

Server (Fixed version)

& VGA)
1-12 Video stream's
TV monitor (Fixed version)

Decoder
PC computer
Customer network
Video Decoder

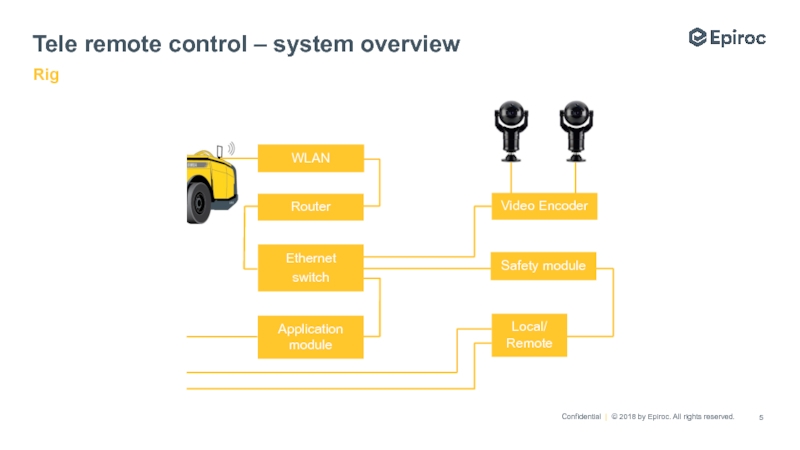

Safety system

require infrastructure of a data network)
Vehicle/container/trolley/caravan etc..
Craftsmen for module

installation
Chair

Guidelines

number for each machine (“Subnet Mask” and “Default Gateway”)
One IP

address for the control room (“Subnet Mask” and “Default Gateway”)
Possible to communicate UDP on port 500 & 4500 between the rigs and control room.
The Access Point needs to have Ethernet access to the control room
Network bandwidth capacity. Approximately 5-10 Mbit/s from each rig (6 multi remote machines, the control room will have minimum 30 Mbit/s constant data streaming)
“Low” latency. In LKAB we had a round trip time below 1ms from rig to control room. From Stockholm to Örebro we had below 10ms round trip time
Customers IT-specialist on site during installation
AC power / UPS is recommended (Uninterruptible power supply)
Office/container/caravan etc..
Table, Chair & TV monitor

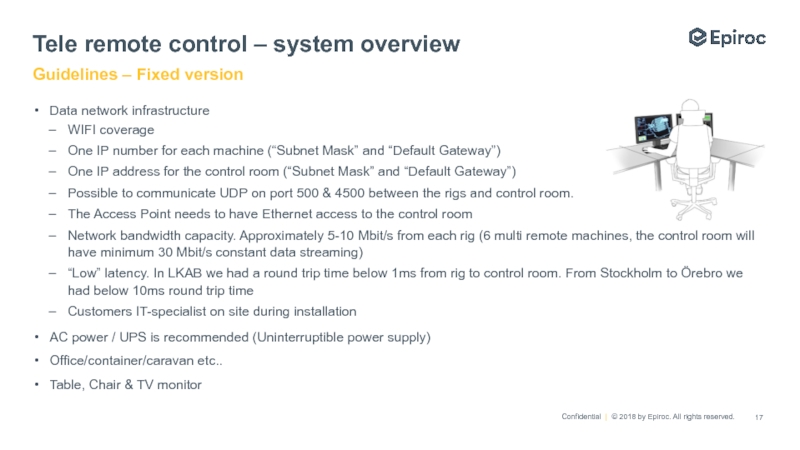

Guidelines – Fixed version

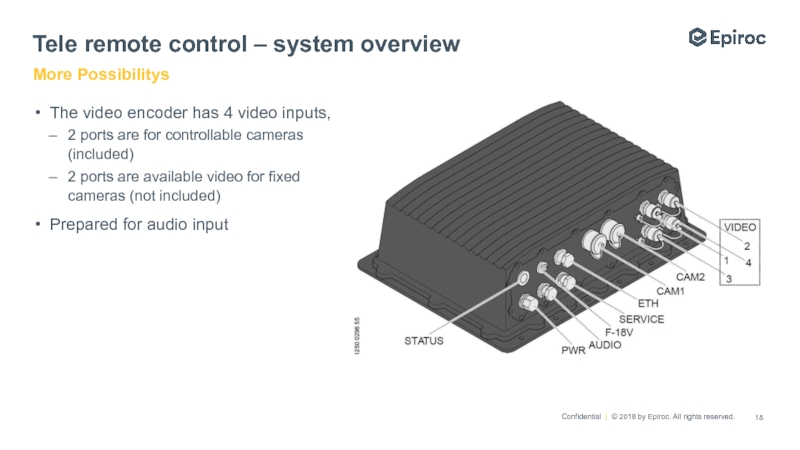

video inputs,
2 ports are for controllable cameras (included)
2 ports are

available video for fixed cameras (not included)
Prepared for audio input

More Possibilitys

can have up to 25 Web browser connections (will increase

the bandwidth consumption)
Smartphone apps for operation monitoring

More Possibilitys
