Dissection Guide to the Rat

Anatomical TermsCranial-toward the headCaudal-toward the tailDorsal-toward the backboneVentral-toward the belly sideLateral-toward the sideMedial-toward the middleProximal-closer to the the base of a structureDistal-farther away from a structure

Слайды и текст этой презентации

Слайд 1Dissection Guide to the Rat
The Norway rat
(Rattus norvegicus)
Family:Muridae

Dissection Guide to the RatThe Norway rat (Rattus norvegicus)Family:Muridae

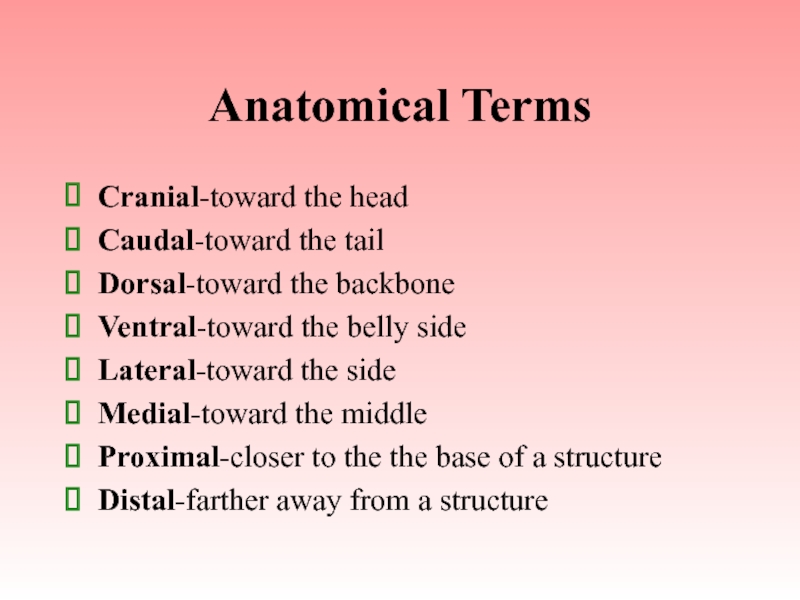

Слайд 2Anatomical Terms
Cranial-toward the head
Caudal-toward the tail
Dorsal-toward the backbone
Ventral-toward the belly

side
Lateral-toward the side
Medial-toward the middle
Proximal-closer to the the base of

a structure
Distal-farther away from a structure
Anatomical TermsCranial-toward the headCaudal-toward the tailDorsal-toward the backboneVentral-toward the belly sideLateral-toward the sideMedial-toward the middleProximal-closer to the

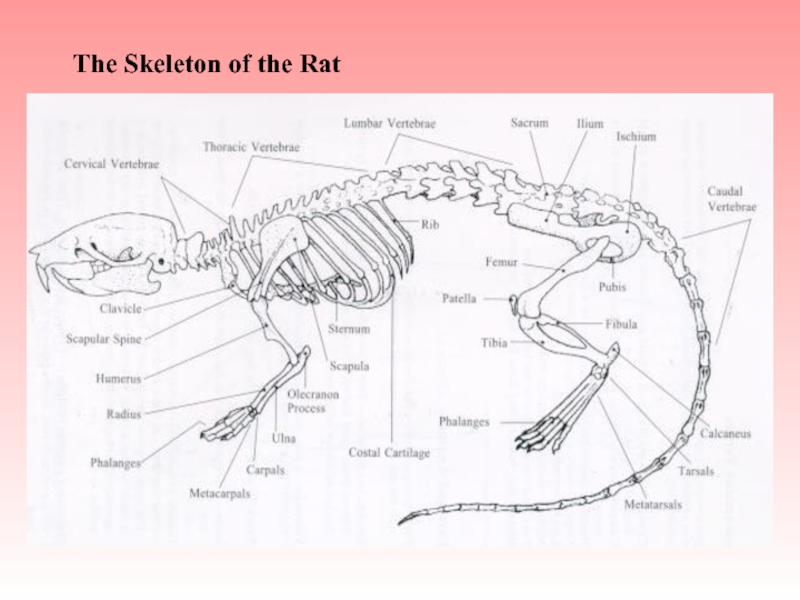

Слайд 3The Skeleton of the Rat

The Skeleton of the Rat

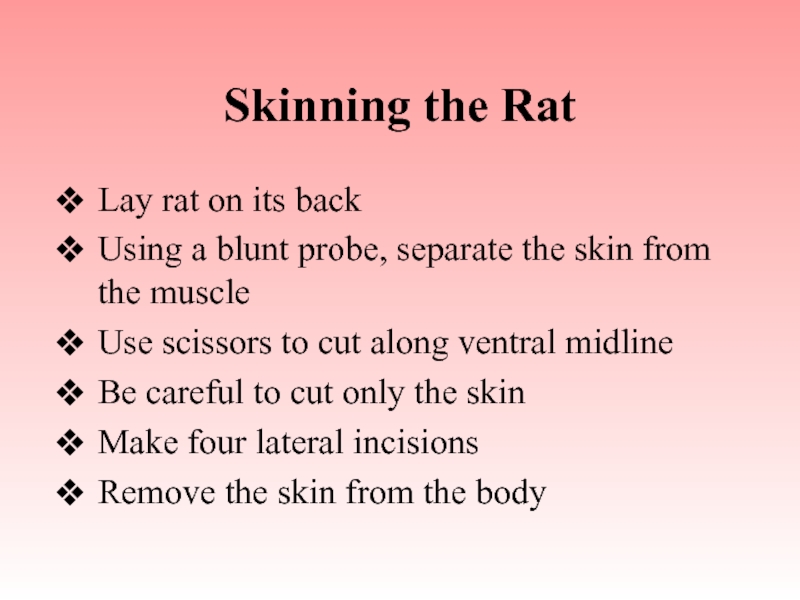

Слайд 4Skinning the Rat
Lay rat on its back
Using a blunt probe,

separate the skin from the muscle
Use scissors to cut along

ventral midline
Be careful to cut only the skin
Make four lateral incisions
Remove the skin from the body
Skinning the RatLay rat on its backUsing a blunt probe, separate the skin from the muscleUse scissors

Слайд 5Skinning the Rat

Skinning the Rat

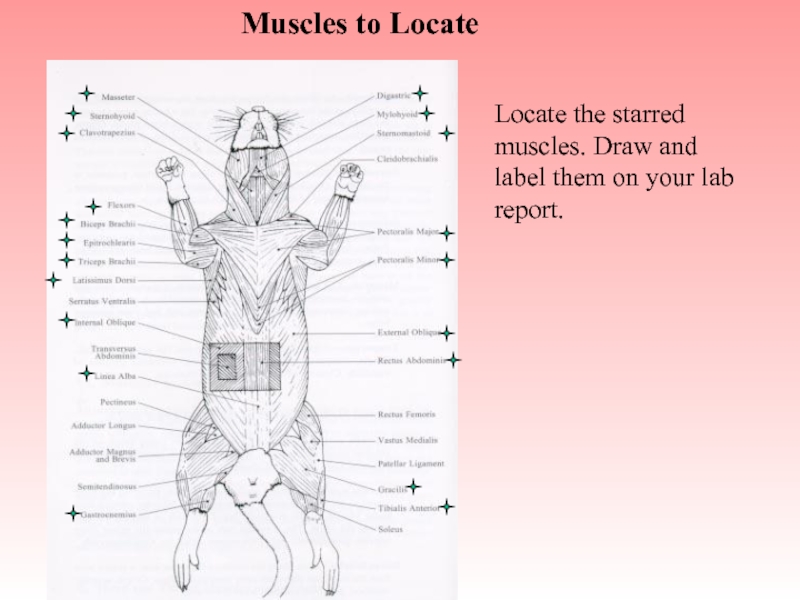

Слайд 6 Muscles to Locate
Locate the starred muscles. Draw and label them

on your lab report.

Muscles to LocateLocate the starred muscles. Draw and label them on your lab report.

Слайд 7Beginning the Muscle Identification
The Triceps Brachii

Beginning the Muscle IdentificationThe Triceps Brachii

Слайд 8The Internal Anatomy

The first incisions were made down

the center of the body cavity and down to the

feet and through to the arms. These cuts were made so the skin could be neatly folded back and pinned in place.
The Internal Anatomy  The first incisions were made down the center of the body cavity and

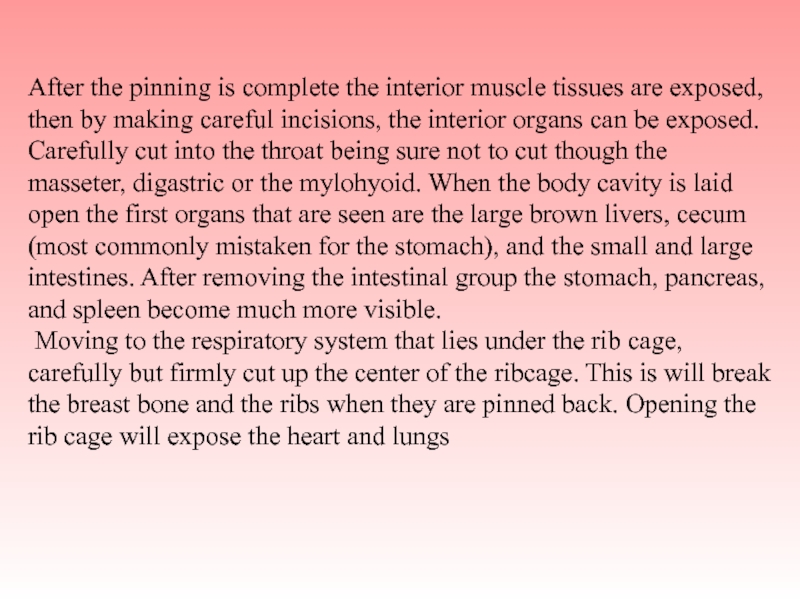

Слайд 9After the pinning is complete the interior muscle tissues are

exposed, then by making careful incisions, the interior organs can

be exposed. Carefully cut into the throat being sure not to cut though the masseter, digastric or the mylohyoid. When the body cavity is laid open the first organs that are seen are the large brown livers, cecum (most commonly mistaken for the stomach), and the small and large intestines. After removing the intestinal group the stomach, pancreas, and spleen become much more visible. Moving to the respiratory system that lies under the rib cage, carefully but firmly cut up the center of the ribcage. This is will break the breast bone and the ribs when they are pinned back. Opening the rib cage will expose the heart and lungs


After the pinning is complete the interior muscle tissues are exposed, then by making careful incisions, the

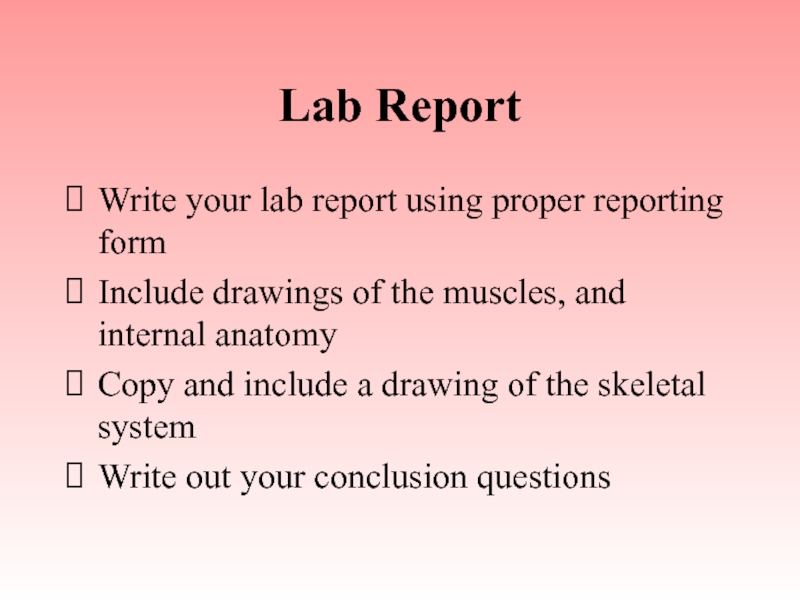

Слайд 10Lab Report
Write your lab report using proper reporting form
Include drawings

of the muscles, and internal anatomy
Copy and include a drawing

of the skeletal system
Write out your conclusion questions
Lab ReportWrite your lab report using proper reporting formInclude drawings of the muscles, and internal anatomyCopy and
