Слайд 1INTRODUCTION TO SPECIAL BACTERIOLOGY AND VIROLOGY
LESSON №1

INTRODUCTION TO SPECIAL BACTERIOLOGY AND VIROLOGYLESSON №1

Слайд 2PURPOSE
to study the diagnostic methods of infectious diseases and their

use in dentistry

PURPOSEto study the diagnostic methods of infectious diseases and their use in dentistry

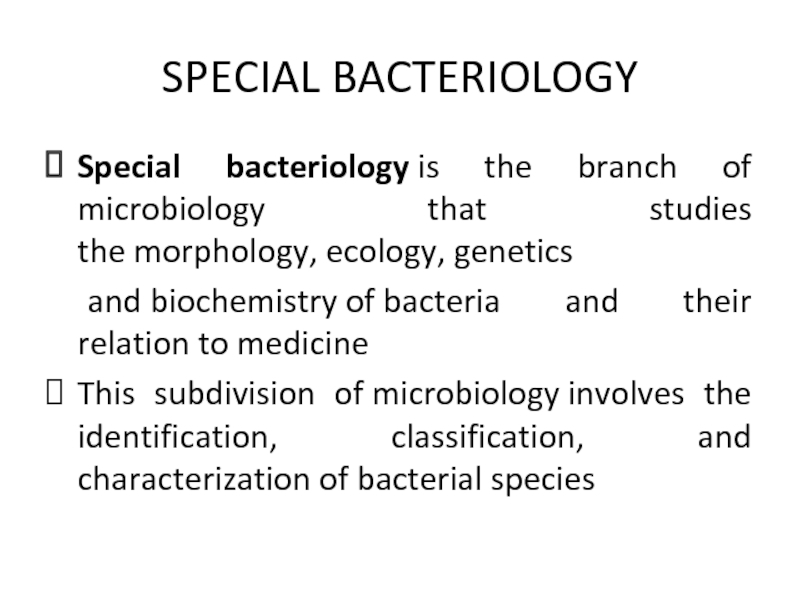

Слайд 3SPECIAL BACTERIOLOGY
Special bacteriology is the branch of microbiology that studies the morphology, ecology, genetics
and biochemistry of bacteria

and their relation to medicine
This subdivision of microbiology involves the identification, classification,

and characterization of bacterial species
SPECIAL BACTERIOLOGYSpecial bacteriology is the branch of microbiology that studies the morphology, ecology, genetics 	and biochemistry of bacteria and their relation to medicineThis subdivision of microbiology involves

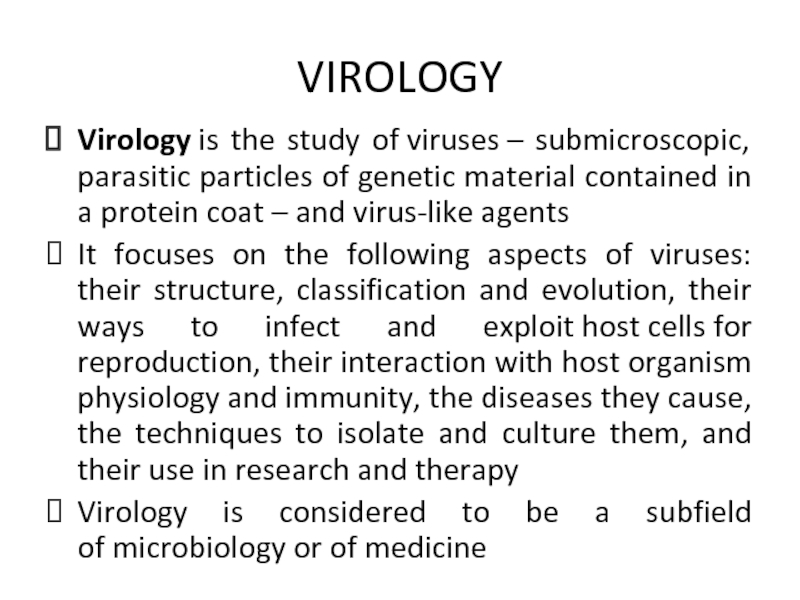

Слайд 4VIROLOGY
Virology is the study of viruses – submicroscopic, parasitic particles of genetic material

contained in a protein coat – and virus-like agents
It focuses on

the following aspects of viruses: their structure, classification and evolution, their ways to infect and exploit host cells for reproduction, their interaction with host organism physiology and immunity, the diseases they cause, the techniques to isolate and culture them, and their use in research and therapy
Virology is considered to be a subfield of microbiology or of medicine
VIROLOGYVirology is the study of viruses – submicroscopic, parasitic particles of genetic material contained in a protein coat – and virus-like

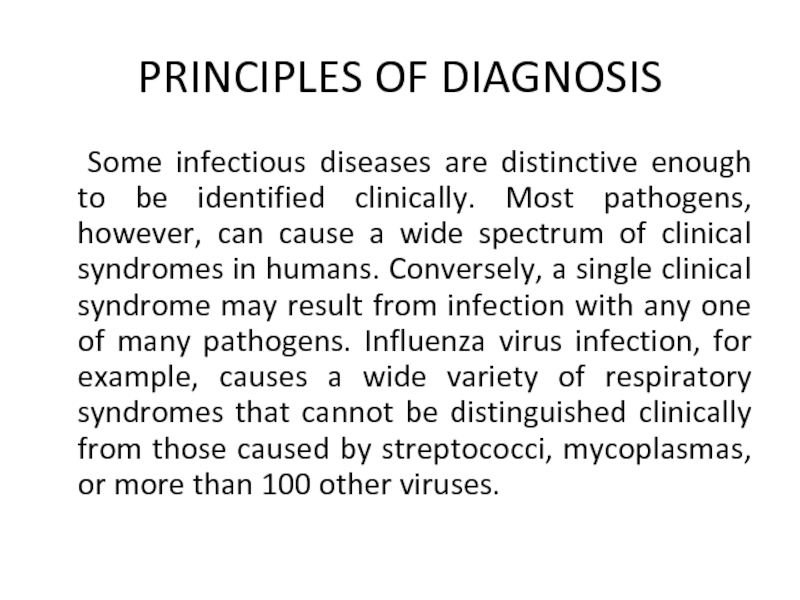

Слайд 5PRINCIPLES OF DIAGNOSIS
Some infectious diseases are distinctive enough to be

identified clinically. Most pathogens, however, can cause a wide spectrum

of clinical syndromes in humans. Conversely, a single clinical syndrome may result from infection with any one of many pathogens. Influenza virus infection, for example, causes a wide variety of respiratory syndromes that cannot be distinguished clinically from those caused by streptococci, mycoplasmas, or more than 100 other viruses.
PRINCIPLES OF DIAGNOSIS	Some infectious diseases are distinctive enough to be identified clinically. Most pathogens, however, can cause

Слайд 6PRINCIPLES OF DIAGNOSIS
Most often, therefore, it is necessary to use

microbiologic laboratory methods to identify a specific etiologic agent. Diagnostic

medical microbiology is the discipline that identifies etiologic agents of disease. The job of the clinical microbiology laboratory is to test specimens from patients for microorganisms that are, or may be, a cause of the illness and to provide information (when appropriate) about the in vitro activity of antimicrobial drugs against the microorganisms identified
PRINCIPLES OF DIAGNOSIS	Most often, therefore, it is necessary to use microbiologic laboratory methods to identify a specific

Слайд 7Laboratory procedures used in confirming a clinical diagnosis of infectious

disease with a bacterial etiology
From: Chapter 10, Principles of Diagnosis
Medical Microbiology.

4th edition.
Baron S, editor.
Galveston (TX): University of Texas Medical Branch at Galveston; 1996.
Laboratory procedures used in confirming a clinical diagnosis of infectious disease with a bacterial etiology From: Chapter 10,

Слайд 8BACTERIOSCOPIC METHOD
Bacterioscopic method is detection of microbes in the test

material; the study of their morphological and tinctorial properties, the

nature of their location in the bacteriological smear in the field of vision
The study is appointed if there is a suspicion of the patient having an infectious and purulent-inflammatory process or in the obstetric and gynecological area
BACTERIOSCOPIC METHODBacterioscopic method is detection of microbes in the test material; the study of their morphological and

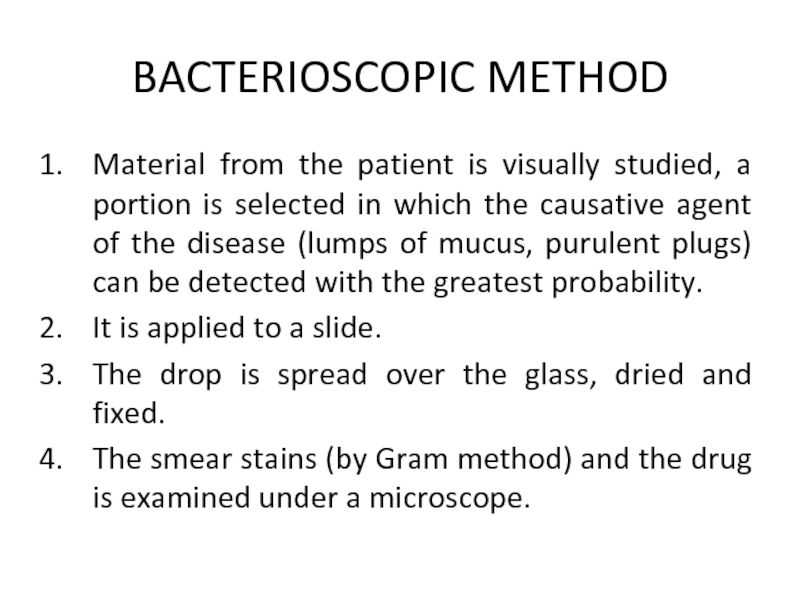

Слайд 9BACTERIOSCOPIC METHOD
Material from the patient is visually studied, a portion

is selected in which the causative agent of the disease

(lumps of mucus, purulent plugs) can be detected with the greatest probability.
It is applied to a slide.
The drop is spread over the glass, dried and fixed.
The smear stains (by Gram method) and the drug is examined under a microscope.
BACTERIOSCOPIC METHODMaterial from the patient is visually studied, a portion is selected in which the causative agent

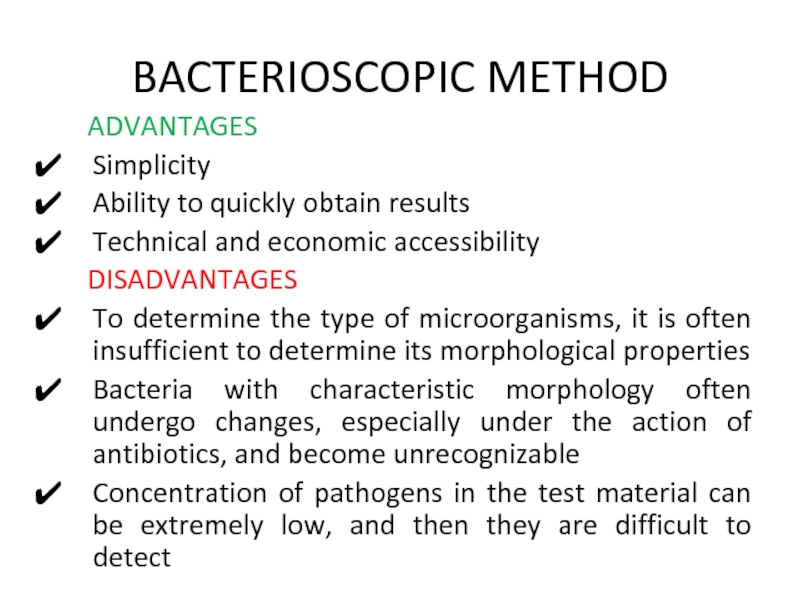

Слайд 10BACTERIOSCOPIC METHOD
ADVANTAGES
Simplicity
Ability to quickly obtain results
Technical and economic accessibility
DISADVANTAGES
To determine

the type of microorganisms, it is often insufficient to determine

its morphological properties
Bacteria with characteristic morphology often undergo changes, especially under the action of antibiotics, and become unrecognizable
Concentration of pathogens in the test material can be extremely low, and then they are difficult to detect
BACTERIOSCOPIC METHOD	ADVANTAGESSimplicityAbility to quickly obtain resultsTechnical and economic accessibility	DISADVANTAGESTo determine the type of microorganisms, it is often

Слайд 11BACTERIOLOGICAL METHOD
The bacteriological method consists in isolating the pure culture

of the pathogen (a population containing bacteria of one species)

and identifying this pathogen
A multi-stage bacteriological study lasts 18-24 hours
Identification is the study of the properties of microorganisms so establishing a particular systematic group of bacteria (species, genus)
This method is used in to determine such dangerous diseases as tuberculosis, recurrent typhoid or gonorrhea. It is also used to study the bacterial composition of tonsils, cavities of organs
BACTERIOLOGICAL METHODThe bacteriological method consists in isolating the pure culture of the pathogen (a population containing bacteria

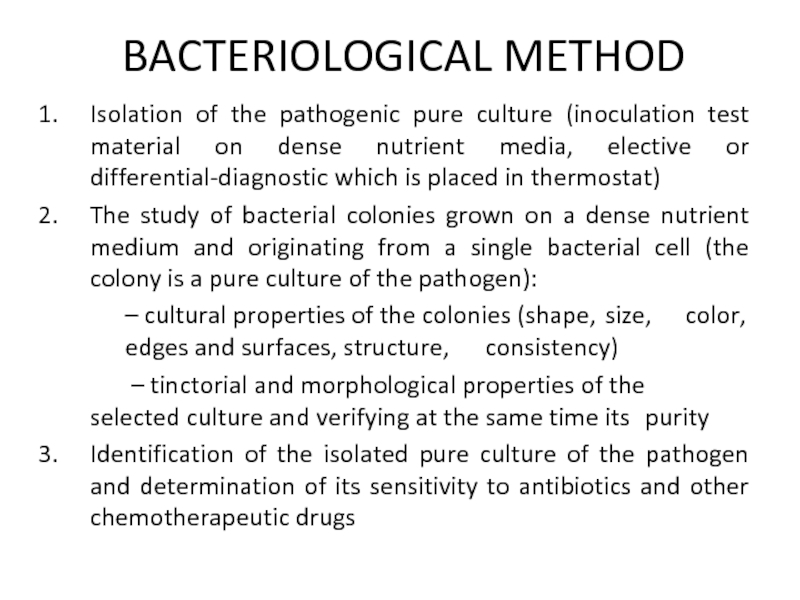

Слайд 12BACTERIOLOGICAL METHOD
Isolation of the pathogenic pure culture (inoculation test material

on dense nutrient media, elective or differential-diagnostic which is placed

in thermostat)
The study of bacterial colonies grown on a dense nutrient medium and originating from a single bacterial cell (the colony is a pure culture of the pathogen):
– cultural properties of the colonies (shape, size, color, edges and surfaces, structure, consistency)
– tinctorial and morphological properties of the selected culture and verifying at the same time its purity
Identification of the isolated pure culture of the pathogen and determination of its sensitivity to antibiotics and other chemotherapeutic drugs
BACTERIOLOGICAL METHODIsolation of the pathogenic pure culture (inoculation test material on dense nutrient media, elective or differential-diagnostic

Слайд 13BACTERIOLOGICAL METHOD
ADVANTAGES
High specificity (allows to exclude false diagnose)
Helps to apply

the most effective treatment by accurately determining the reaction of

microorganisms to a particular medical device
DISADVANTAGES
Lasts a long time
Strict requirements to test material
Strict requirements for laboratory technicians
BACTERIOLOGICAL METHOD	ADVANTAGESHigh specificity (allows to exclude false diagnose)Helps to apply the most effective treatment by accurately determining

Слайд 14SEROLOGIC STUDIES
Serologic studies are methods of studying certain antibodies or

antigens in the blood serum of patients based on the

reactions of immunity. With their help, antigens of microbes or tissues are also identified for the purpose of their identification.
The detection of antibodies to the infectious agent or the corresponding antigen in the serum of the patient allows to establish the cause of the disease.
Serological studies are also used to determine blood group antigens, tissue antigens and the level of humoral immunity.
SEROLOGIC STUDIESSerologic studies are methods of studying certain antibodies or antigens in the blood serum of patients

Слайд 15SEROLOGICAL METHOD
ADVANTAGES
A modern and reliable way to identify such dangerous

diseases as HIV, hepatitis, brucellosis, STDs
High specificity and sensitivity
Most of

the reactions of this method are simple in conducting and accounting, available to a wide range of laboratories, usually safe, economical, amenable to standardization
DISADVANTAGES
the indirect nature of the result, when the etiology of the disease is judged not by the isolation of the pathogen, but by the immune response to the causative agent
the need for parenteral intervention in the patient's body
in most cases, late diagnosis, which is due to the natural dynamics of the humoral immune response
SEROLOGICAL METHOD	ADVANTAGESA modern and reliable way to identify such dangerous diseases as HIV, hepatitis, brucellosis, STDsHigh specificity

Слайд 16ALLERGY DIAGNOSTIC TESTS
are highly specific and sensitive tests of diagnosing

allergic and infectious diseases, in the pathogenesis of which the

allergic component predominates
are based on the local or general reaction of the sensitized organism in response to the introduction of a specific allergen – a delayed type hypersensitivity reaction (HRT)
are used for detection of an allergen or a group of allergens that have caused a hypersensitivity state
Skin tests (application, scarification and intradermal tests) provocative tests (nasal, conjunctival, inhalation)
ALLERGY DIAGNOSTIC TESTSare highly specific and sensitive tests of diagnosing allergic and infectious diseases, in the pathogenesis

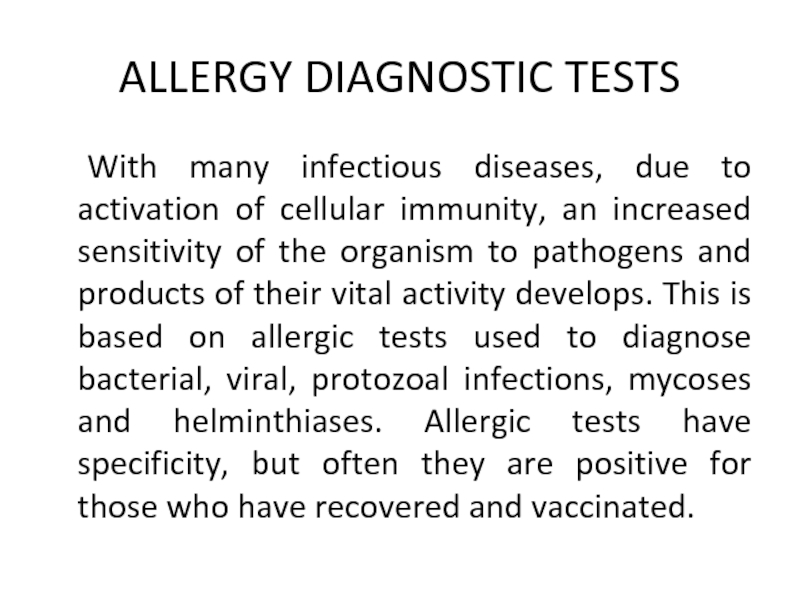

Слайд 17ALLERGY DIAGNOSTIC TESTS
With many infectious diseases, due to activation of

cellular immunity, an increased sensitivity of the organism to pathogens

and products of their vital activity develops. This is based on allergic tests used to diagnose bacterial, viral, protozoal infections, mycoses and helminthiases. Allergic tests have specificity, but often they are positive for those who have recovered and vaccinated.
ALLERGY DIAGNOSTIC TESTS	With many infectious diseases, due to activation of cellular immunity, an increased sensitivity of the

Слайд 18ALLERGY DIAGNOSTIC TESTS
Identification of cellular immune response - delayed type

hypersensitivity (HRT), scheme
Introduction intradermally Ag bacteria
After 48 - 72 hours

there is inflammation
Measure the amount of redness and papules
ALLERGY DIAGNOSTIC TESTS	Identification of cellular immune response - delayed type hypersensitivity (HRT), schemeIntroduction intradermally Ag bacteriaAfter 48

Слайд 19ALLERGY DIAGNOSTIC TESTS
Allergic diagnostic tests can diagnose
tuberculosis (Mantoux reaction)
brucellosis (Burne

test)
tularemia (Tularin test)
anthrax (anthraxin test)
soft chancre (Duchess reaction)
leprosy (Mitsuda reaction)
differentiate

tuberculoid (lepromin-positive) form from lepromatous (lepromin-negative)
ALLERGY DIAGNOSTIC TESTS	Allergic diagnostic tests can diagnosetuberculosis (Mantoux reaction)brucellosis (Burne test)tularemia (Tularin test)anthrax (anthraxin test)soft chancre (Duchess

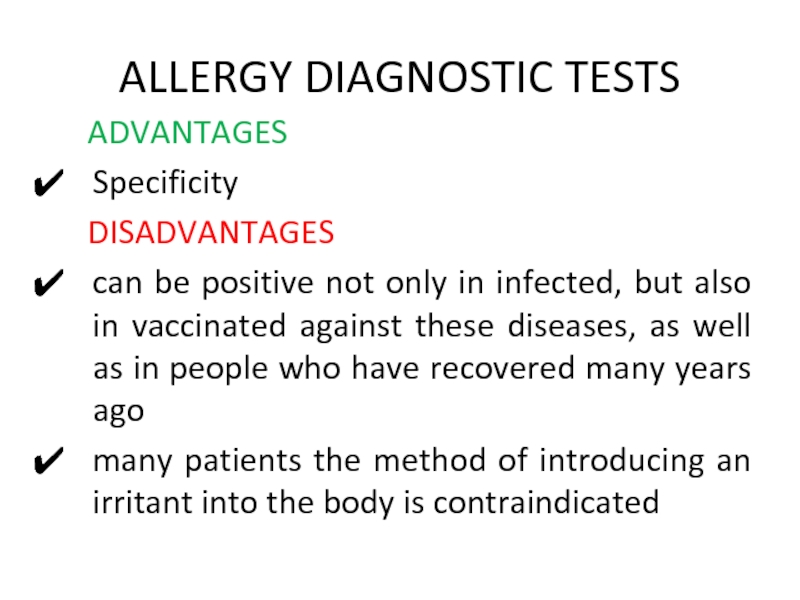

Слайд 20ALLERGY DIAGNOSTIC TESTS
ADVANTAGES
Specificity
DISADVANTAGES
can be positive not only in infected, but

also in vaccinated against these diseases, as well as in

people who have recovered many years ago
many patients the method of introducing an irritant into the body is contraindicated
ALLERGY DIAGNOSTIC TESTS	ADVANTAGESSpecificity	DISADVANTAGEScan be positive not only in infected, but also in vaccinated against these diseases, as

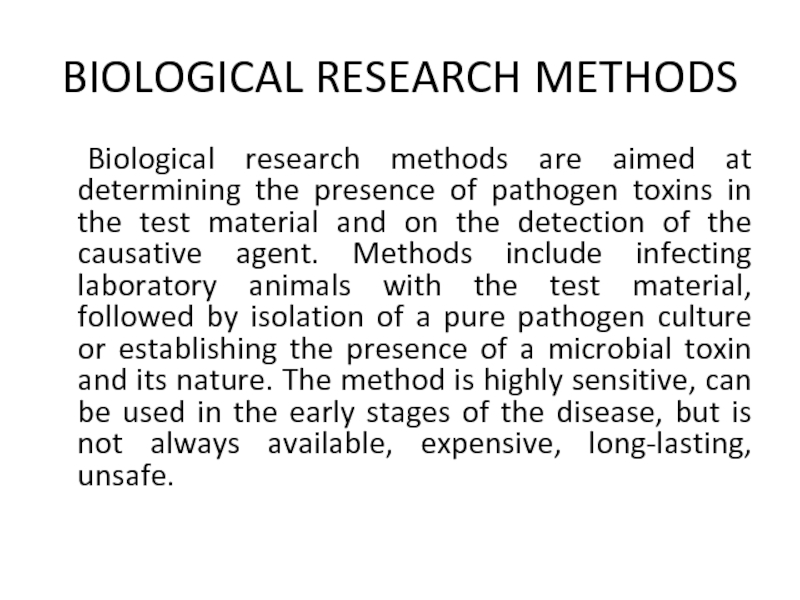

Слайд 21BIOLOGICAL RESEARCH METHODS
Biological research methods are aimed at determining the

presence of pathogen toxins in the test material and on

the detection of the causative agent. Methods include infecting laboratory animals with the test material, followed by isolation of a pure pathogen culture or establishing the presence of a microbial toxin and its nature. The method is highly sensitive, can be used in the early stages of the disease, but is not always available, expensive, long-lasting, unsafe.
BIOLOGICAL RESEARCH METHODS	Biological research methods are aimed at determining the presence of pathogen toxins in the test

Слайд 22MOLECULAR TECHIQUES
Molecular techniques are based on the analysis of nucleic

acids, first of all, the DNA molecule
The advantage of DNA

diagnostics in comparison with biochemical or immunological diagnostics is the use of a unified set of methods that is practically independent of the objectives of the study. These are methods for DNA isolation, PCR, electrophoresis, DNA restriction, hybridization with specific DNA probes, and sequencing. Thus, within the limits of one laboratory it is possible to be engaged in DNA-diagnostics of a wide spectrum of diseases
MOLECULAR TECHIQUESMolecular techniques are based on the analysis of nucleic acids, first of all, the DNA moleculeThe

Слайд 24MOLECULAR TECHNIQUES
1.Southern blotting and nucleic acid hybridization
A labelled DNA probe

will bind to the specimen if it contains the specific

sequence that is being sought. The captured probe is detected by the activity of it attached label. This technique is specific and rapid, but less sensitive than other methods that involve amplification steps.
MOLECULAR TECHNIQUES1.Southern blotting and nucleic acid hybridization	A labelled DNA probe will bind to the specimen if it

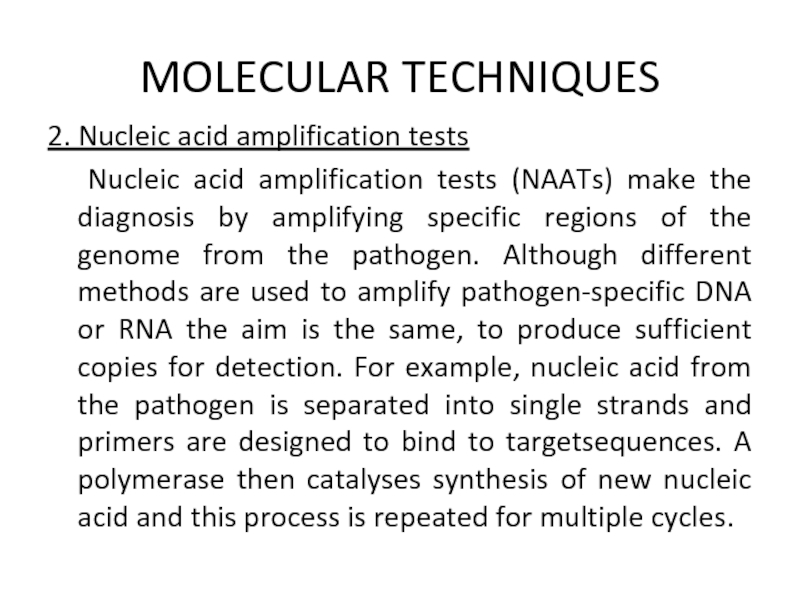

Слайд 25MOLECULAR TECHNIQUES
2. Nucleic acid amplification tests
Nucleic acid amplification tests (NAATs)

make the diagnosis by amplifying specific regions of the genome

from the pathogen. Although different methods are used to amplify pathogen-specific DNA or RNA the aim is the same, to produce sufficient copies for detection. For example, nucleic acid from the pathogen is separated into single strands and primers are designed to bind to targetsequences. A polymerase then catalyses synthesis of new nucleic acid and this process is repeated for multiple cycles.
MOLECULAR TECHNIQUES2. Nucleic acid amplification tests	Nucleic acid amplification tests (NAATs) make the diagnosis by amplifying specific regions

Слайд 26MOLECULAR TECHNIQUES
2. Nucleic acid amplification tests
Automated systems and commercial kits

have made these tests available in many laboratories. Real-time PCR

machines measure rising concentrations of target DNA and determine positivity when the concentration passes a set threshold.
NAATs have the advantage that they can detect slow-growing organisms or those that are difficult to grow (e.g. M. tuberculosis) or make a diagnosis when samples are rendered falsely negative by antibiotic therapy.
MOLECULAR TECHNIQUES2. Nucleic acid amplification tests	Automated systems and commercial kits have made these tests available in many

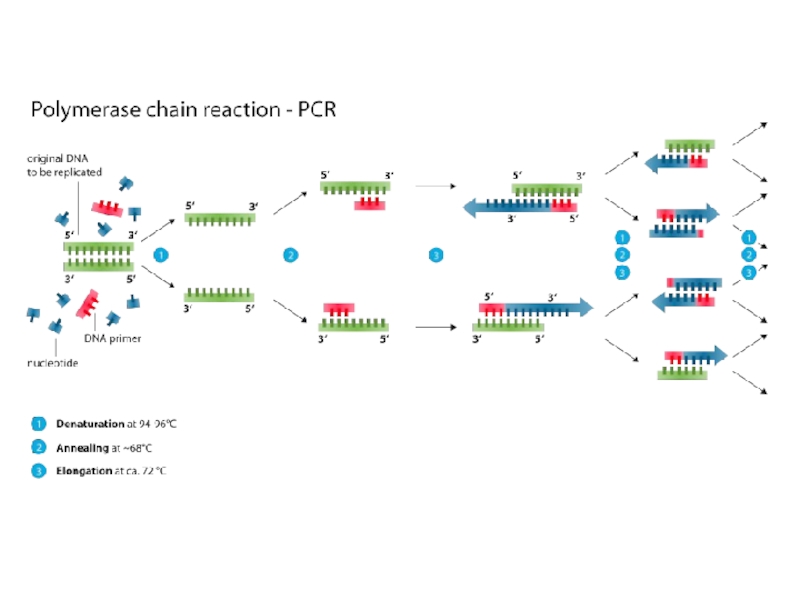

Слайд 27POLYMERASE CHAIN REACTION
Polymerase chain reaction (PCR) is a technique used in molecular

biology to amplify (accumulate of copies of a certain nucleotide sequence) a single

copy or a few copies of a segment of DNA across several orders of magnitude, generating thousands to millions of copies of a particular DNA sequence
Very sensitive method
POLYMERASE CHAIN REACTIONPolymerase chain reaction (PCR) is a technique used in molecular biology to amplify (accumulate of copies of a certain

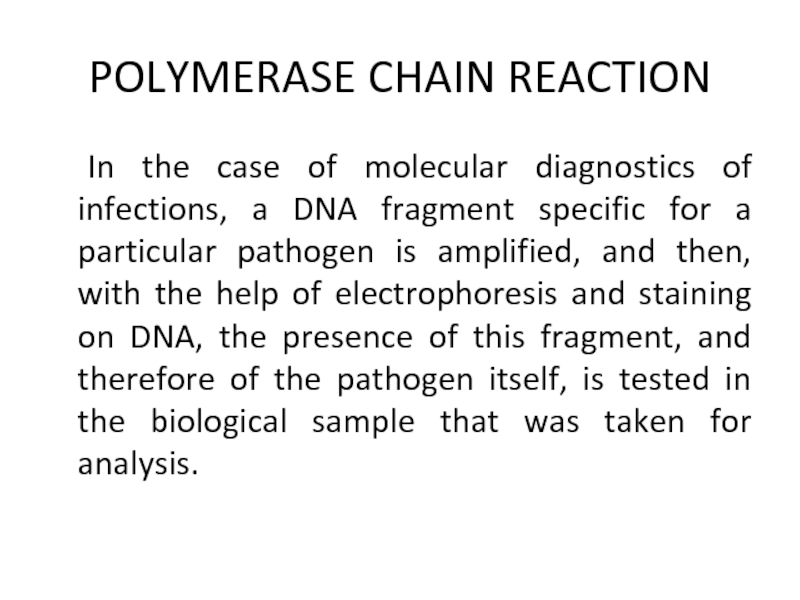

Слайд 28 In the case of molecular diagnostics of infections, a DNA

fragment specific for a particular pathogen is amplified, and then,

with the help of electrophoresis and staining on DNA, the presence of this fragment, and therefore of the pathogen itself, is tested in the biological sample that was taken for analysis.

POLYMERASE CHAIN REACTION

In the case of molecular diagnostics of infections, a DNA fragment specific for a particular pathogen is

Слайд 30DNA POLYMERASE
DNA polymerases
are enzymes that synthesize DNA molecules from deoxyribonucleotides
are used DNA polymerase from thermophilic bacteria,

because they are thermostable
The three-dimensional structure of DNA-binding helical-hairpin sites

in human beta-DNA polymerase
DNA POLYMERASE	DNA polymerases are enzymes that synthesize DNA molecules from deoxyribonucleotidesare used DNA polymerase from thermophilic bacteria, because they are thermostableThe three-dimensional structure of

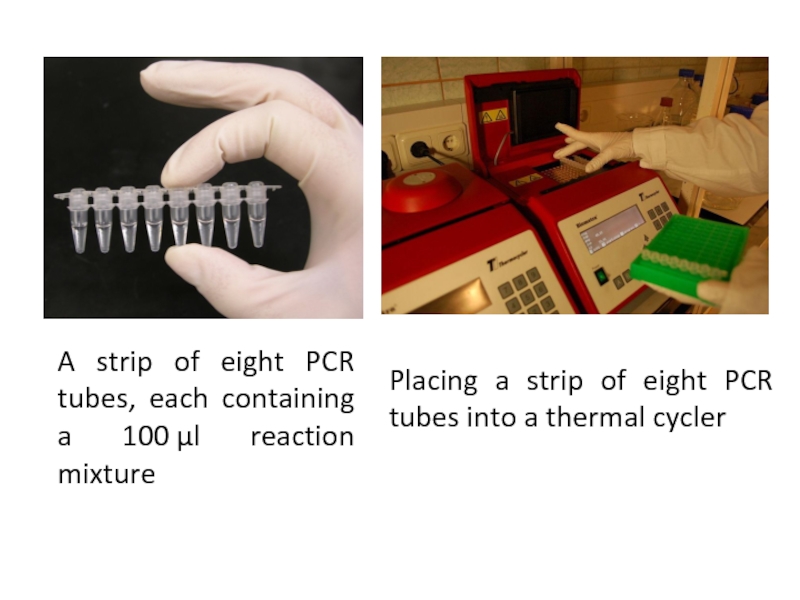

Слайд 31A strip of eight PCR tubes, each containing a 100 μl

reaction mixture
Placing a strip of eight PCR tubes into a thermal

cycler
A strip of eight PCR tubes, each containing a 100 μl reaction mixturePlacing a strip of eight PCR

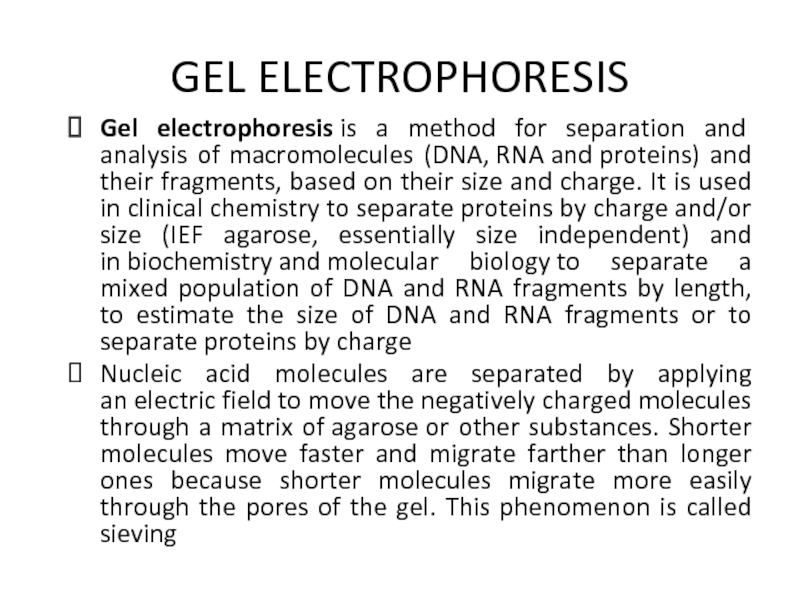

Слайд 32GEL ELECTROPHORESIS
Gel electrophoresis is a method for separation and analysis of

macromolecules (DNA, RNA and proteins) and their fragments, based on their size and

charge. It is used in clinical chemistry to separate proteins by charge and/or size (IEF agarose, essentially size independent) and in biochemistry and molecular biology to separate a mixed population of DNA and RNA fragments by length, to estimate the size of DNA and RNA fragments or to separate proteins by charge
Nucleic acid molecules are separated by applying an electric field to move the negatively charged molecules through a matrix of agarose or other substances. Shorter molecules move faster and migrate farther than longer ones because shorter molecules migrate more easily through the pores of the gel. This phenomenon is called sieving
GEL ELECTROPHORESISGel electrophoresis is a method for separation and analysis of macromolecules (DNA, RNA and proteins) and their fragments, based on

Слайд 33GEL ELECTROPHORESIS
Gel electrophoresis apparatus – an agarose gel is placed

in this buffer-filled box and an electrical field is applied

via the power supply to the rear. The negative terminal is at the far end (black wire), so DNA migrates toward the positively charged anode (red wire)
GEL ELECTROPHORESIS	Gel electrophoresis apparatus – an agarose gel is placed in this buffer-filled box and an electrical

Слайд 34GEL ELECTROPHORESIS

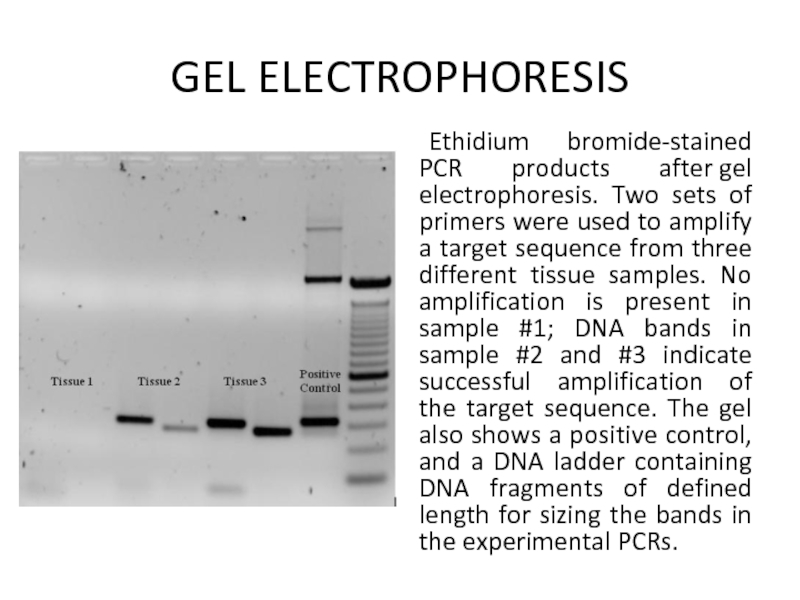

Ethidium bromide-stained PCR products after gel electrophoresis. Two sets of

primers were used to amplify a target sequence from three

different tissue samples. No amplification is present in sample #1; DNA bands in sample #2 and #3 indicate successful amplification of the target sequence. The gel also shows a positive control, and a DNA ladder containing DNA fragments of defined length for sizing the bands in the experimental PCRs.
GEL ELECTROPHORESIS	Ethidium bromide-stained PCR products after gel electrophoresis. Two sets of primers were used to amplify a target

Слайд 35IMMUNOFLUORESCENCE
Immunofluorescence analysis, or the reaction of immunofluorescence, is based on

the interaction of antigens with antibodies, but the reagent is

then labeled with a dye that glows in the ultraviolet. Luminous antigen-antibody complexes are clearly visible under fluorescence microscopy. It is a rapid and accurate diagnostic method for the detection of antigens of microbes or the detection of antibodies.
IMMUNOFLUORESCENCEImmunofluorescence analysis, or the reaction of immunofluorescence, is based on the interaction of antigens with antibodies, but

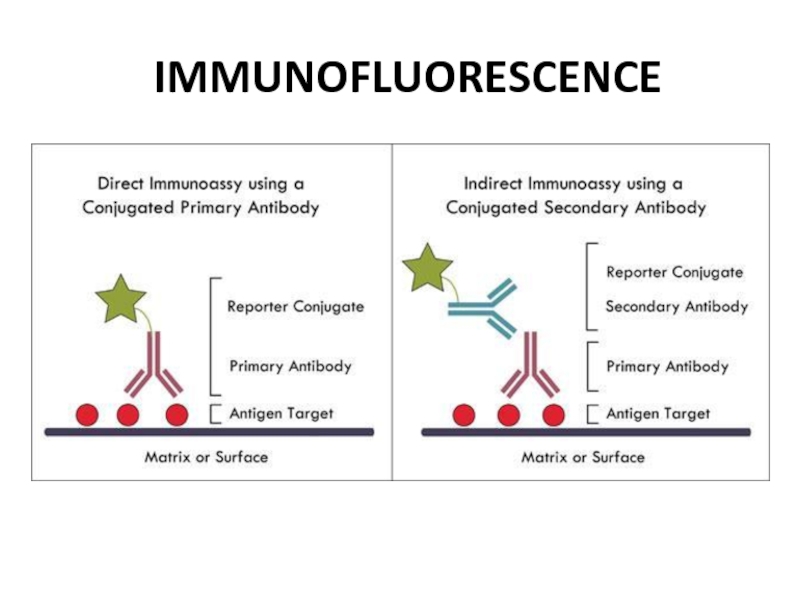

Слайд 36IMMUNOFLUORESCENCE

IMMUNOFLUORESCENCE

Слайд 37Fluorescent treponemal antibody absorption test (FTA - ABS test)

Fluorescent treponemal antibody absorption test (FTA - ABS test)

Слайд 38MICROBIOLOGICAL METHODS IN DENTISTRY
Used to diagnose inflammatory-destructive processes in periodontal

tissues
In the origin and development of the pathological process in

the tissues of the periodontal disease, the toxic bacteria of the dental plaque, the disturbance of metabolic mechanisms in tissues, the disturbance of hemodynamics, the regulating role of the nervous and endocrine systems, as well as the immune mechanisms of damage, play a major role
MICROBIOLOGICAL METHODS IN DENTISTRYUsed to diagnose inflammatory-destructive processes in periodontal tissuesIn the origin and development of the

Слайд 39MICROBIOLOGICAL METHODS IN DENTISTRY
Periodontal tissues of a healthy person are

filled with microflora. Colonies of microorganisms are concentrated in the

surface areas of the gum, as well as on the subgingival dental plaque, where a monolayer with a thickness of up to 20 microbial cells is formed, among which 3/4 are cocci, and 1/4 are rods and spirals.
MICROBIOLOGICAL METHODS IN DENTISTRYPeriodontal tissues of a healthy person are filled with microflora. Colonies of microorganisms are

Слайд 40An example of Gram Stained Oral Microbiota
(note presence of cheek

cells)
http://microbio146.blogspot.ru/2011/11/lab-35-oral-microbiota.html

An example of Gram Stained Oral Microbiota(note presence of cheek cells)http://microbio146.blogspot.ru/2011/11/lab-35-oral-microbiota.html

Слайд 41MICROBIOLOGICAL METHODS IN DENTISTRY
When the periodontal lesions are both for

diagnosis and for the selection of adequate etiopathogenetic treatment, a

microbiological analysis is necessary. Success and failure of treatment often depend on whether it is possible to identify the causative agent of a disease
MICROBIOLOGICAL METHODS IN DENTISTRYWhen the periodontal lesions are both for diagnosis and for the selection of adequate

Слайд 42Bacterioscopic method allows to detect causative agents of syphilis, gonorrhea,

leprosy, tuberculosis, actinomycosis, fungal diseases
Bacteriological examination is carried out in

all cases when it is necessary to clarify the cause of the lesion of the mucous membrane, with specific diseases, purulent processes, to determine the bacilli
Molecular techniques allow detecting periodontal pathogens in the contents of the periodontal pocket is an important information for the dentist when choosing a drug and the method of therapy

MICROBIOLOGICAL METHODS IN DENTISTRY

Bacterioscopic method allows to detect causative agents of syphilis, gonorrhea, leprosy, tuberculosis, actinomycosis, fungal diseasesBacteriological examination is

Обратная связь

Если не удалось найти и скачать доклад-презентацию, Вы можете заказать его на нашем сайте. Мы постараемся найти нужный Вам материал и отправим по электронной почте. Не стесняйтесь обращаться к нам, если у вас возникли вопросы или пожелания:

Email: Нажмите что бы посмотреть

Что такое TheSlide.ru?

Это сайт презентации, докладов, проектов в PowerPoint. Здесь удобно  хранить и делиться своими презентациями с другими пользователями.


Для правообладателей

Яндекс.Метрика
