Слайд 2 CONTENT
Definition of a Speech Sound
Systematic character of Speech Sounds
Sound producing mechanisms

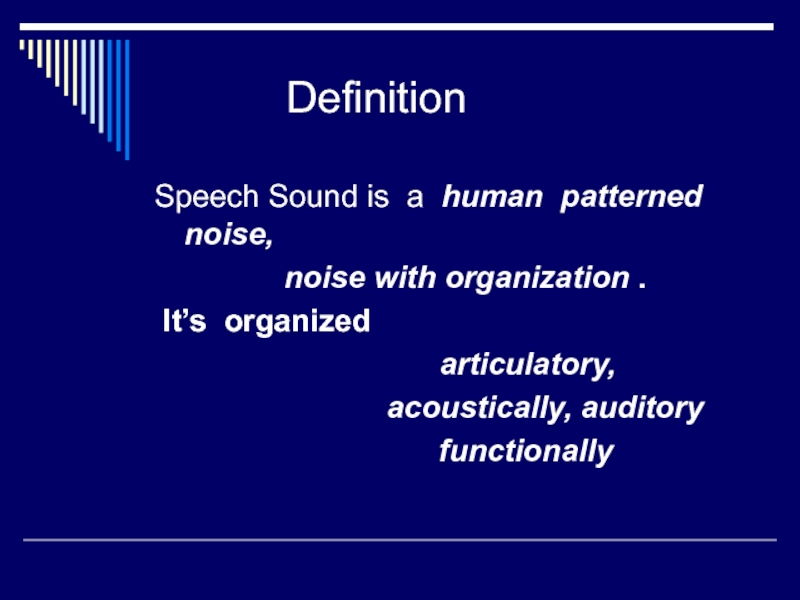

Слайд 3 Definition
Speech Sound is a
human patterned noise,
noise with organization .
It’s organized
articulatory,
acoustically, auditory
functionally
Слайд 4Sound producing mechanisms
From the articulatory aspect the following mechanisms are often distinguished:
power mechanism
vibrator mechanism
resonator mechanism
obstructive mechanism
Слайд 5
Power mechanism
includes mainly the lungs.
The
function of the power mechanism is to supply the sound producing organs with energy in the form of the air stream / air pressure coming from the lungs
Слайд 6 Vibrator mechanism
is mainly the Larynx ( the upper part of
the windpipe) with the vocal cords and the glottis situated in it.
V.M. is both articulatory & acoustic mechanism, its main function – to produce different types of vibrations:
regular / periodic
& irregular / non-periodic

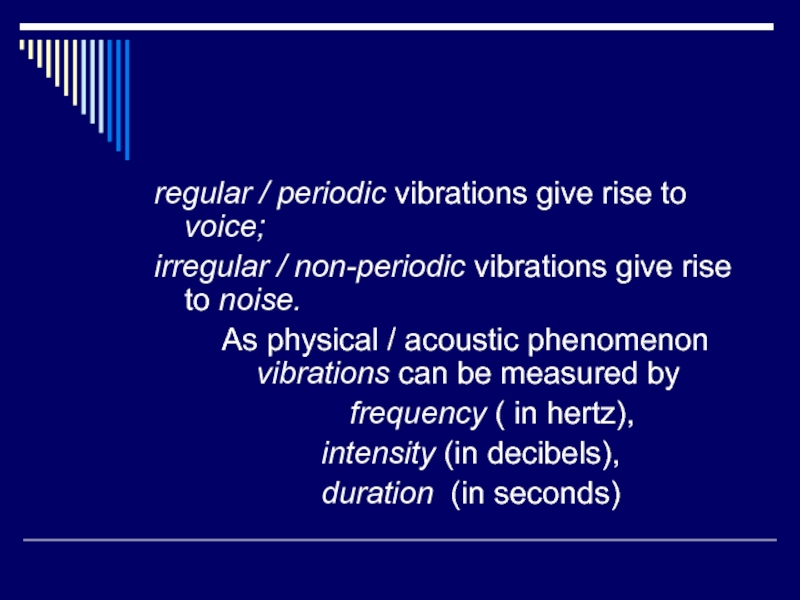

periodic vibrations give rise to
voice;
irregular / non-periodic vibrations give rise to noise.
As physical / acoustic phenomenon vibrations can be measured by
frequency ( in hertz),
intensity (in decibels),
duration (in seconds)

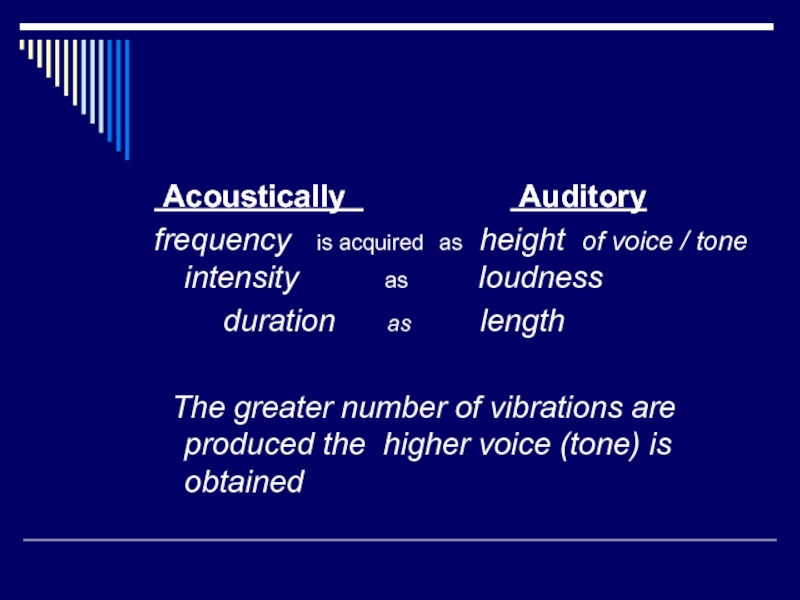

Auditory
frequency is acquired as height of voice
/ tone intensity as loudness
duration as length
The greater number of vibrations are produced the higher voice (tone) is obtained

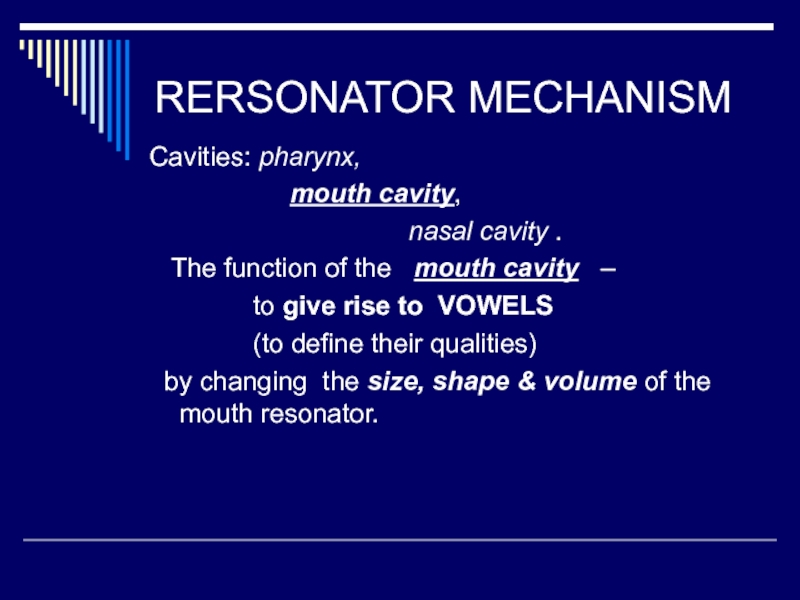

Слайд 9RERSONATOR MECHANISM
Cavities: pharynx,
mouth cavity,
nasal cavity .
The function of the mouth cavity –
to give rise to VOWELS
(to define their qualities)
by changing the size, shape & volume of the mouth resonator.
Слайд 10The size, shape & volume of the mouth cavity is
modified by the tongue & the lips.
Vowels are classified according
to:
position of the tongue
position of the lips
historical length & final phase of articulation
stability

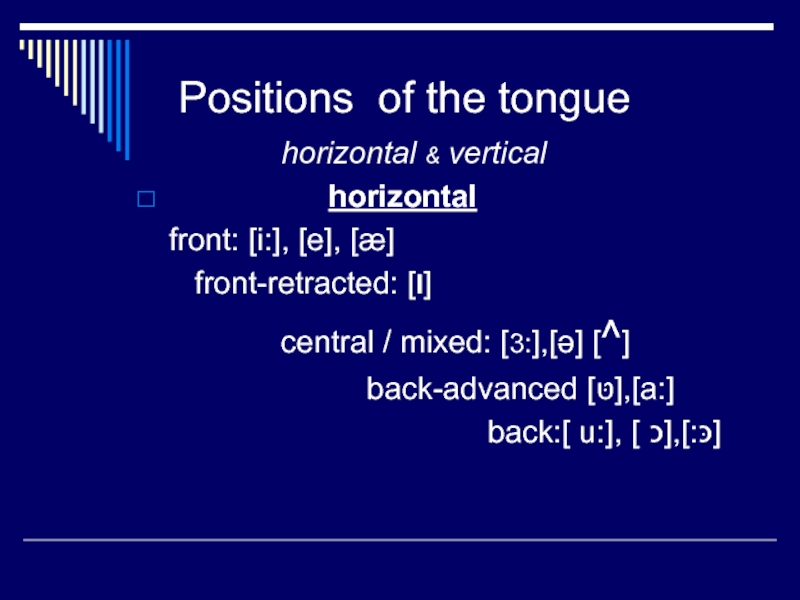

Слайд 11 Positions of the tongue
horizontal & vertical
horizontal
front: [i:], [e], [æ]
front-retracted: [I]
central / mixed: [3:],[ә] [^]
back-advanced [טּ],[a:]
back:[ u:], [ כּ:],[כ]

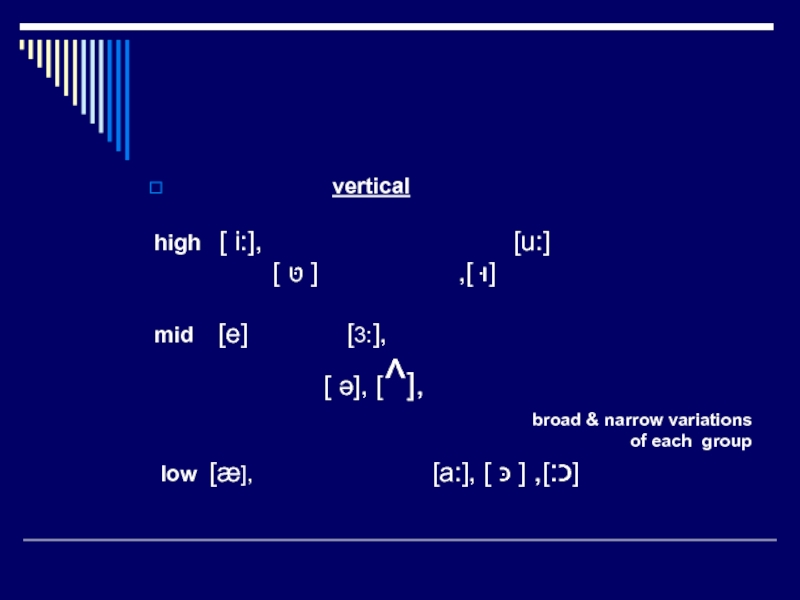

vertical
high [ i:],
[u:]
[ וּ ], [ טּ]
mid [e] [3:],
[ ә], [^],
broad & narrow variations
of each group
low [æ], [a:], [ כ:], [ כּ]

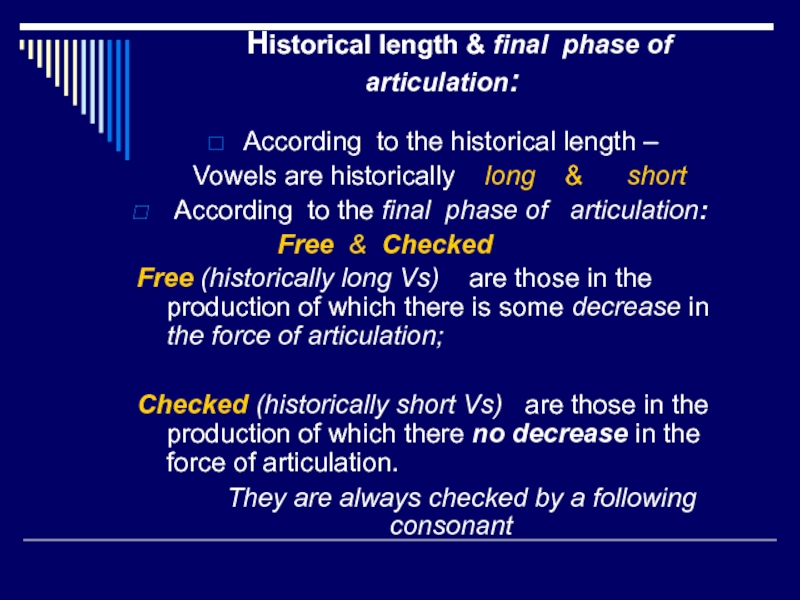

Слайд 13 Historical length & final phase of
articulation:
According to the historical length –
Vowels are historically long & short
According to the final phase of articulation:
Free & Checked
Free (historically long Vs) are those in the production of which there is some decrease in the force of articulation;
Checked (historically short Vs) are those in the production of which there no decrease in the force of articulation.
They are always checked by a following consonant

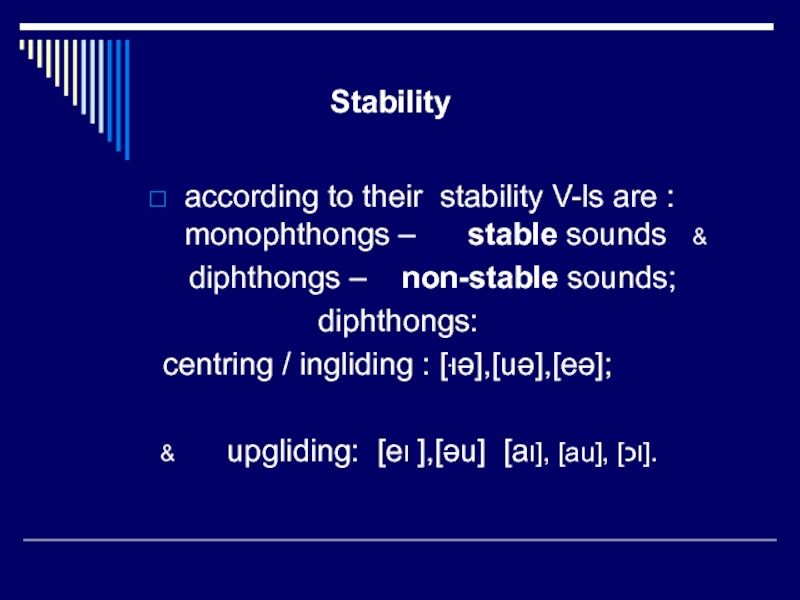

Слайд 14 Stability
according to
their stability V-ls are : monophthongs – stable
sounds &
diphthongs – non-stable sounds;
diphthongs:
centring / ingliding : [וּә],[uә],[eә];
& upgliding: [eI ],[әu] [aI], [au], [כI].

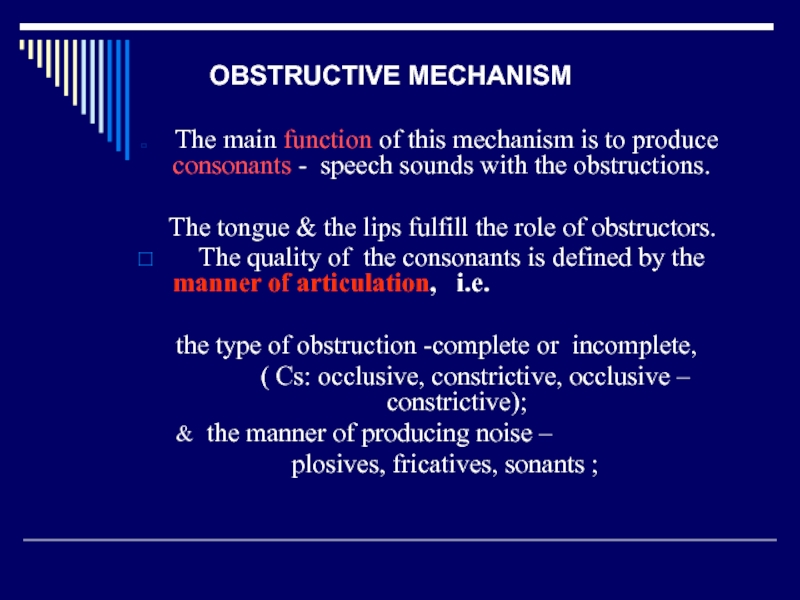

Слайд 15 OBSTRUCTIVE MECHANISM
The main function of
this mechanism is to produce consonants - speech sounds with
the obstructions.
The tongue & the lips fulfill the role of obstructors.
The quality of the consonants is defined by the manner of articulation, i.e.
the type of obstruction -complete or incomplete,
( Cs: occlusive, constrictive, occlusive – constrictive);
& the manner of producing noise –
plosives, fricatives, sonants ;
Слайд 16according to the active organs of speech: labial, lingual,
pharyngeal.
Labial : bilabial, labio – dental;
Lingual : forelingual, medio – lingual, back – lingual;
Pharyngeal (glottal)
active organs of speech & place of articulation

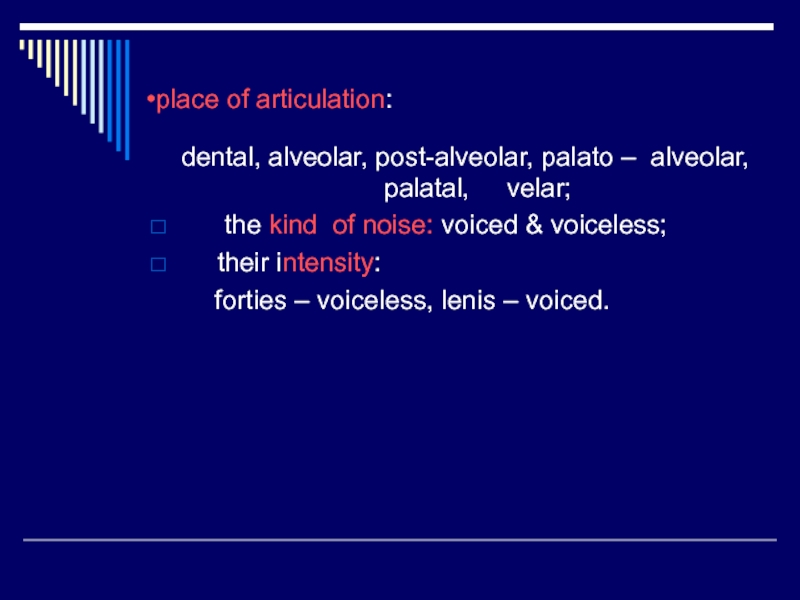

Слайд 17place of articulation:
dental, alveolar, post-alveolar, palato – alveolar,
palatal, velar;
the kind of noise: voiced
& voiceless;
their intensity:
forties – voiceless, lenis – voiced.
Слайд 18ASSIMILATION
Process of influencing of one sound upon the other.
Direction:
progressive: bags [g z], that’s [ts];
regressive – on the ([n] is dental here;
reciprocal – at once [t] [w]:
[t] becomes rounded,
[w] – devoiced.

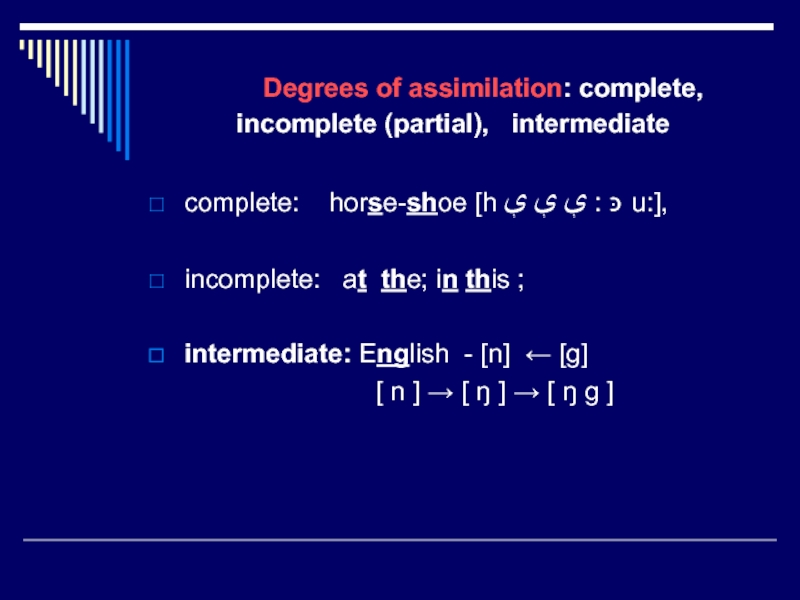

Слайд 19 Degrees of assimilation: complete,
incomplete (partial), intermediate
complete: horse-shoe [h כּ : ﯤ
ﯤ ﯤ u:],
incomplete: at the; in this ;
intermediate: English - [n] ← [g]
[ n ] → [ ŋ ] → [ ŋ g ]
