Слайд 1Command & Control Solutions
for Critical Infrastructure
Bernhard Voit
Product Management ELS Family
I
BT SES SYS

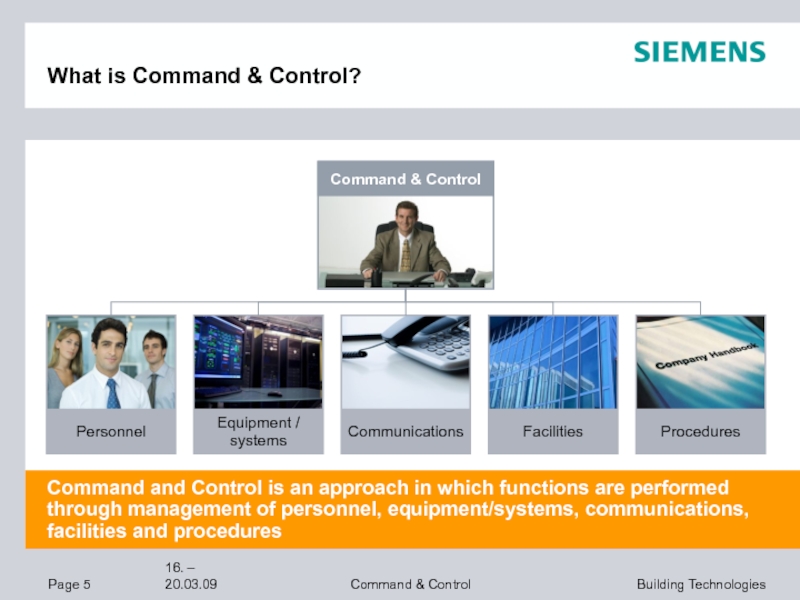

Слайд 5What is Command & Control?
Command and Control is an approach
in which functions are performed through management of personnel, equipment/systems,
communications, facilities and proceduresCommunications
Facilities
Equipment / systems
Personnel
Procedures
Command & Control

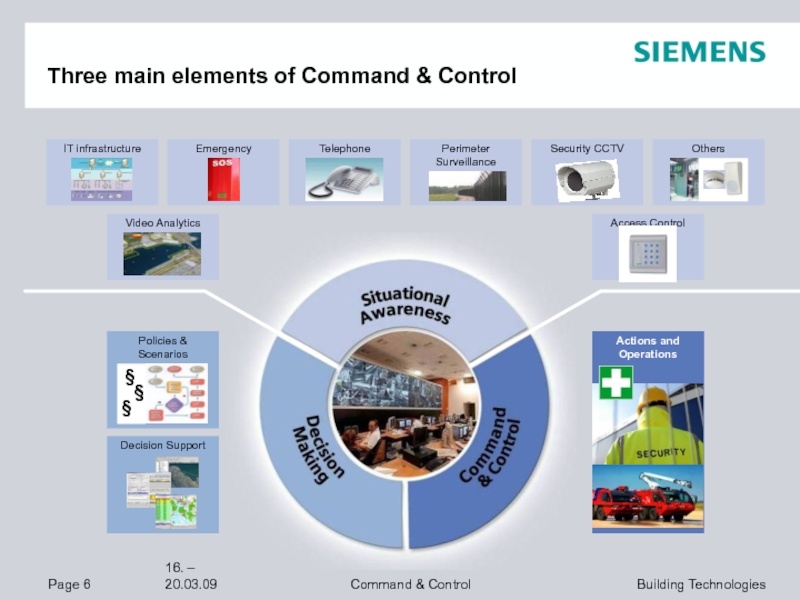

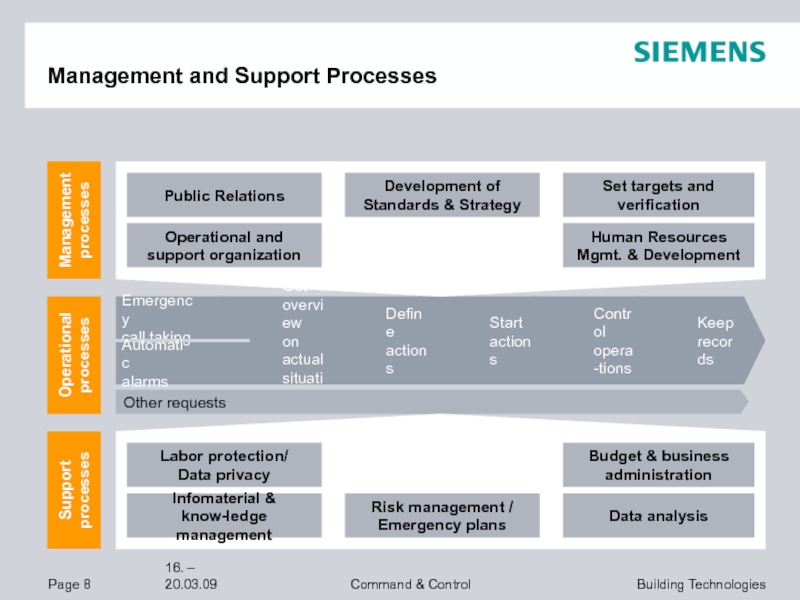

Слайд 6Three main elements of Command & Control
IT infrastructure
Emergency
Telephone
Perimeter
Surveillance
Security CCTV
Others
Video Analytics
Access
Control
Policies &
Scenarios
Decision Support
§
§
§
Actions and Operations

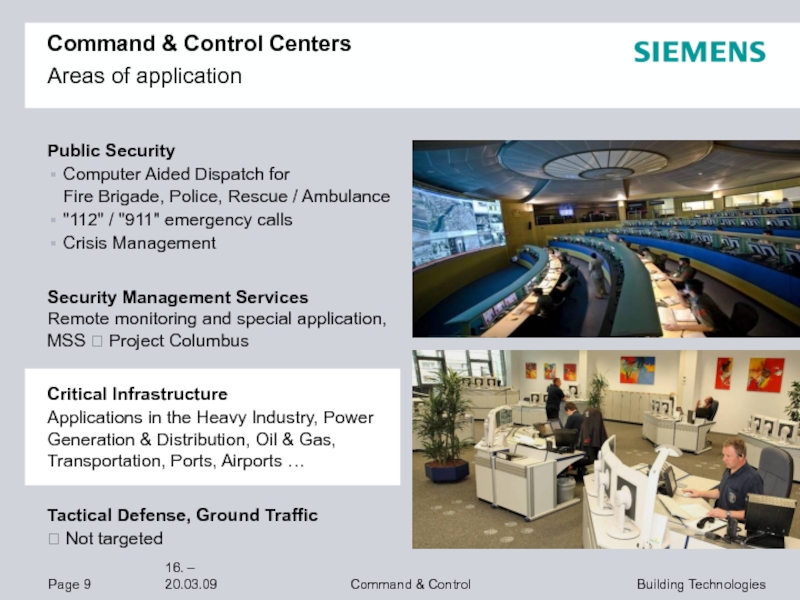

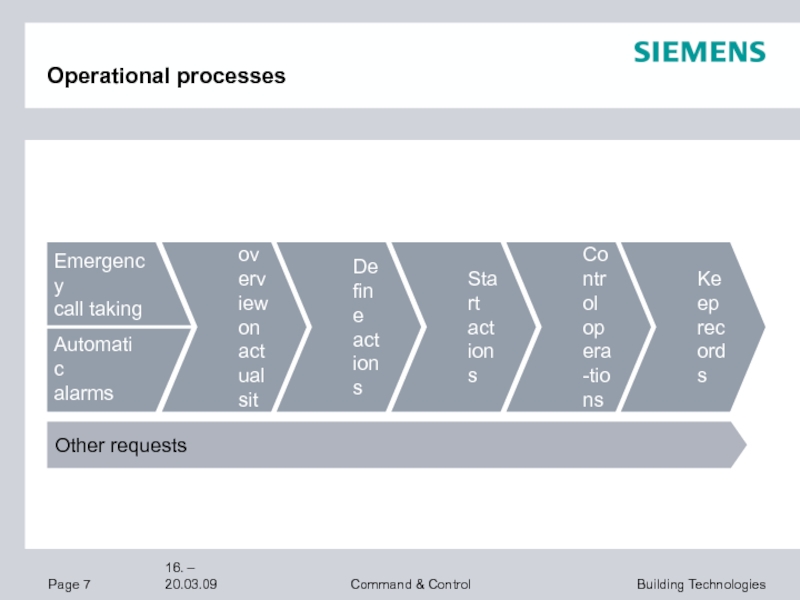

Слайд 9Command & Control Centers
Areas of application
Public Security
Computer Aided Dispatch for
Fire
Brigade, Police, Rescue / Ambulance
"112" / "911" emergency calls
Crisis Management
Security
Management ServicesRemote monitoring and special application, MSS Project Columbus
Critical Infrastructure
Applications in the Heavy Industry, Power Generation & Distribution, Oil & Gas, Transportation, Ports, Airports …
Tactical Defense, Ground Traffic
Not targeted

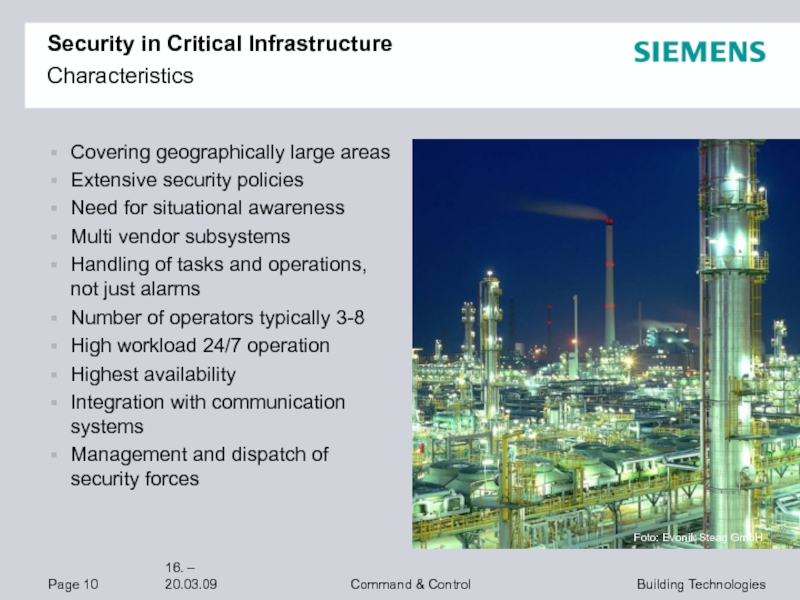

Слайд 10Security in Critical Infrastructure
Characteristics
Covering geographically large areas
Extensive security policies
Need for
situational awareness
Multi vendor subsystems
Handling of tasks and operations,
not
just alarmsNumber of operators typically 3-8
High workload 24/7 operation
Highest availability
Integration with communication systems
Management and dispatch of security forces
Foto: Evonik Steag GmbH

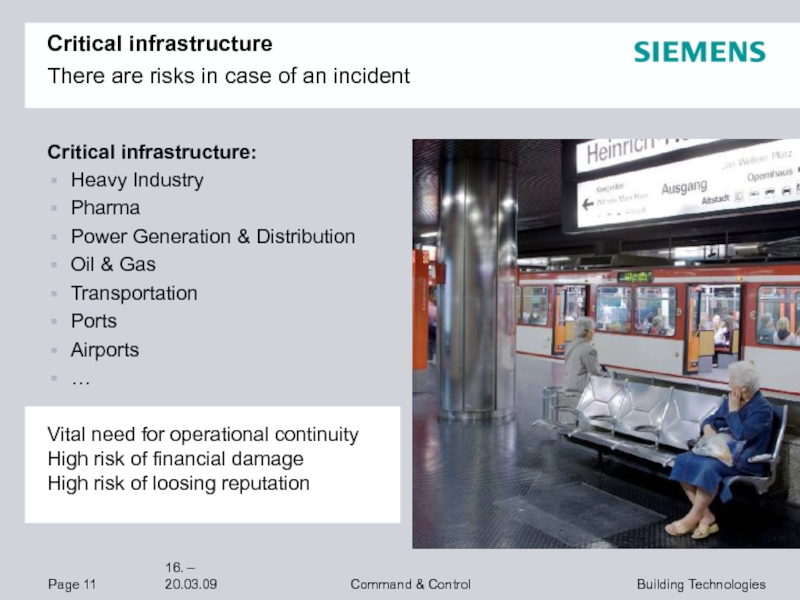

Слайд 11Critical infrastructure
There are risks in case of an incident
Critical infrastructure:
Heavy
Industry
Pharma
Power Generation & Distribution
Oil & Gas
Transportation
Ports
Airports
…
Vital need for operational continuity
High
risk of financial damage
High risk of loosing reputation

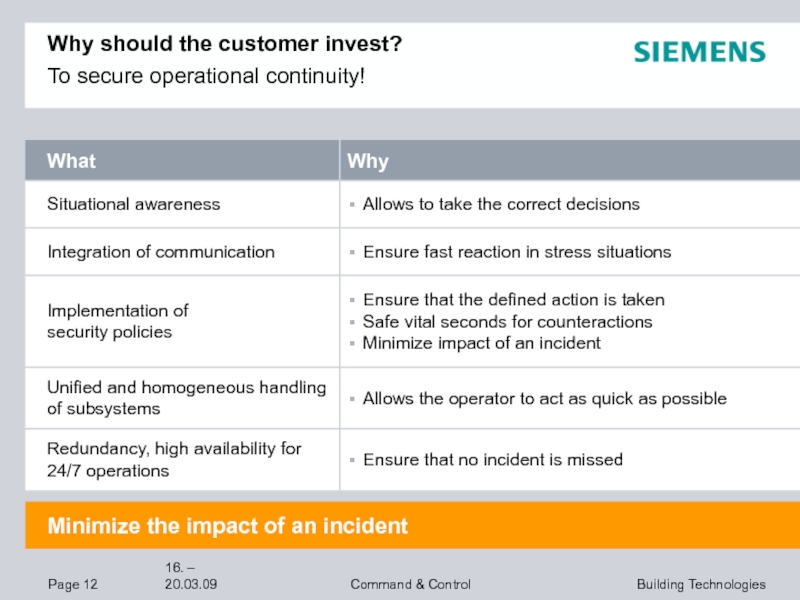

Слайд 12Why should the customer invest?
To secure operational continuity!
Minimize the
impact of an incident

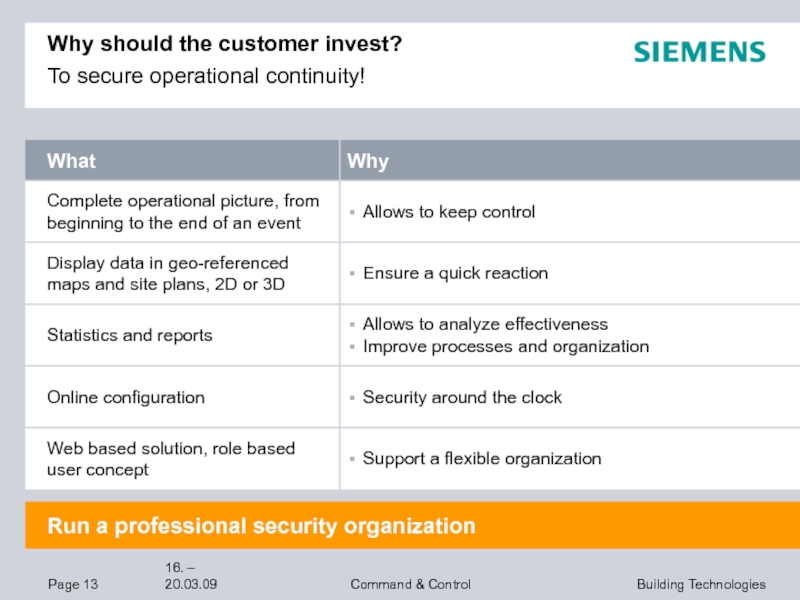

Слайд 13Why should the customer invest?
To secure operational continuity!
Run a professional
security organization

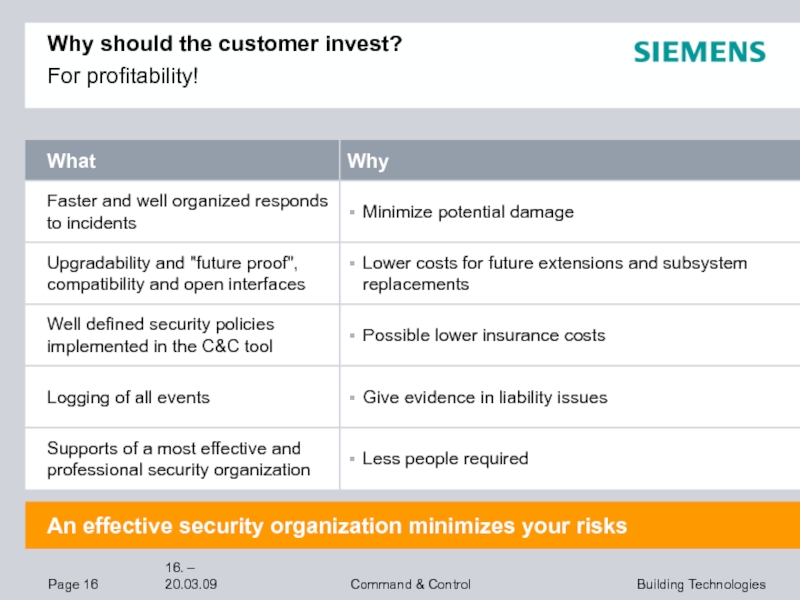

Слайд 16Why should the customer invest?
For profitability!
An effective security organization minimizes
your risks

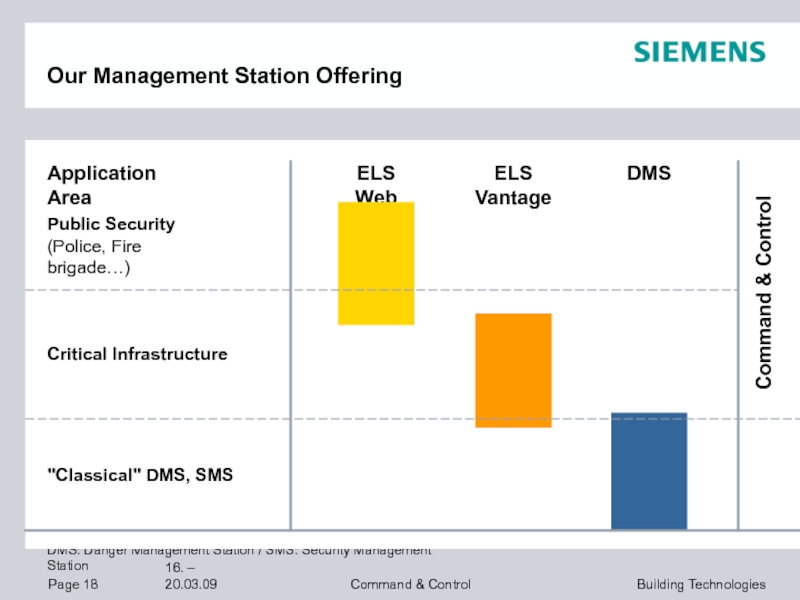

Слайд 18Our Management Station Offering
DMS: Danger Management Station / SMS: Security
Management Station

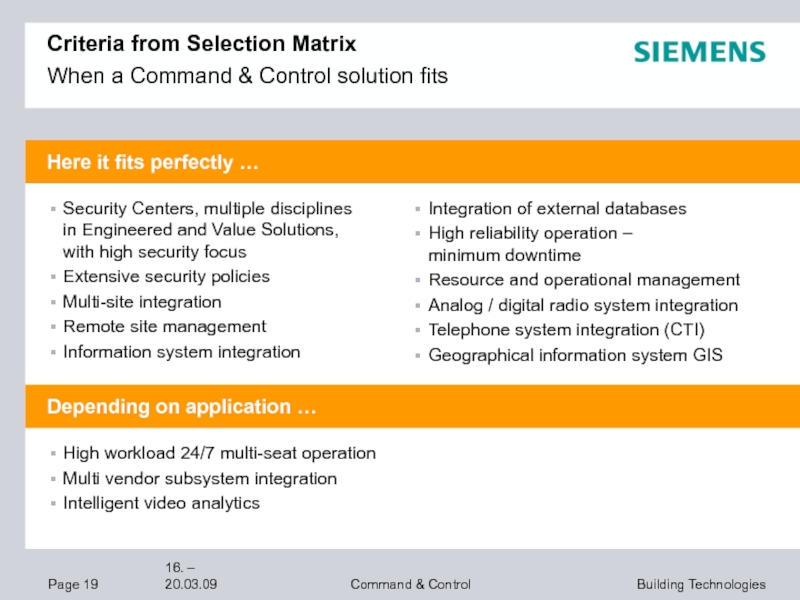

Слайд 19Criteria from Selection Matrix
When a Command & Control solution fits
Here
it fits perfectly …
Security Centers, multiple disciplines
in Engineered and
Value Solutions,
with high security focusExtensive security policies
Multi-site integration
Remote site management
Information system integration
Integration of external databases
High reliability operation –
minimum downtime
Resource and operational management
Analog / digital radio system integration
Telephone system integration (CTI)
Geographical information system GIS
Depending on application …
High workload 24/7 multi-seat operation
Multi vendor subsystem integration
Intelligent video analytics

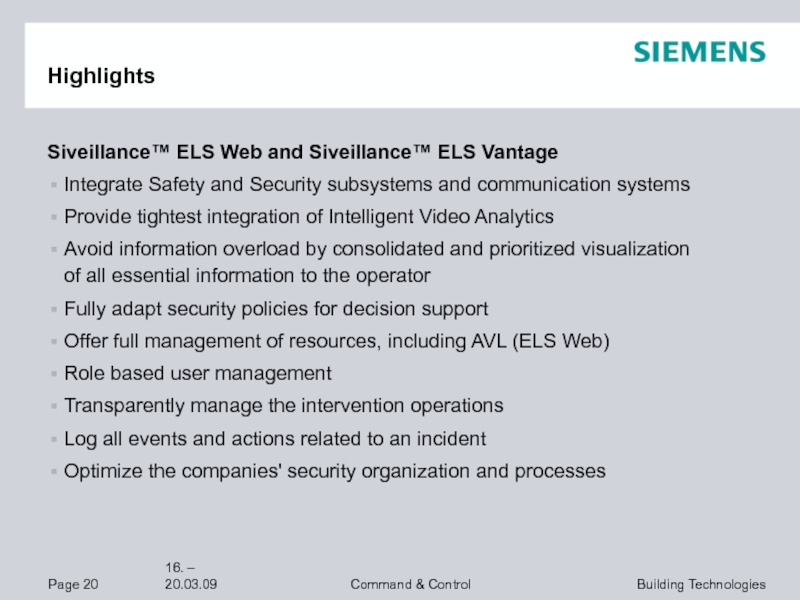

Слайд 20Highlights
Siveillance™ ELS Web and Siveillance™ ELS Vantage
Integrate Safety and
Security subsystems and communication systems
Provide tightest integration of Intelligent Video
AnalyticsAvoid information overload by consolidated and prioritized visualization of all essential information to the operator
Fully adapt security policies for decision support
Offer full management of resources, including AVL (ELS Web)
Role based user management
Transparently manage the intervention operations
Log all events and actions related to an incident
Optimize the companies' security organization and processes

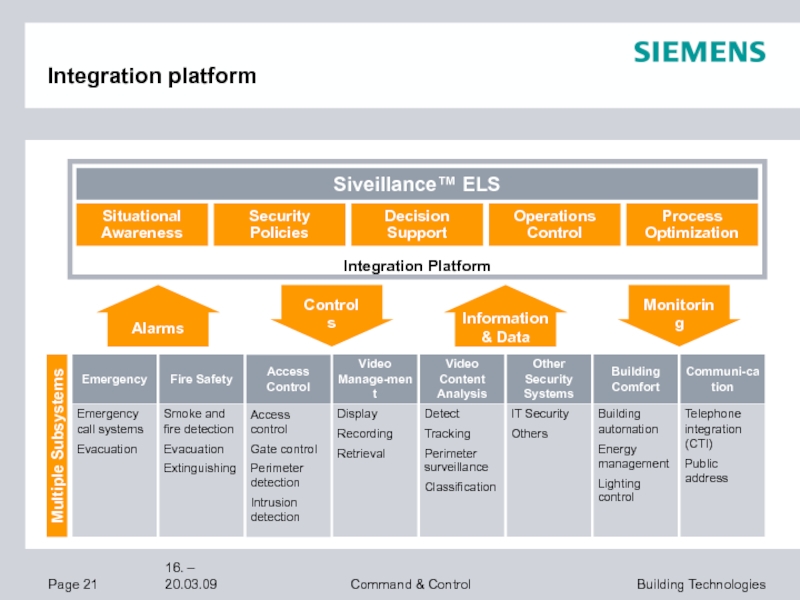

Слайд 21Integration platform
Emergency call systems
Evacuation
Emergency
IT Security
Others
Other Security
Systems
Telephone integration
(CTI)
Public address
Communi-cation
Display
Recording
Retrieval
Video Manage-ment
Building
automation
Energy management
Lighting control
Building Comfort
Access control
Gate control
Perimeter detection
Intrusion detection
Access Control
Detect
Tracking
Perimeter surveillance
Classification
Video
Content AnalysisSmoke and fire detection
Evacuation
Extinguishing
Fire Safety
Multiple Subsystems

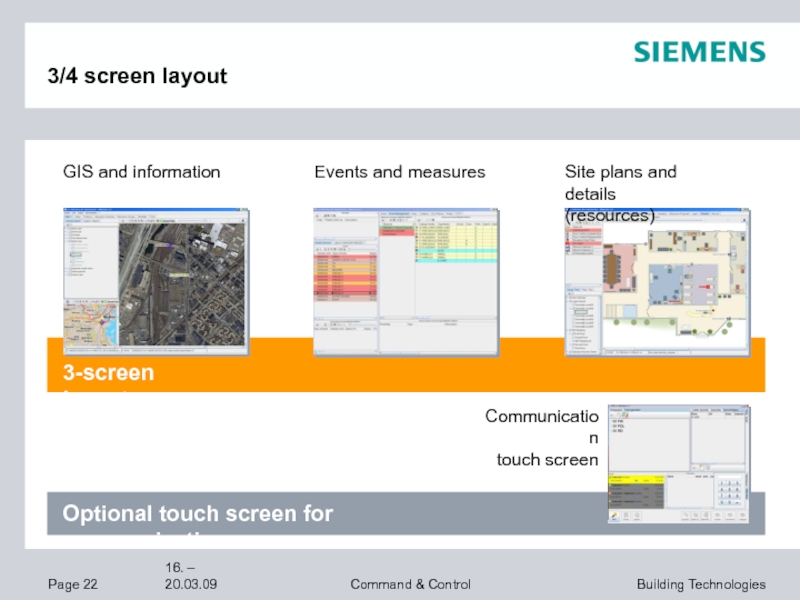

Слайд 223/4 screen layout
Events and measures
GIS and information
Site plans
and details
(resources)
Communication
touch screen
Optional touch screen for communication
3-screen layout

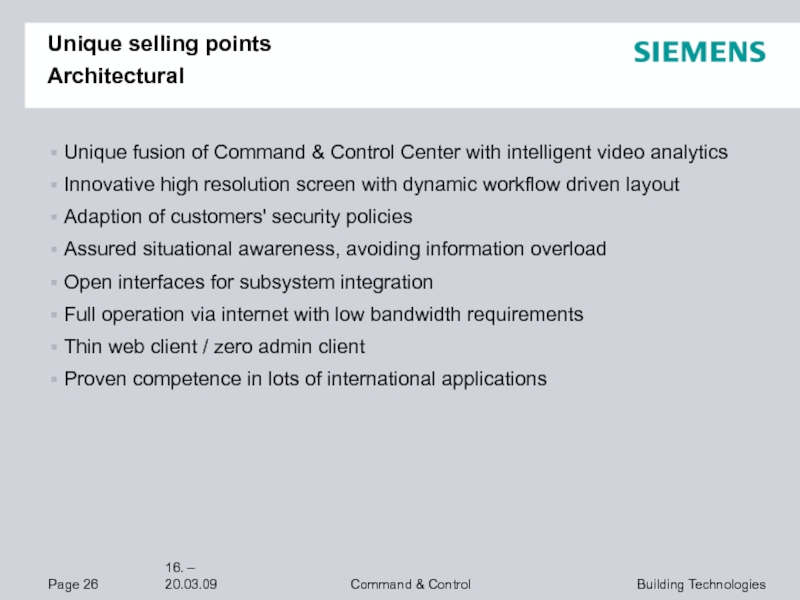

Слайд 26Unique selling points
Architectural
Unique fusion of Command & Control Center with
intelligent video analytics
Innovative high resolution screen with dynamic workflow driven
layoutAdaption of customers' security policies
Assured situational awareness, avoiding information overload
Open interfaces for subsystem integration
Full operation via internet with low bandwidth requirements
Thin web client / zero admin client
Proven competence in lots of international applications

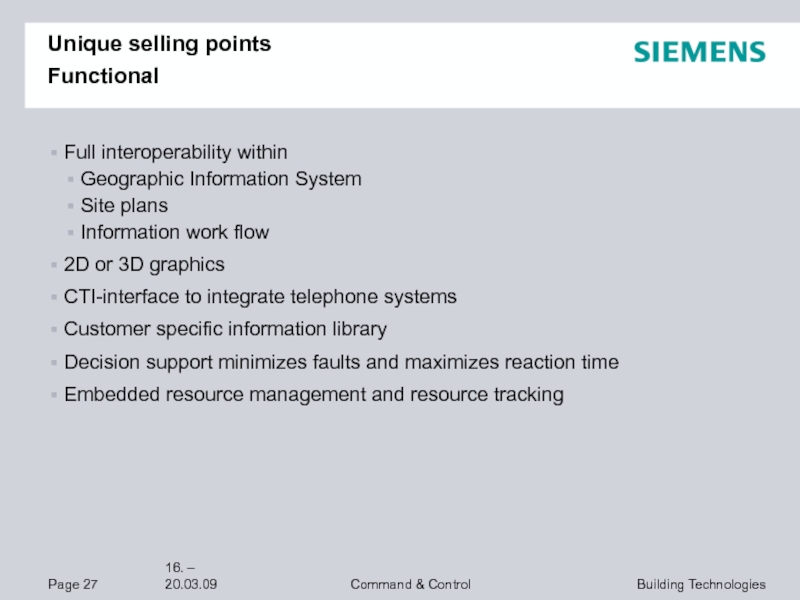

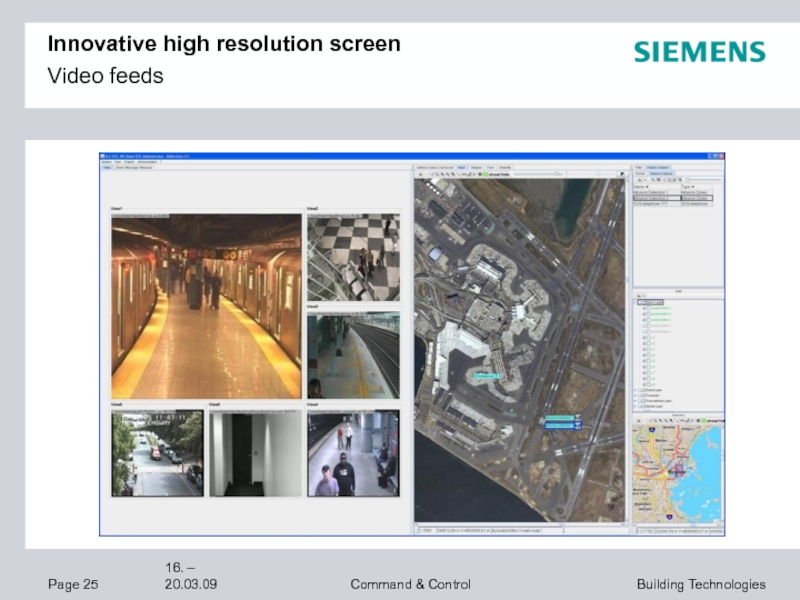

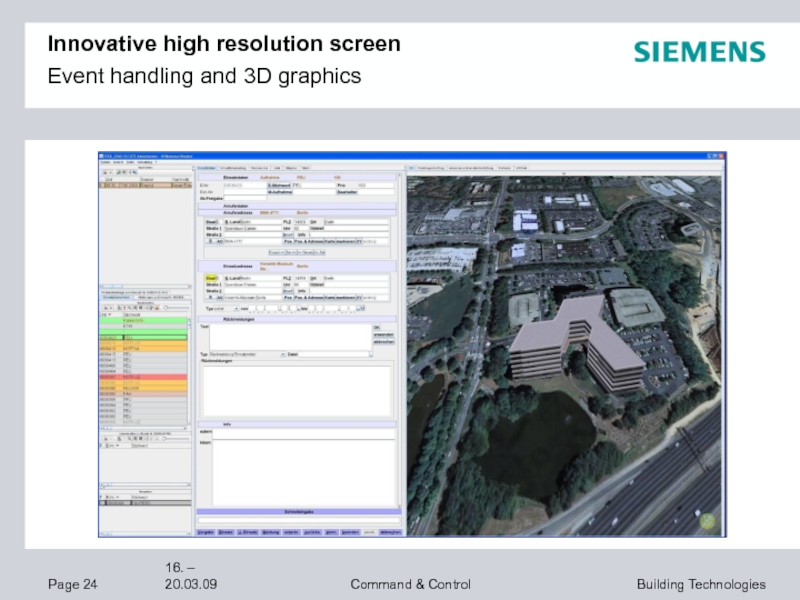

Слайд 27Unique selling points
Functional
Full interoperability within
Geographic Information System
Site plans
Information work flow
2D
or 3D graphics
CTI-interface to integrate telephone systems
Customer specific information library
Decision
support minimizes faults and maximizes reaction timeEmbedded resource management and resource tracking

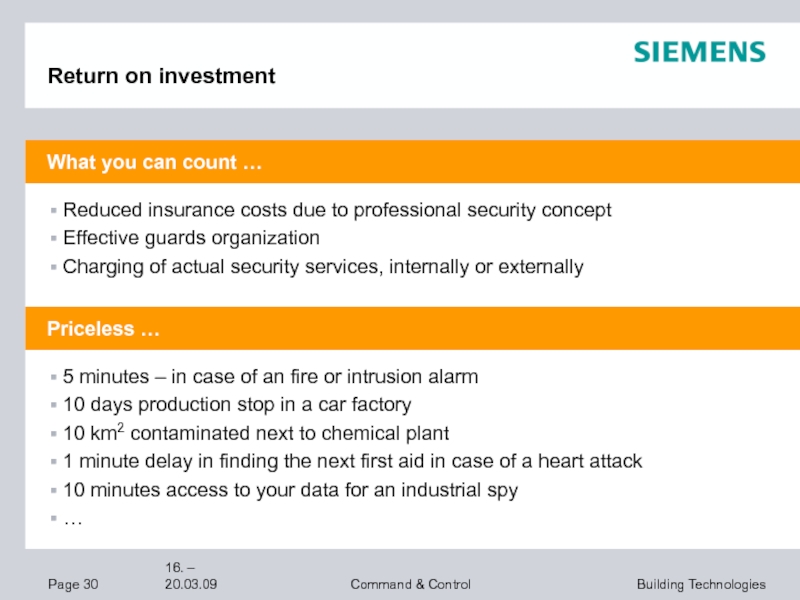

Слайд 30Return on investment
What you can count …
Reduced insurance costs due
to professional security concept
Effective guards organization
Charging of actual security services,
internally or externallyPriceless …
5 minutes – in case of an fire or intrusion alarm
10 days production stop in a car factory
10 km2 contaminated next to chemical plant
1 minute delay in finding the next first aid in case of a heart attack
10 minutes access to your data for an industrial spy
…

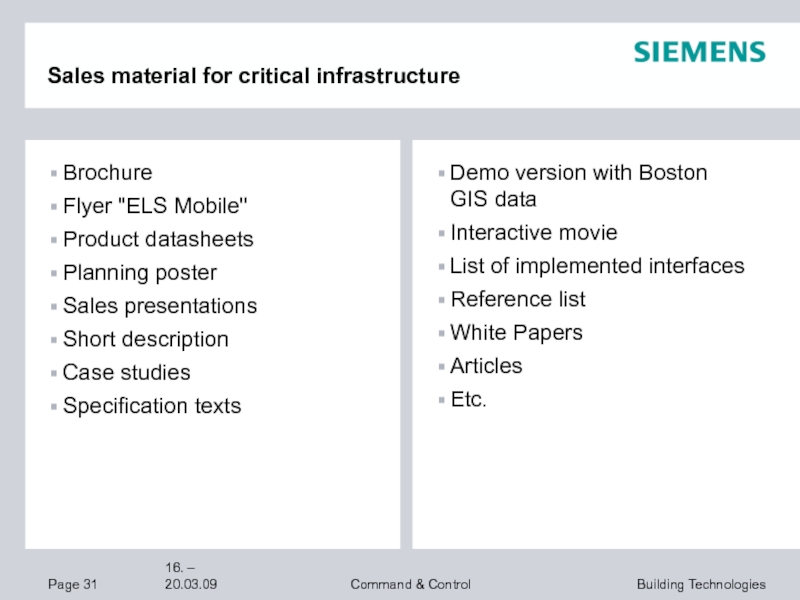

Слайд 31Sales material for critical infrastructure
Brochure
Flyer "ELS Mobile"
Product datasheets
Planning poster
Sales
presentations
Short description
Case studies
Specification texts
Demo version with Boston
GIS data
Interactive movie
List
of implemented interfacesReference list
White Papers
Articles
Etc.

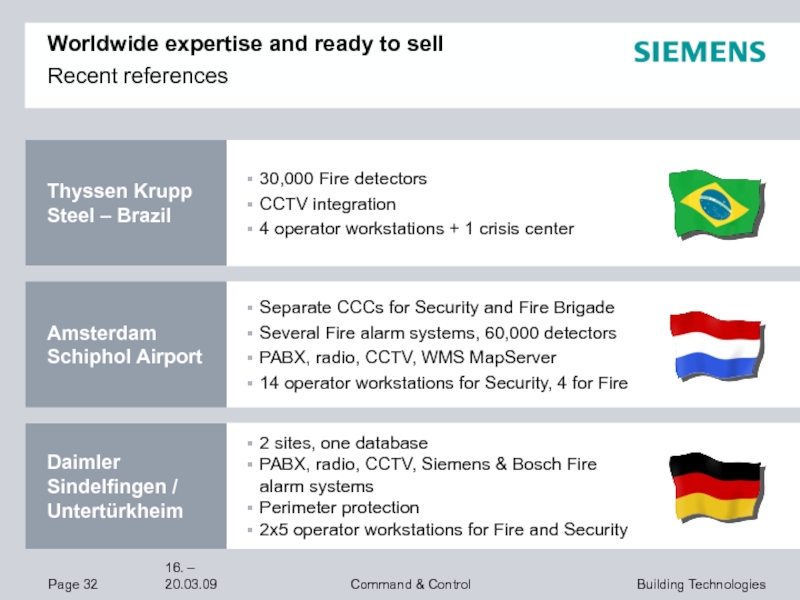

Слайд 32Worldwide expertise and ready to sell
Recent references
Amsterdam Schiphol Airport
Thyssen Krupp
Steel – Brazil
Daimler Sindelfingen / Untertürkheim
30,000 Fire detectors
CCTV integration
4 operator
workstations + 1 crisis centerSeparate CCCs for Security and Fire Brigade
Several Fire alarm systems, 60,000 detectors
PABX, radio, CCTV, WMS MapServer
14 operator workstations for Security, 4 for Fire
2 sites, one database
PABX, radio, CCTV, Siemens & Bosch Fire alarm systems
Perimeter protection
2x5 operator workstations for Fire and Security

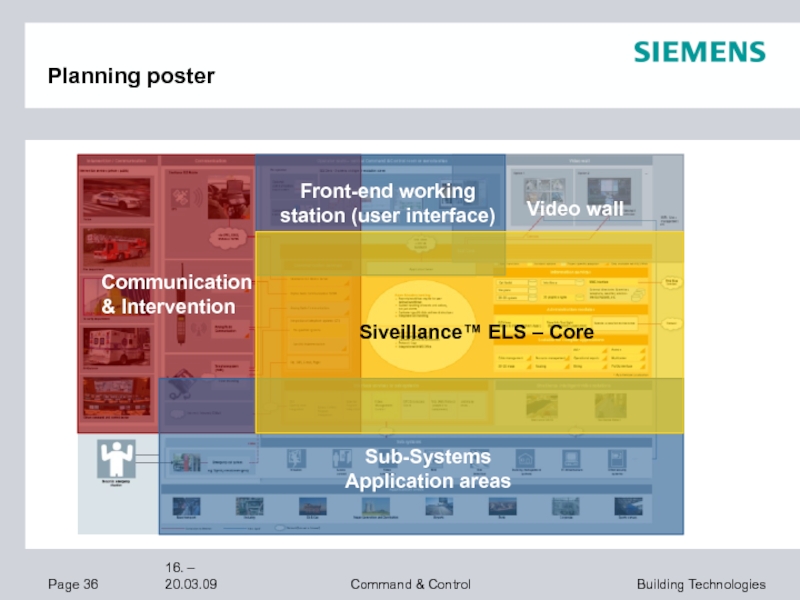

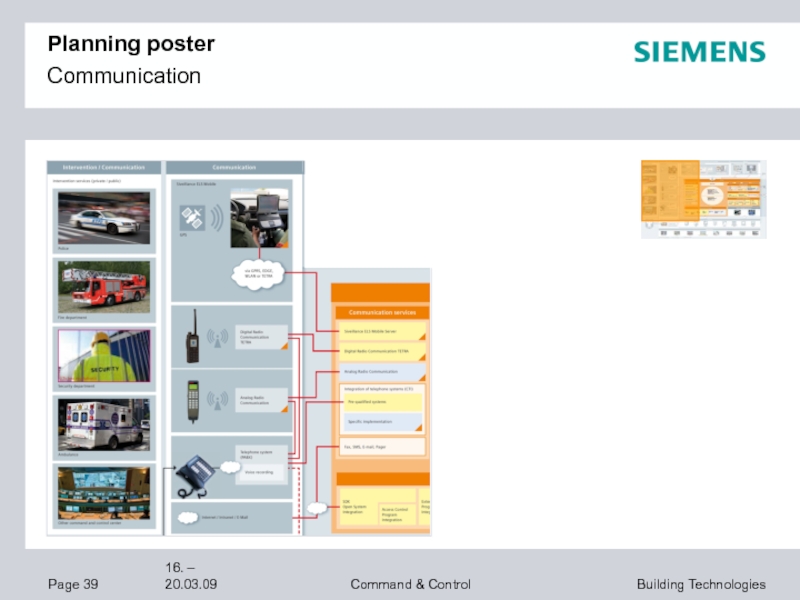

Слайд 36Planning poster
Communication
& Intervention
Video wall
Sub-Systems
Application areas
Front-end working station (user interface)
Siveillance™ ELS
– Core

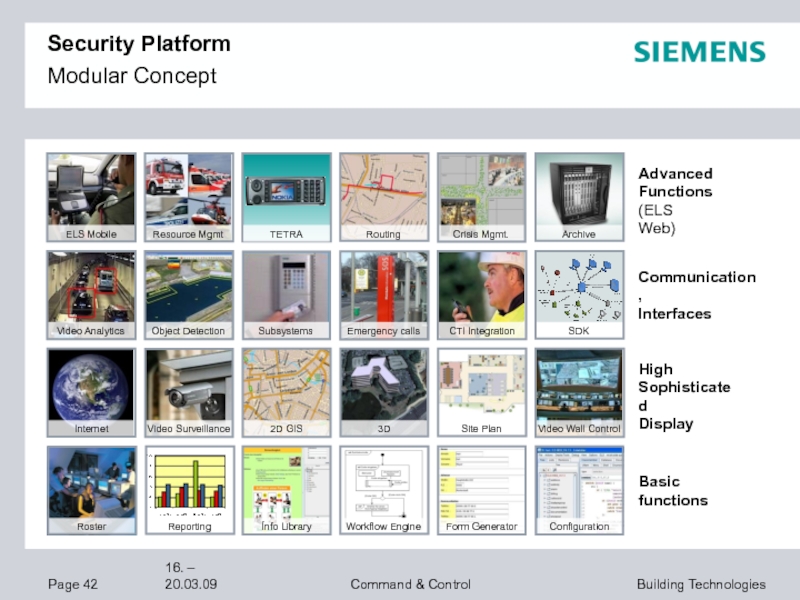

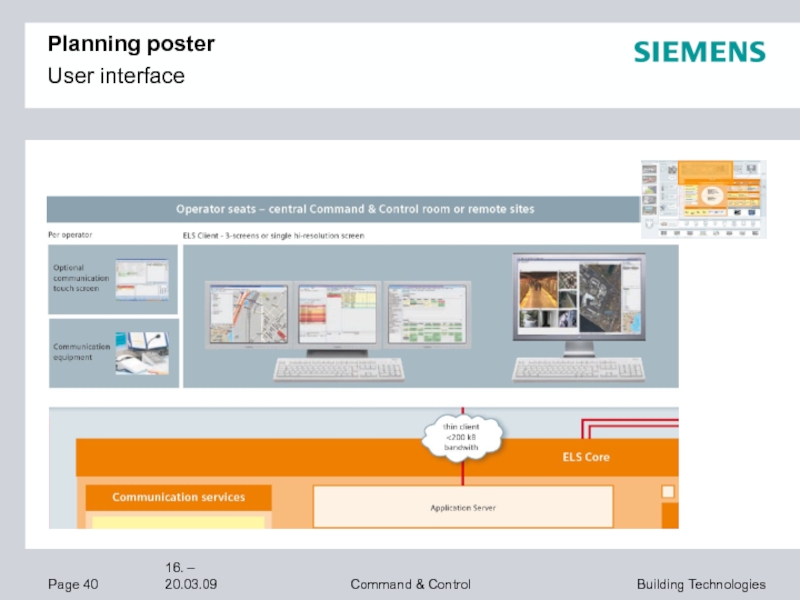

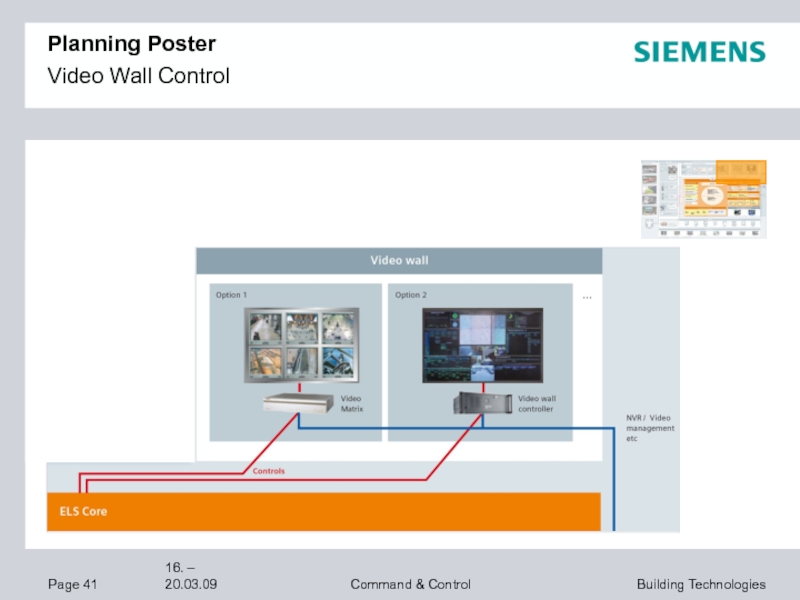

Слайд 42Security Platform
Modular Concept
Resource Mgmt
TETRA
Object Detection
Video Analytics
CTI Integration
Video Wall Control
Video
Surveillance
3D
2D GIS
Form Generator
Ínfo Library
Subsystems
ELS Mobile
Internet
Crisis Mgmt.
Configuration
Emergency calls
Roster
Archive
SDK
Routing
Site Plan
Workflow Engine
Reporting
Basic functions
Advanced
Functions
(ELS
Web)High
Sophisticated
Display
Communication,
Interfaces

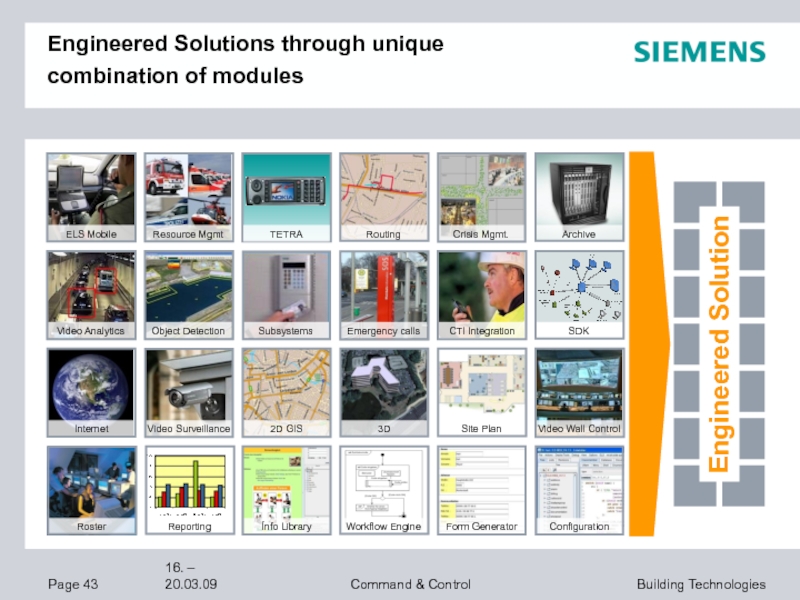

Слайд 43Engineered Solutions through unique
combination of modules
Resource Mgmt
TETRA
Object Detection
Video Analytics
CTI Integration
Video
Wall Control
Video Surveillance
3D
2D GIS
Form Generator
Ínfo Library
Subsystems
ELS Mobile
Internet
Crisis Mgmt.
Configuration
Emergency calls
Roster
Archive
SDK
Routing
Site Plan
Workflow
EngineReporting

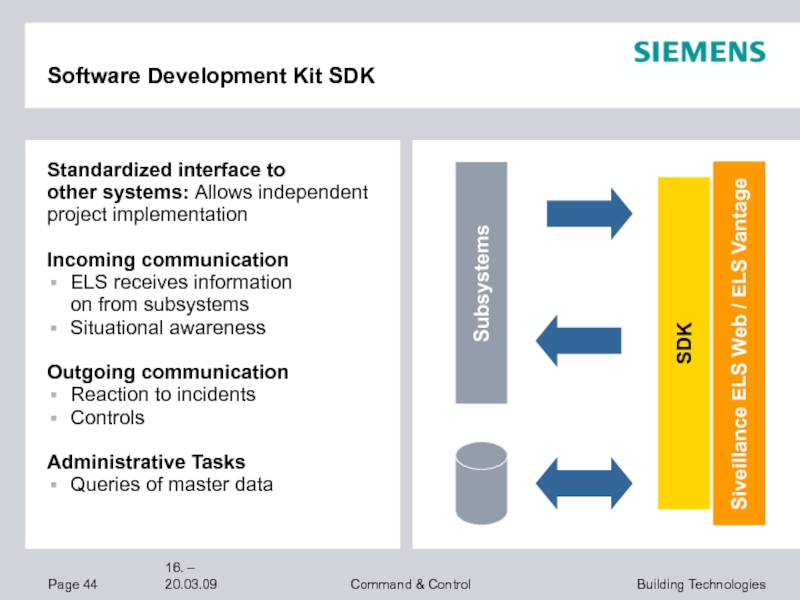

Слайд 44Software Development Kit SDK
Standardized interface to
other systems: Allows independent project
implementation
Incoming communication
ELS receives information
on from subsystems
Situational awareness
Outgoing communication
Reaction to
incidentsControls
Administrative Tasks
Queries of master data
Siveillance ELS Web / ELS Vantage
Subsystems
SDK

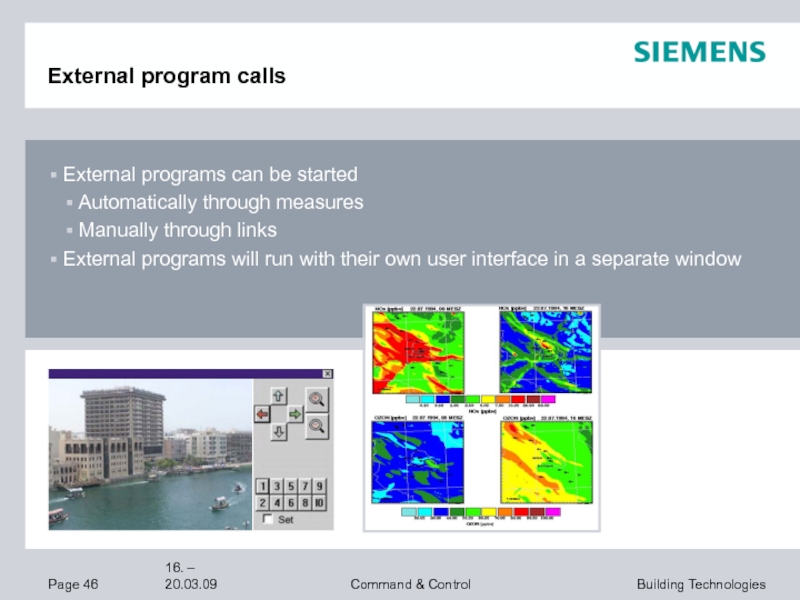

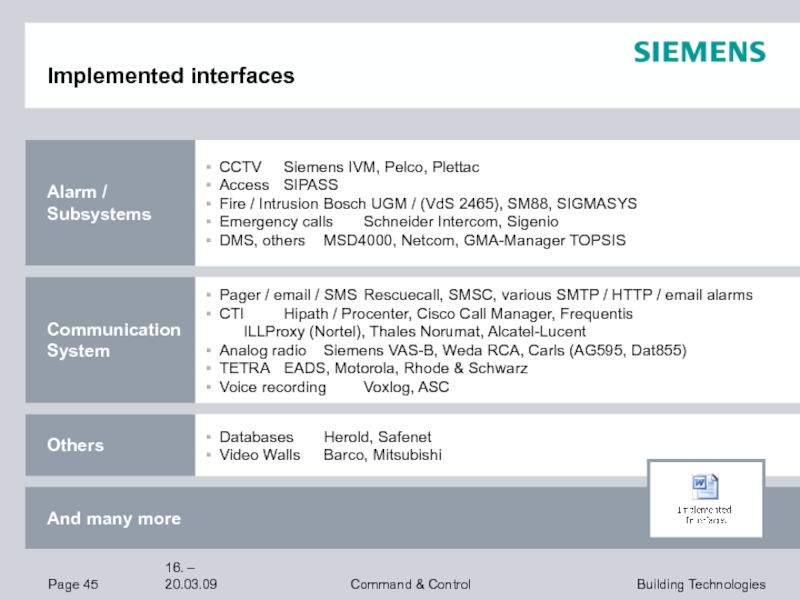

Слайд 46External program calls
External programs can be started
Automatically through measures
Manually
through links
External programs will run with their own user interface
in a separate window
Слайд 47Web Map Service WMS

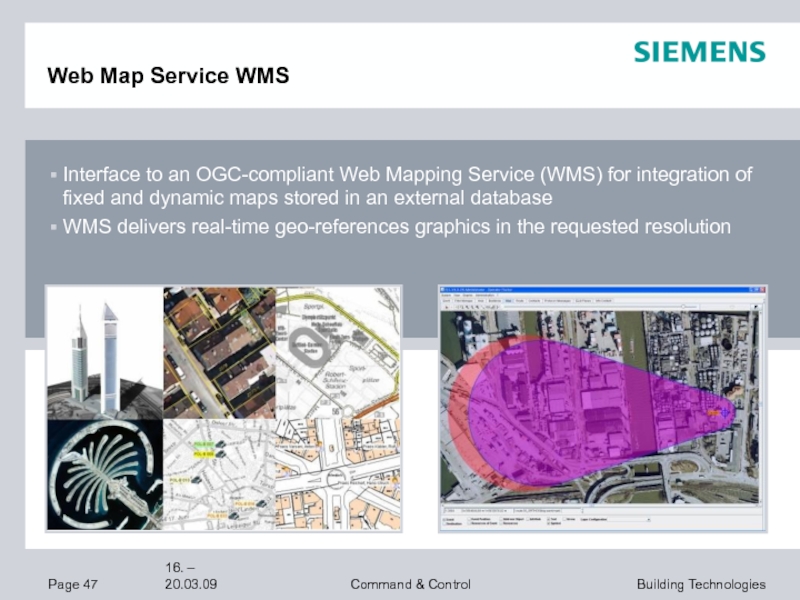

Interface to an OGC-compliant Web Mapping Service
(WMS) for integration of fixed and dynamic maps stored in
an external databaseWMS delivers real-time geo-references graphics in the requested resolution
