Слайд 1Основы программирования (Java)
ФИСТ 1 курс
Власенко
Олег
Федосович
Лекция 2 и 3
Массивы
Заготовка
для курсовой работы
Слайд 2Массивы в Java – hard coded
public static void main(String[] args)
{
System.out.println("Hi!");
int [] a1 = {1, 2, 3, 4};
for (int i
= 0; i < a1.length; i++) {
System.out.printf("%d ", a1[i]);
}
System.out.println();
}

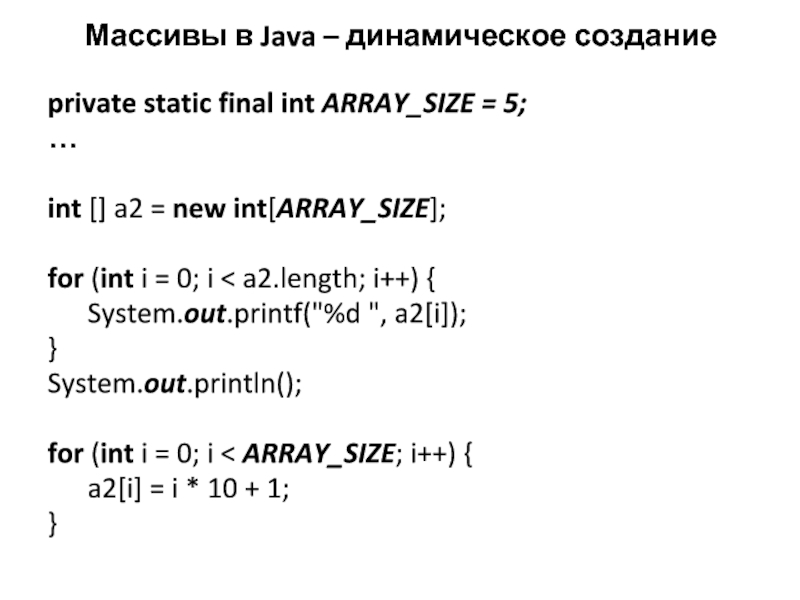

Слайд 3Массивы в Java – динамическое создание
private static final int ARRAY_SIZE
= 5;
…
int [] a2 = new int[ARRAY_SIZE];
for (int i
= 0; i < a2.length; i++) {
System.out.printf("%d ", a2[i]);
}
System.out.println();
for (int i = 0; i < ARRAY_SIZE; i++) {
a2[i] = i * 10 + 1;
}
Слайд 4Вывод массива – for 2 видов
for (int i = 0;
i < a2.length; i++) {
System.out.printf("%d ", a2[i]);
}
System.out.println();
for(int ai : a1)
{
System.out.printf("%d ", ai);
}
System.out.println();

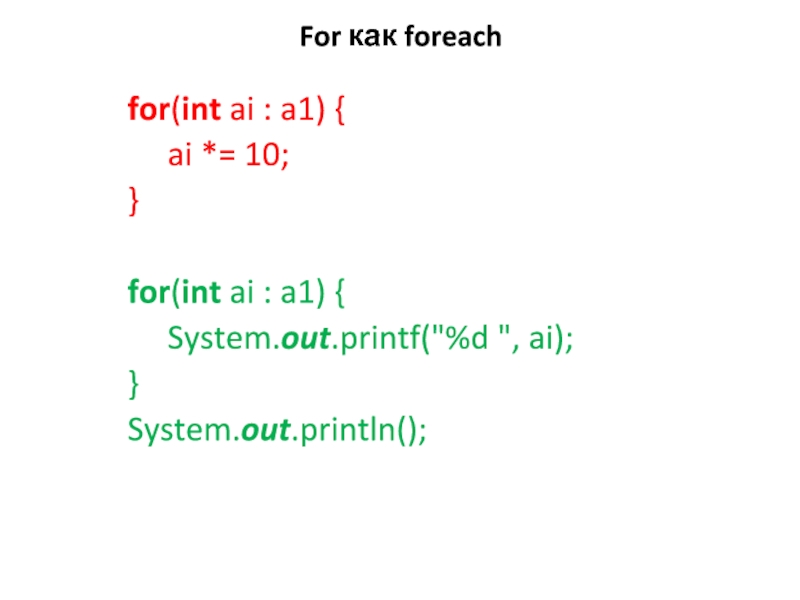

Слайд 5For как foreach
for(int ai : a1) {
ai *= 10;
}
for(int ai : a1) {
System.out.printf("%d ", ai);
}
System.out.println();
Слайд 6Двумерный массив – hard coded
public static void main(String[] args) {
System.out.println("Hi!");
int
[][] aa1 = {
{1, 2, 3, 4},
{10, 20, 30,
40},
{15, 25, 35, 45}
};
for (int i = 0; i < aa1.length; i++) {
for (int j = 0; j < aa1[i].length; j++) {
System.out.printf("%d\t ", aa1[i][j]);
}
System.out.println();
}
System.out.println();
}

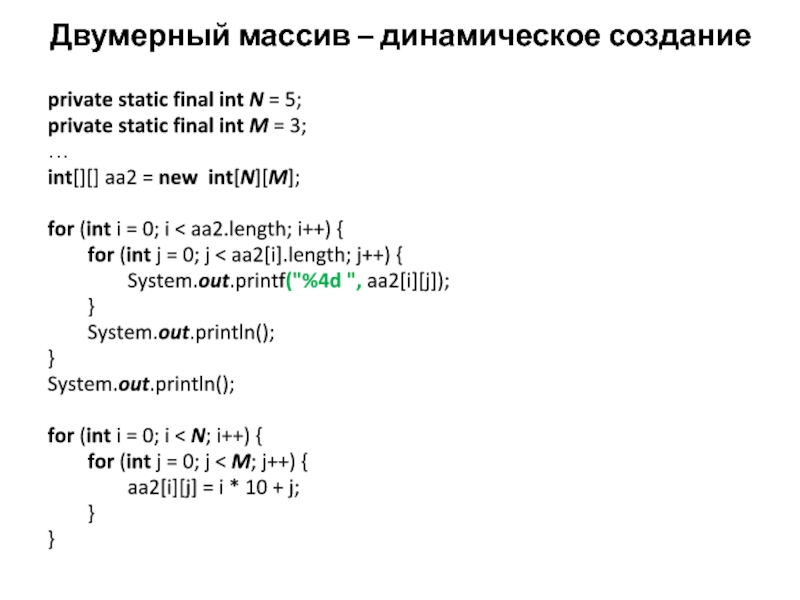

Слайд 7Двумерный массив – динамическое создание
private static final int N =
5;
private static final int M = 3;
…
int[][] aa2 = new
int[N][M];
for (int i = 0; i < aa2.length; i++) {
for (int j = 0; j < aa2[i].length; j++) {
System.out.printf("%4d ", aa2[i][j]);
}
System.out.println();
}
System.out.println();
for (int i = 0; i < N; i++) {
for (int j = 0; j < M; j++) {
aa2[i][j] = i * 10 + j;
}
}
Слайд 8Двумерный массив – вывод в виде матрицы
for (int i =
0; i < aa2.length; i++) {
for (int j = 0;
j < aa2[i].length; j++) {
System.out.printf("%d\t", aa2[i][j]);
}
System.out.println();
}
System.out.println();
for(int[] aa_i : aa2) {
for(int aa_ij : aa_i) {
System.out.printf("%4d ", aa_ij);
}
System.out.println();
}
System.out.println();

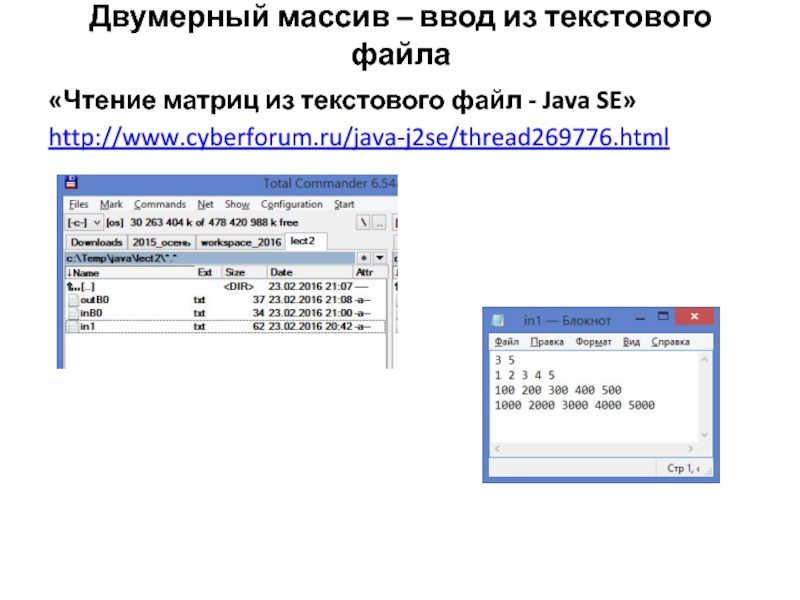

Слайд 9Двумерный массив – ввод из текстового файла
«Чтение матриц из текстового
файл - Java SE»
http://www.cyberforum.ru/java-j2se/thread269776.html

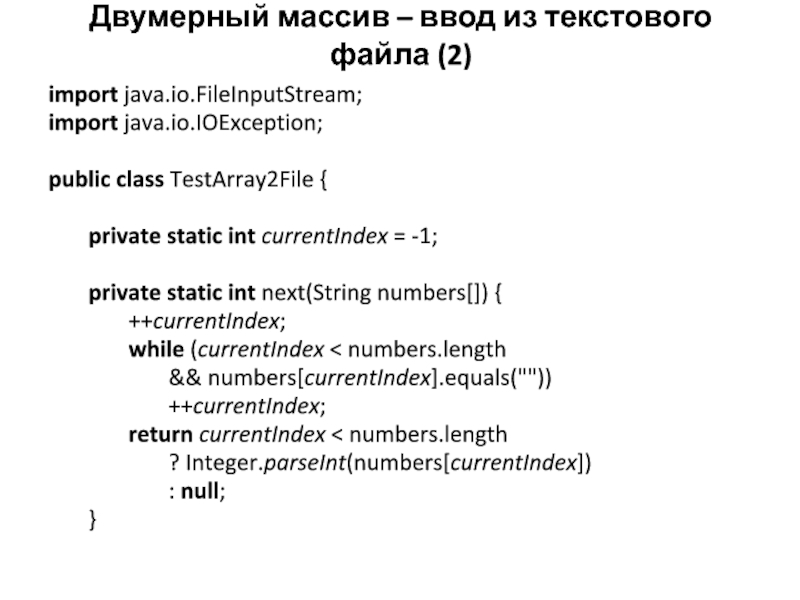

Слайд 10Двумерный массив – ввод из текстового файла (2)
import java.io.FileInputStream;
import java.io.IOException;
public
class TestArray2File {
private static int currentIndex = -1;
private static int
next(String numbers[]) {
++currentIndex;
while (currentIndex < numbers.length
&& numbers[currentIndex].equals(""))
++currentIndex;
return currentIndex < numbers.length
? Integer.parseInt(numbers[currentIndex])
: null;
}
Слайд 11Двумерный массив – ввод из текстового файла (3)
public static void
main(String args[]) throws IOException {
FileInputStream inFile = new
FileInputStream("C:\\Temp\\java\\lect2\\in1.txt");
byte[] str
= new byte[inFile.available()];
inFile.read(str);
inFile.close();
String text = new String(str);
String[] numbers = text.split("\\D");

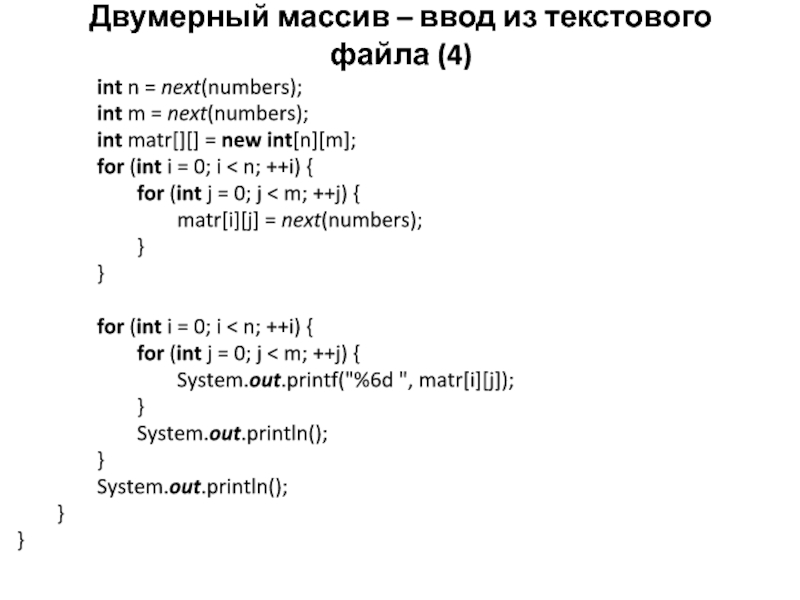

Слайд 12Двумерный массив – ввод из текстового файла (4)
int n =
next(numbers);
int m = next(numbers);
int matr[][] = new int[n][m];
for (int i
= 0; i < n; ++i) {
for (int j = 0; j < m; ++j) {
matr[i][j] = next(numbers);
}
}
for (int i = 0; i < n; ++i) {
for (int j = 0; j < m; ++j) {
System.out.printf("%6d ", matr[i][j]);
}
System.out.println();
}
System.out.println();
}
}
Слайд 13Двумерный массив – ввод из текстового файла (5)
Содержимое файла "C:\\Temp\\java\\lect2\\in1.txt"
Слайд 14Экзаменационная задача B0
Общее задание
Ввести двумерный массив из файла. Количество элементов
не более 10x10.
Каждый элемент – целое число в интервале
значений -1000..+1000.
Количество строк (N) и столбцов (M) задано первой строке входного файла. Далее в N строках записаны по M числе.
Обработать массив согласно варианту.
Сохранить результат в формате, аналогичном входному.

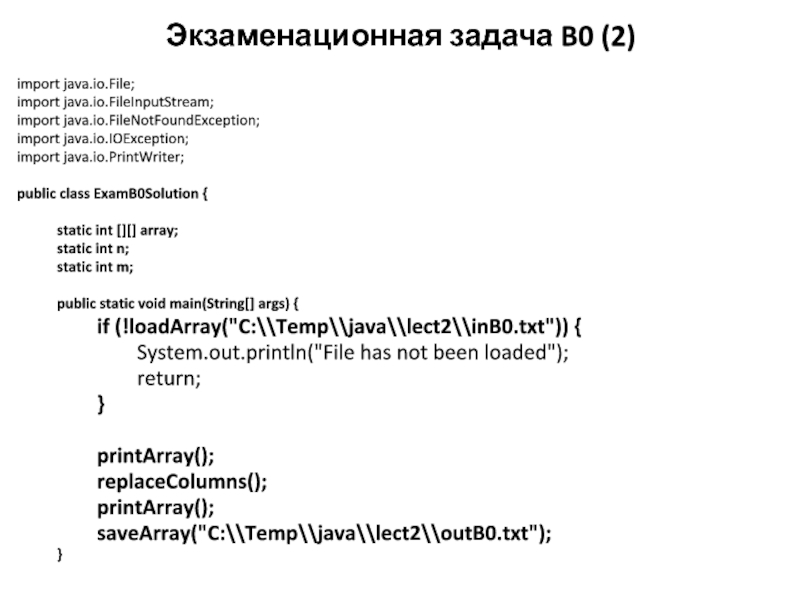

Слайд 15Экзаменационная задача B0 (2)
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.PrintWriter;
public class
ExamB0Solution {
static int [][] array;
static int n;
static int m;
public static
void main(String[] args) {
if (!loadArray("C:\\Temp\\java\\lect2\\inB0.txt")) {
System.out.println("File has not been loaded");
return;
}
printArray();
replaceColumns();
printArray();
saveArray("C:\\Temp\\java\\lect2\\outB0.txt");
}

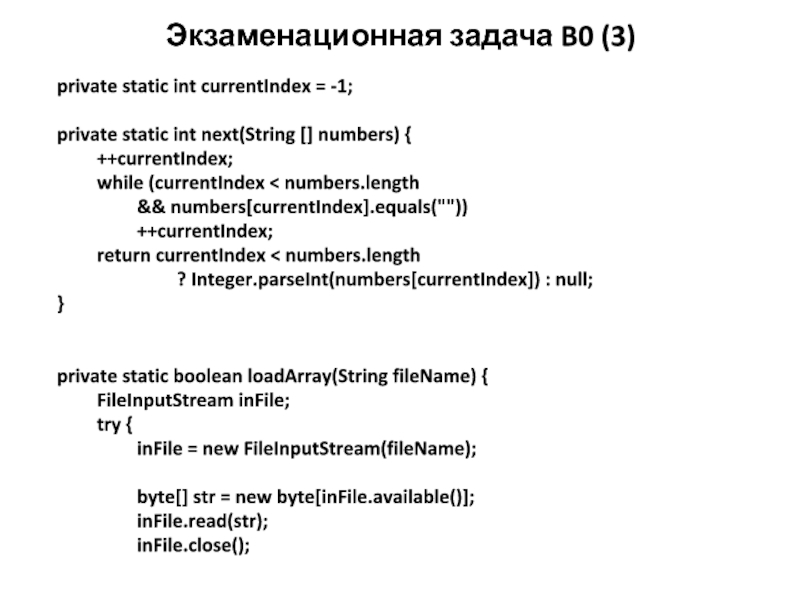

Слайд 16Экзаменационная задача B0 (3)
private static int currentIndex = -1;
private static
int next(String [] numbers) {
++currentIndex;
while (currentIndex < numbers.length
&& numbers[currentIndex].equals(""))
++currentIndex;
return
currentIndex < numbers.length
? Integer.parseInt(numbers[currentIndex]) : null;
}
private static boolean loadArray(String fileName) {
FileInputStream inFile;
try {
inFile = new FileInputStream(fileName);
byte[] str = new byte[inFile.available()];
inFile.read(str);
inFile.close();

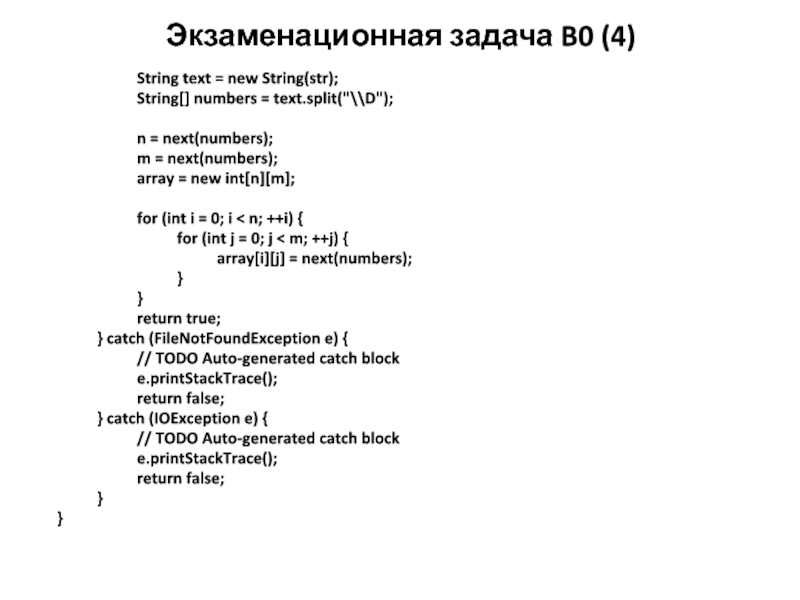

Слайд 17Экзаменационная задача B0 (4)
String text = new String(str);
String[] numbers =
text.split("\\D");
n = next(numbers);
m = next(numbers);
array = new int[n][m];
for (int i
= 0; i < n; ++i) {
for (int j = 0; j < m; ++j) {
array[i][j] = next(numbers);
}
}
return true;
} catch (FileNotFoundException e) {
// TODO Auto-generated catch block
e.printStackTrace();
return false;
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
return false;
}
}
Слайд 18Экзаменационная задача B0 (5)
/*
* Переставить столбцы, содержащие минимальный и
максимальный элементы
*/
private static void replaceColumns() {
int maxJ = 0;
int
minJ = 0;
int min = array[0][0];
int max = array[0][0];
for (int i = 0; i < n; ++i) {
for (int j = 0; j < m; ++j) {
if (array[i][j] > max) {
max = array[i][j];
maxJ = j;
}
if (array[i][j] < min) {
min = array[i][j];
minJ = j;
}
}
}
Слайд 19Экзаменационная задача B0 (6)
for (int i = 0; i
n; ++i) {
int tmp = array[i][minJ];
array[i][minJ] = array[i][maxJ];
array[i][maxJ] = tmp;
}
}

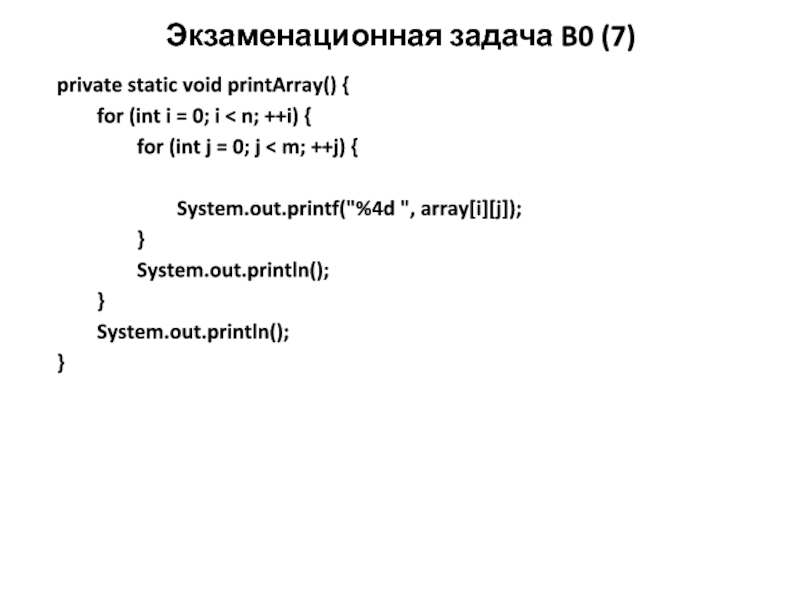

Слайд 20Экзаменационная задача B0 (7)
private static void printArray() {
for (int i
= 0; i < n; ++i) {
for (int j =
0; j < m; ++j) {
System.out.printf("%4d ", array[i][j]);
}
System.out.println();
}
System.out.println();
}

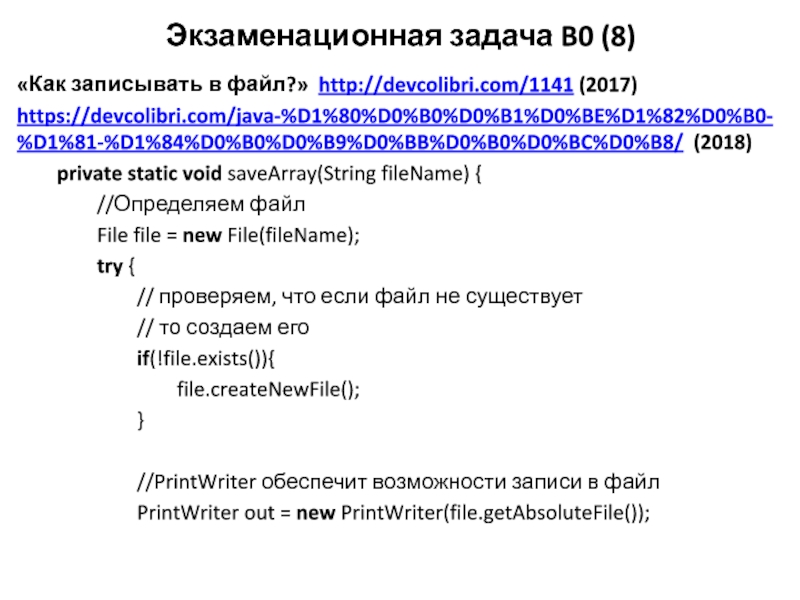

Слайд 21Экзаменационная задача B0 (8)
«Как записывать в файл?» http://devcolibri.com/1141 (2017)
https://devcolibri.com/java-%D1%80%D0%B0%D0%B1%D0%BE%D1%82%D0%B0-%D1%81-%D1%84%D0%B0%D0%B9%D0%BB%D0%B0%D0%BC%D0%B8/ (2018)
private
static void saveArray(String fileName) {
//Определяем файл
File file = new File(fileName);
try
{
// проверяем, что если файл не существует
// то создаем его
if(!file.exists()){
file.createNewFile();
}
//PrintWriter обеспечит возможности записи в файл
PrintWriter out = new PrintWriter(file.getAbsoluteFile());
Слайд 22Экзаменационная задача B0 (9)
try {
out.println(n + " " + m);
for
(int i = 0; i < n; ++i) {
for (int
j = 0; j < m; ++j) {
out.printf("%d ", array[i][j]);
}
out.println();
}
System.out.println();
} finally {
//После чего мы должны закрыть файл
//Иначе файл не запишется
out.close();
}
} catch(IOException e) {
throw new RuntimeException(e);
}
}
}

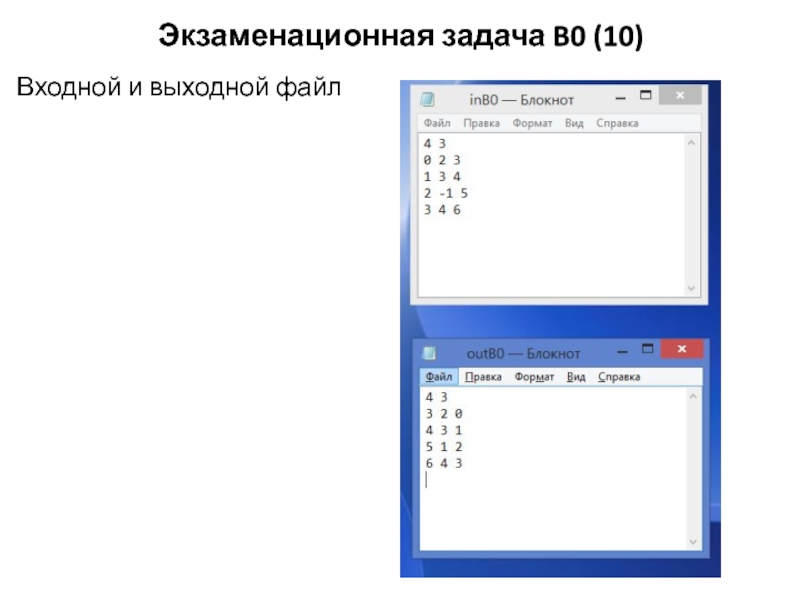

Слайд 23Экзаменационная задача B0 (10)
Входной и выходной файл

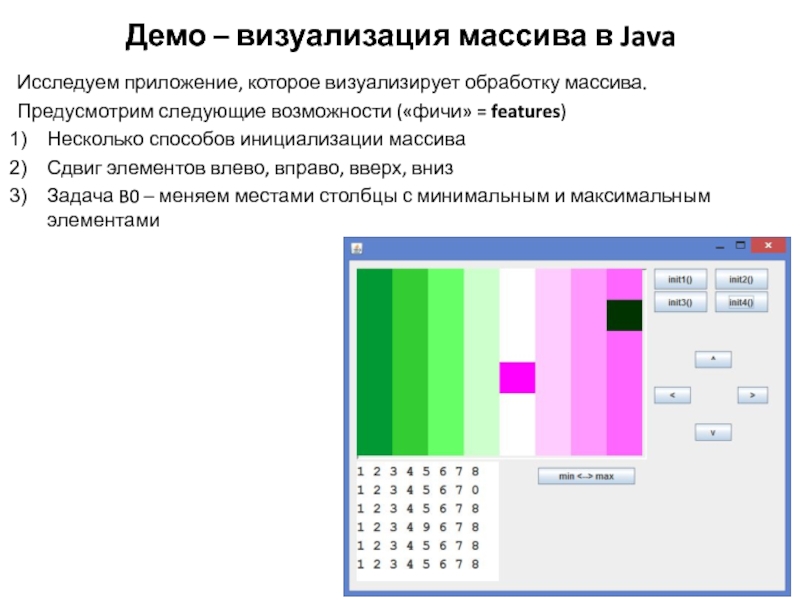

Слайд 24Демо – визуализация массива в Java
Исследуем приложение, которое визуализирует обработку
массива.
Предусмотрим следующие возможности («фичи» = features)
Несколько способов инициализации массива
Сдвиг
элементов влево, вправо, вверх, вниз
Задача B0 – меняем местами столбцы с минимальным и максимальным элементами

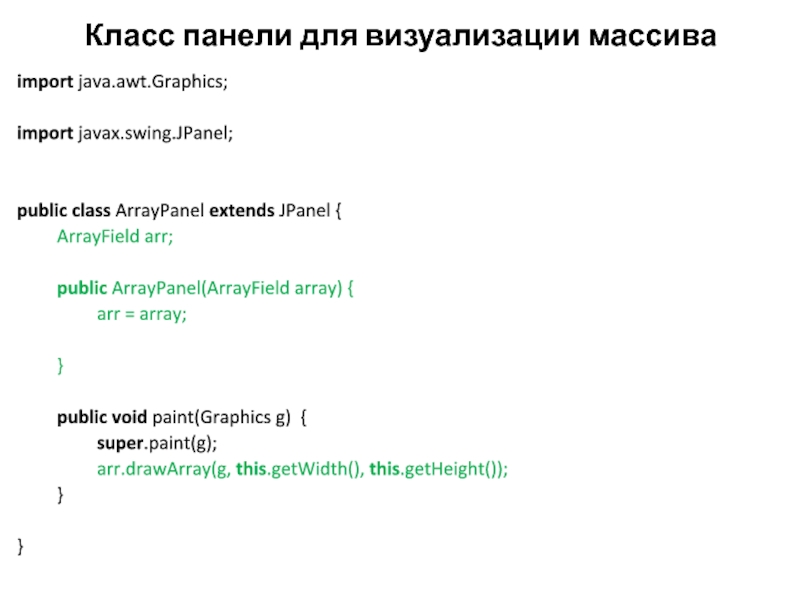

Слайд 25Класс панели для визуализации массива
import java.awt.Graphics;
import javax.swing.JPanel;
public class ArrayPanel extends
JPanel {
ArrayField arr;
public ArrayPanel(ArrayField array) {
arr = array;
}
public void paint(Graphics
g) {
super.paint(g);
arr.drawArray(g, this.getWidth(), this.getHeight());
}
}
Слайд 27Класс главного окна приложения (2)
public class Lect2Win {
private JFrame frame;
private
ArrayField arrayField;
private JPanel panel;
private JButton btnInit_1;
private JButton btnInit_2;
private JButton btnInit_3;
private
JButton buttonUp;
private JButton buttonDown;
private JButton buttonLeft;
private JButton buttonRight;
private JTextArea textArea;
private JButton btnMinmax;
…
Слайд 28Класс главного окна приложения (3)
…
private void initialize() {
frame = new
JFrame();
frame.setBounds(100, 100, 589, 483);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.getContentPane().setLayout(null);
arrayField = new ArrayField();
panel = new ArrayPanel(arrayField);
panel.setBorder(new
BevelBorder(BevelBorder.LOWERED,
null, null, null, null));
panel.setBounds(10, 11, 390, 257);
frame.getContentPane().add(panel);
Слайд 29Класс главного окна приложения (4)
JButton btnInit = new JButton("init1()");
btnInit.addActionListener(new ActionListener()
{
public void actionPerformed(ActionEvent arg0) {
arrayField.init1();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
btnInit.setBounds(410, 11, 71, 28);
frame.getContentPane().add(btnInit);
Слайд 30Класс главного окна приложения (5)
btnInit_1 = new JButton("init2()");
btnInit_1.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.init2();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
btnInit_1.setBounds(492, 11, 71, 28);
frame.getContentPane().add(btnInit_1);
Слайд 31Класс главного окна приложения (6)
btnInit_2 = new JButton("init3()");
btnInit_2.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.init3();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
btnInit_2.setBounds(410, 42, 71, 28);
frame.getContentPane().add(btnInit_2);

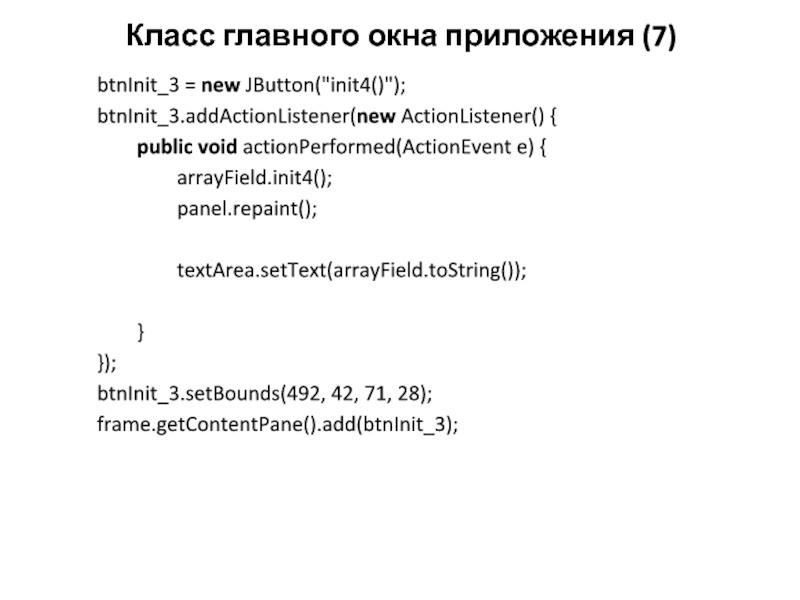

Слайд 32Класс главного окна приложения (7)
btnInit_3 = new JButton("init4()");
btnInit_3.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.init4();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
btnInit_3.setBounds(492, 42, 71, 28);
frame.getContentPane().add(btnInit_3);

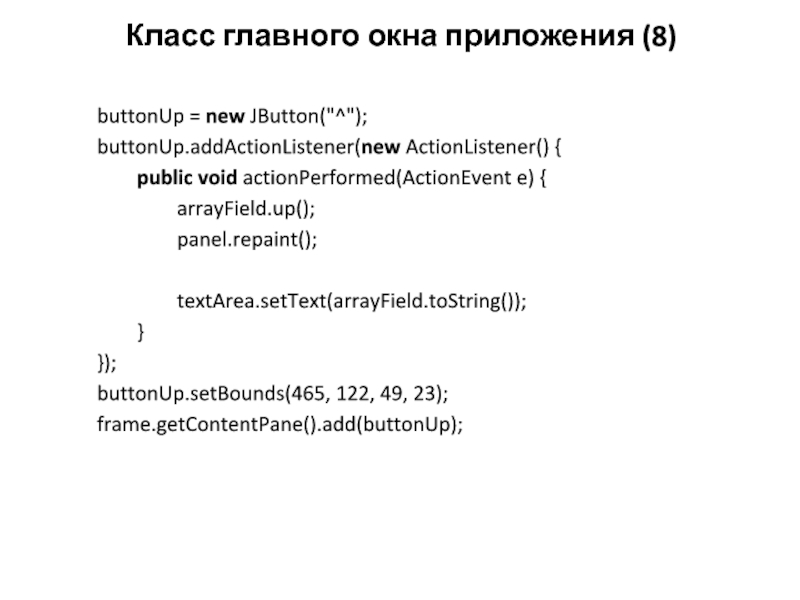

Слайд 33Класс главного окна приложения (8)
buttonUp = new JButton("^");
buttonUp.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.up();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
buttonUp.setBounds(465, 122, 49, 23);
frame.getContentPane().add(buttonUp);
Слайд 34Класс главного окна приложения (9)
buttonDown = new JButton("v");
buttonDown.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.down();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
buttonDown.setBounds(465, 220, 49, 23);
frame.getContentPane().add(buttonDown);

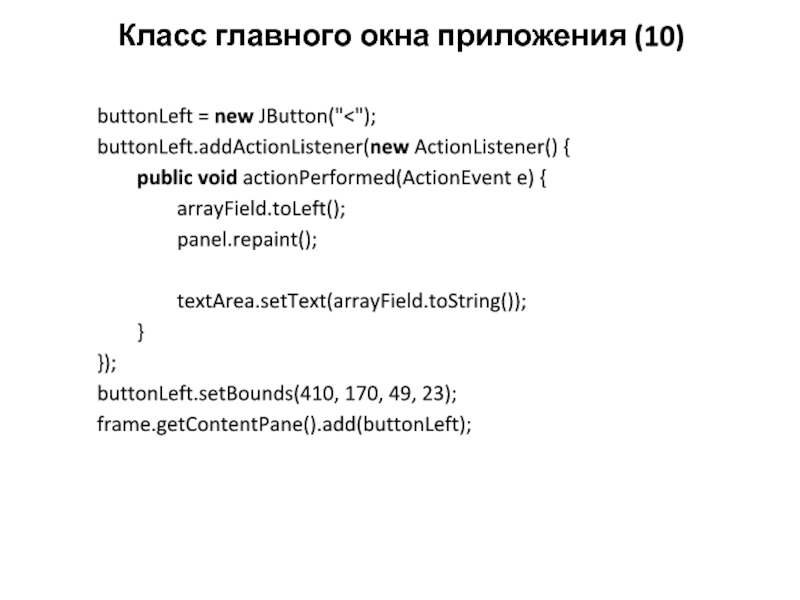

Слайд 35Класс главного окна приложения (10)
buttonLeft = new JButton("
void actionPerformed(ActionEvent e) {
arrayField.toLeft();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
buttonLeft.setBounds(410, 170, 49, 23);
frame.getContentPane().add(buttonLeft);

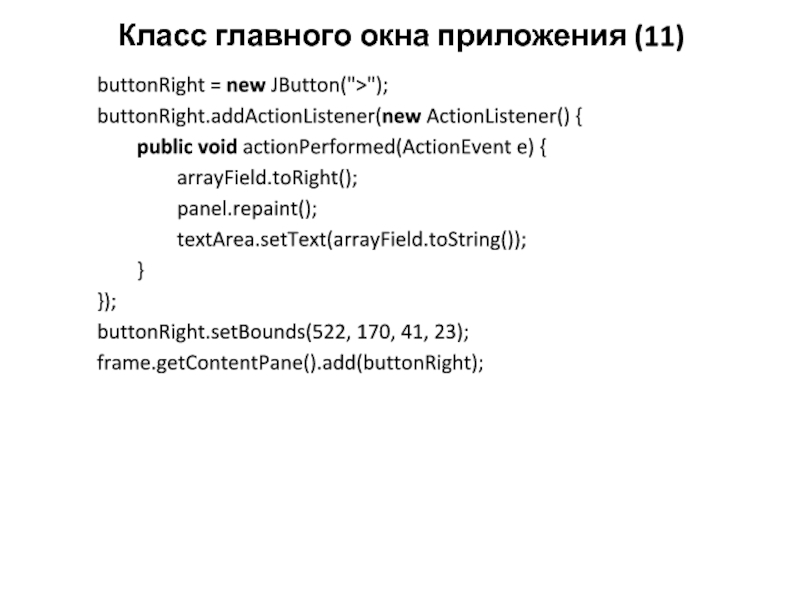

Слайд 36Класс главного окна приложения (11)
buttonRight = new JButton(">");
buttonRight.addActionListener(new ActionListener() {
public
void actionPerformed(ActionEvent e) {
arrayField.toRight();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
buttonRight.setBounds(522, 170, 41, 23);
frame.getContentPane().add(buttonRight);
Слайд 37Класс главного окна приложения (12)
textArea = new JTextArea();
textArea.setFont(new Font("Monospaced", Font.BOLD,
18));
textArea.setBounds(10, 271, 191, 161);
frame.getContentPane().add(textArea);
textArea.setText(arrayField.toString());
btnMinmax = new JButton("min max");
btnMinmax.addActionListener(new ActionListener()
{
public void actionPerformed(ActionEvent e) {
arrayField.replaceMinMaxColumns();
panel.repaint();
textArea.setText(arrayField.toString());
}
});
btnMinmax.setBounds(254, 279, 130, 23);
frame.getContentPane().add(btnMinmax);
}

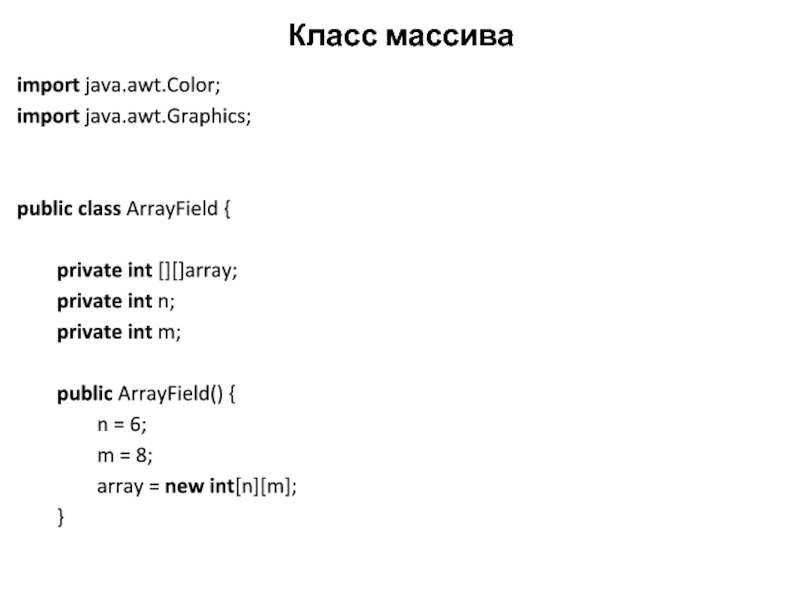

Слайд 38Класс массива
import java.awt.Color;
import java.awt.Graphics;
public class ArrayField {
private int [][]array;
private int
n;
private int m;
public ArrayField() {
n = 6;
m = 8;
array =
new int[n][m];
}

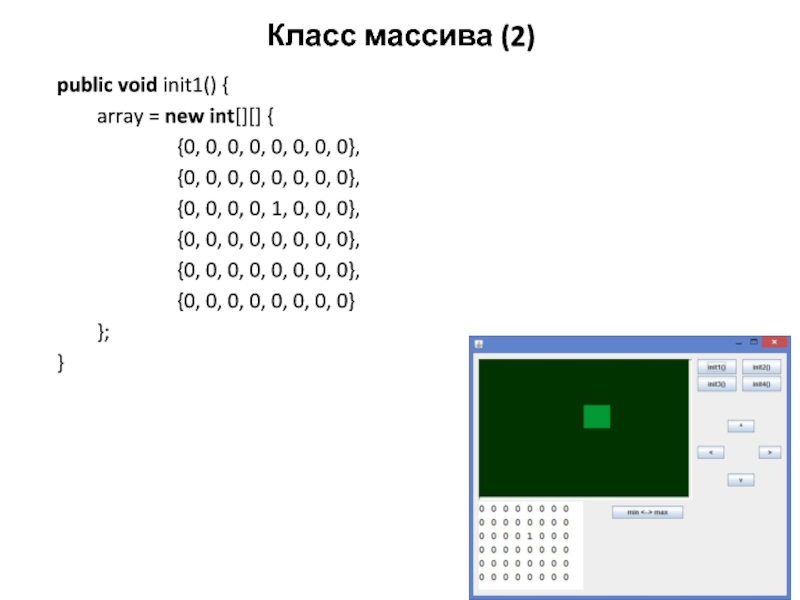

Слайд 39Класс массива (2)
public void init1() {
array = new int[][] {
{0,
0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0,
0, 0, 0, 0},
{0, 0, 0, 0, 1, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0, 0}
};
}
Слайд 40Класс массива (3)
public void init2() {
array = new int[][] {
{0,
0, 0, 0, 1, 0, 0, 0},
{0, 0, 0, 0,
1, 0, 0, 0},
{0, 0, 1, 1, 1, 1, 1, 0},
{0, 0, 0, 0, 1, 0, 0, 0},
{0, 0, 0, 0, 1, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0, 0}
};
}
public void init3() {
array = new int[][] {
{0, 0, 1, 0, 0, 0, 0, 0},
{0, 1, 1, 0, 0, 0, 0, 1},
{0, 0, 1, 0, 0, 0, 1, 0},
{0, 0, 0, 0, 0, 1, 0, 0},
{0, 0, 0, 0, 0, 0, 1, 0},
{0, 0, 0, 0, 0, 0, 0, 1}
};
}
Слайд 41Класс массива (4)
public void init4() {
array = new int[][] {
{1,
2, 3, 4, 5, 6, 7, 8},
{1, 2, 3, 4,
5, 6, 7, 0},
{1, 2, 3, 4, 5, 6, 7, 8},
{1, 2, 3, 4, 9, 6, 7, 8},
{1, 2, 3, 4, 5, 6, 7, 8},
{1, 2, 3, 4, 5, 6, 7, 8}
};
}
Слайд 42Класс массива (5)
public void toLeft() {
for (int i = 0;
i < n; i++) {
for (int j = 1; j
< m; j++) {
array[i][j - 1] = array[i][j];
}
}
}
public void toRight() {
for (int i = 0; i < n; i++) {
for (int j = m - 1; j > 0; j--) {
array[i][j] = array[i][j - 1];
}
}
}
Слайд 43Класс массива (6)
public void down() {
for (int i = n
- 1; i > 0; i--) {
for (int j =
0; j < m; j++) {
array[i][j] = array[i - 1][j];
}
}
}
public void up() {
for (int i = 0; i < n - 1; i++) {
for (int j = 0; j < m; j++) {
array[i][j] = array[i + 1][j];
}
}
}
Слайд 44Класс массива (7)
public void replaceMinMaxColumns () {
int maxJ = 0;
int
minJ = 0;
int min = array[0][0];
int max = array[0][0];
for (int
i = 0; i < n; ++i) {
for (int j = 0; j < m; ++j) {
if (array[i][j] > max) {
max = array[i][j];
maxJ = j;
}
if (array[i][j] < min) {
min = array[i][j];
minJ = j;
}
}
}
for (int i = 0; i < n; ++i) {
int tmp = array[i][minJ];
array[i][minJ] = array[i][maxJ];
array[i][maxJ] = tmp;
}
}

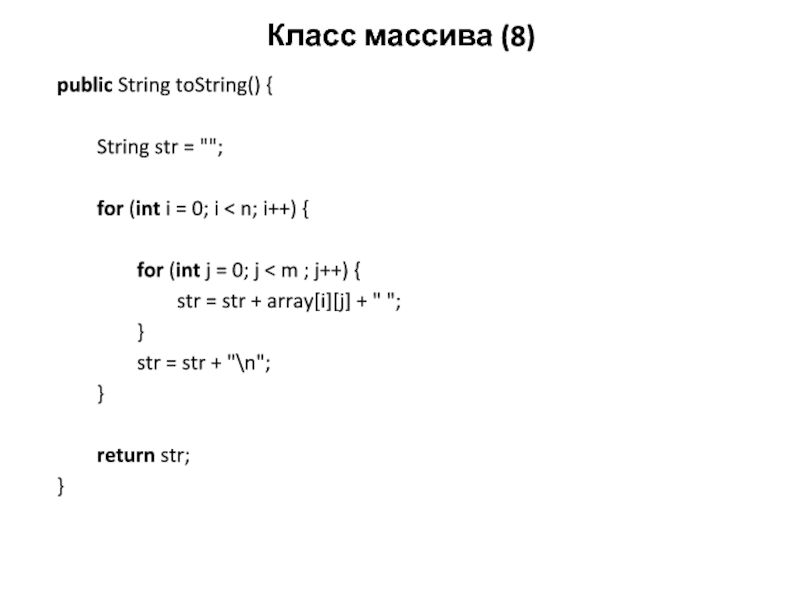

Слайд 45Класс массива (8)
public String toString() {
String str = "";
for (int
i = 0; i < n; i++) {
for (int j
= 0; j < m ; j++) {
str = str + array[i][j] + " ";
}
str = str + "\n";
}
return str;
}

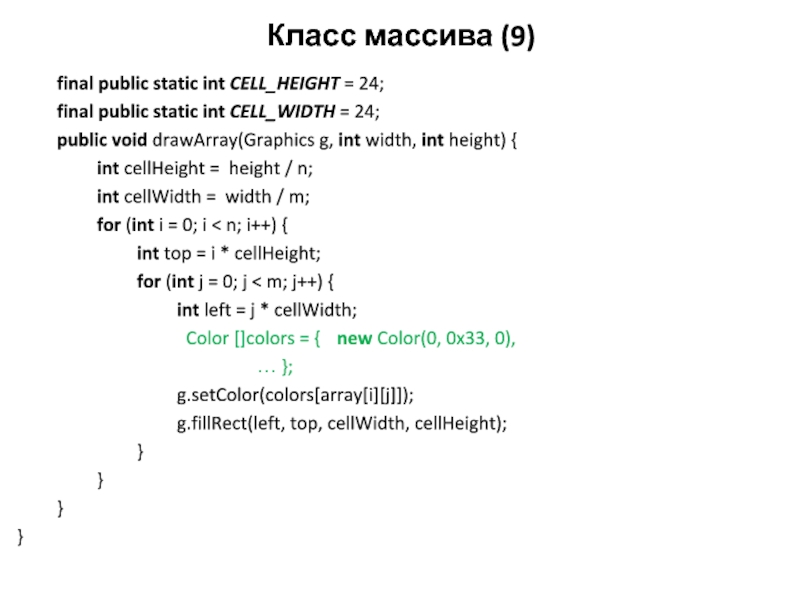

Слайд 46Класс массива (9)
final public static int CELL_HEIGHT = 24;
final public
static int CELL_WIDTH = 24;
public void drawArray(Graphics g, int width,
int height) {
int cellHeight = height / n;
int cellWidth = width / m;
for (int i = 0; i < n; i++) {
int top = i * cellHeight;
for (int j = 0; j < m; j++) {
int left = j * cellWidth;
Color []colors = { new Color(0, 0x33, 0),
… };
g.setColor(colors[array[i][j]]);
g.fillRect(left, top, cellWidth, cellHeight);
}
}
}
}
Слайд 47Цветовая палитра
Color []colors = {
new Color(0, 0x33, 0),
new Color(0, 0x99,
0x33),
new Color(0x33, 0xCC, 0x33),
new Color(0x66, 0xFF, 0x66),
new Color(0xCC, 0xFF, 0xCC),
new
Color(0xFF, 0xFF, 0xFF),
new Color(0xFF, 0xCC, 0xFF),
new Color(0xFF, 0x99, 0xFF),
new Color(0xFF, 0x66, 0xFF),
new Color(0xFF, 0x00, 0xFF),
new Color(0xCC, 0x00, 0xCC),
new Color(0x66, 0x00, 0x66)
};
«Палитра цветов с кодировкой» -http://www.liveinternet.ru/users/4462189/rubric/2263007/

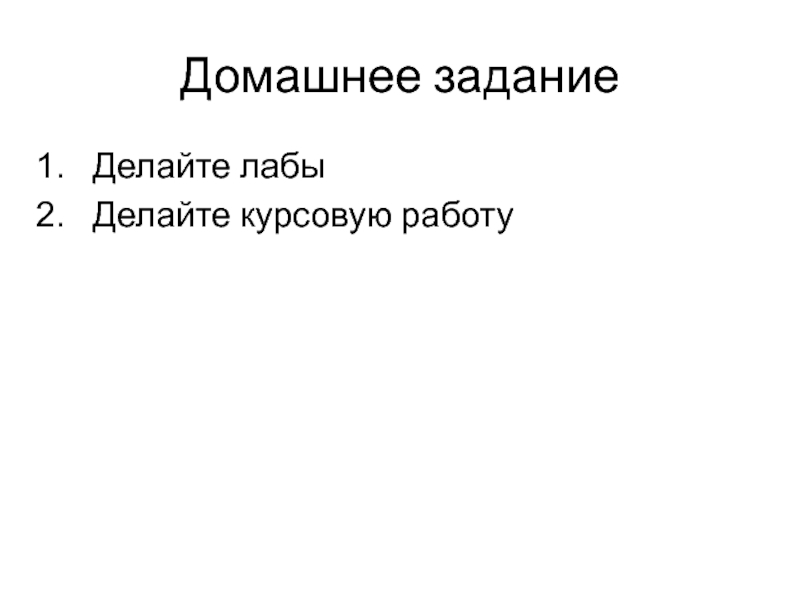

Слайд 48Домашнее задание
Делайте лабы
Делайте курсовую работу
Слайд 49Ссылки
Регулярные выражения в Java - http://www.quizful.net/post/Java-RegExp
Чтение матриц из текстового файл
- Java SE - http://www.cyberforum.ru/java-j2se/thread269776.html
«Как записывать в файл?» -
https://devcolibri.com/java-%D1%80%D0%B0%D0%B1%D0%BE%D1%82%D0%B0-%D1%81-%D1%84%D0%B0%D0%B9%D0%BB%D0%B0%D0%BC%D0%B8/
